Thread: MSI Z77IA-E53 [ITX] Review!

  1. #1
    poor_poor is offline Junior Member
    Join Date
    Dec 2012
    Location
    Singapore
    Posts
    50

    Default MSI Z77IA-E53 [ITX] Review!

    MSI Z77IA-E53 [ITX] Review





    Specification:
    Support for Intel Core™ Celeron/i3/i5/i7 processors [LGA1155]
    Intel® Z77 Express Chipset
    Memory:
    2 x 1.5V DDR3 DIMM supporting up to 16 GB of system memory
    Audio:
    Realtek ALC892 High Definition Audio codec 8-channel
    Network:
    Realtek 8111E GbE
    Atheros AR9271 Wireless
    Atheros AR3011 Bluetooth 3.0+HS
    Expansion Slots
    1x PCI Express 3.0 x16
    1x Mini-PCIe
    Storage Interface:
    2 x SATA 6Gb/s
    2 x SATA 3Gb/s
    1x MSATA 3Gb/s
    Form Factor: ITX


    Testing Spec:
    Intel i7 3770K + Corsair H60 cooling
    G.Skill F3-2133C9D-8GAB [4gbx2]
    Hynix SSD 128Gb Sata 3
    ADATA MSSD 30Gb [Paging file usage]
    FSP HEXA HE-500w
    Windows 7 64bits Ultimate [installed all update]
    --------------------------------------------------------------------------------


    Let's Show Hand!:

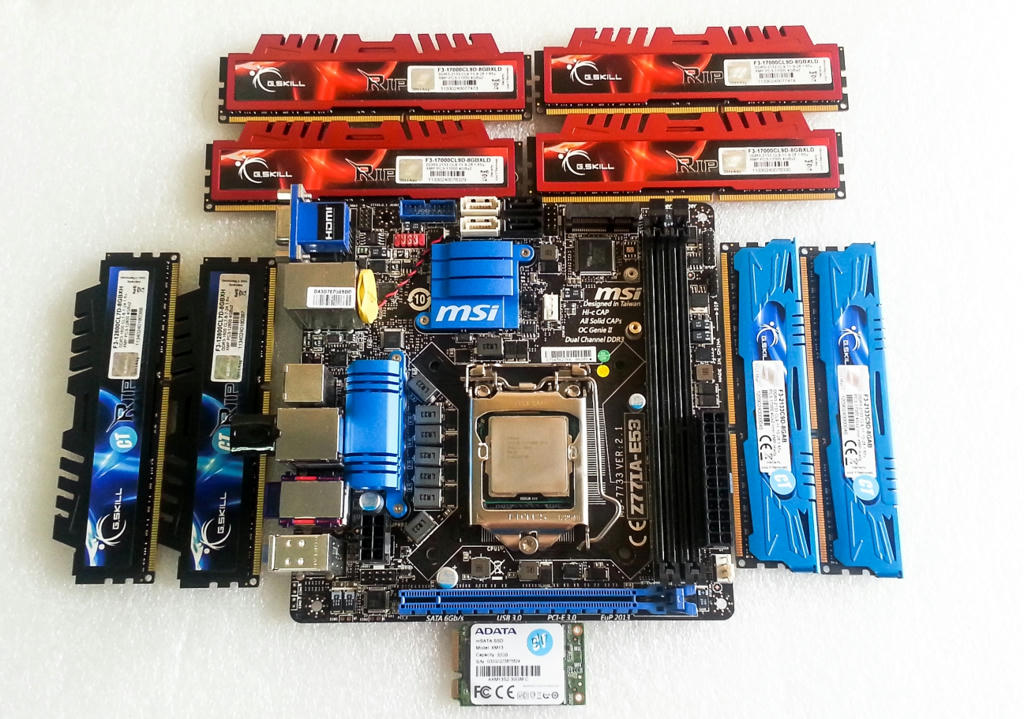

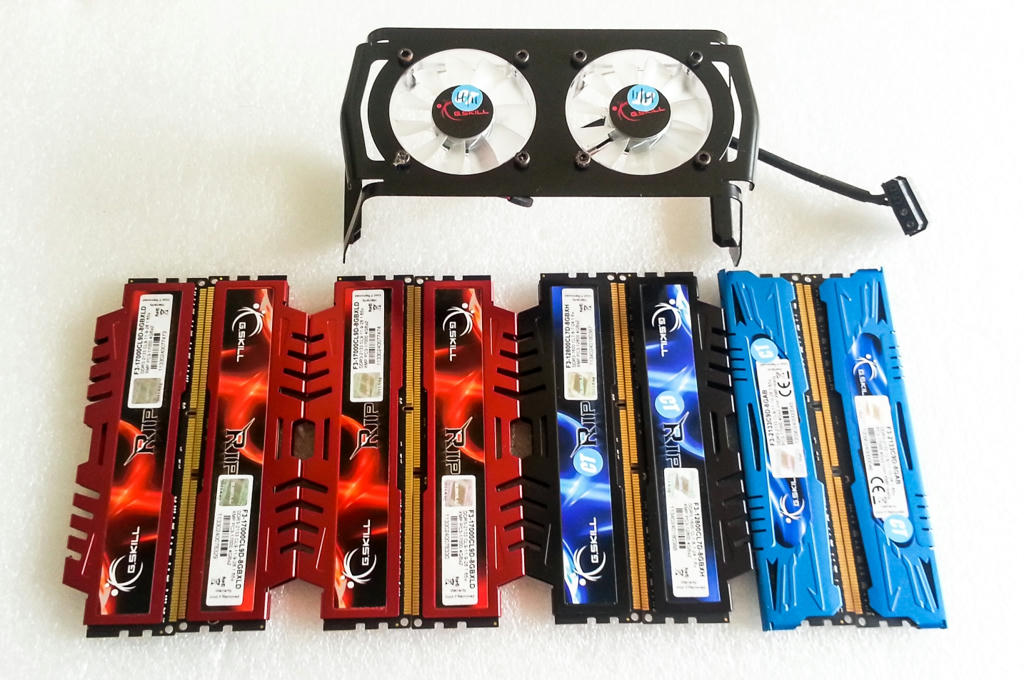

    G.Skill ram!

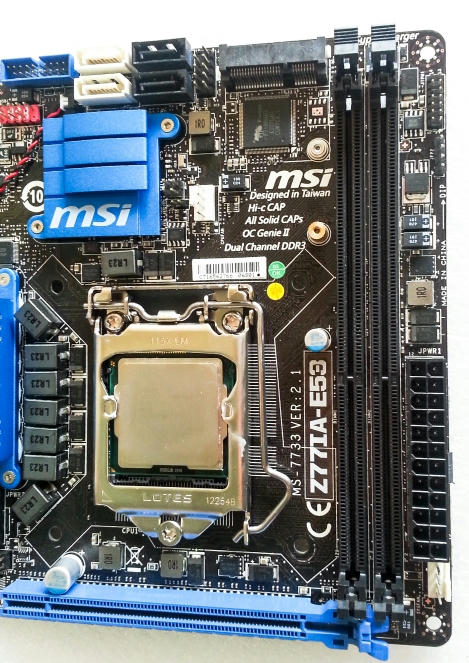

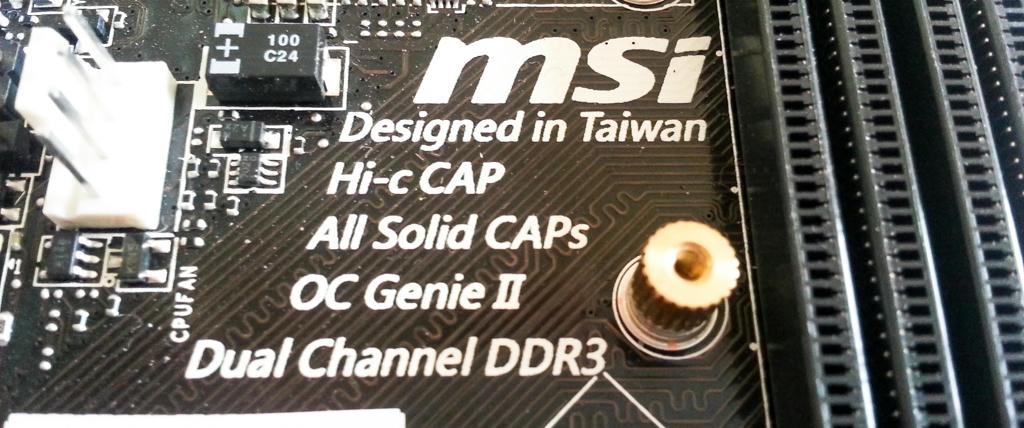

    Design in Taiwan! Used Military Class II: Hi-c Cap/ All Solid Caps
    and OC Genie II

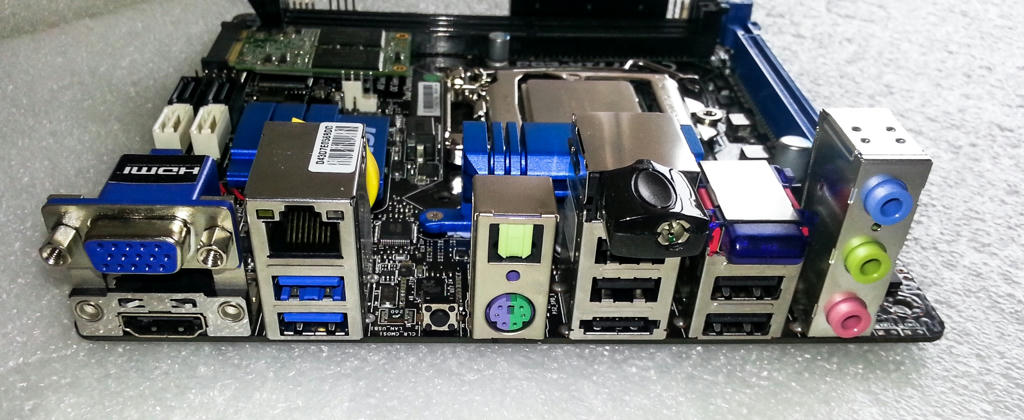

    I/O: D-Sub l HDMI l 2x Intel USB 3.0 l 1x Lan l 5x USB 2.0 l ESata l PS/2 l Wireless/Bluetooth

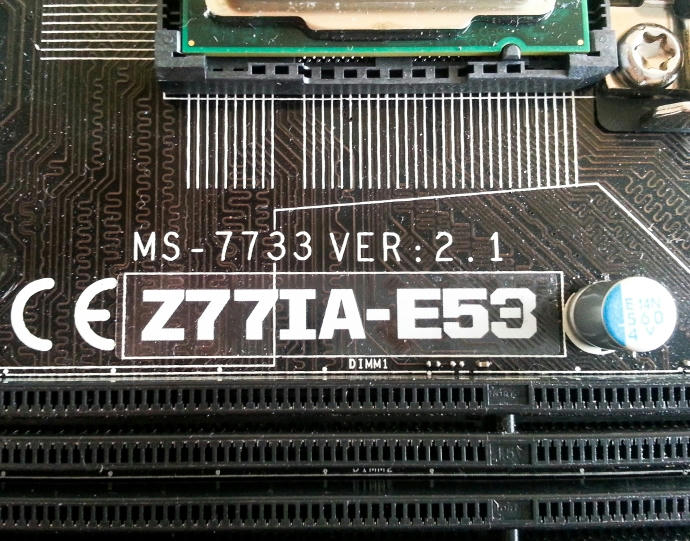

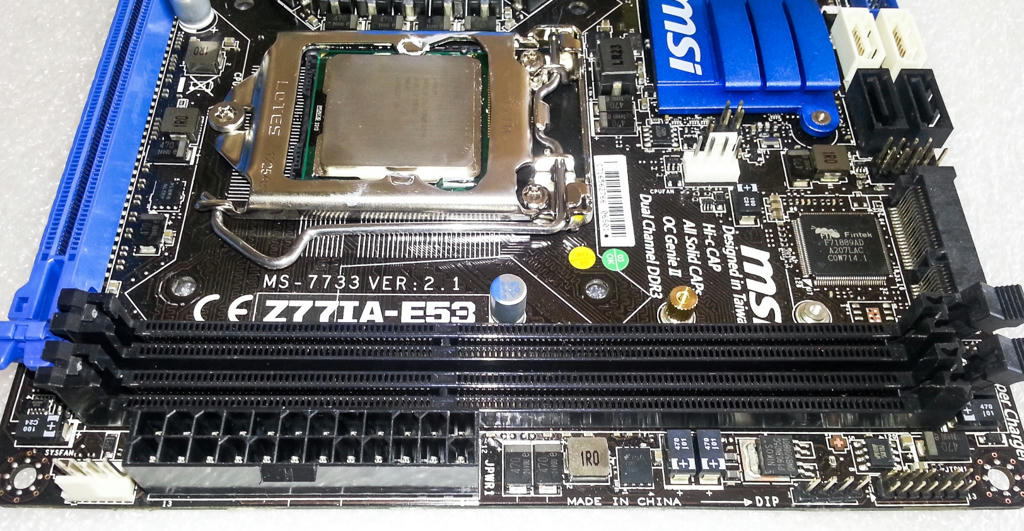

    Model: Z77IA-E53!



    Small brother! Intel Celeron G540 @2.50Ghz

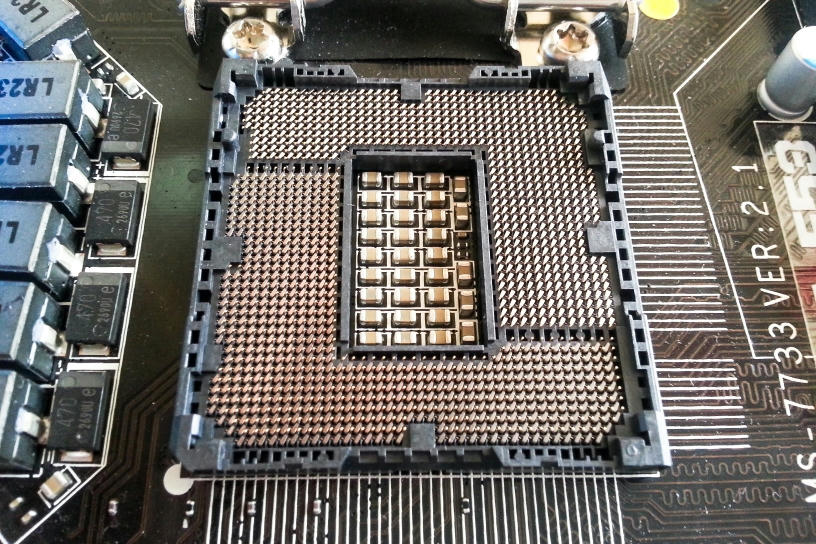

    Intel LGA 1155 Socket! Socket Pin



    Left: Mini-PCI-E l Center: Black: Sata 2/ White: Sata 3 l Right: Intel USB 3.0 19Pin

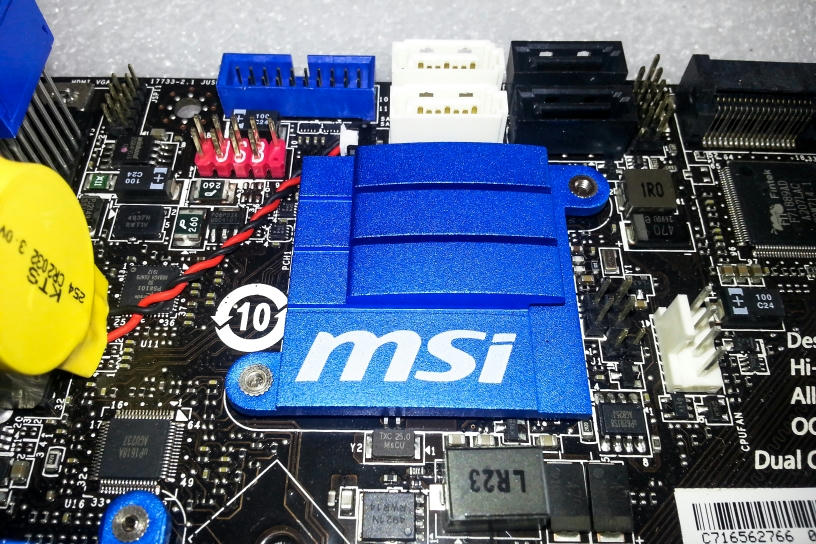

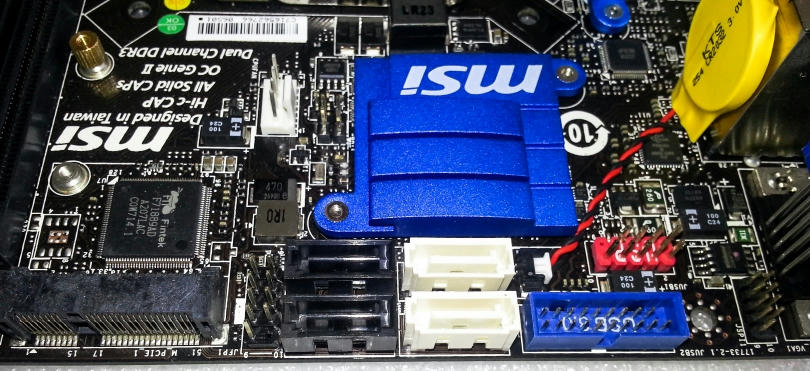

    Blue PCH Heat Sink, small and slim!

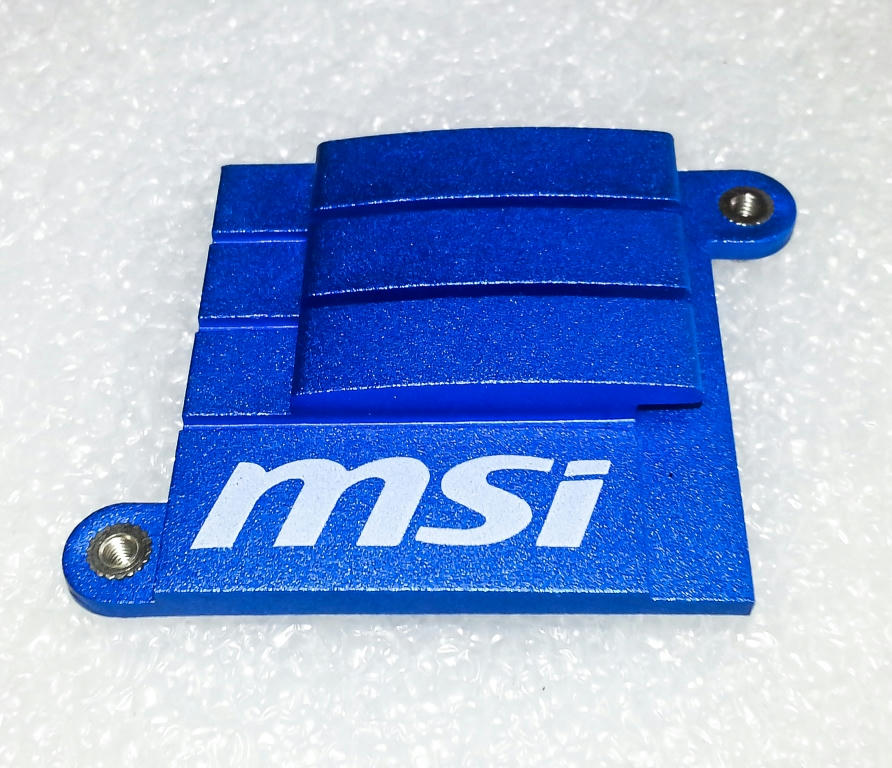

    PCH Heat Sink

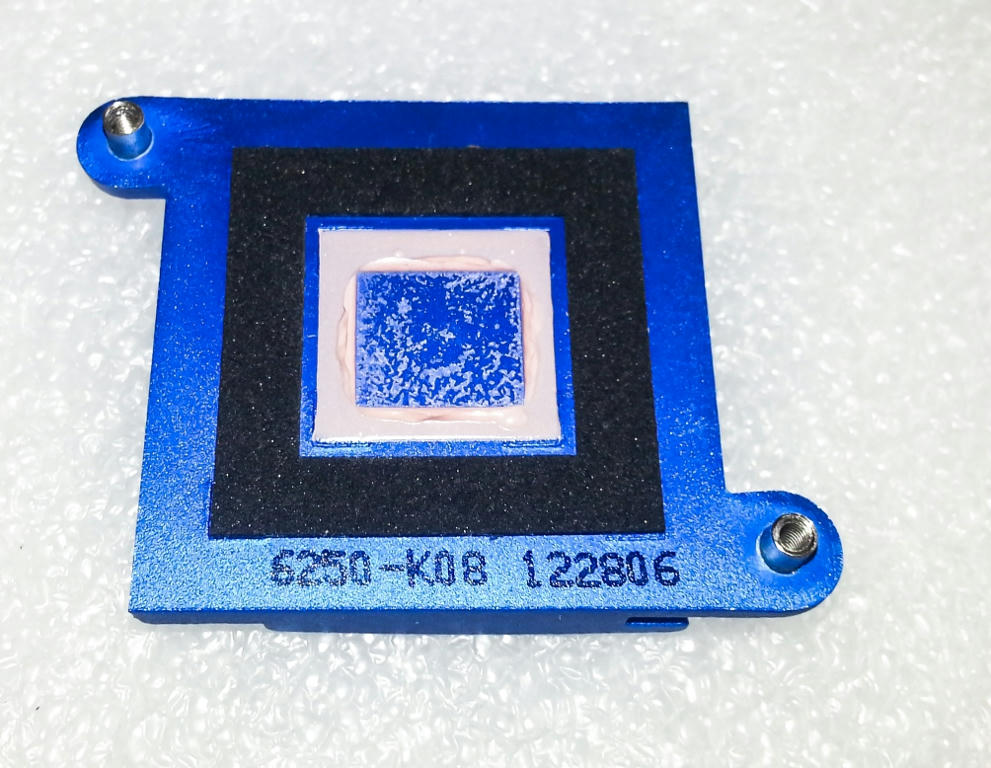

    PCH Heat Sink Back

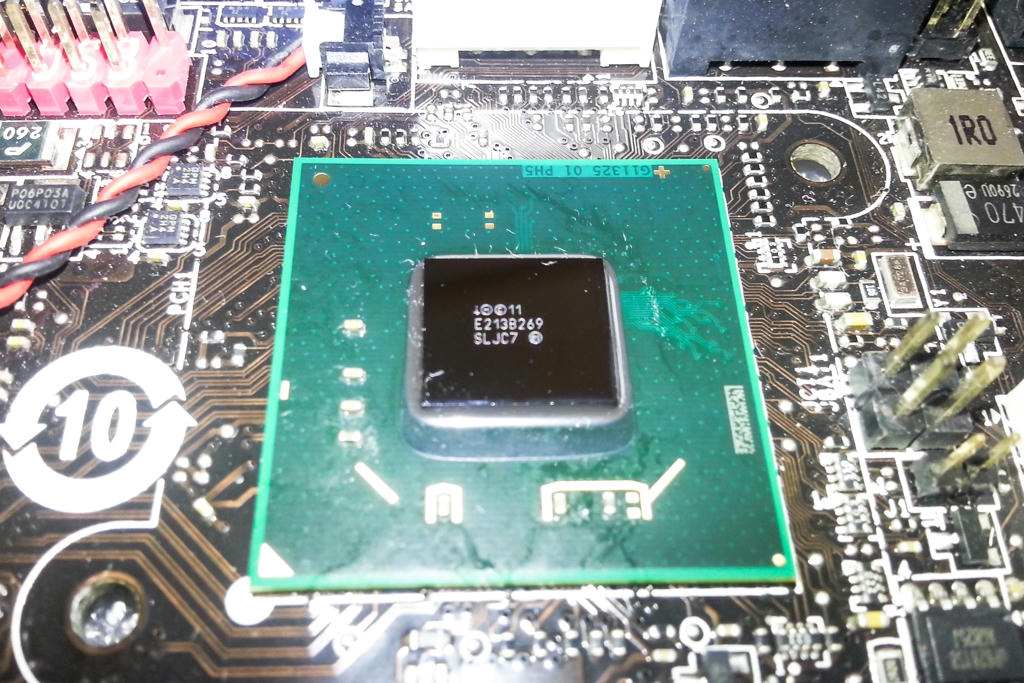

    Intel Z77 Express Chipset PCH

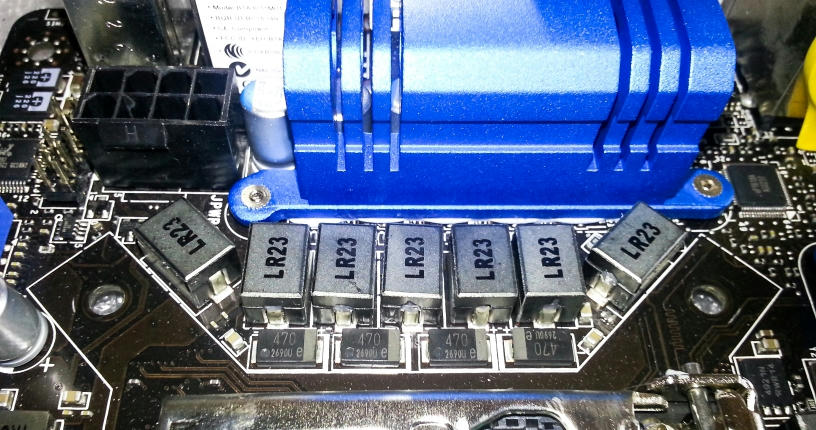

    CPU Power Phase: 6+1+1 Digital Power Phase




    Remove CPU VRM Heat Sink

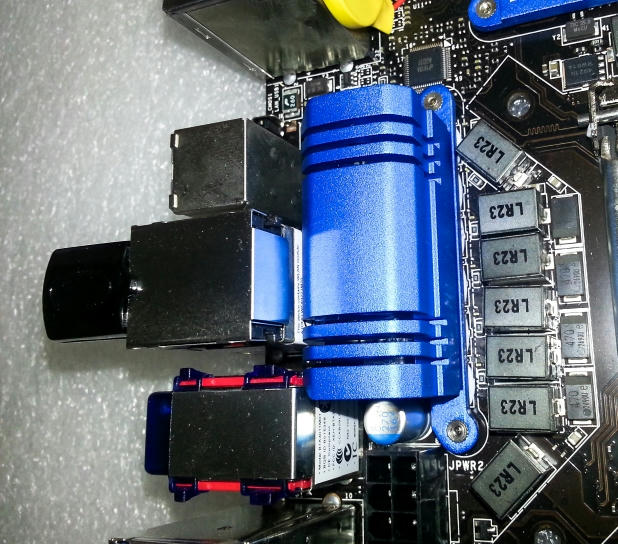

    CPU VRM Heat Sink!

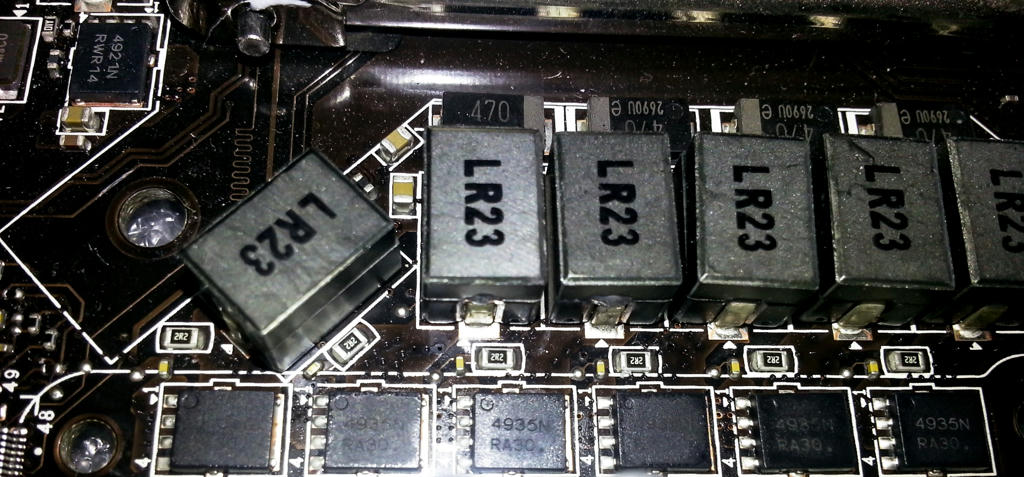

    93A Mosfet 4935N RA30 [30 V, 93 A, Single N−Channel]

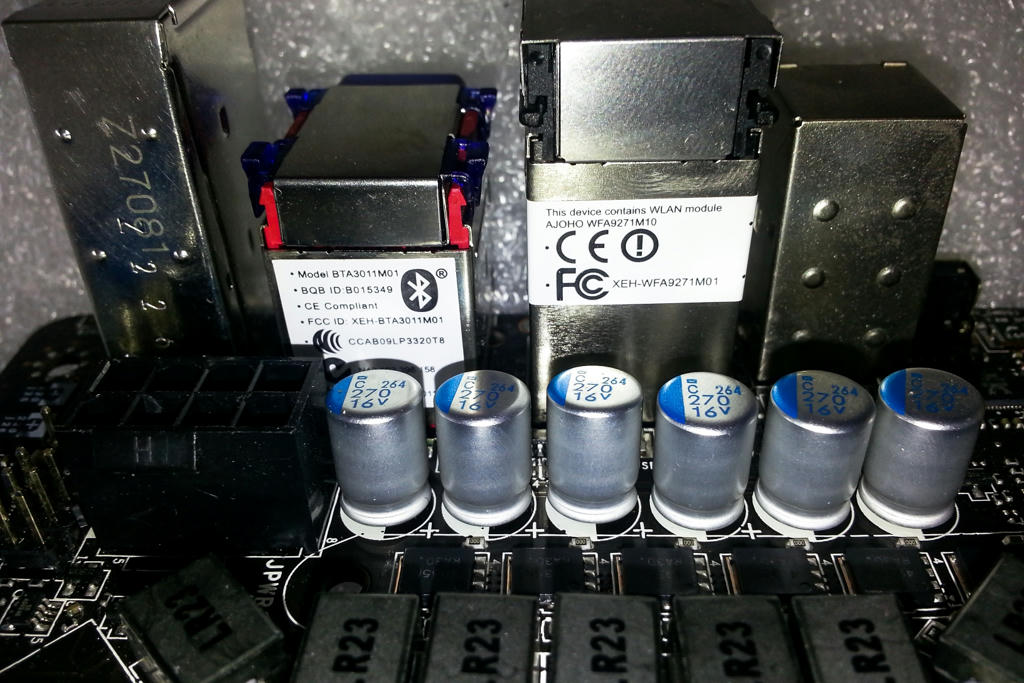

    MSI Used CHEMI-CON Japanese Solid Capacitor



    Left White Sticker: Atheros AR3011 Bluetooth 3.0+HS
    Right White Sticker: Atheros Atheros AR9271 Wireless



    Let do a Refresh again!
    2-Dimm DDR3 1.5v Slot
    This board only has 2 Fan power pin

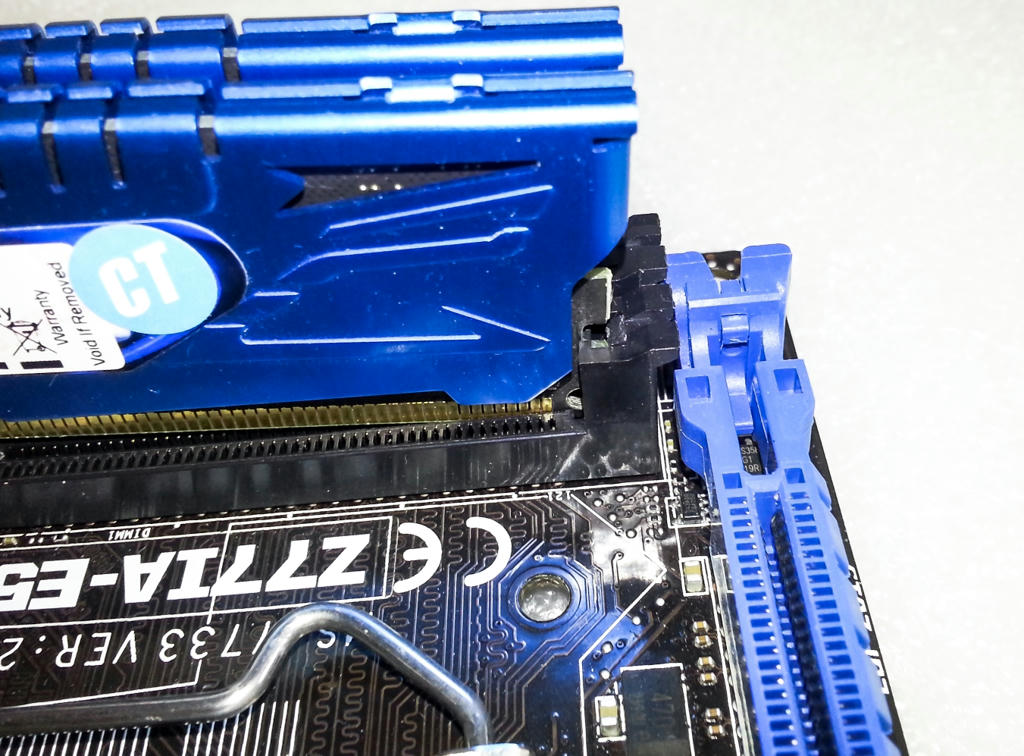

    MSI innovation design a non-clip DDR3 ram slot, very close to PCI-E slot and don't require to lock the ram using this clip.



    other side of the ram slot, close the clip to lock the ram

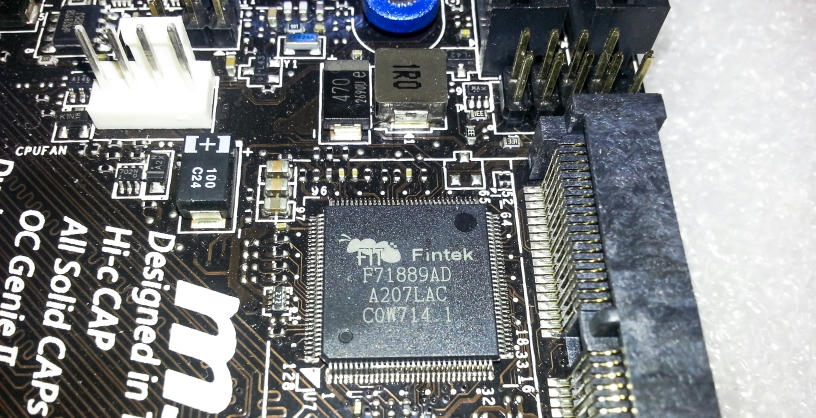

    MSI Used Fintek F71889AD I/O Controller [They used same Controller in MSI X79 Big Bang XPower II]
    Fintek F71889AD: voltage monitoring, controlling fan speeds and temperature monitoring.

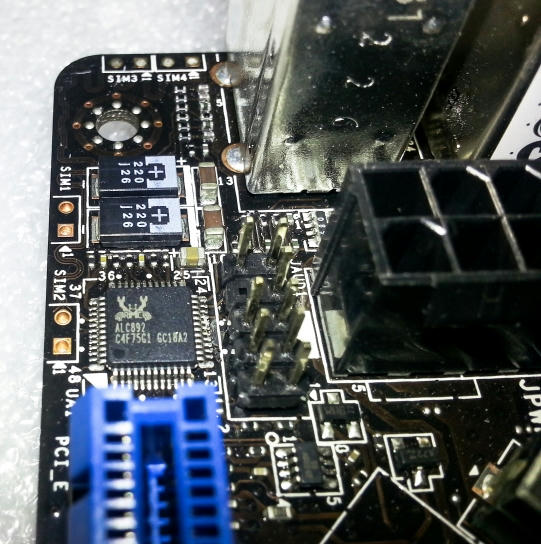

    Realtek ALC892 High Definition Audio 8-Channel

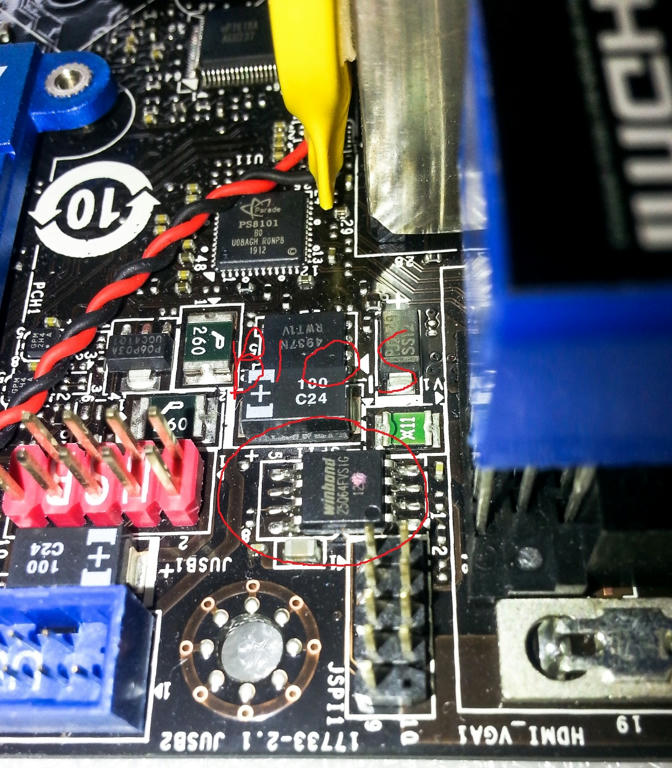

    Single Bios Chip Winbond 25Q64FVS1G [Sorry for unclear photo]

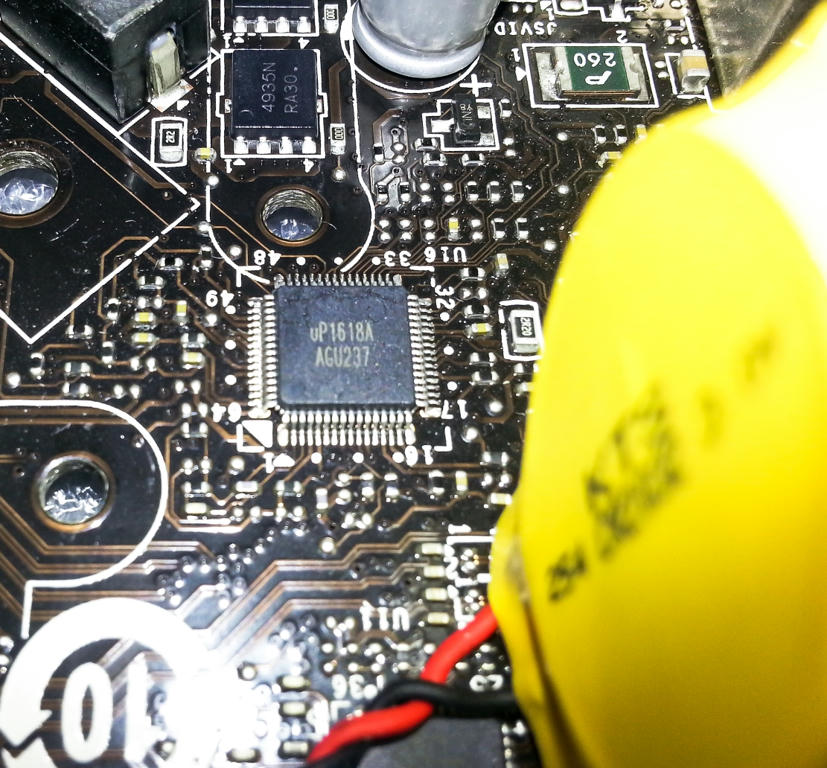

    uP1618 6+2 Phase Buck Controller

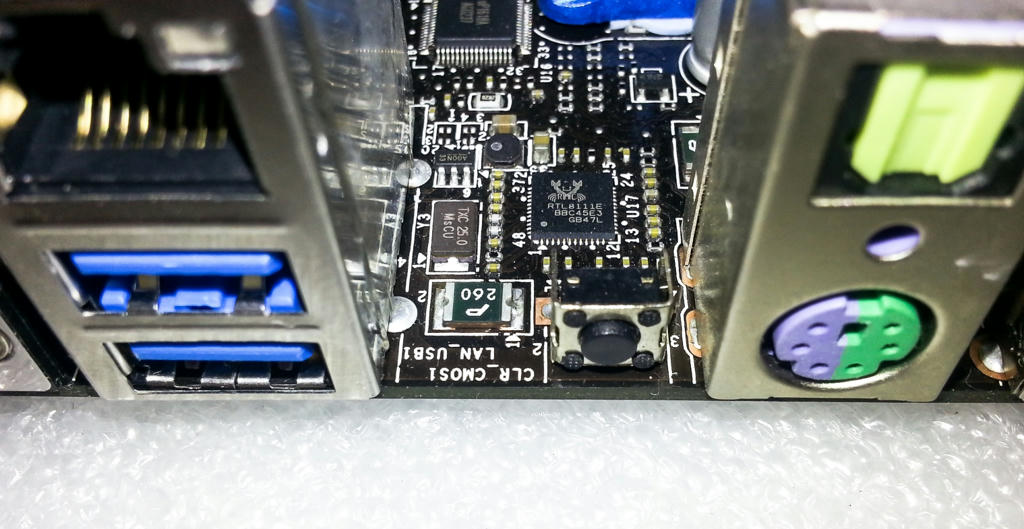

    Clear Cmos I/O

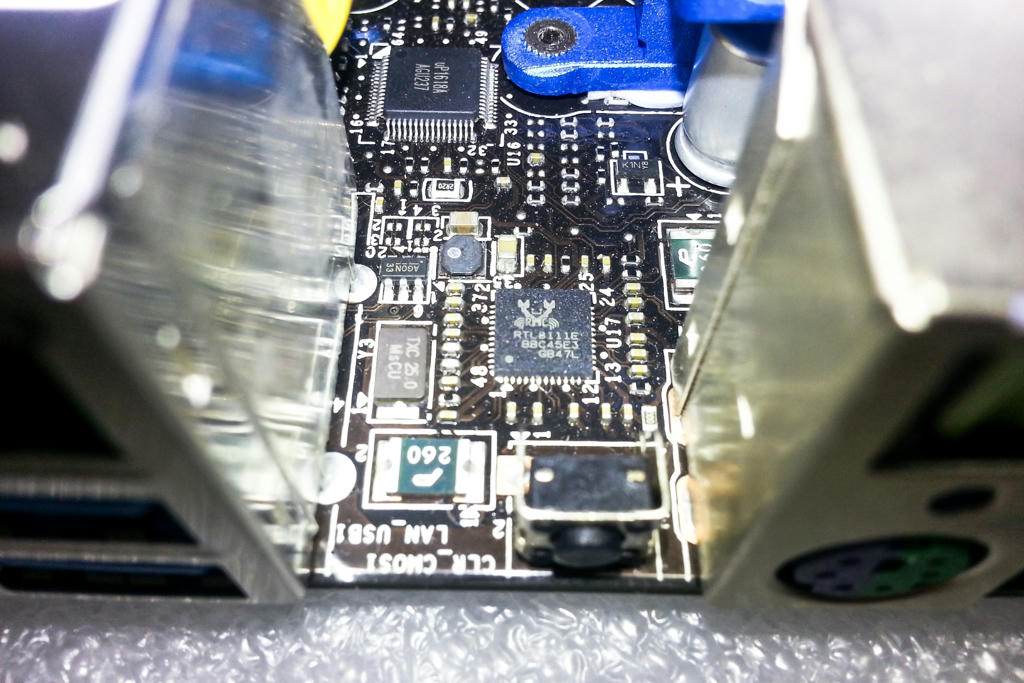

    Realtek GBs RTL 8111E NIC

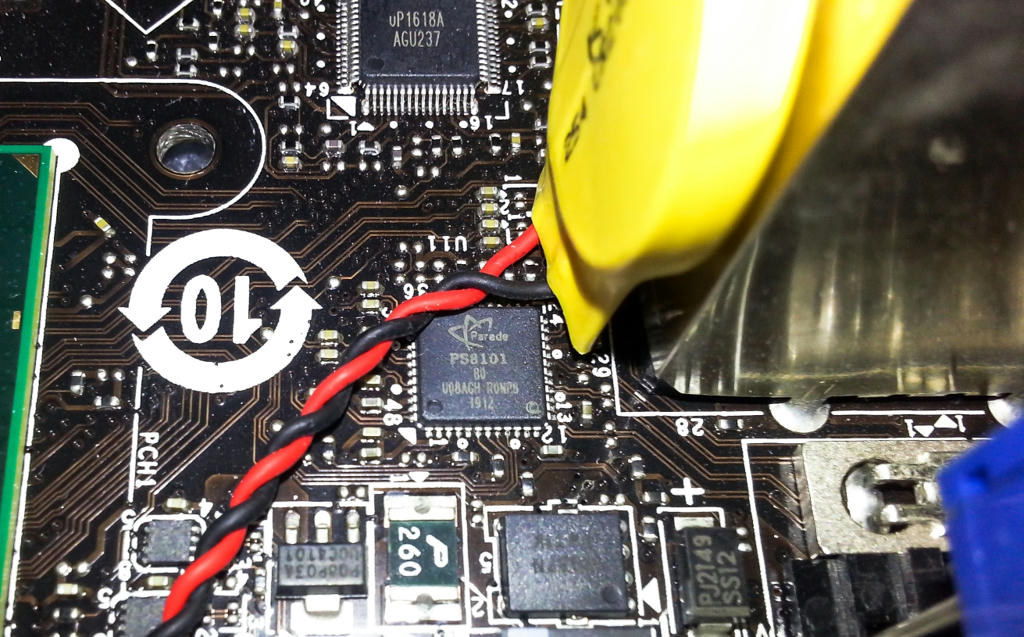

    PS8101 integrates 1-to-1 HDMI output

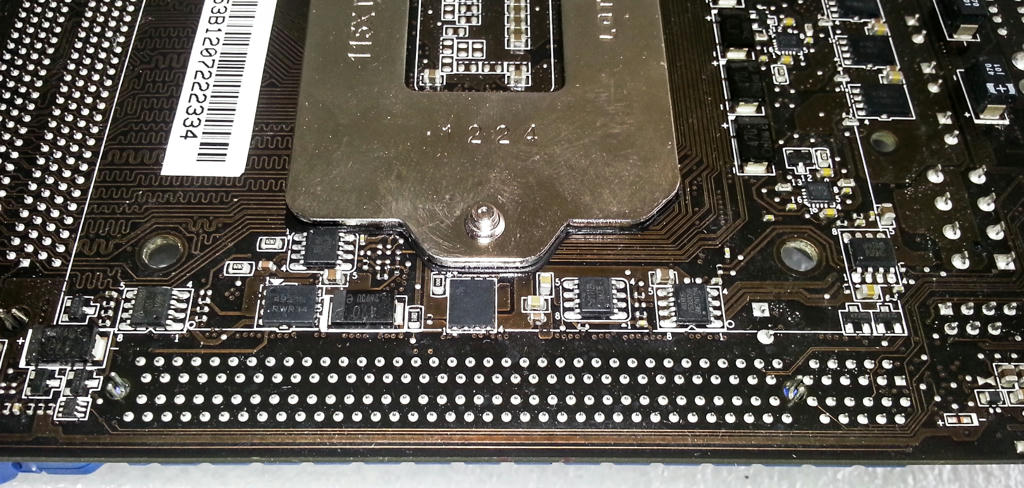

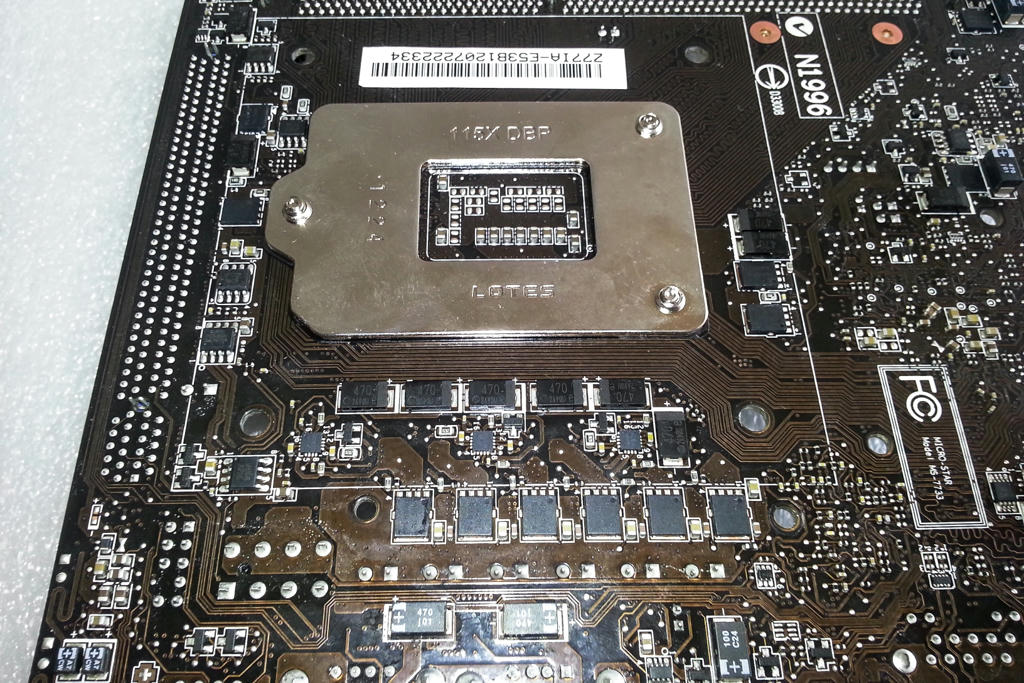

    Behind PCB CPU VRM 4935N



    PCI-E 16x full flag

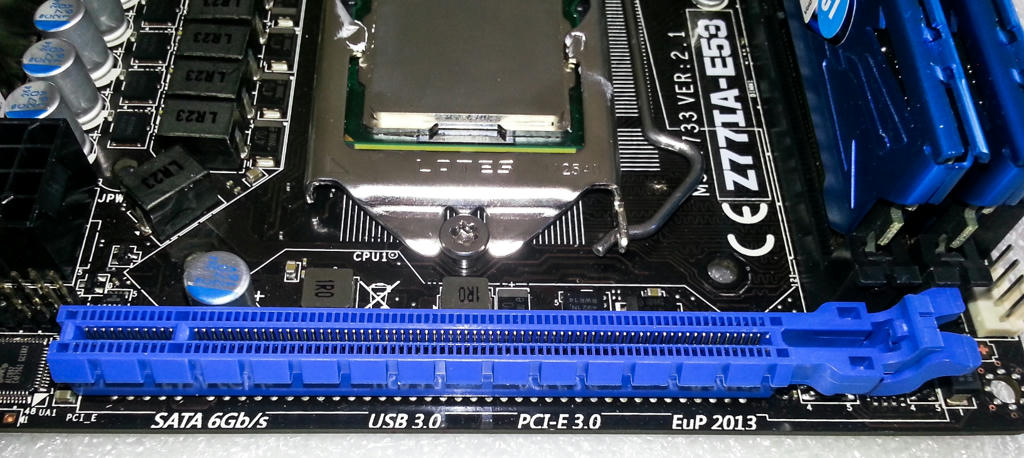

    PCI-Express 3.0 Slot

  2. #2
    poor_poor is offline Junior Member
    Join Date
    Dec 2012
    Location
    Singapore
    Posts
    50

    Default Re: MSI Z77IA-E53 [ITX] Review!

    OverClocking & Benchmark Testing

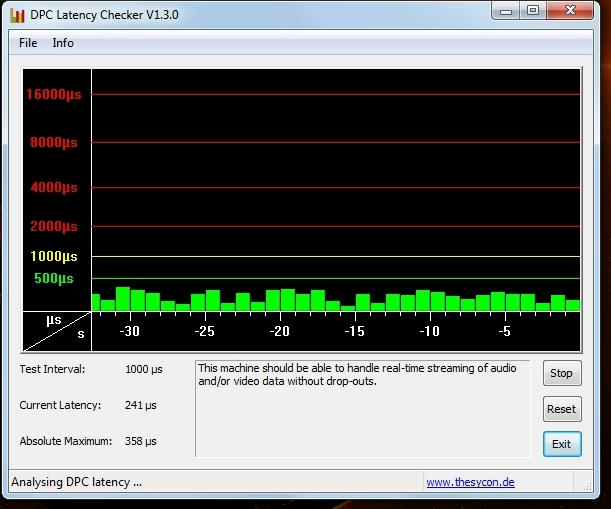

    DPC Latency Checker

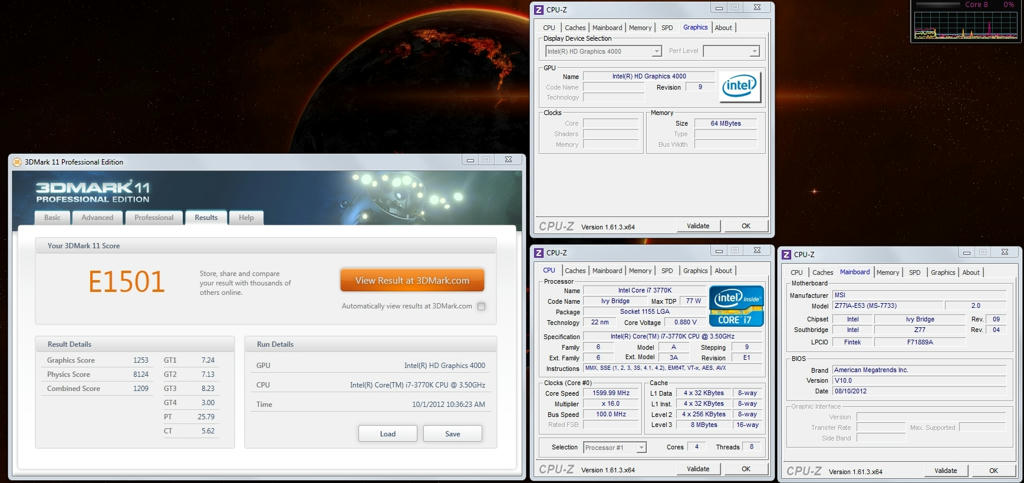

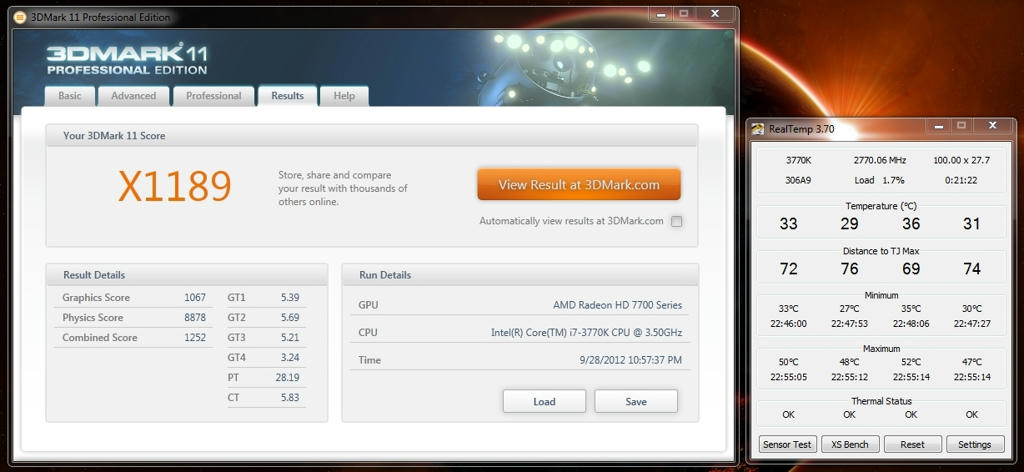

    3DMark11 Extreme mode: Intel Core i7 3770k Stock Speed w HD4000


    3DMark11 Entry mode: Intel Core i7 3770k Stock Speed w HD4000

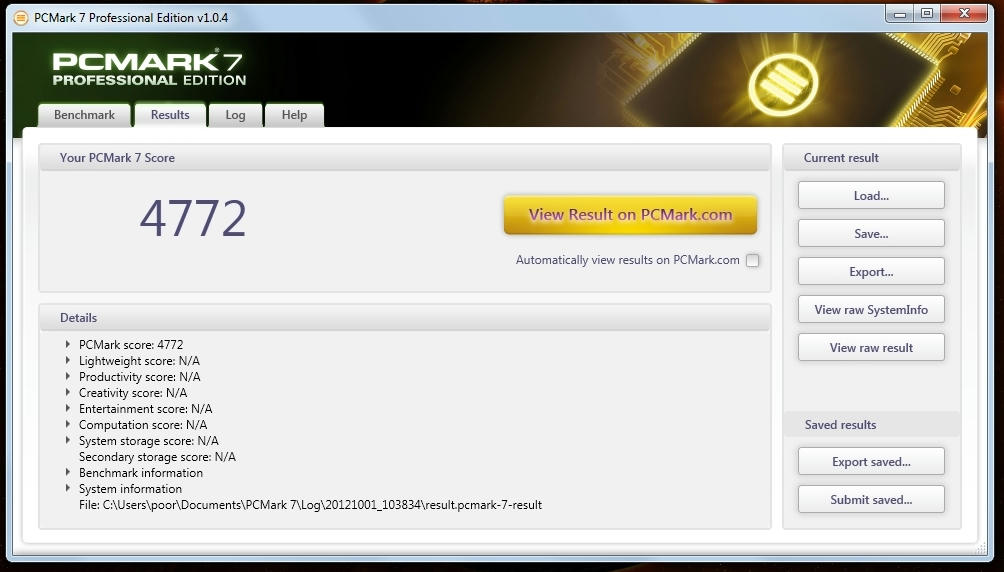

    PCMark7: Stock Speed

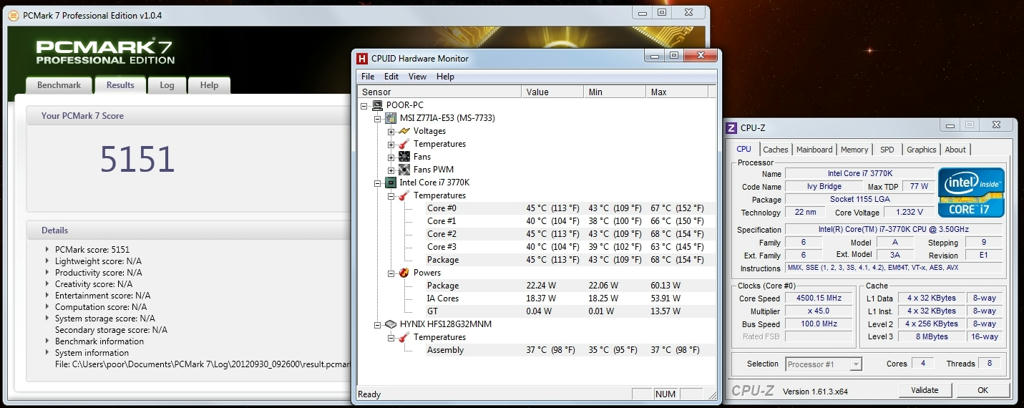

    PCMark7: Overclock: 4.5Ghz 4Cores 8 Threads

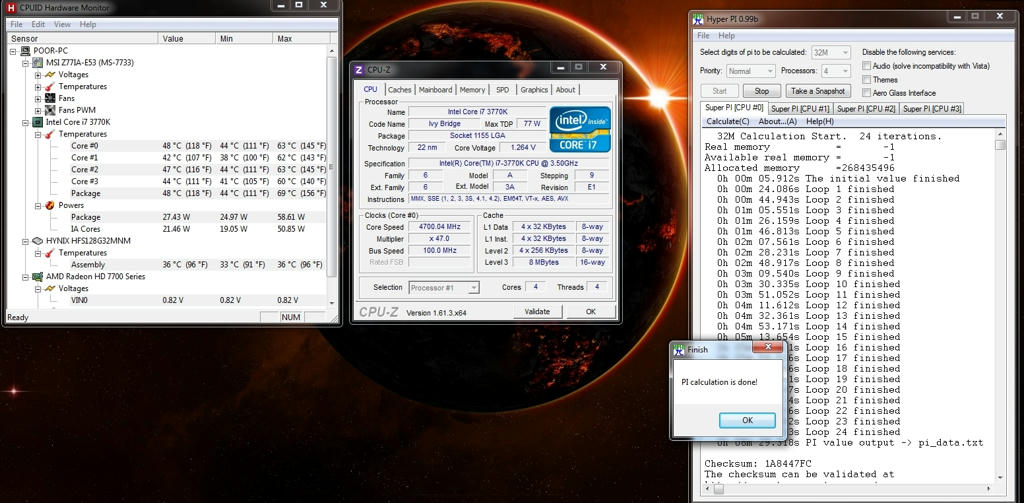

    Hyper PI: Overclock 4.7Ghz 4Cores 8Threads

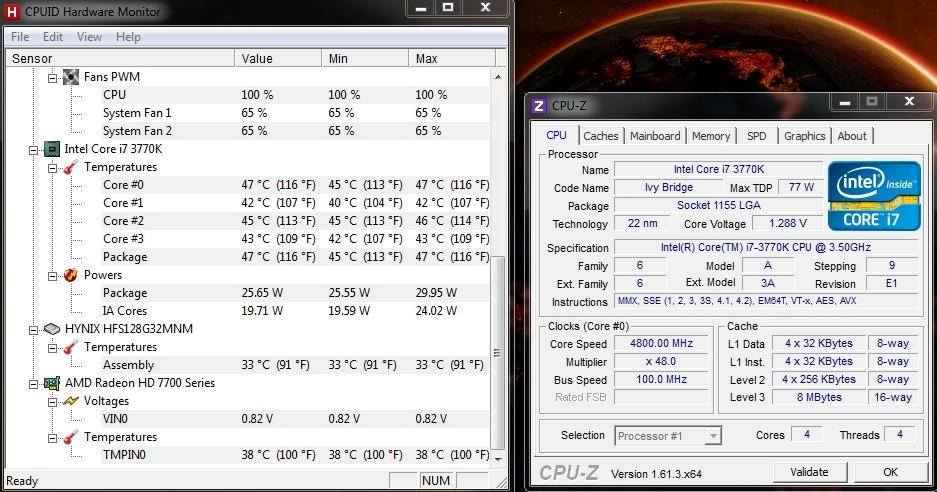

    CPUZ: 4.8Ghz 4Cores 4Threads

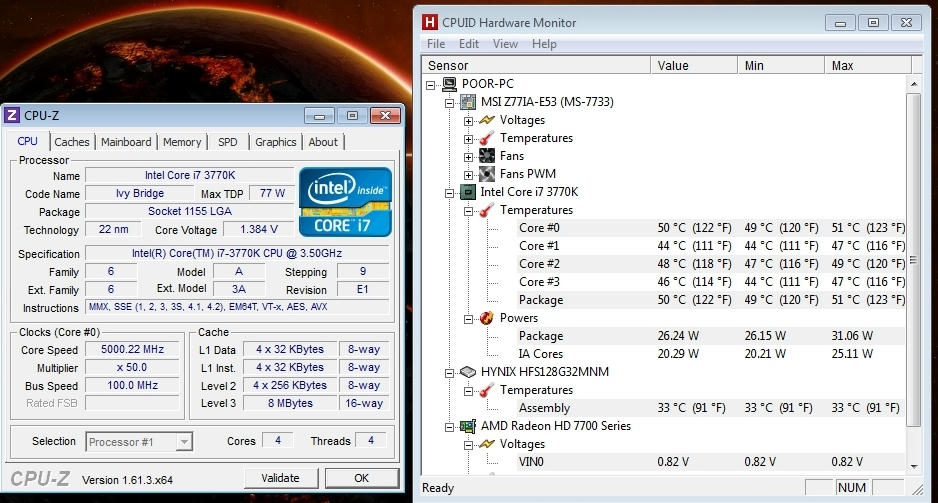

    CPUZ: 5.0Ghz 4Cores 4Threads

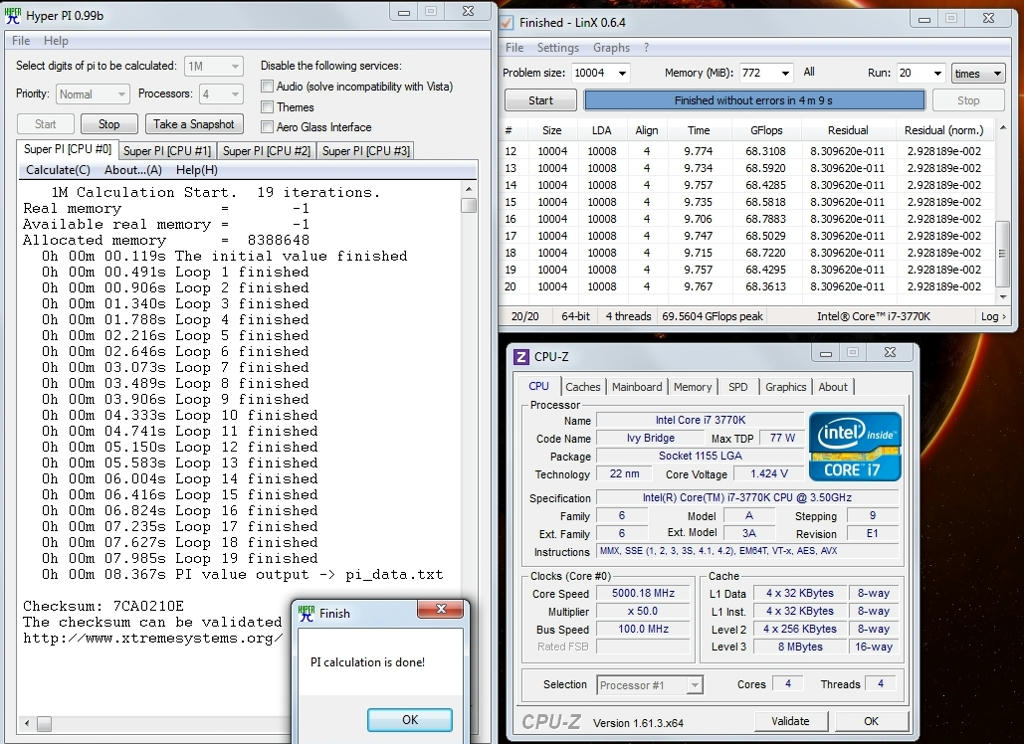

    Hyper PI & LinX 5.0Ghz 4Cores 4 Threads

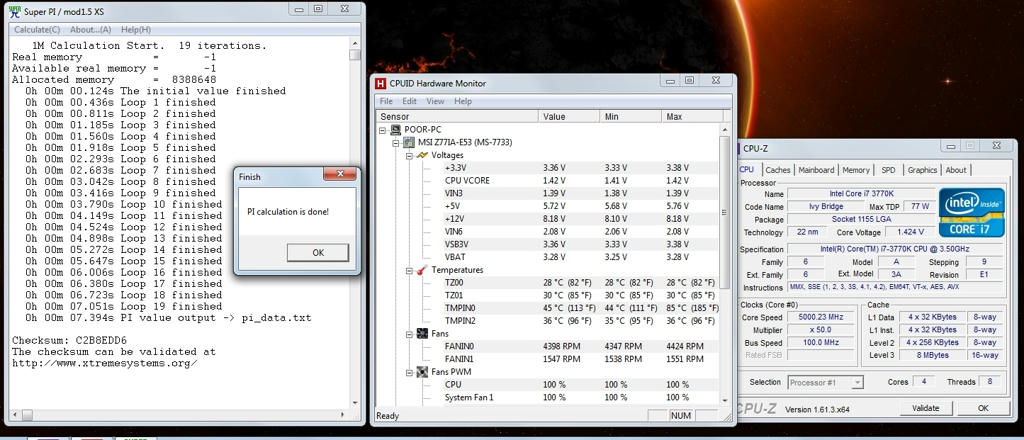

    Super PI 5.0Ghz 4Cores 8Threads

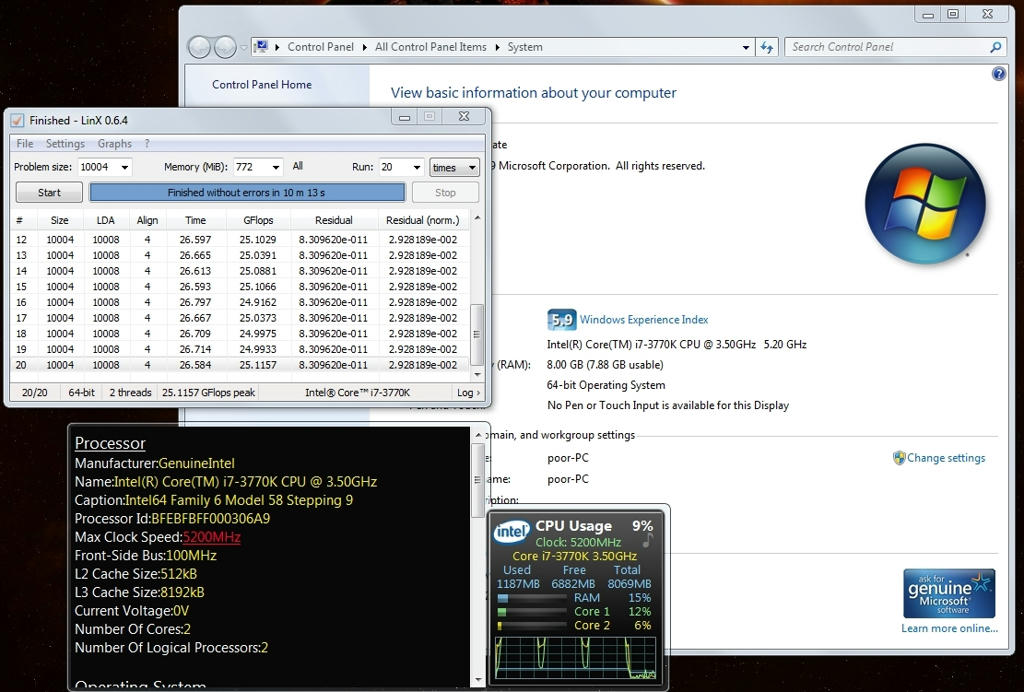

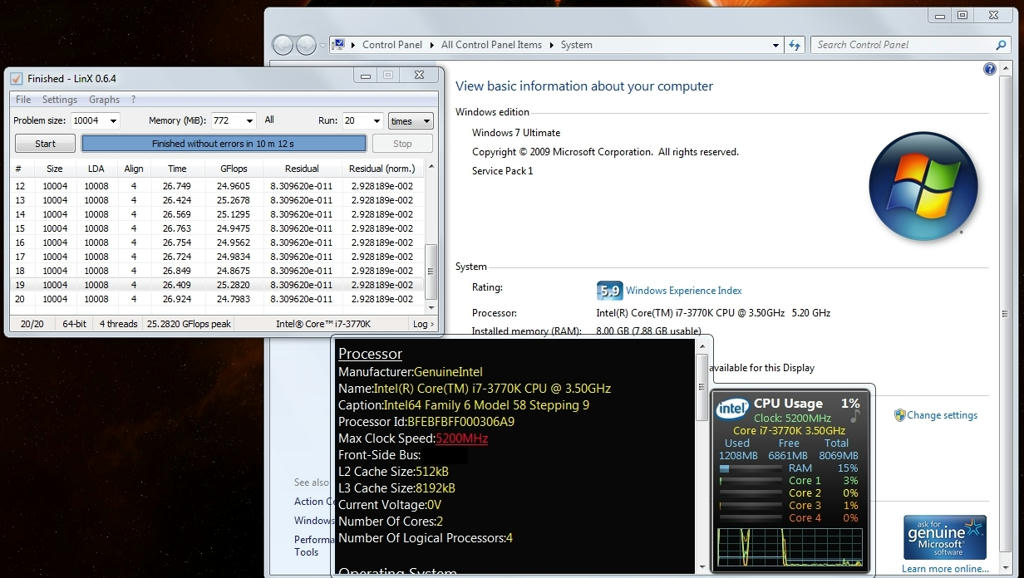

    LinX 5.2Ghz 2Cores 2 Threads


    LinX 5.2Ghz 2Cores 4 Threads

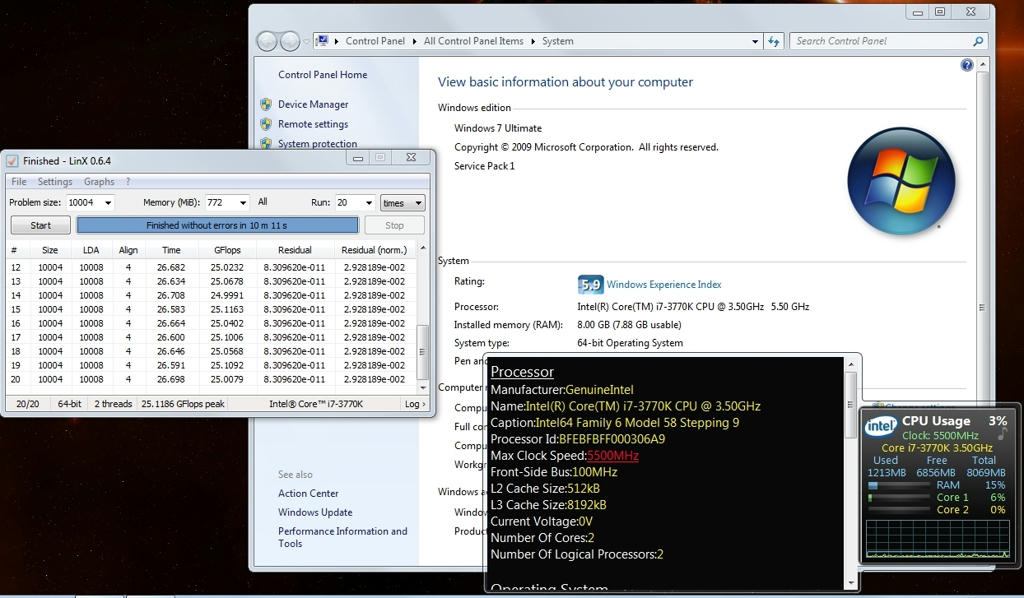

    LinX: 5.5Ghz 2Cores 2Threads

  3. #3
    profJim's Avatar
    profJim is online now Chief Munchkin + moderator
    Join Date
    Dec 2008
    Location
    Tacoma, WA. [USA]
    Posts
    5,624

    Default Re: MSI Z77IA-E53 [ITX] Review!

    Nice photographs, good lighting and excellent closeup details.
    I like the fact that there isn't a lot of text.
    The review would be a bit better if you described in some detail the motherboard's unique features.

    Keep up the good work.
    _/\ /\ /\ /\ guru in training (for life) /\ /\ /\ /\ ______~~ we get too soon old and too late smart ~~
    E6300 (R0)
    @ 3.504GHz [8x438MHz] __ ________
    Xigmatek Balder HDT 1283 cpu cooler
    P35-DS3L
    [rev: 1.0] ~ Bios: F9
    ._______________.Cooler Master CM 690 case (RC-690-KKN1-GP)
    4x2GB Kingston HyperX T1 PC2-8500
    @4-4-4-10 _
    ZM-MFC2 controller, watt meter & temp probes
    MSI
    N460GTX Hawk (1GB) video card
    .______ ____.Asus VH242H monitor [1920x1080]
    Seasonic
    X650 80+ gold psu (650w
    )
    ____ ___ __
    .Logitech Z-5500 Digital 5.1 Speakers
    WD
    Caviar
    Black WD6401AALS 640GB._____ ___ .win7 x64 sp1 Home Premium

    Samsung 830
    128GB SSD
    MZ-7PC128B/WW (boot)___HT|Omega Claro plus+ sound card
    ~~~~~ _______________________________________ U.P.S. -- CyberPower CP1500PFCLCD
    SLI --> MSI N460TTX Hawk + Hawk Talon Attack ~~ E6850 @ 3.30GHz ~~ Antec TP-750 New (750watts)
    N650SLI-DS4 (rev 1.0) ~~ Mushkin 996599 2x2GB Blackline @ 856MHz (4-4-4-12) ~~ win7-x64 SP1 HP
    OCZ Agility2 60GB SSD2-2AGTE60G 34nm_(boot) ~~ HT|Omega Striker sound card
    WD Caviar Black WD6401AALS 640GB (data) ~~ Antec Two Hundred case ~~ shared monitor & speakers

    <> compromise and do it my way <>
    _ _++ I'm not always right, but I'm never wrong ++
    I love mankind, it's people I can't stand
    _#%@$&*+!~ el cheapo psu....
    Loading OPTIMIZED bios defaults is REQUIRED before you tweak your bios settings.
    This includes new system setups and immediately after flashing your bios!!!
    Prime95 Stress Testing How-To Tutorial from Playtool.com (link)
    MSI N460GTX Hawk (1GB) Overclocking Results
    (thread)
    new SSD: OCZ Agility2 60GB (Extended Capacity) (thread)
    Asynchronous vs. Synchronous NAND Flash SSD Performance (links)

  4. #4
    poor_poor is offline Junior Member
    Join Date
    Dec 2012
    Location
    Singapore
    Posts
    50

    Default Re: MSI Z77IA-E53 [ITX] Review!

    This board was my first time doing review.
