    Asus FM2 Trinity F2A85-V Pro [Review]

    Asus new F2A85-V Pro motherboard, features a ATX form factor design and comes with Realtek HD Audio/Realtek Lan, PCI-E 16x 8x 8x, two PCI-E 1x and 2 PCI slot.

    Three expansion slots PCI-e 2.0 x16/8x/8x slot support CrossFireX and dual memory 1.5v DIMM slots support AMD Memory Profile. The Integrated graphics chip is provided display outputs through 1 HDMI, DisplayPort,D-Sub and a DVI-I port to Optimized for AMD 3 display Eyefinity technology setup



    Specification:
    Support AMD Socket FM2 Athlon™/A- Series Processors
    AMD A85X FCH(Hudson D4)
    Memory:
    4 x 1.5V DDR3 DIMM supporting up to 64 GB of system memory
    Audio:
    Realtek High Definition Audio codec 7.1-channel
    Network:
    Realtek GbE Lan
    Expansion Slots
    1x PCI Express 2.0 x16
    2x PCI Express 2.0 x8
    2x PCI-Express 2.0 1x
    2x PCI
    Storage Interface:
    7 x SATA 6Gb/s
    Form Factor: ATX

    Testing Spec:
    AMD FM2 5800k [AMD Stock Cooling]
    G.Skill F3-2133C9D-8GAB [4gbx2]
    Hynix SSD 128Gb Sata 3
    Gigabyte ODIN Pro 800w [Limited Editon Japanese made]
    Windows 8 64bits Pro [installed all update]
    ------------------------------------------------------------------------------------
    Asus FM2 Trinity F2A85-V Pro [Review]

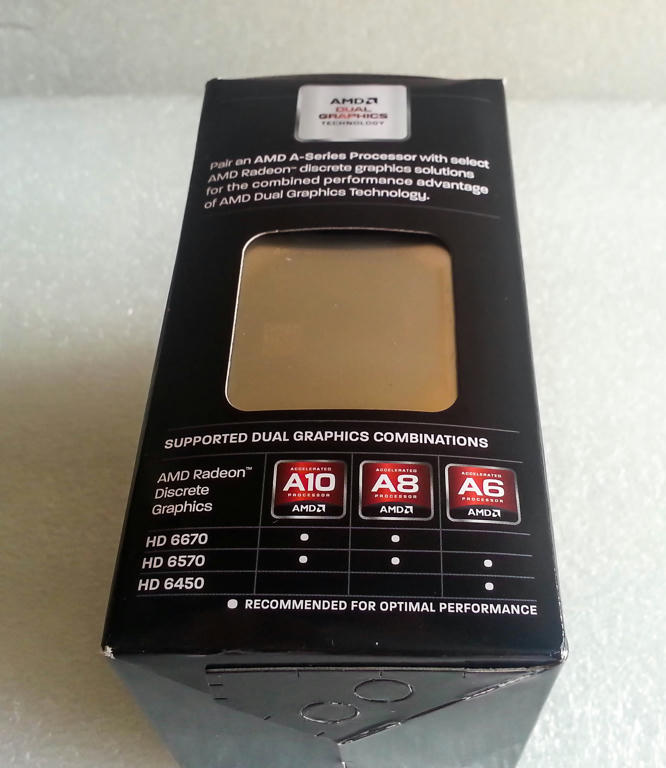

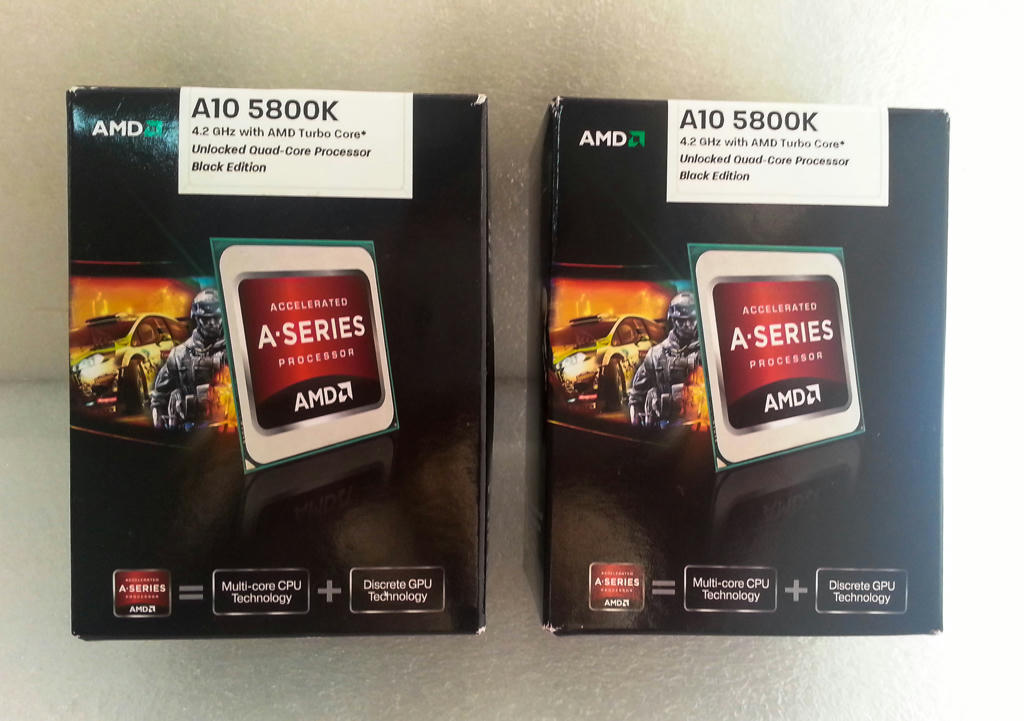

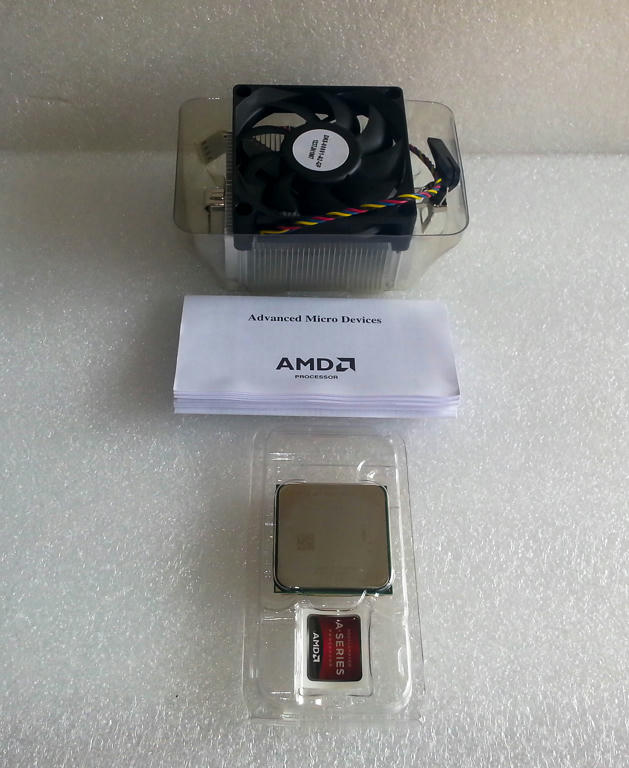

    Unboxing AMD FM2 CPU 5800k Box


    Side view:


    Side view:


    Back view:


    APU Package:

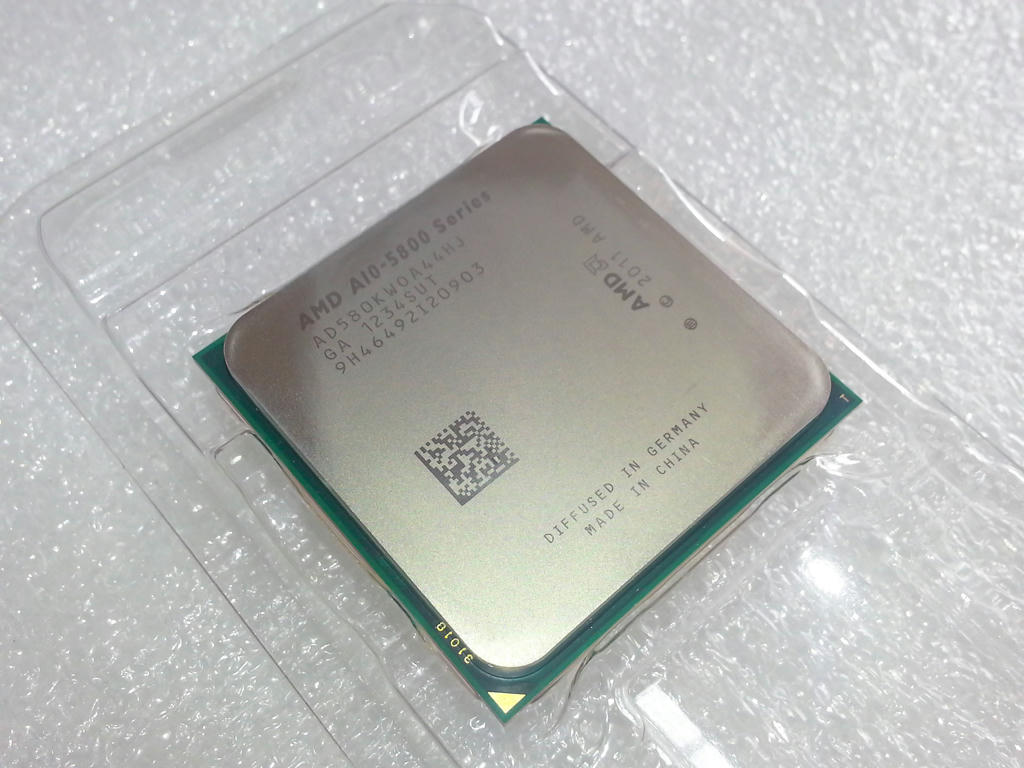

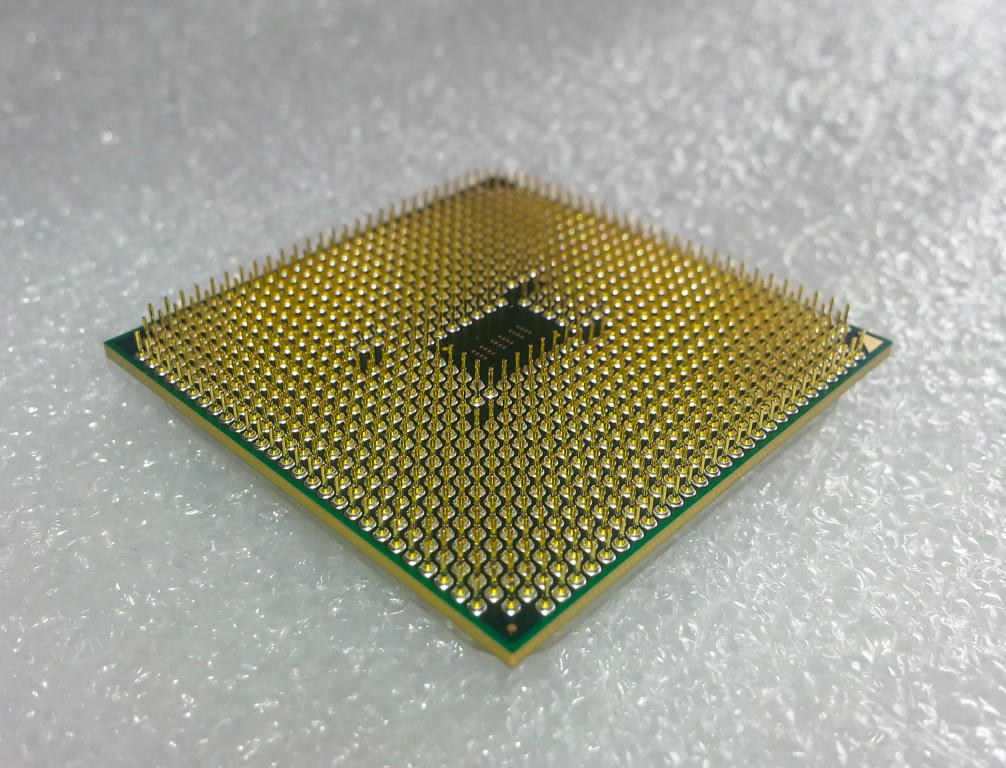

    AMD 5800K Processor:

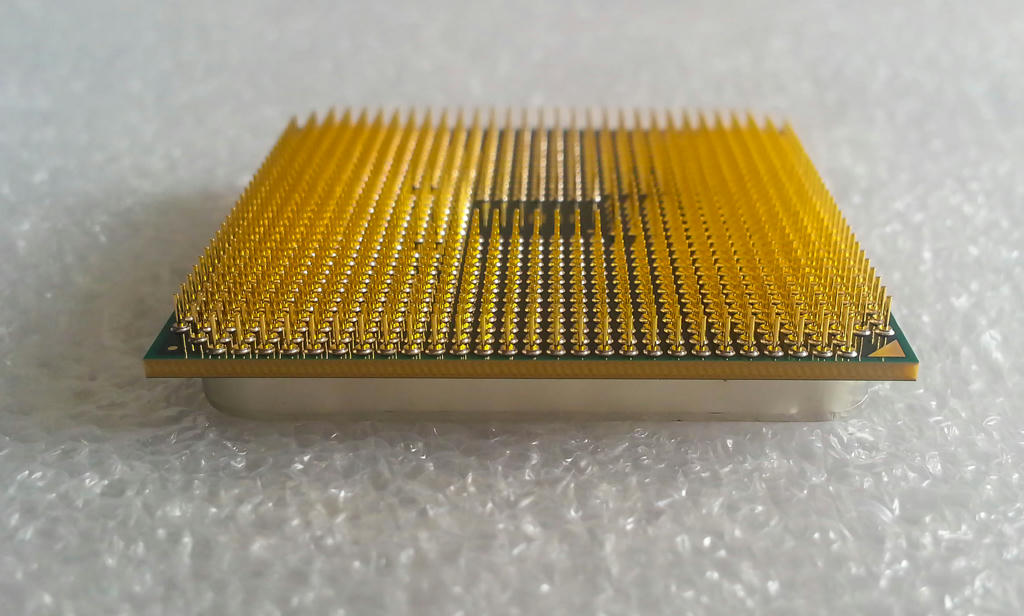

    Processor: Golden 904 pins

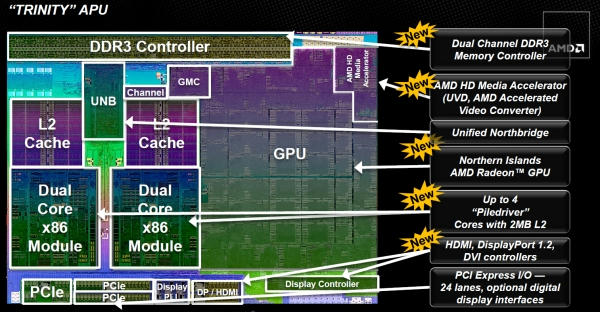

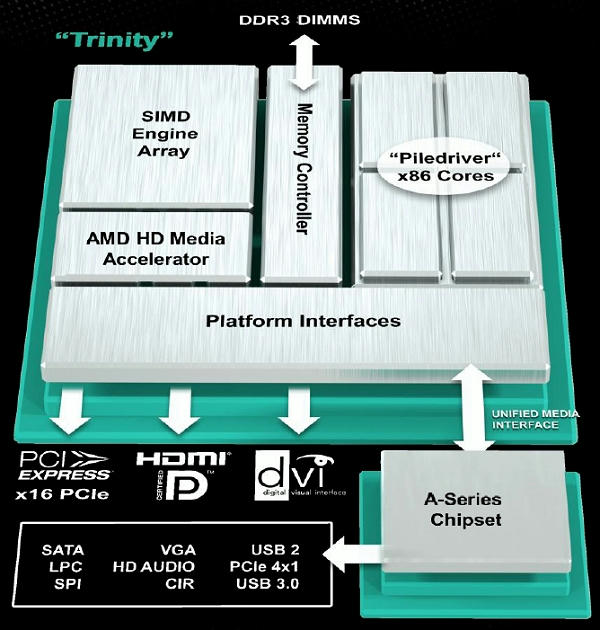

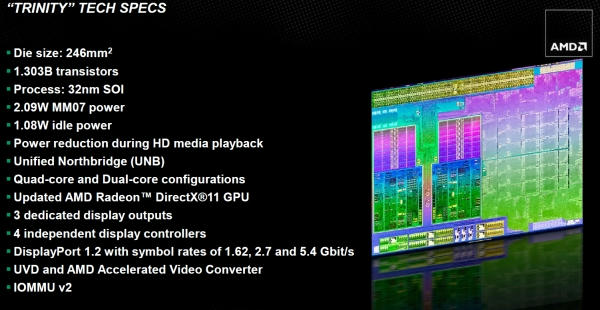

    APU Trinity Tech Specs:

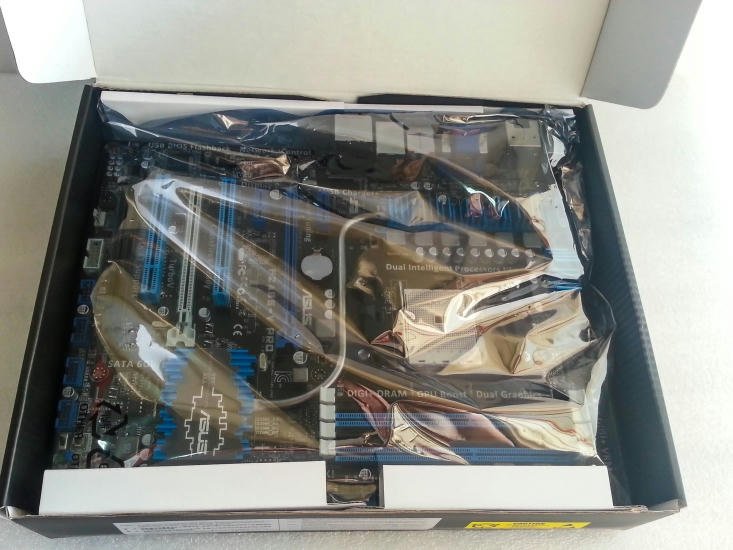

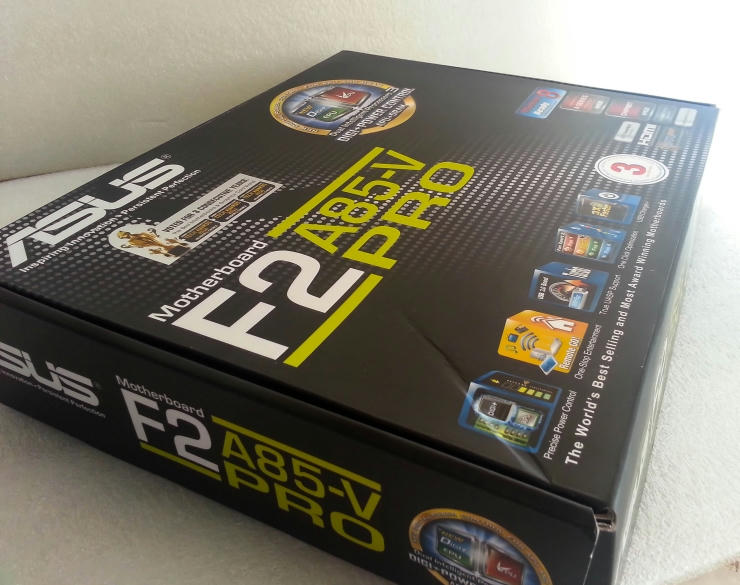

    Unboxing Asus F2A85-V Pro

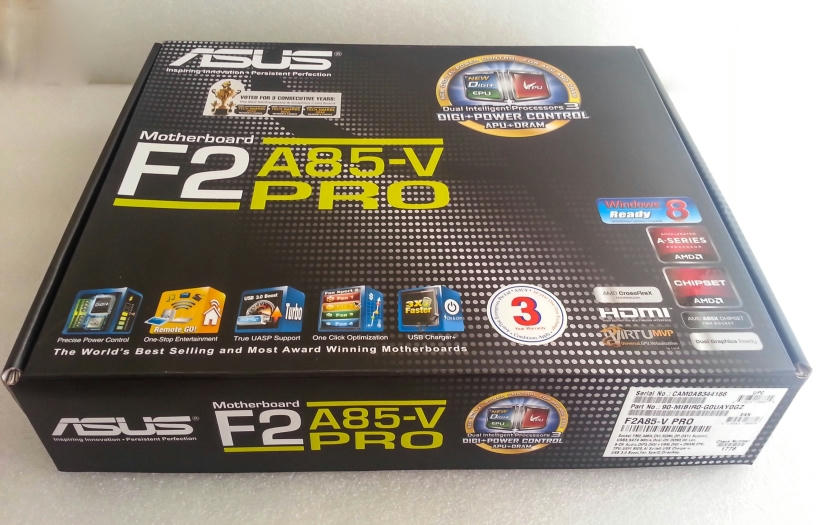

    Side view:


    Back View:

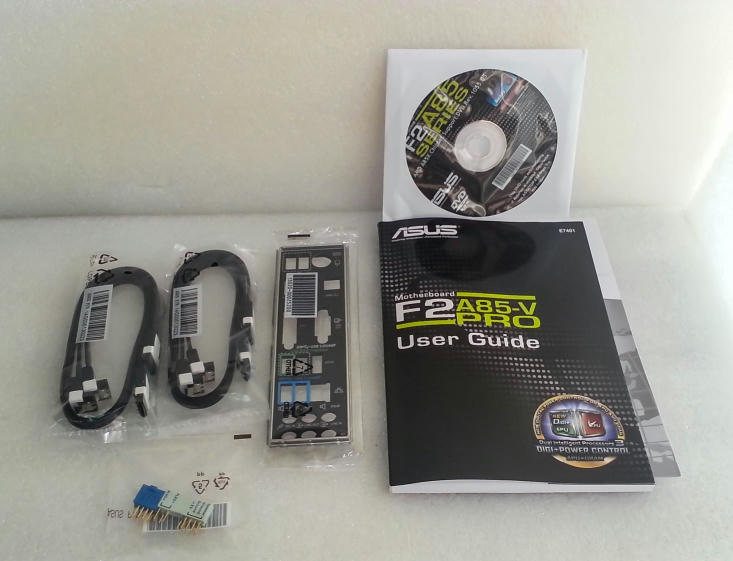

    F285A-V Pro Accessory package:
    1x I/O Back Plate
    1x MB Driver Disc
    1x Manual Book
    4x Sata3 Cable


    Motherboard Overview:

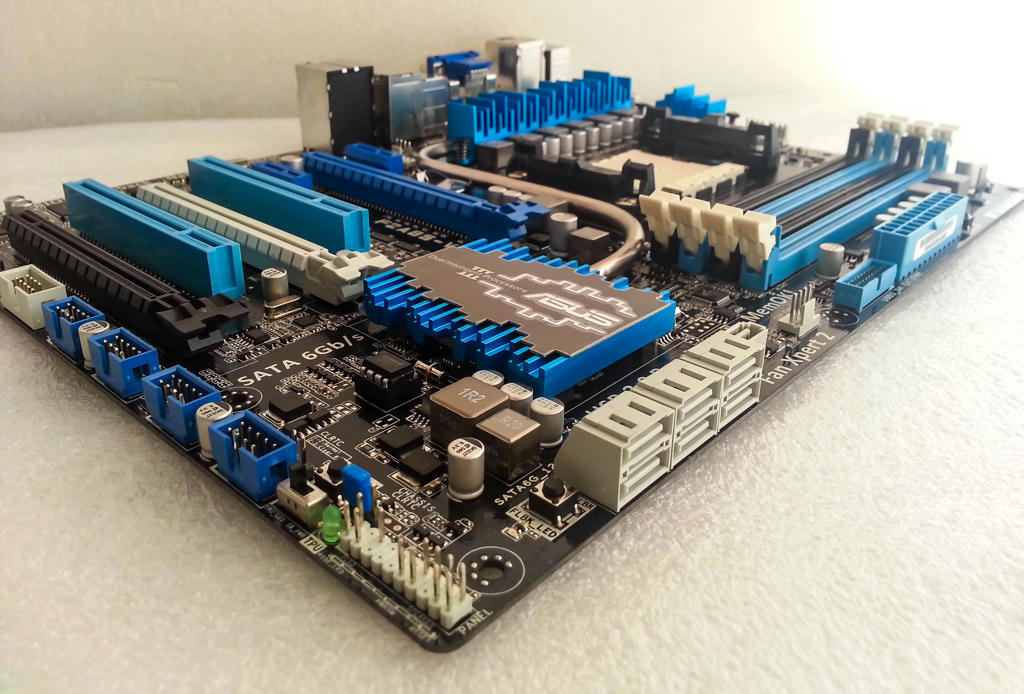

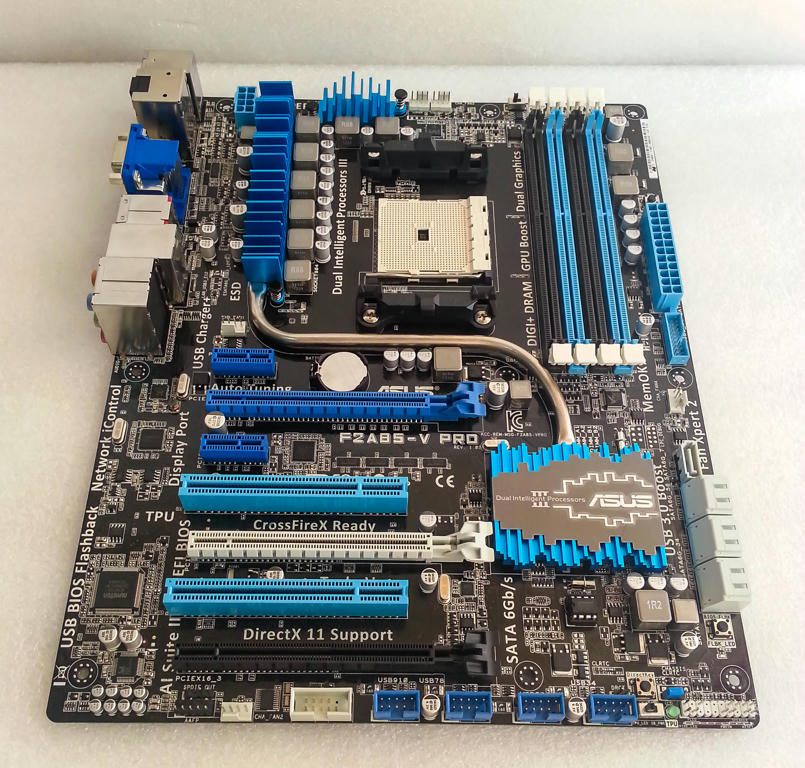

    Motherboard Side view:


    4 Dimm 1.5v DDR3 ram slot [Support AMD Memory Profile]

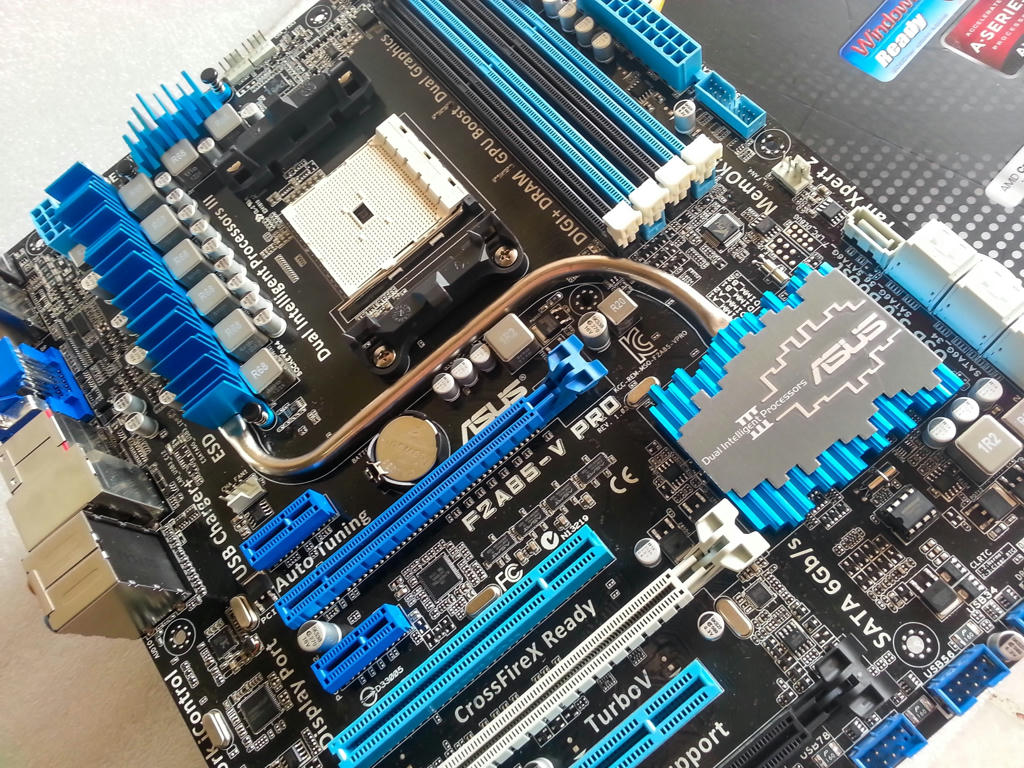

    FM2 Socket


    left of the board we find the PCIe and PCI slots which run from PCIe 1x through PCIe 16x, PCIe 1x, PCI, PCIe 8x, PCI and PCIe 8x.

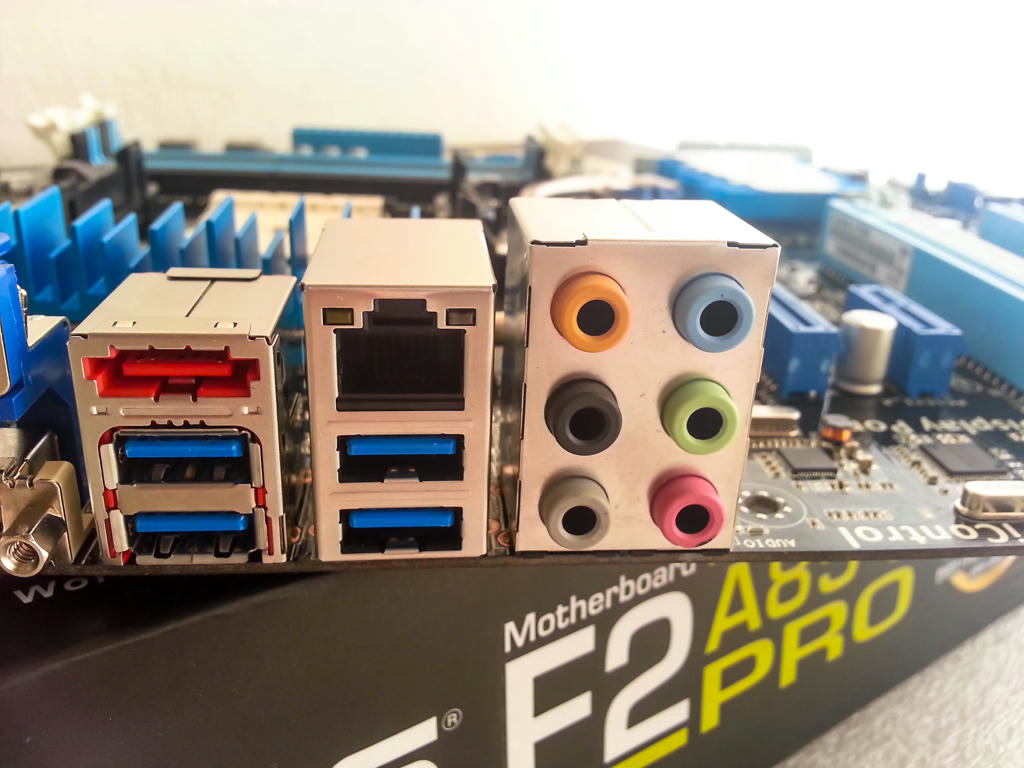

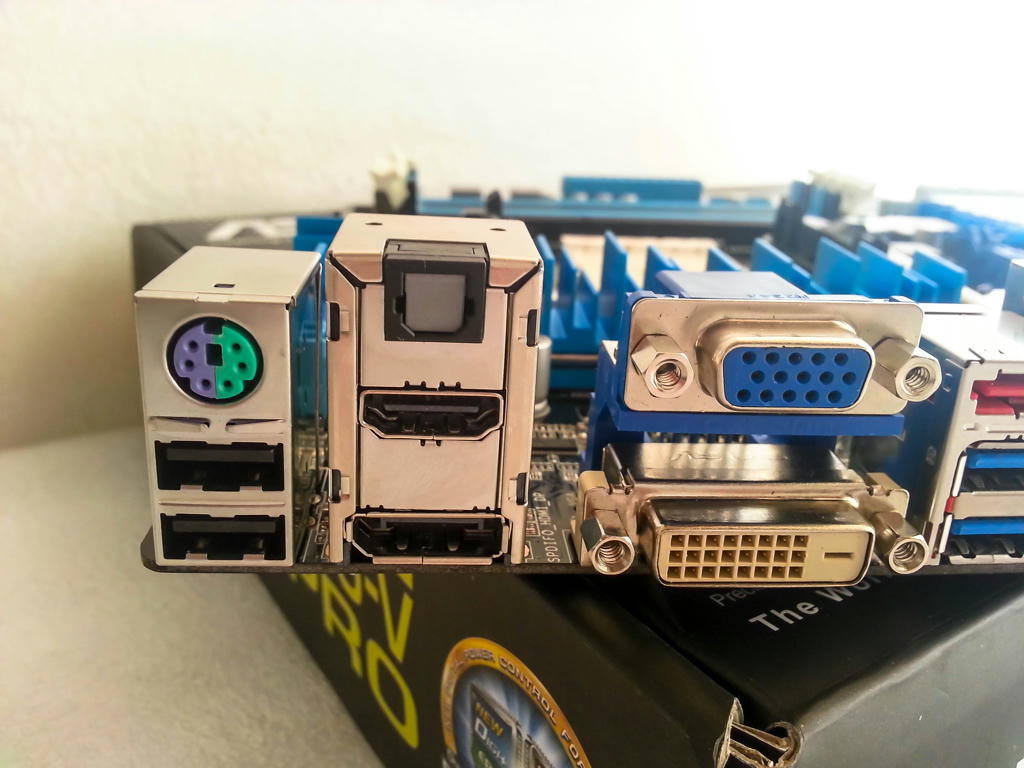

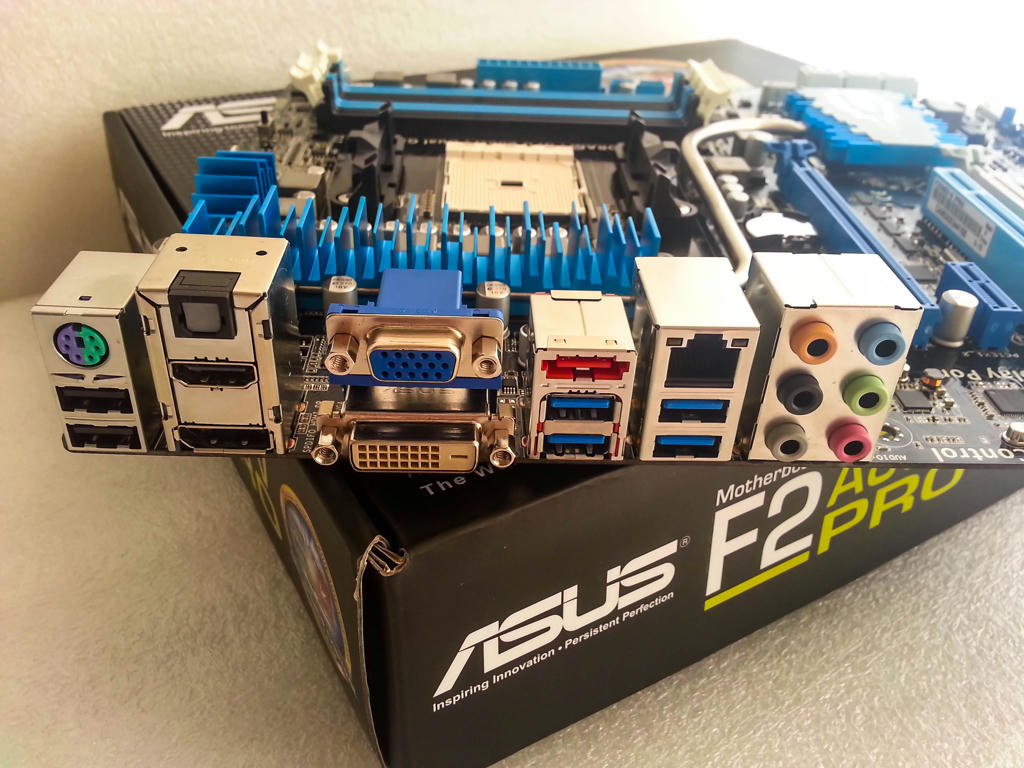

    Back I/O port:


    Left:
    1x P/S2 For Mouse or Keyboard
    2x USB 2.0
    1x S/PDIF Out
    1X HDMI
    1x Display Port
    1x D-Sub
    1x DVI-I


    Right:
    1x Esata
    2x AMD USB 3.0
    1x Realtek GbE Lan
    2x Asmedia USB 3.0
    1x 7.1-channel Audio

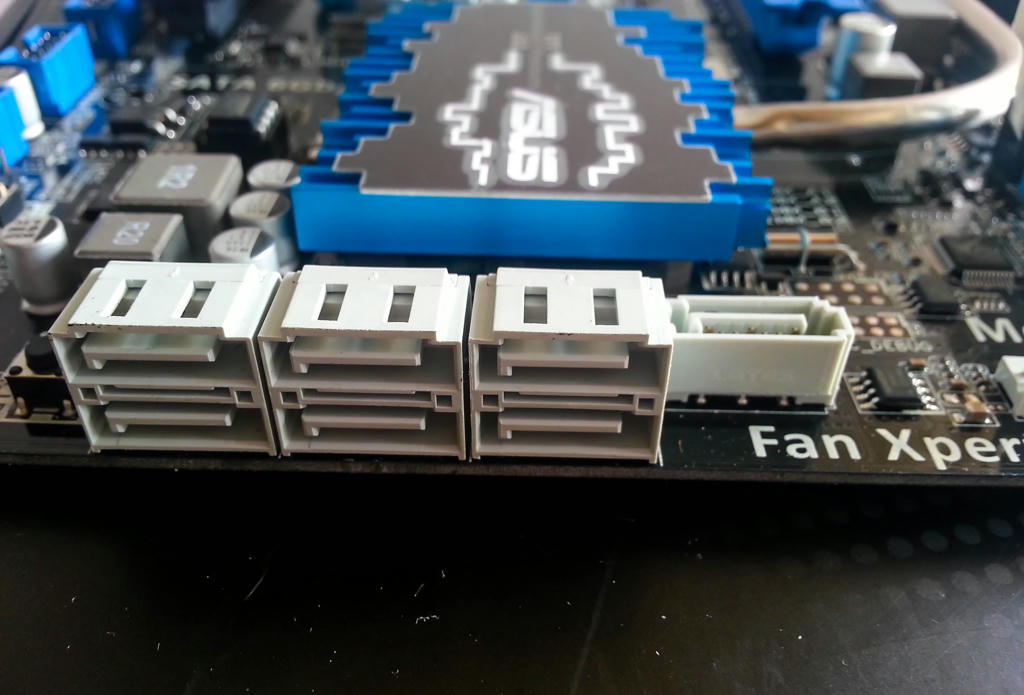

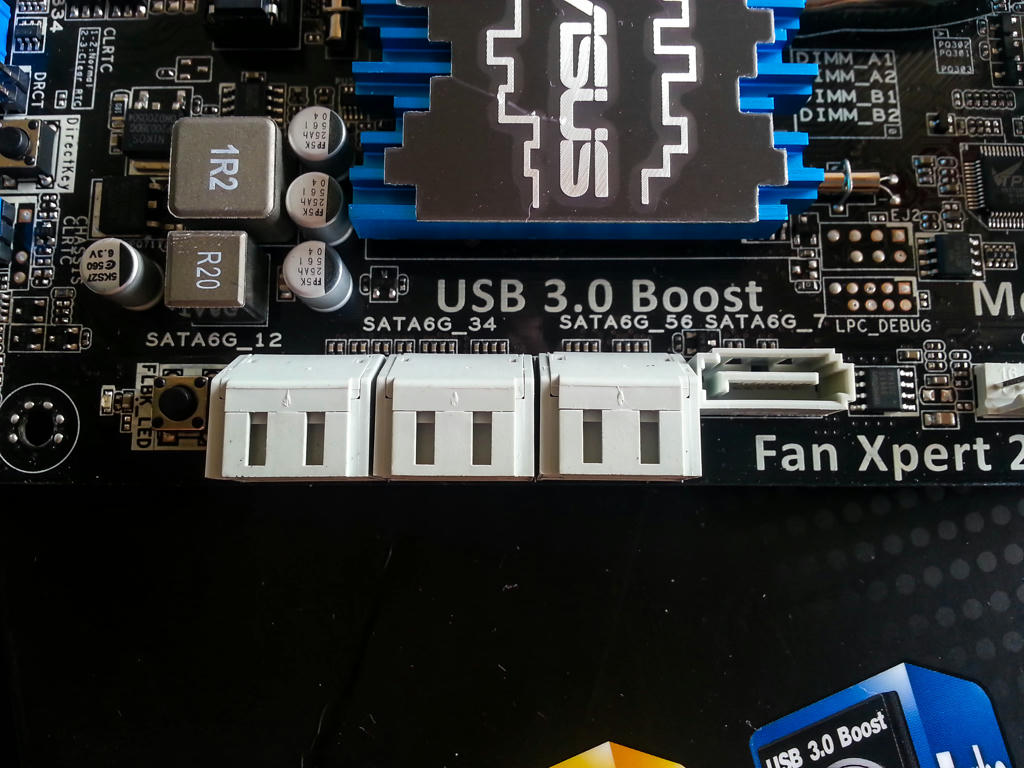

    AMD A85X Chipset: 7x Sata 3 6.0Gb/s
    Support Raid 0,1,5 and 10 configuration through the onboard A85X chipset

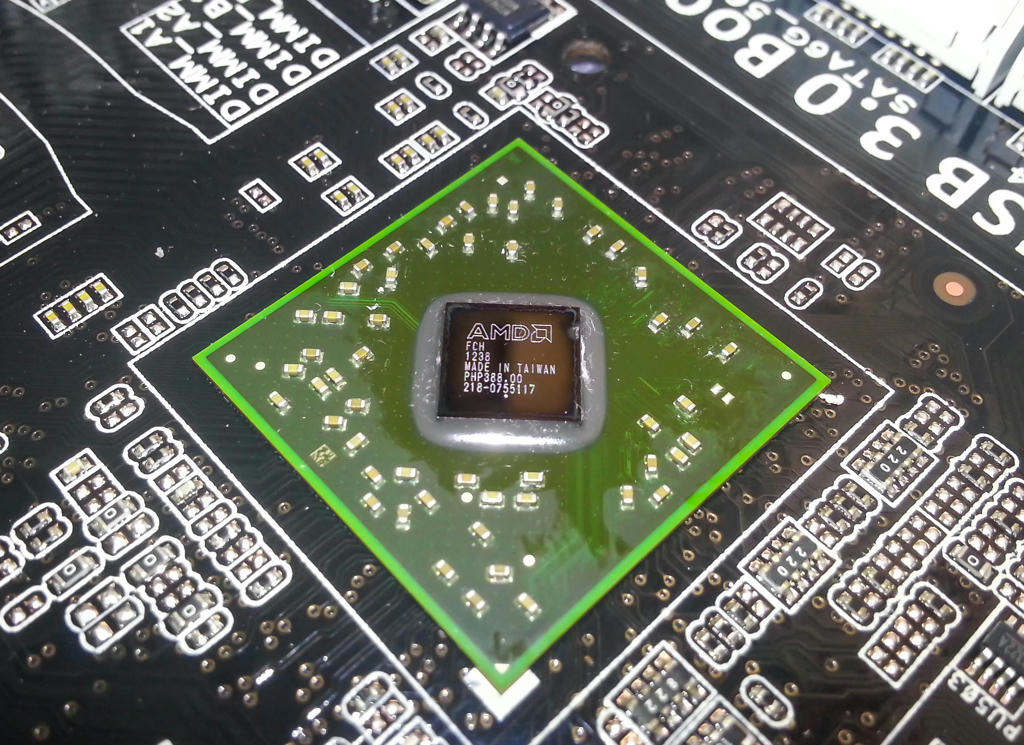

    AMD A85X FCH Chipset

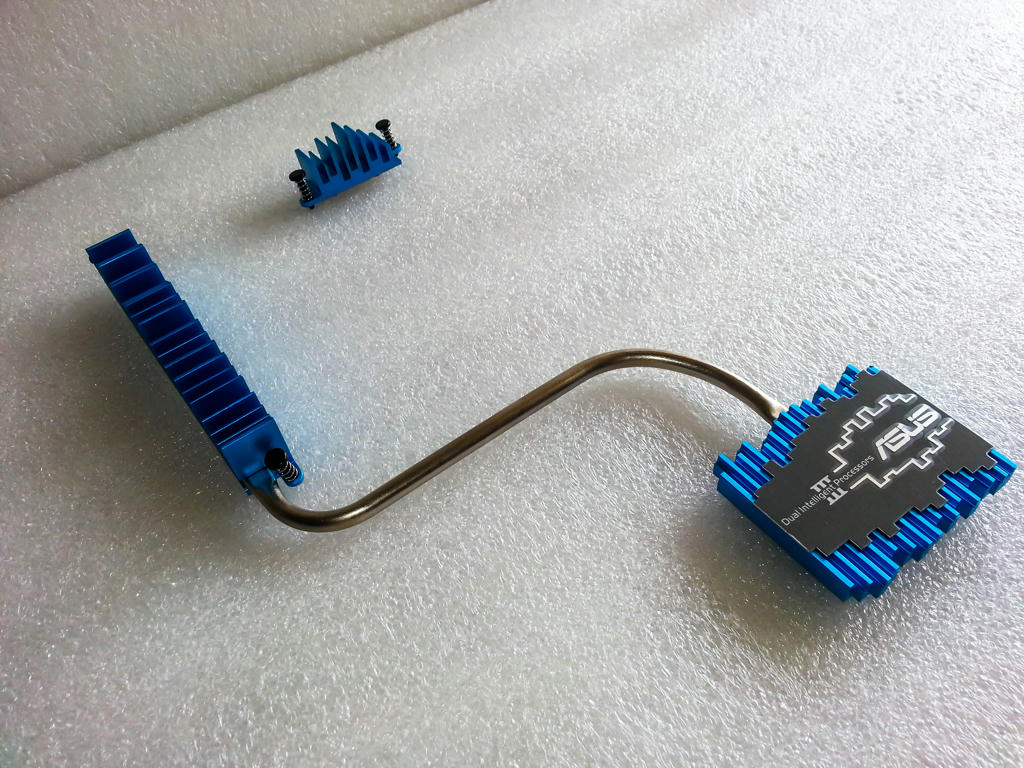

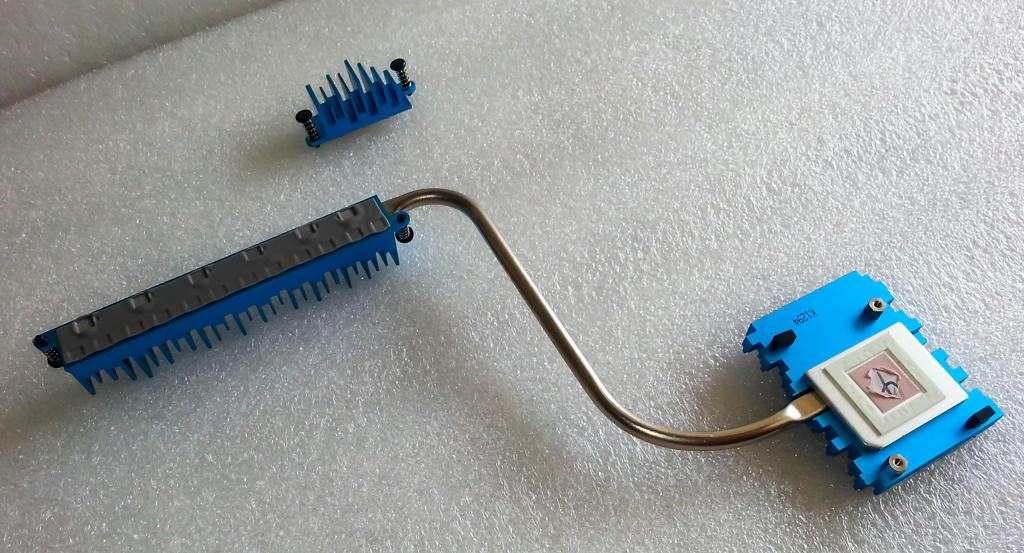

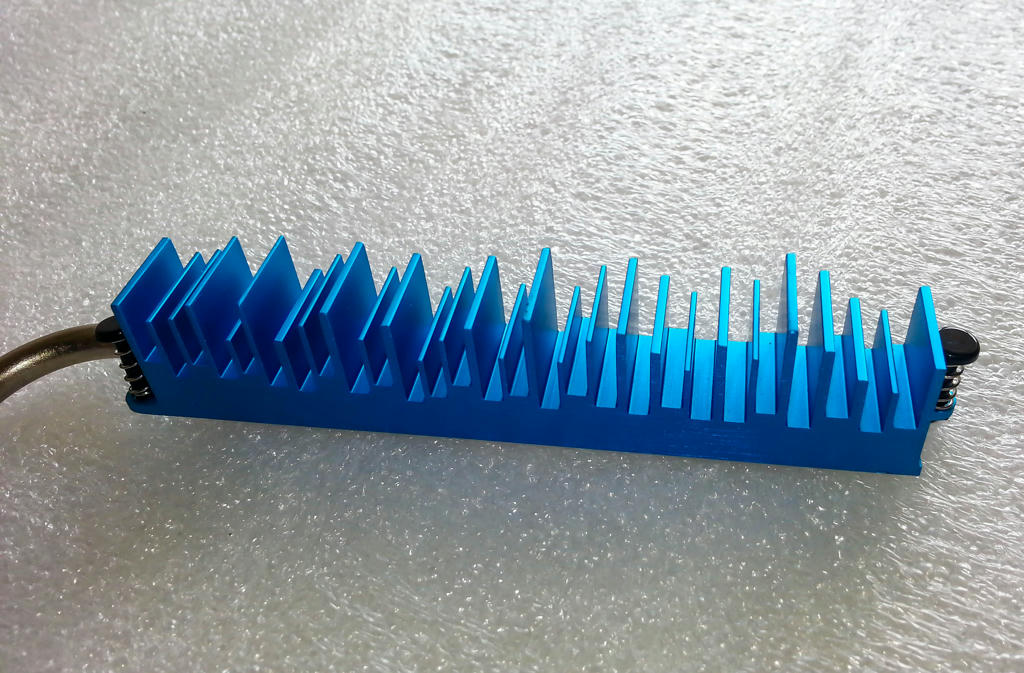

    Asus F2A85-V Pro heat sink pipe

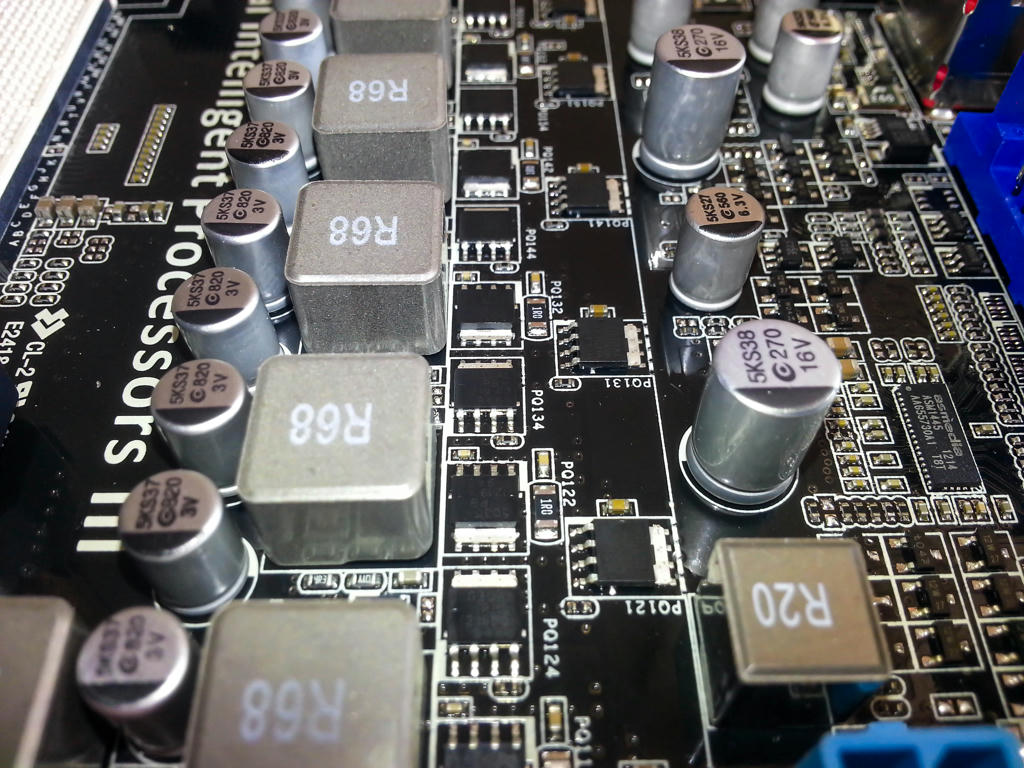

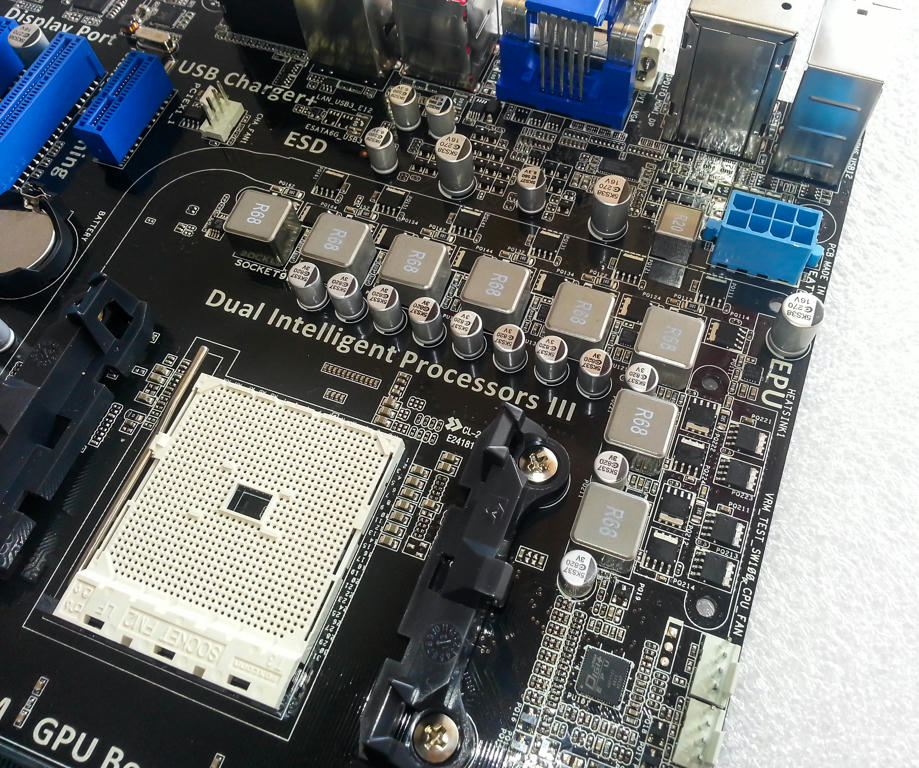

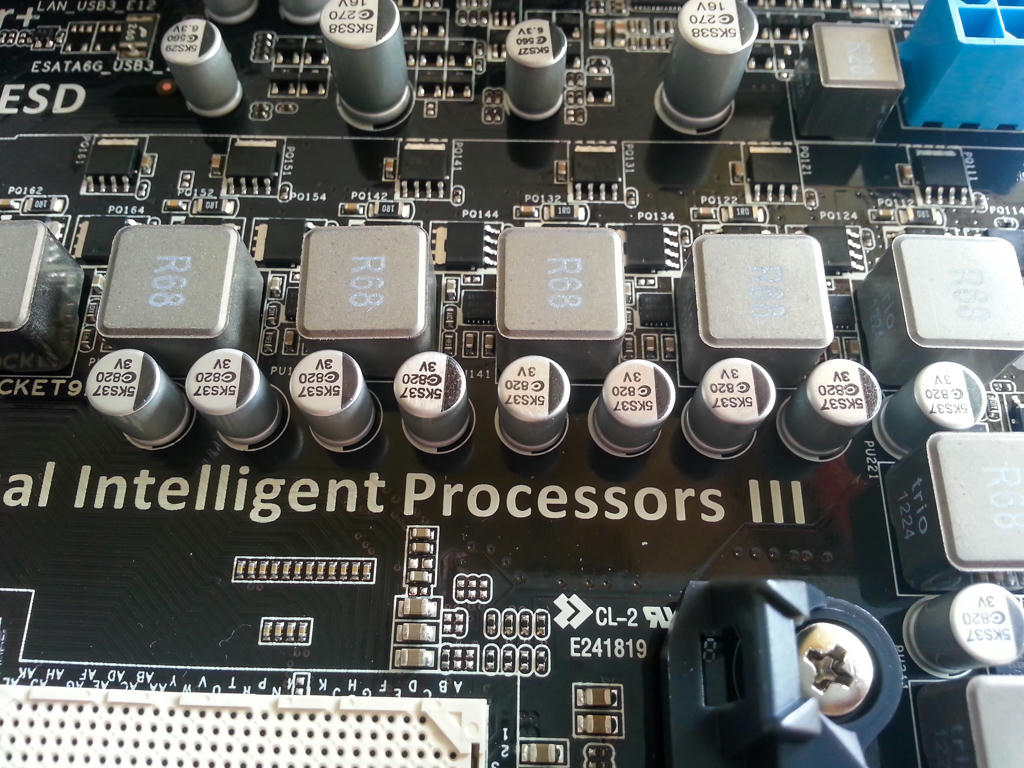

    CPU VRM area: 6+2 Digital Power phase
    ASUS use taiwan solid capacitors and a 6+2 Digital phase power design on this board


    Asus used High Quality Mosfets. Two Philips 5030AL MOSFETs act on the low-side, and a single 7030AL 70A is used as the high-side. These MOSFETs have very low RDS(ON) which means they will have lower temperature as they are switching on and off.

    Those Logic Mosfets using Level N-channel enhancement mode Field-Effect Transistor, which result High efficiency due to low switching and conduction losses.



    MLCC inductor used a row of Swiss R68 TRIO closed inductance.

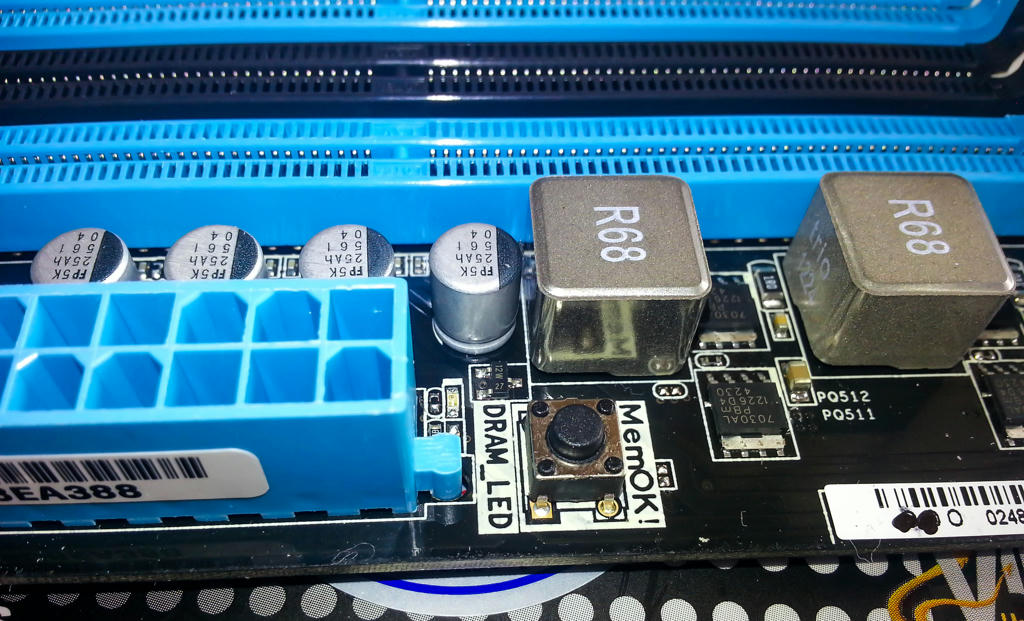

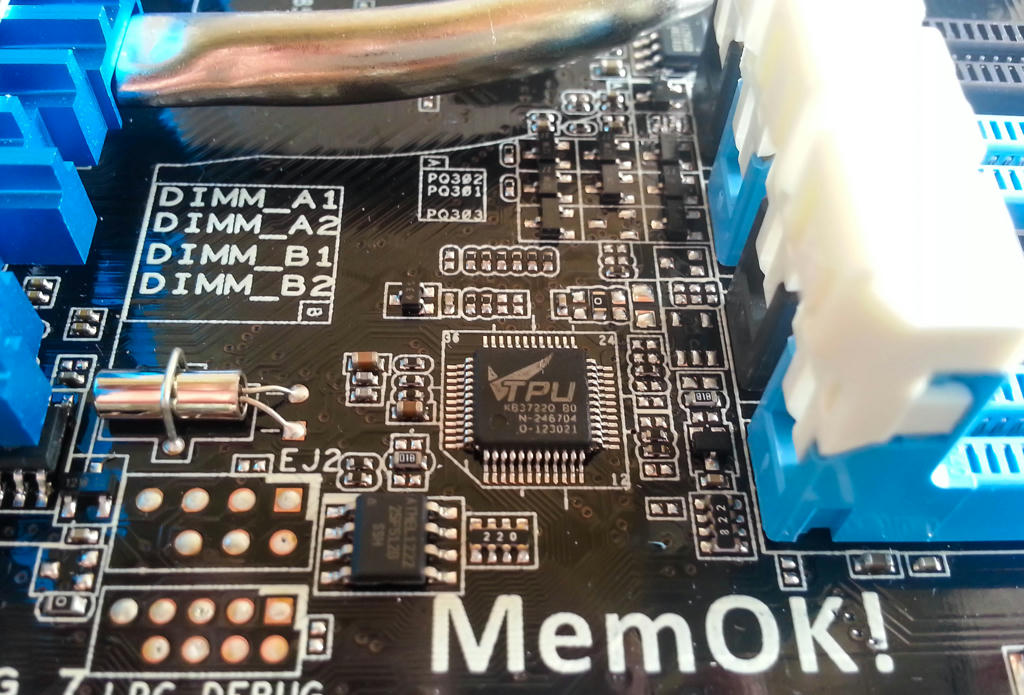

    MemOK! quickly ensures memory boot compatibility, MemOK! determines failsafe settings and dramatically improves your system boot success.

    [YOUTUBE]9azllBzU5PU[/YOUTUBE]

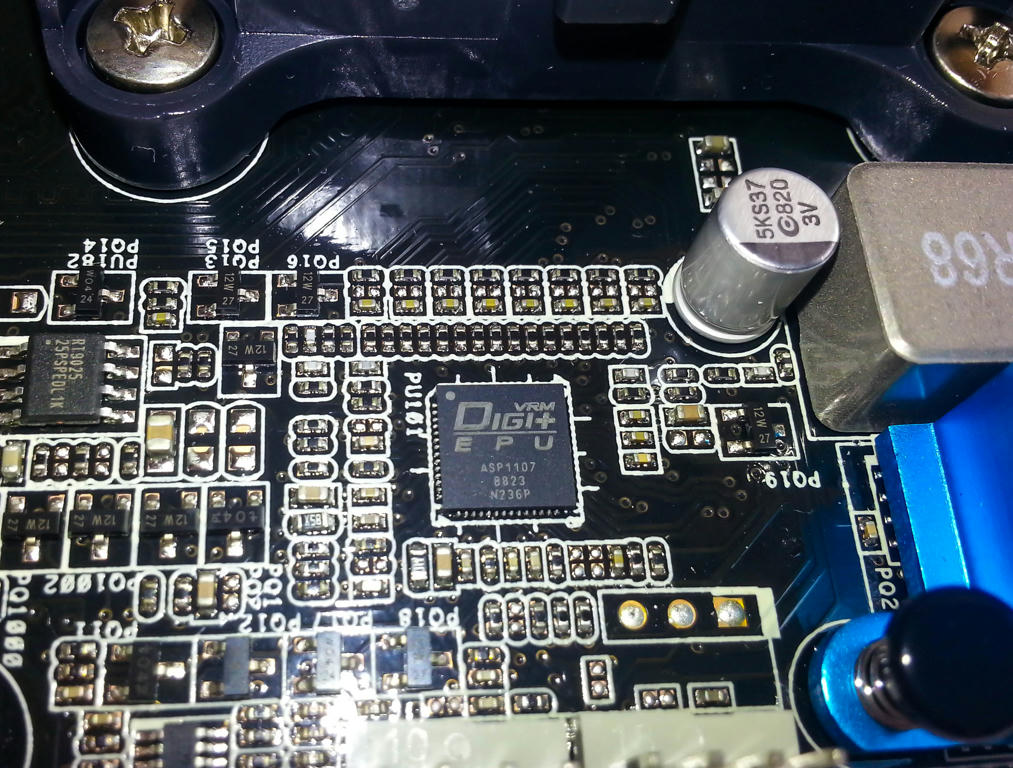

    ASUS VRM Digi+ EPU: Dual Intelligent Processors 3 - SMART DIGI+ fully digital, 6+2 Phase power


    Asus added Realtek ALC892 High Definition Audio codec, output 7.1-Channel Surround Sound

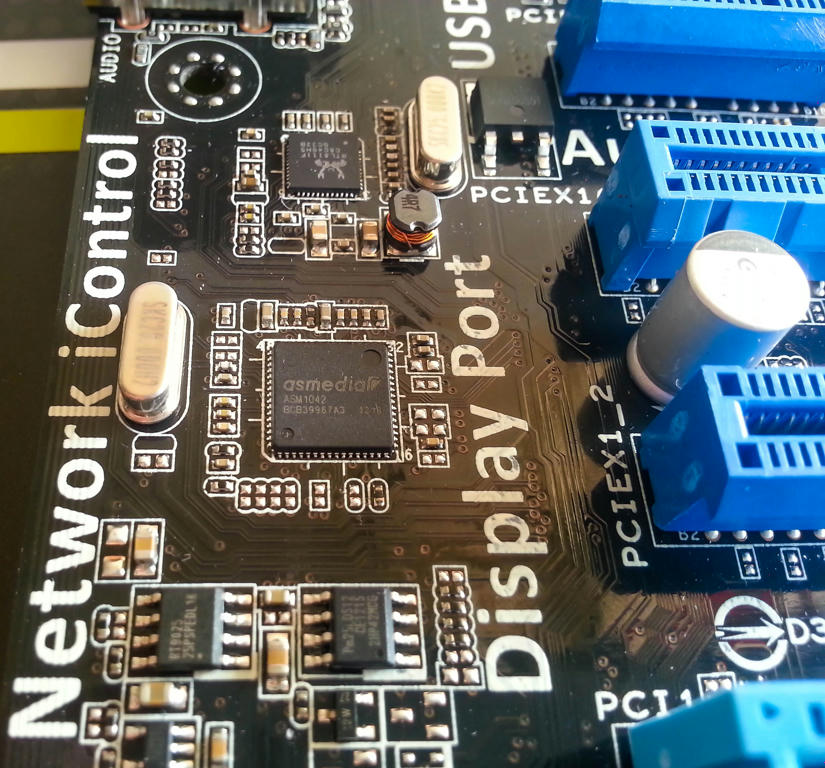

    Asmedia ASM1042 USB 3.0 Controller: Support 2 USB3.0 port at I/O port

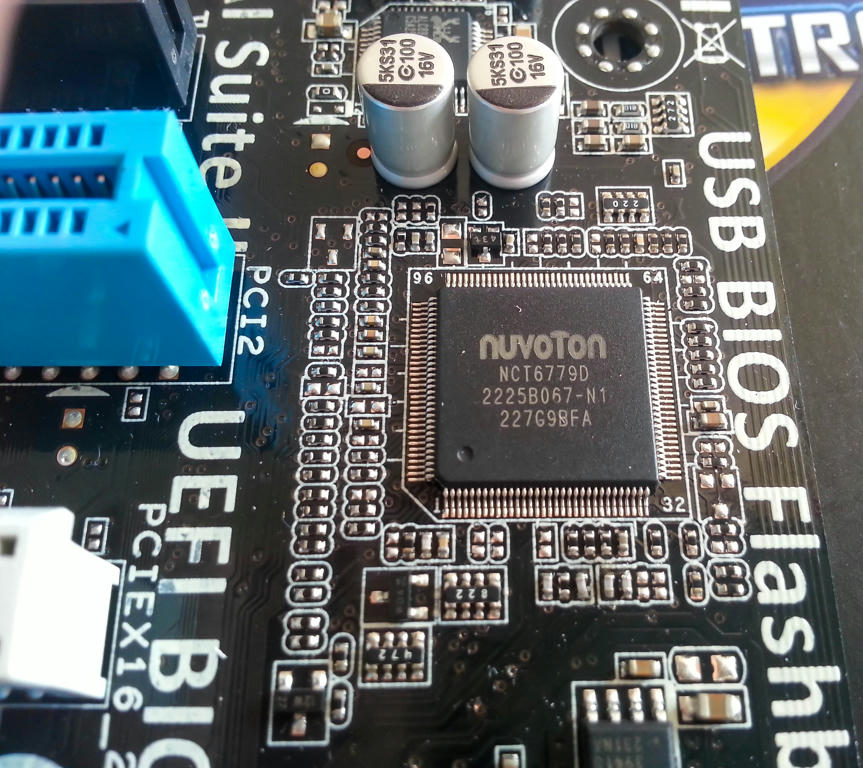

    Nuvoton NCT6779D is a Super I/O Controller: Used for keyboard controller with PS/2 mouse, wake-up functions/HW Monitor functions and fan-speed control.


    Realtek RTL8111F Gigabit LAN-controller

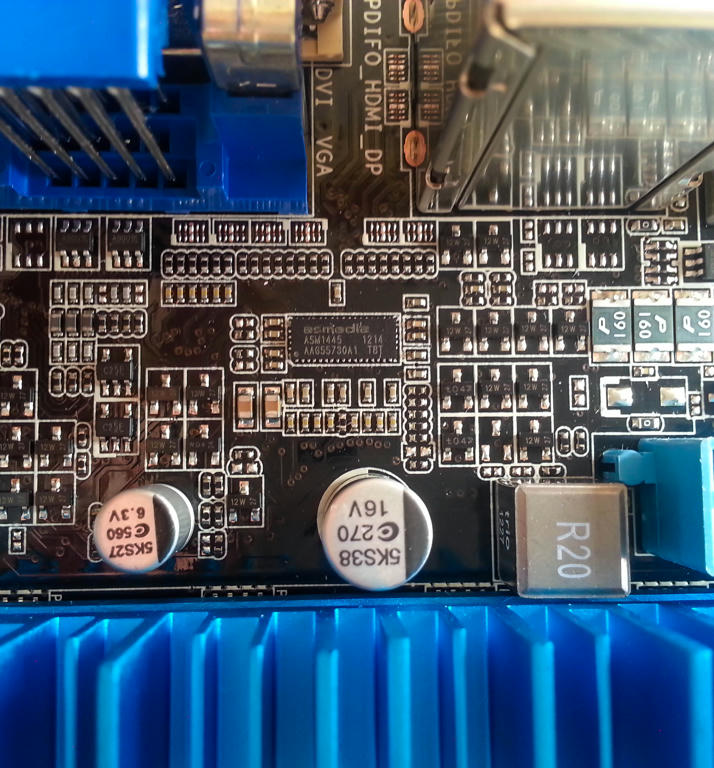

    Asmedia ASM1445 chip, output high speed TMDS level shift ICs for High Definition Multimedia Interface (HDMI), Digital Video Interface (DVI), DisplayPort (DP) and DVI video output.


    ASUS TurboV Processing Unit (TPU): TPU help you Auto-overclock your processor speed up to 37% faster


    Asus F2A85-V Pro board used single Bios chip: Winbond 25064FVA1G-UEFI ROM 64MB

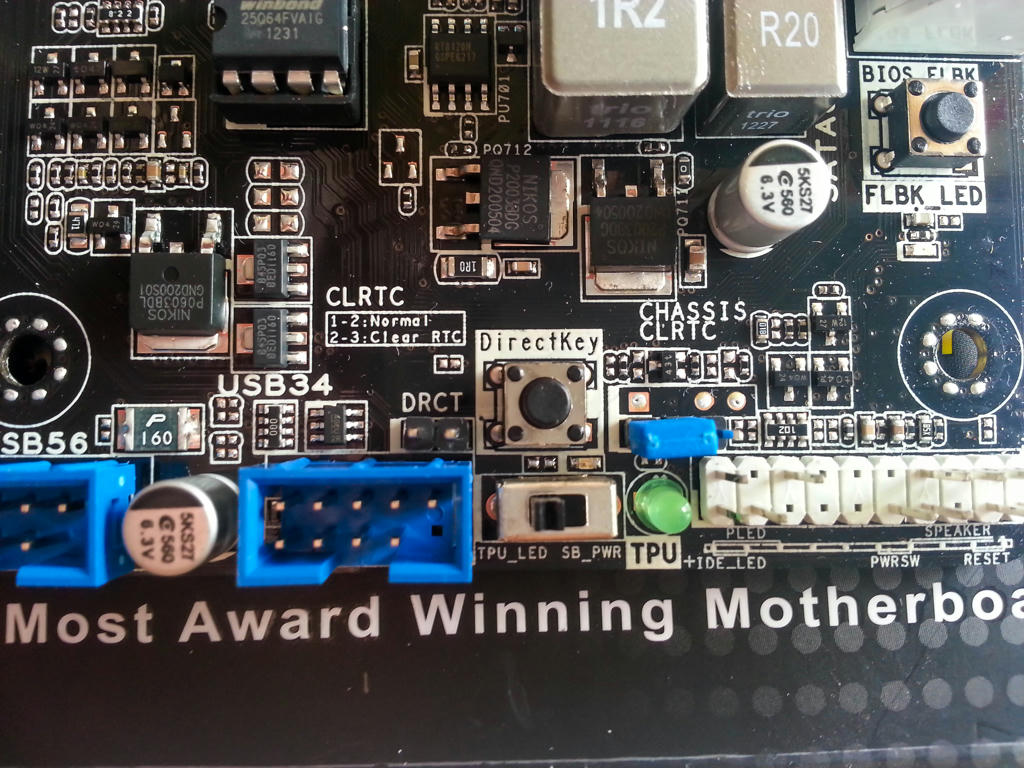

    Asus DirectKey: you can easily enter the BIOS automatically when the PC is on standby power with a press of a button. It saves you time during boot-up from having to repeatedly press the DEL key.

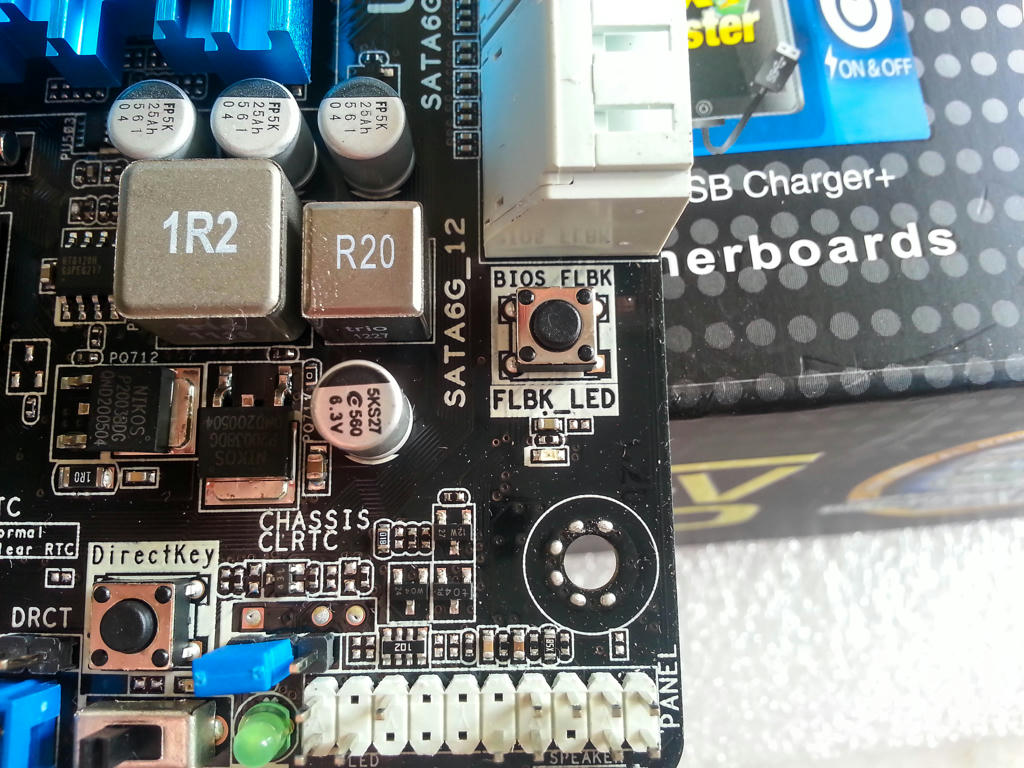

    Asus Bios FlashBack:
    Just plug in a USB flash drive containing the BIOS file, and press the BIOS Flashback button for 3 seconds with the power supply connected. The UEFI BIOS will then automatically update without requiring further interaction. [Must be Fat32 format]

    Techinstyle.tv - ASUS ROG lab exclusive: USB BIOS Flashback - YouTube

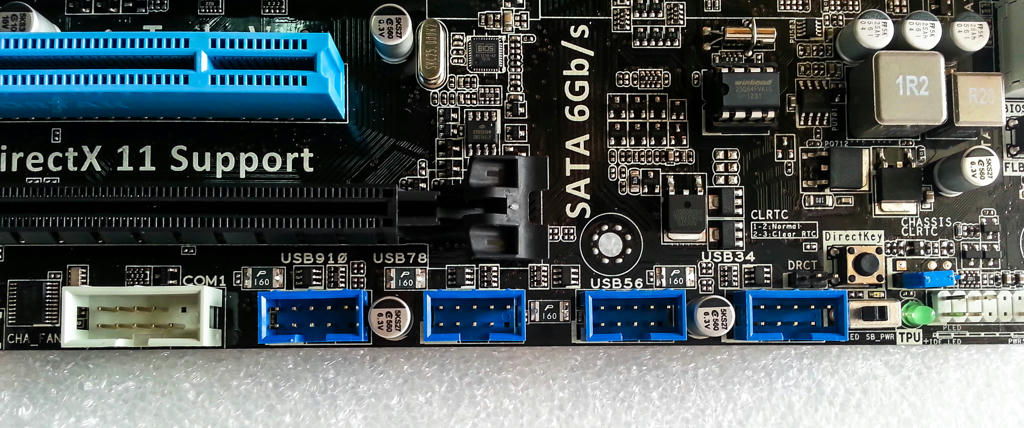

    Four blue Connectors for USB 2.0 ports, Connect the USB module cable any of these connectors. Total support up to 8 USB 2.0 port

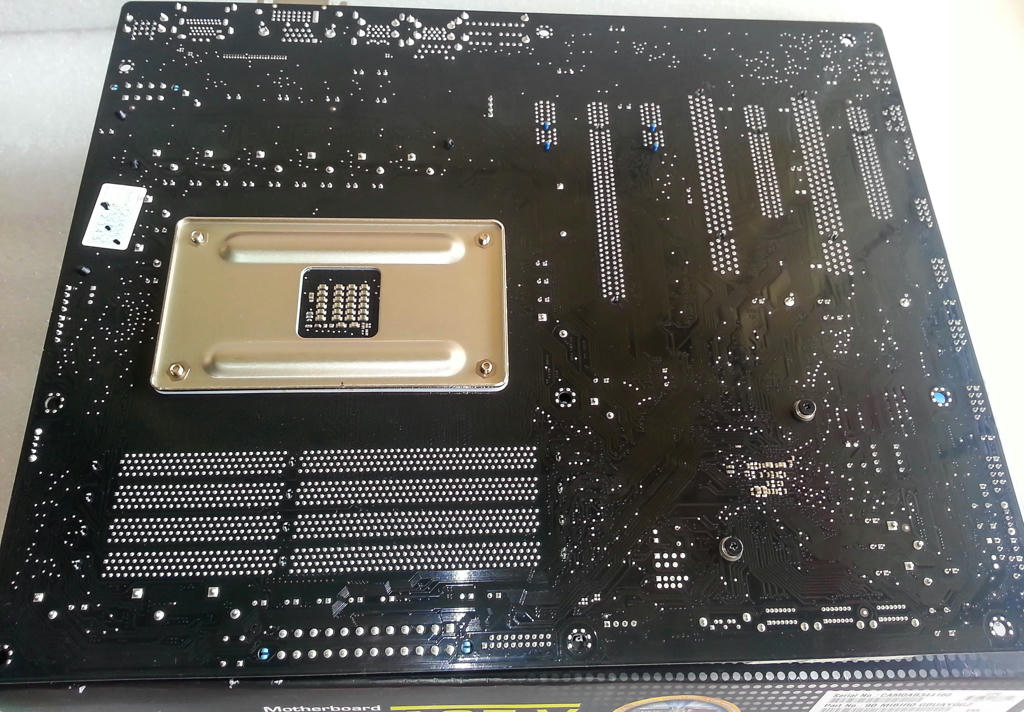

    Asus F2A85-V Pro PCB back


    PCB 4 layer design
    Last edited by poor_poor; 12-18-2012 at 03:43 PM.

  2. #2
    Join Date
    Dec 2012
    Location
    Singapore
    Posts
    59

    Default Re: Asus F2A85-V Pro [Review]

    Testing & Benchmark:

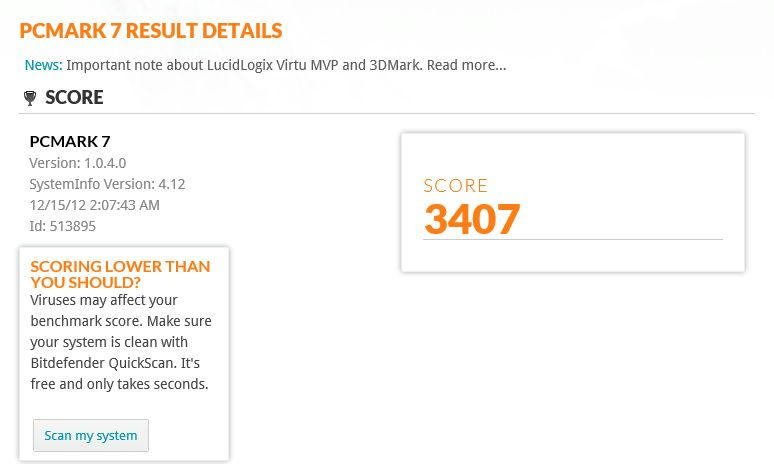

    Microsoft Windows 8 Experience Index


    PCmark 7 Default Setting


    3Dmark11 Default Setting

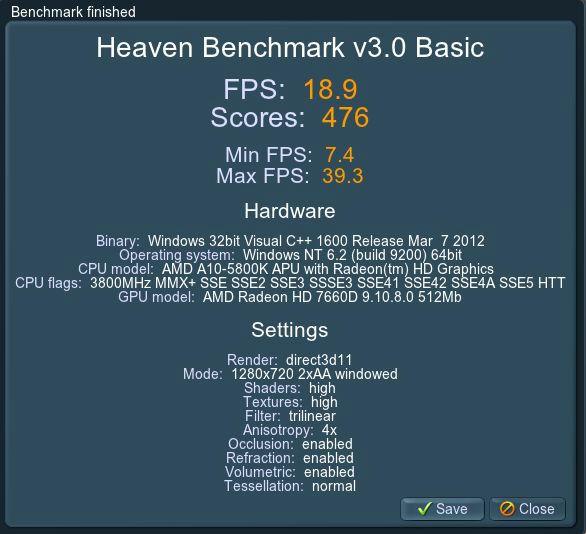

    Heaven Benchmark 3.0

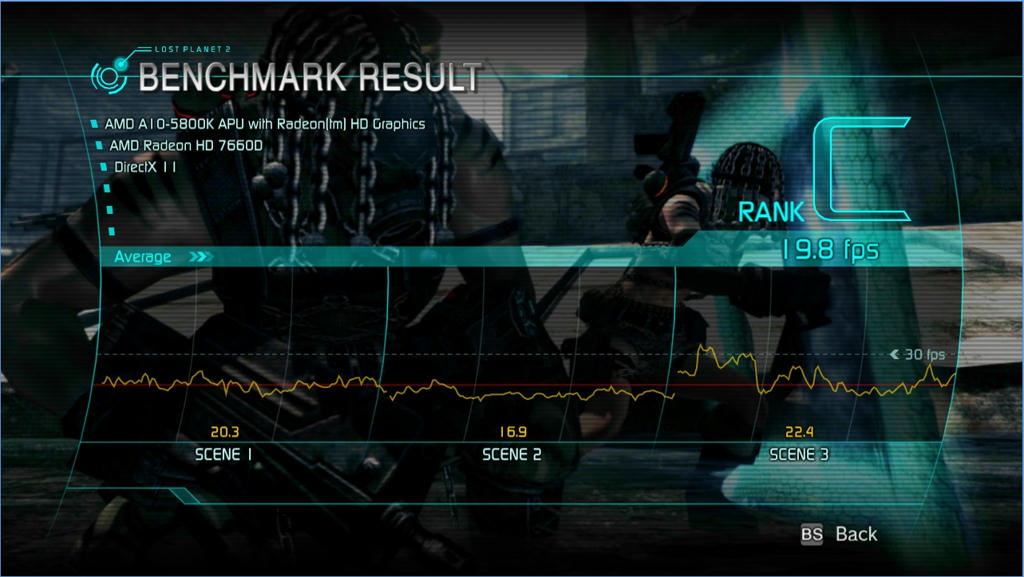

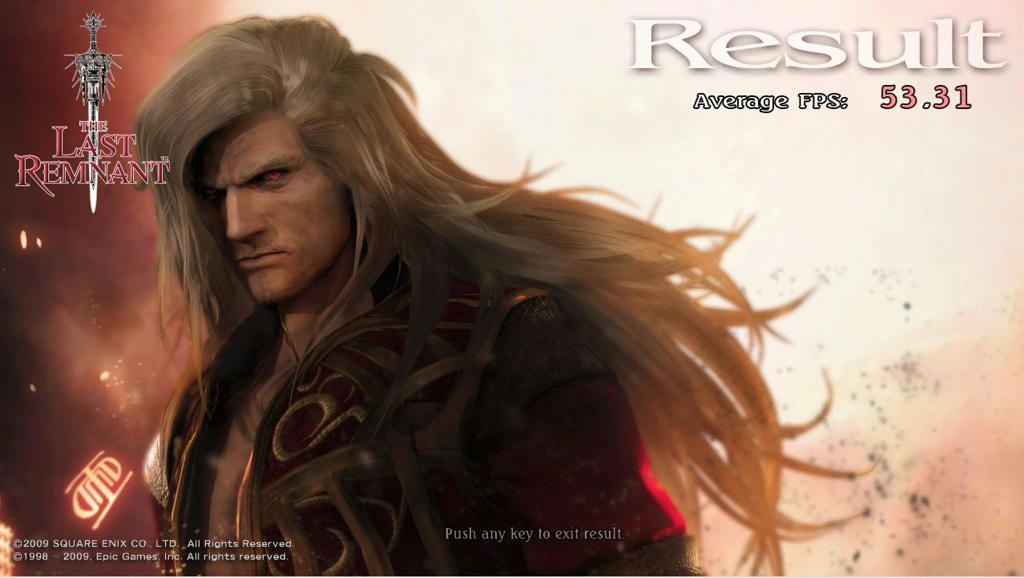

    The Last Remnant @ 1280x720

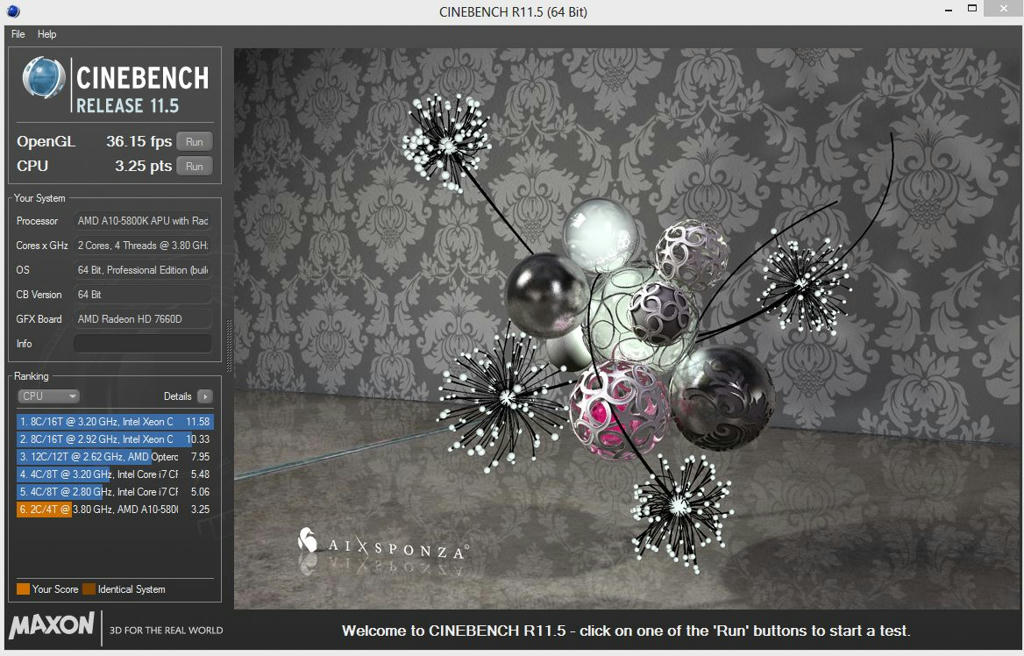

    Lost planet 2 @ 1280x720

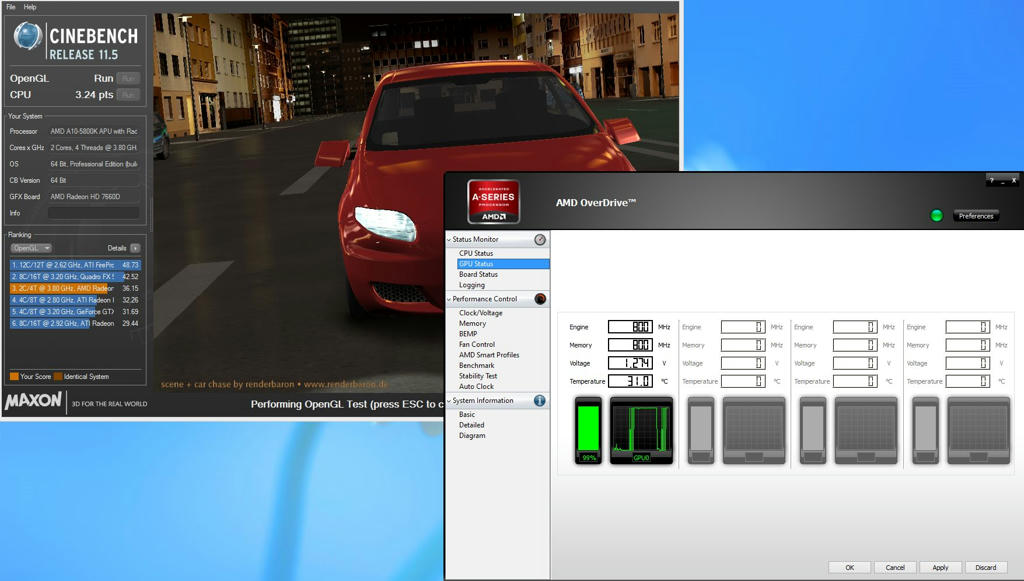

    Cinebench R11.5

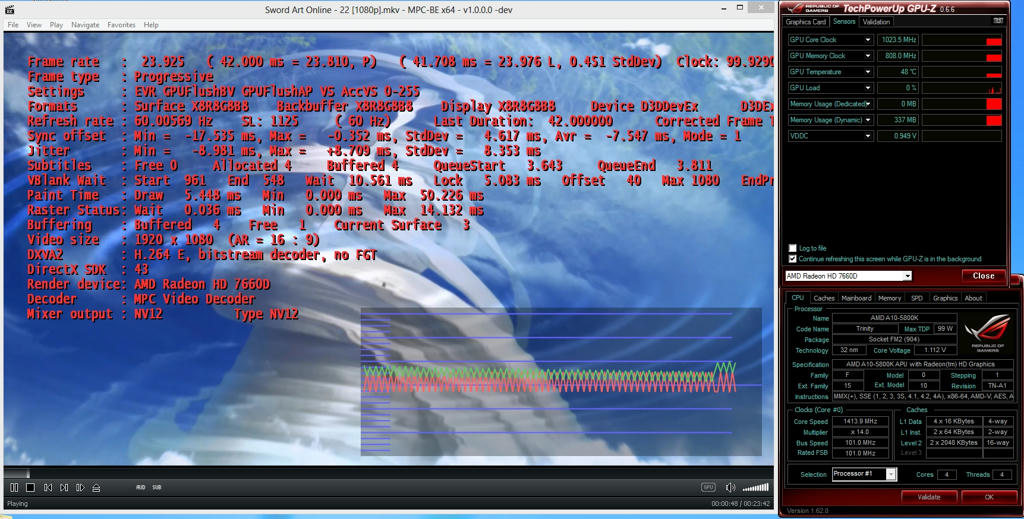

    FHD 1080P anime playback

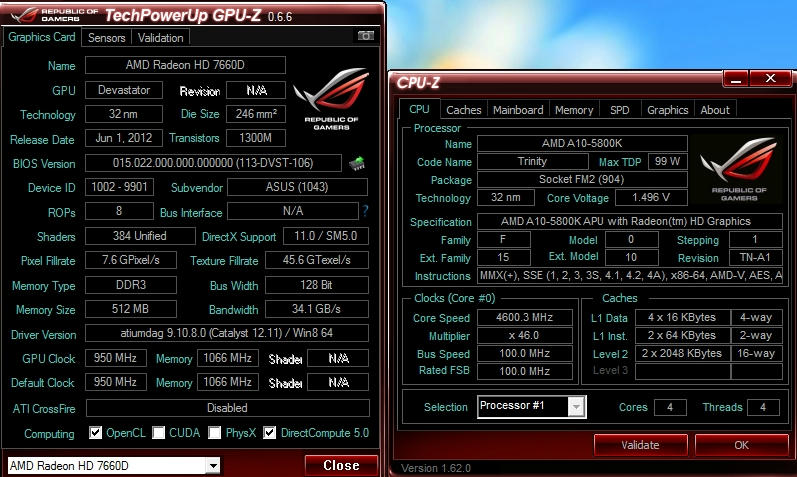

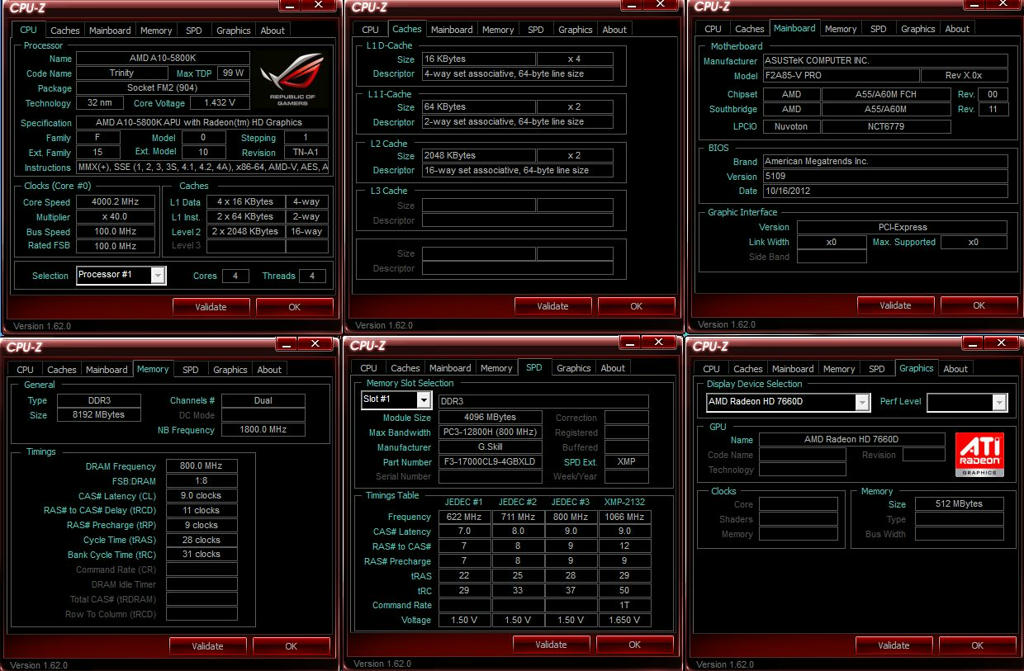

    CPU-Z ROG

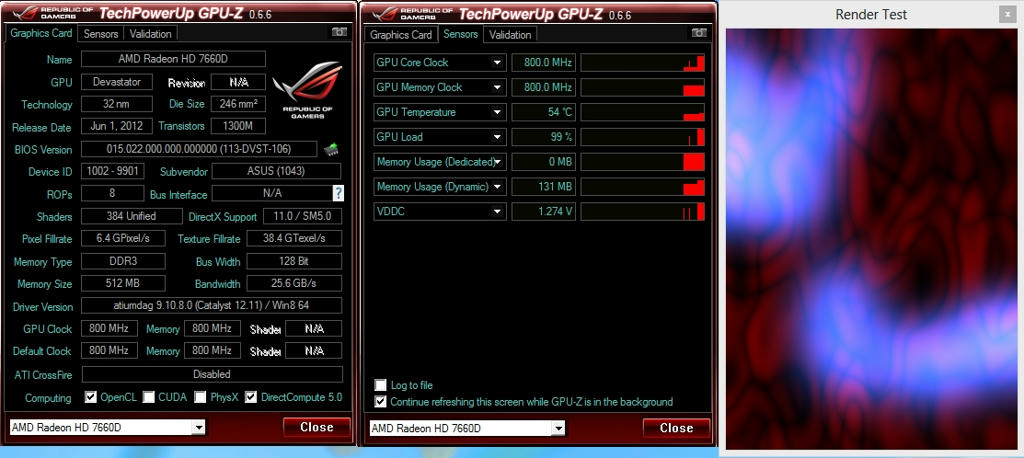

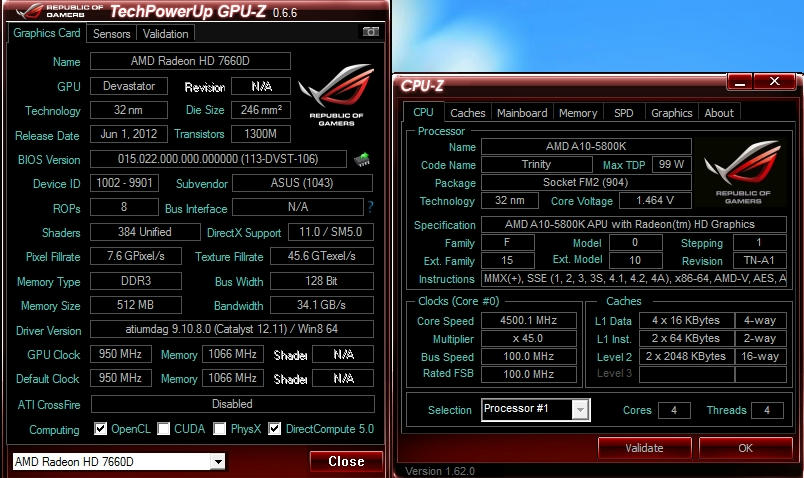

    GPU-Z ROG


    Asus AI Suite 2

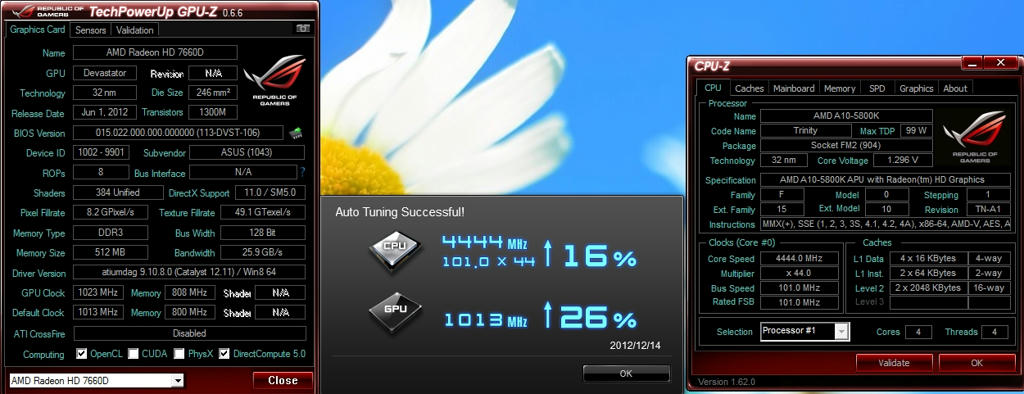

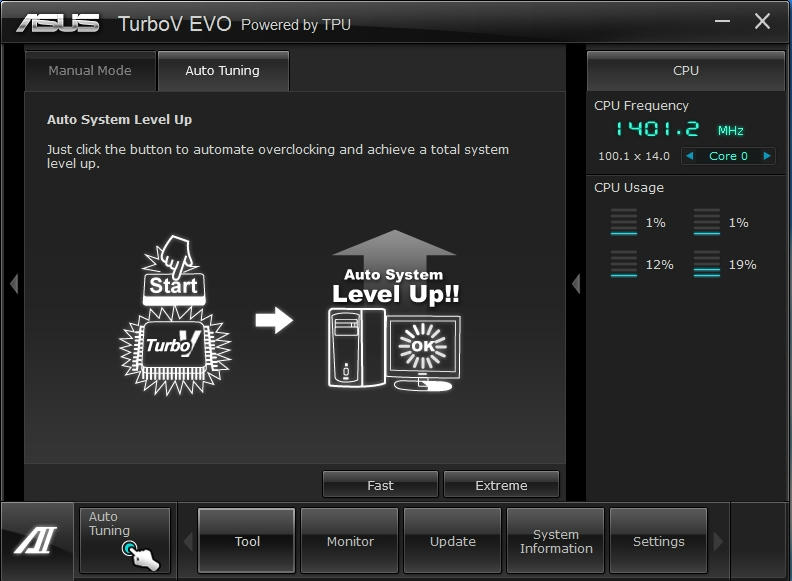

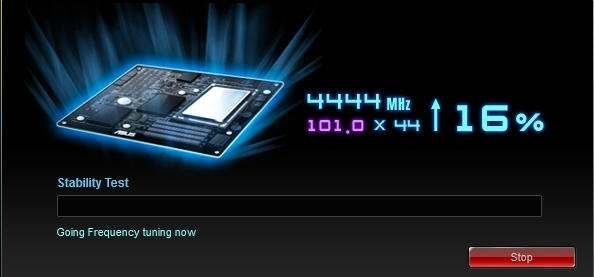

    Asus AI Suite 2 Auto Tuning: Auto-Overclocking




    Finish Auto tuning

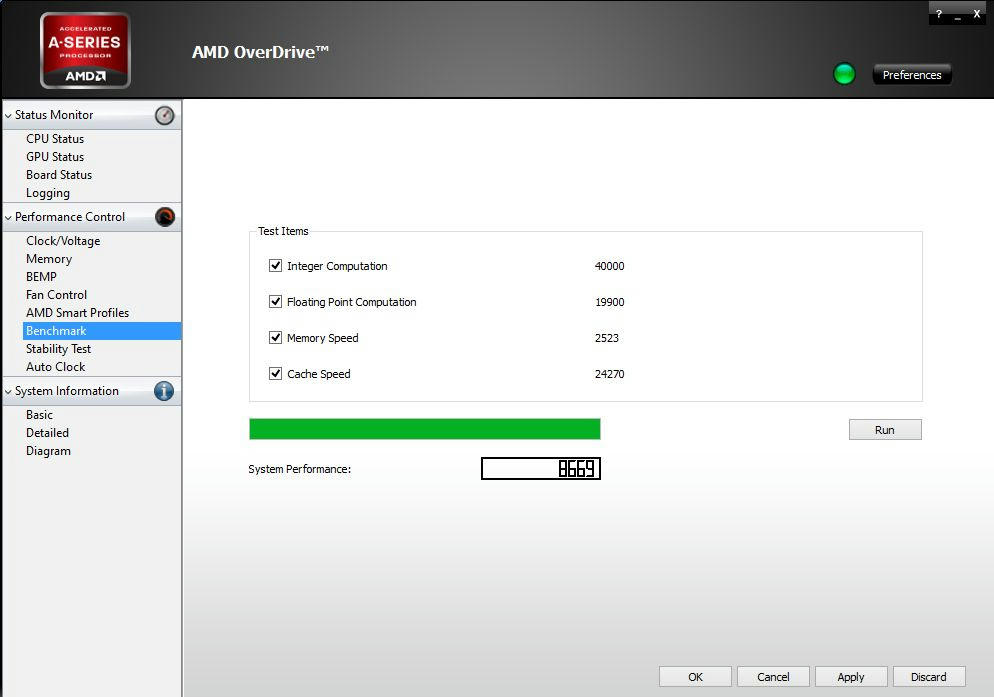

    AMD OverDrive Benchmark:

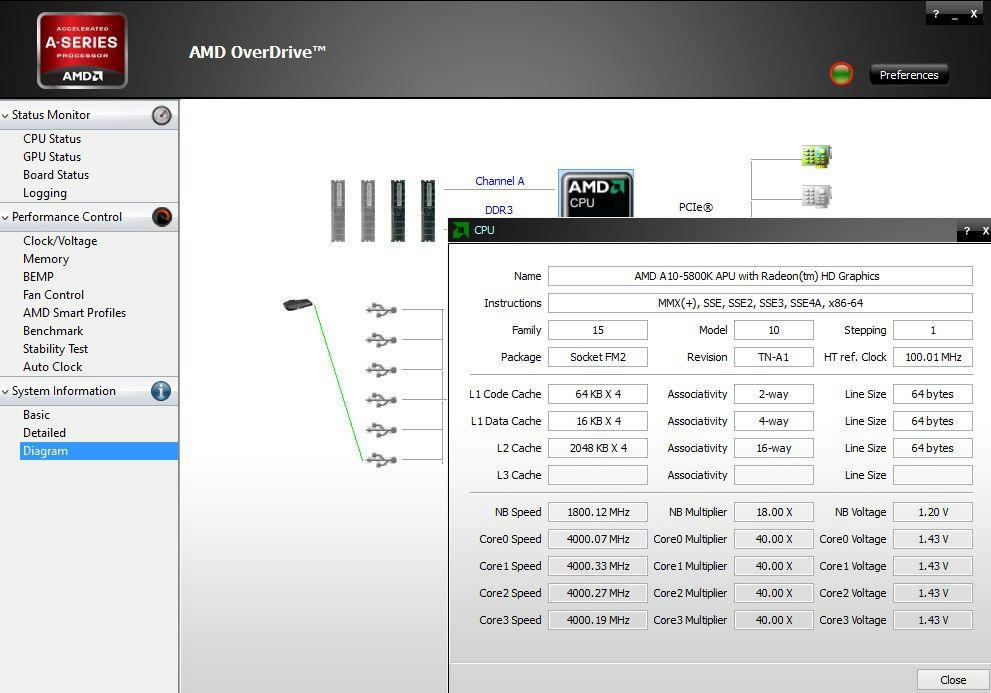

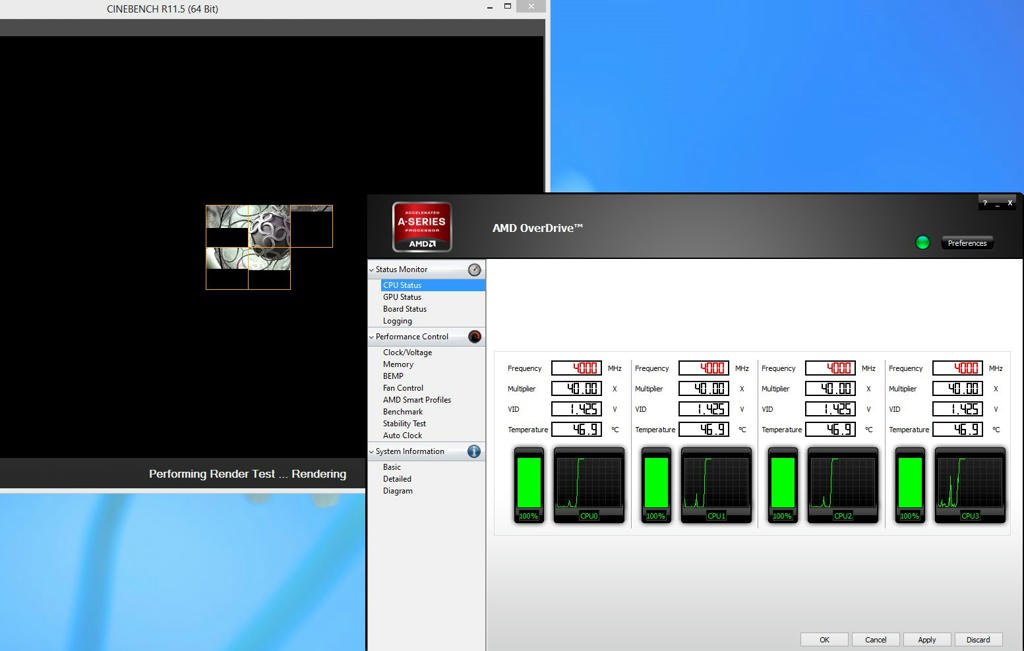

    AMD OverDrive CPU Status:

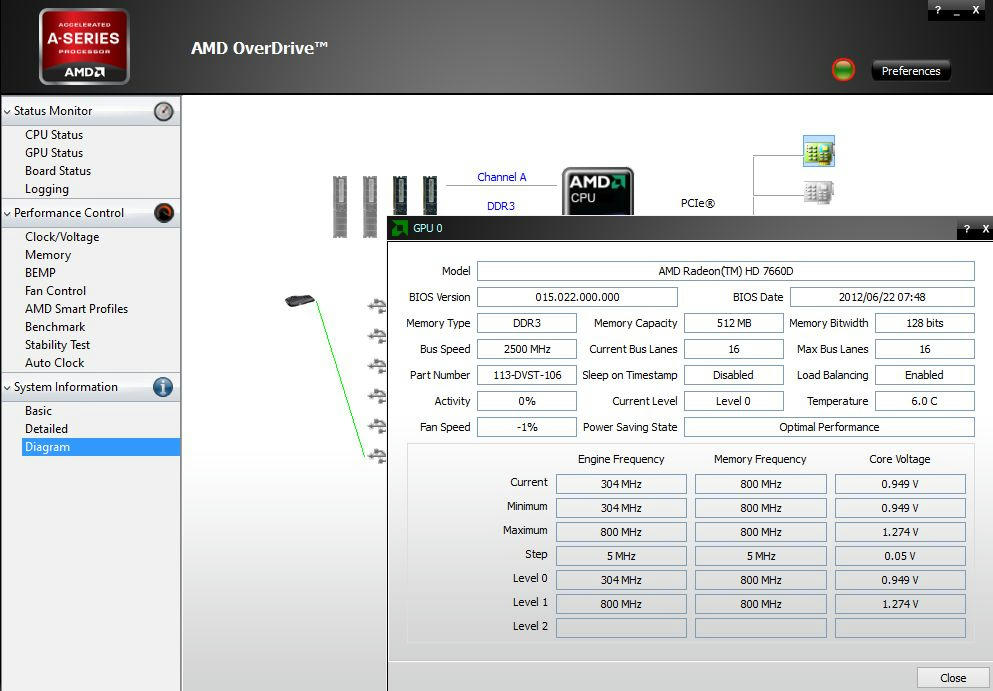

    AMD OverDrive GPU Status:

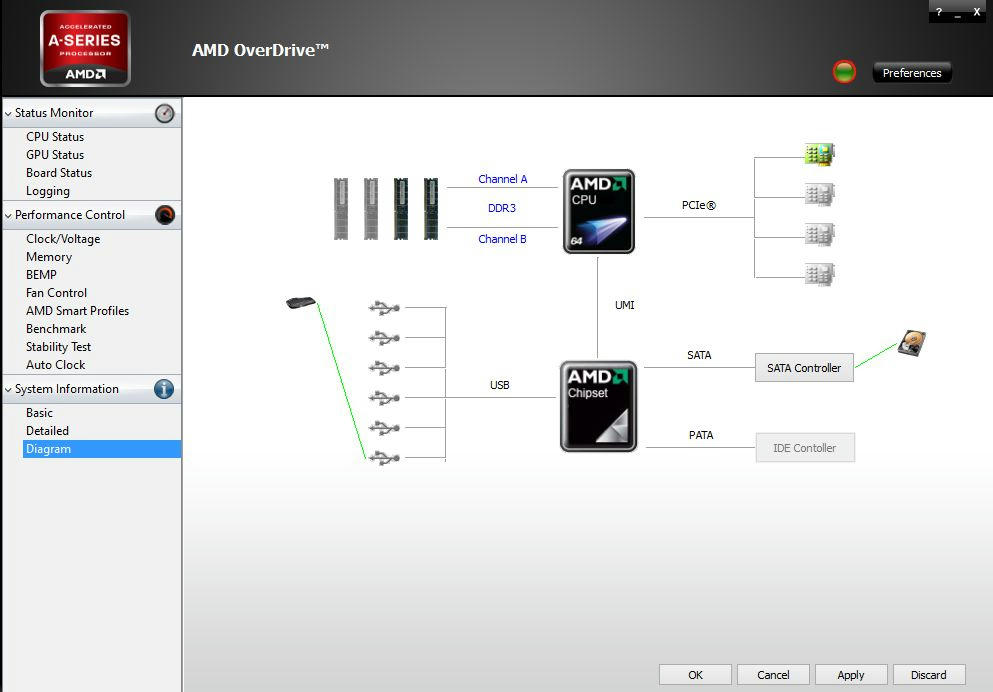

    AMD OverDrive Diagram


    AMD OverDrive Diagram GPU Detail


    AMD OverDrive Diagram Processor Detail


    AMD OverDrive Board Status

  3. #3
    Join Date
    Dec 2012
    Location
    Singapore
    Posts
    59

    Default Re: Asus F2A85-V Pro [Review]

    Overclocking & Benchmark

    3Dmark 11 Overclock GPU & memory

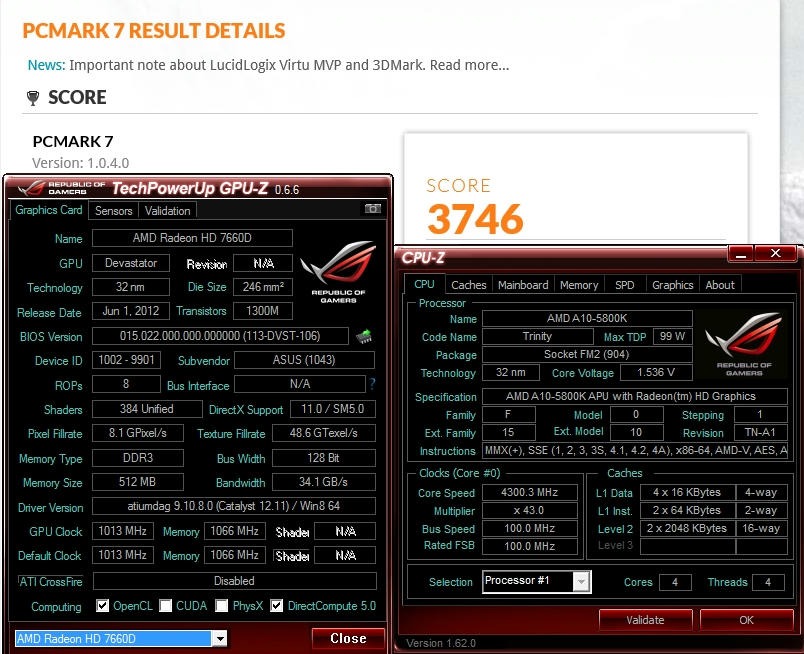

    PCmark 7 overclocking GPU 1Ghz & CPU @ 4.3Ghz

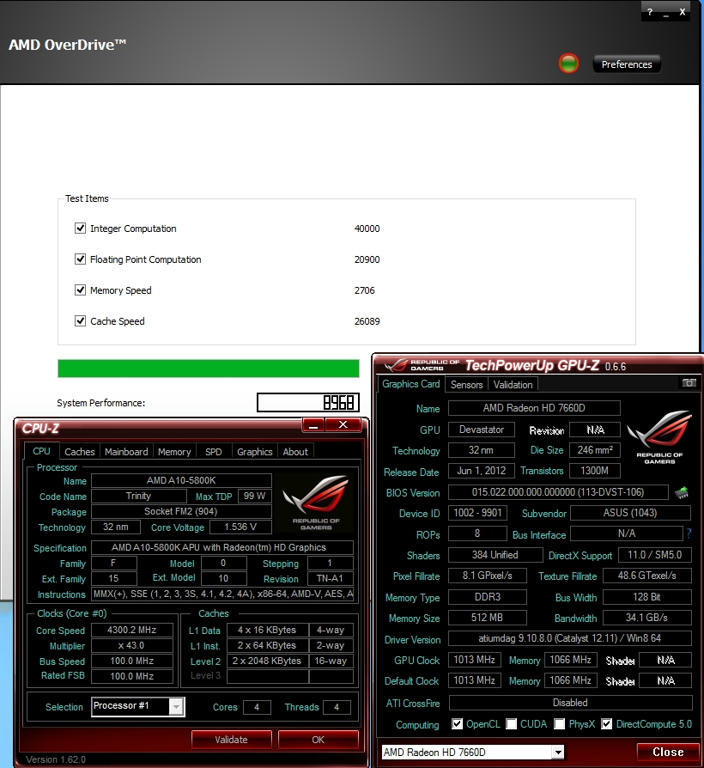

    AMD Overdrive Benchmark GPU @ 1Ghz & CPU @ 4.3Ghz


    CPU overclock @ 4.5Ghz


    CPU overclock @ 4.6Ghz

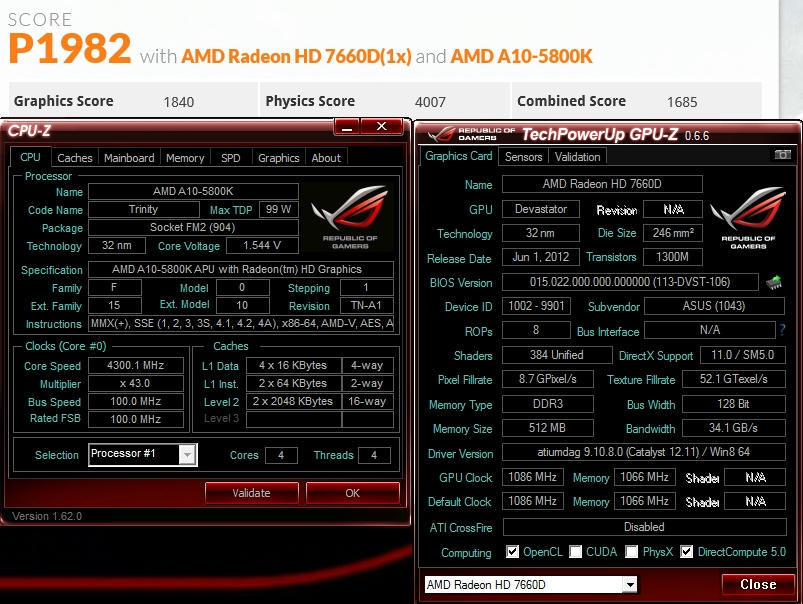

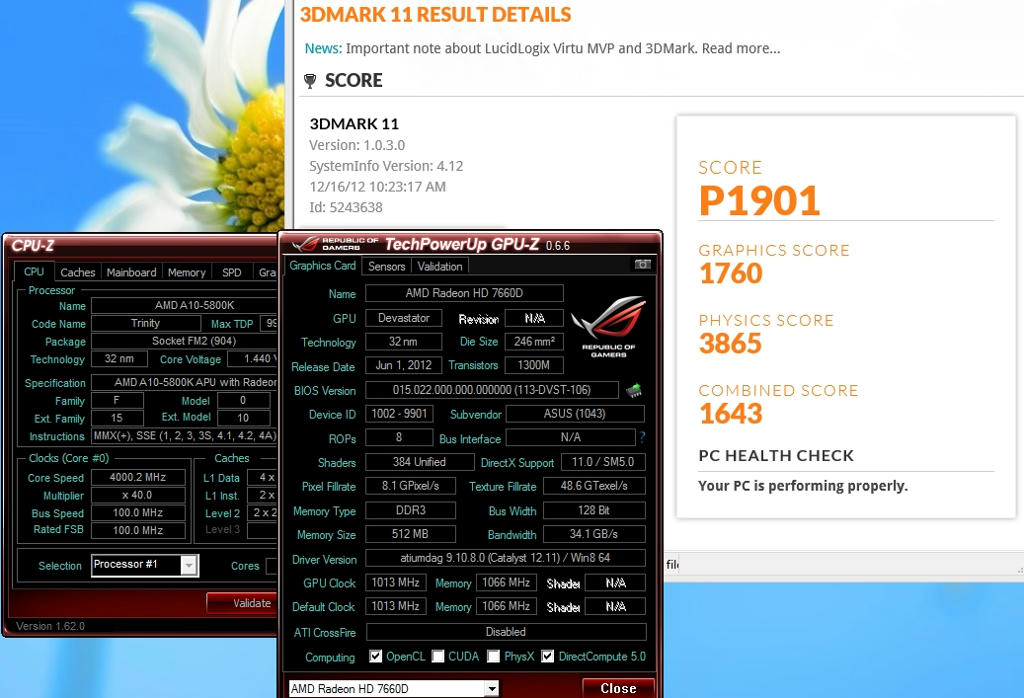

    3Dmark11 Score P1982 @ 4.3Ghz/GPU: clock 1086/mem:1066


    3Dmark11 Score P2053 @ 4.3Ghz/GPU: clock 1169/mem:1066

  4. #4
    Join Date
    Dec 2012
    Location
    Singapore
    Posts
    59

    Default Re: Asus F2A85-V Pro [Review]

    Asus F2A85 Series motherboards based on the new AMD A85X chipset and FM2 socket, designed for AMD second generation Accelerated Processing Units (APU). The next generation APU offers superb performance to deliver users an upgraded gaming and multimedia experience. Embedded in the APU is an AMD Radeon� HD 7000 Series GPU that drives superior performance-per-watt graphics, which is bolstered by support for AMD Eyefinity technology enabling an ultra-immersive visual environment on up to three independent display outputs.



    AMD Eyefinity benchmark & review

    Windows 8 Start Menu



    Heaven Benchmark Eyefinity 5760x1080






    Lost Planet 2 Benchmark Eyefinity 5760x1080
