    Thumbs up ASUS P8B75-M LX affordable & Good [Review]

    Are you looking for a budget motherboard that fit into your DIY gaming rig?

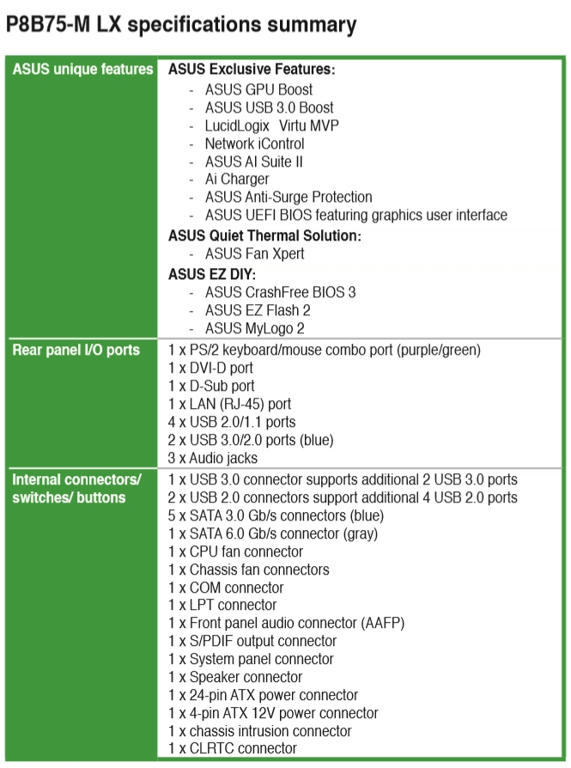

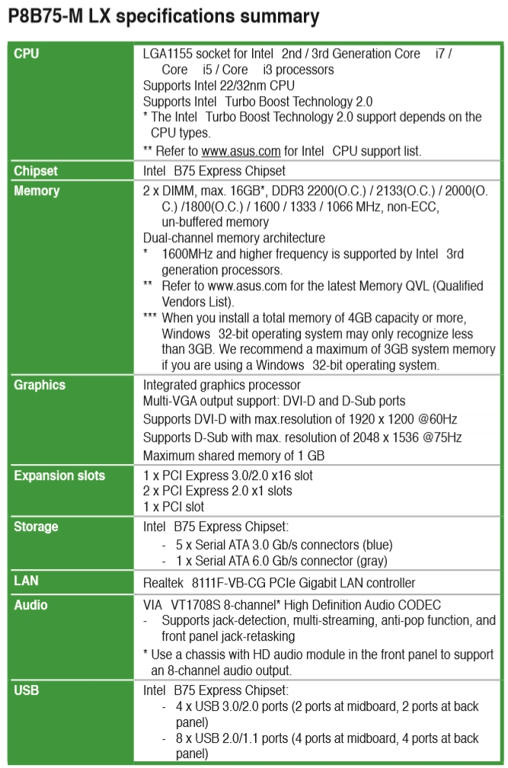

    The Asus P8B75-M LX is a budget motherboard based on the Intel B75 chipset, supporting Ivy Bridge and Sandy Bridge processors and oriented toward business/gamer/light users. Due to Micro ATX form factor, the P8B75-M LX is convenient for use in smaller desktop PCs, but as a downside the motherboard has only two memory slots, as well as only one PCI-E 3.0 x16, two PCI-E x1, and one PCI slot. Storage support-wise, there is a decent number of ports – five SATA 3G and one SATA 6G for you SSD [OS], while for connectivity to external devices there are a total of eight USB 2.0 and four USB 3.0 connectors. Video output is provided via VGA and DVI ports. Audio is provided via VIA High Definition Audio, whereas Gigabit LAN connection is supported by Realtek Gigabit Ethernet.







    Testing Spec:
    Intel i7 3770K [Intel Stock Cooling]
    G.Skill F3-2133C9D-8GAB [4gbx2]
    Hynix SSD 128Gb Sata 3
    Gigabyte ODIN 800w
    Windows 8 Home Premium 64bits [installed all update]
    ---------------------------------------------------------------------------------

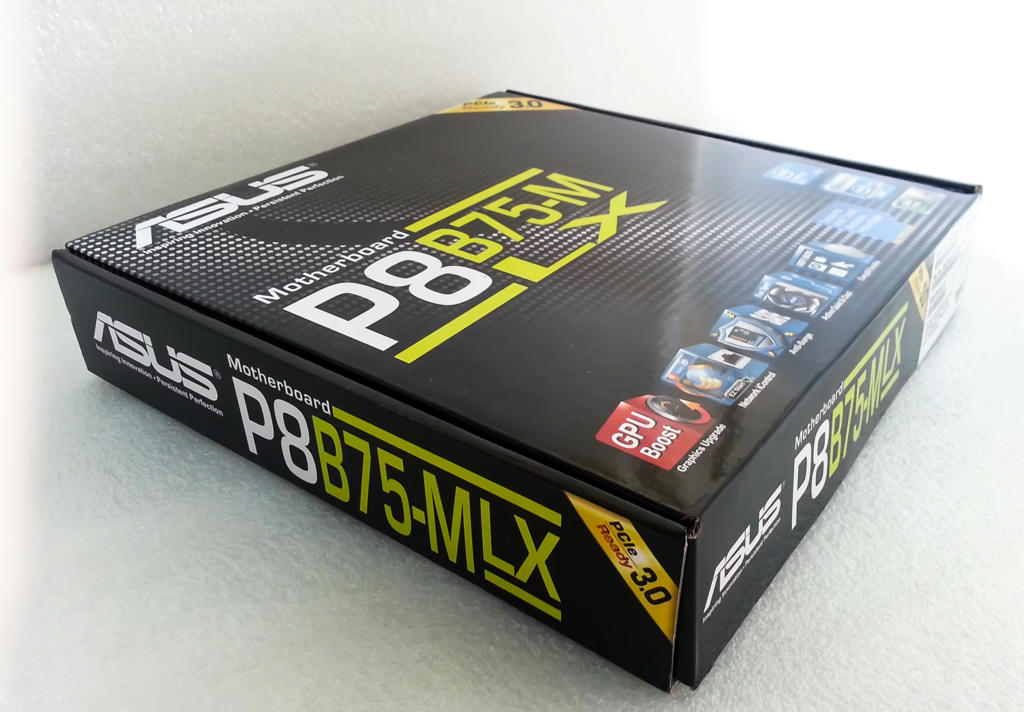

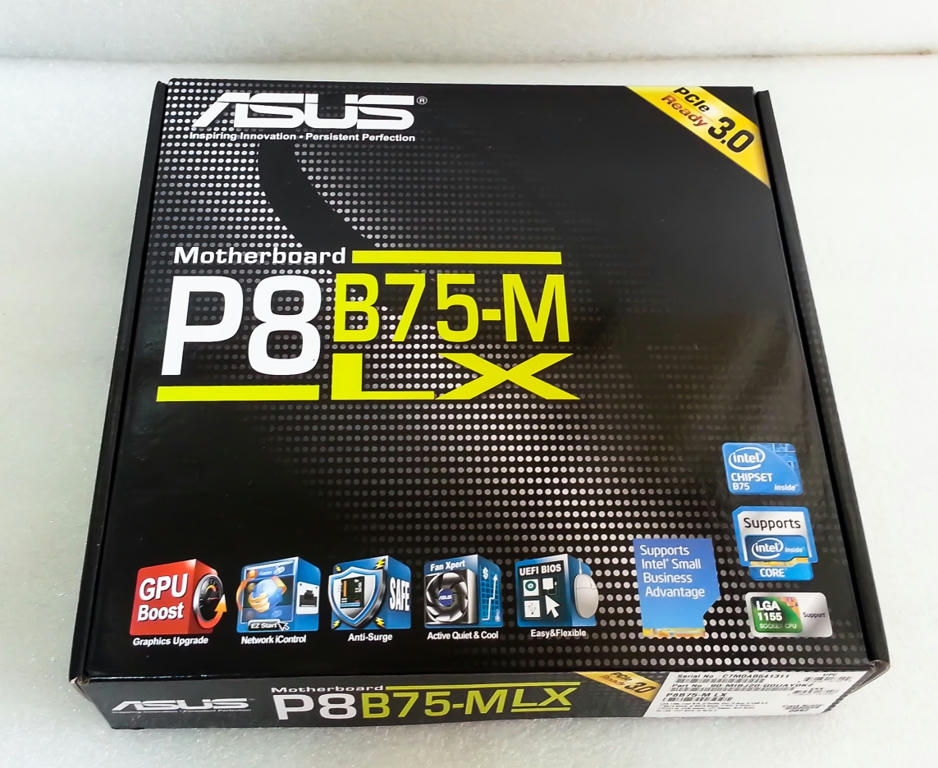

    Motherboard unboxing

    Side View

    Back view

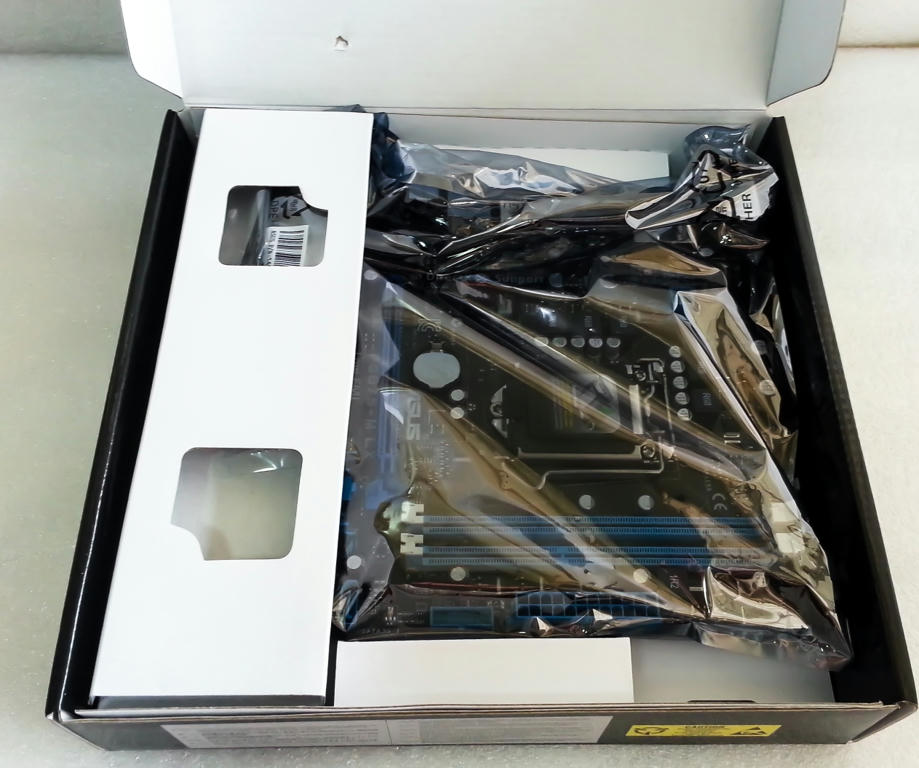

    Open Box

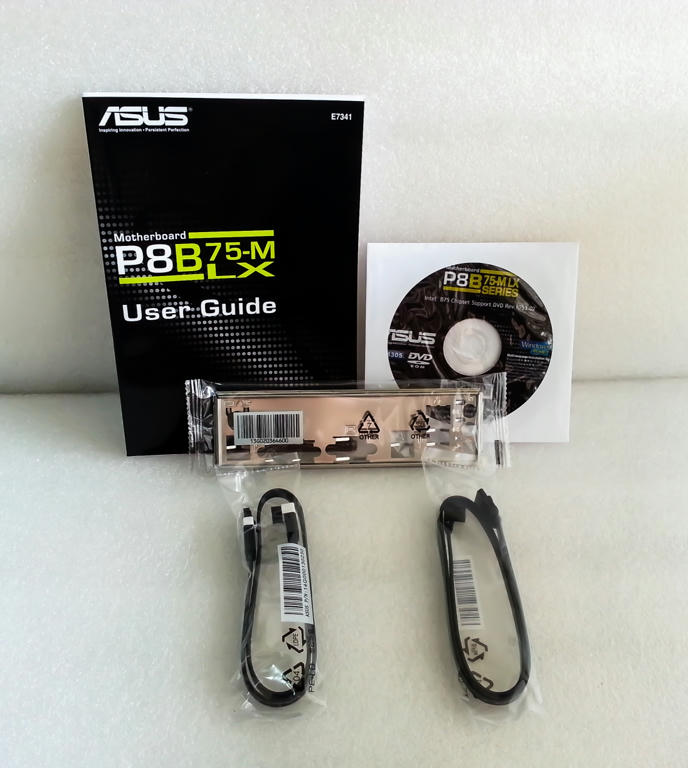

    P8B75-M LX Accessory package:
    1x I/O Back Plate
    1x MB Driver Disc
    1x Manual Book
    2x Sata3 Cable



    Here Come the Motherboard :)

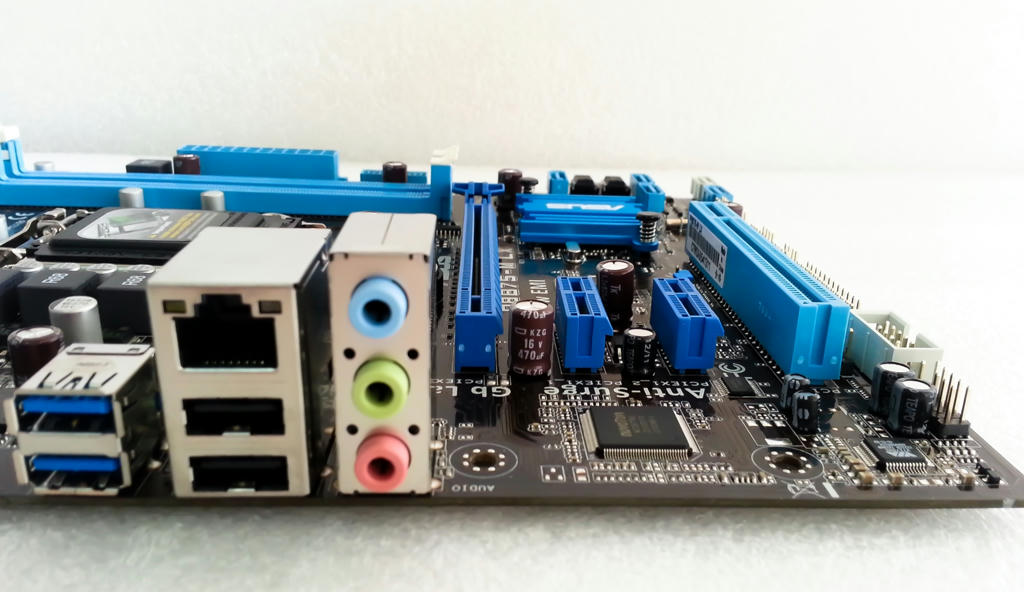

    Side View

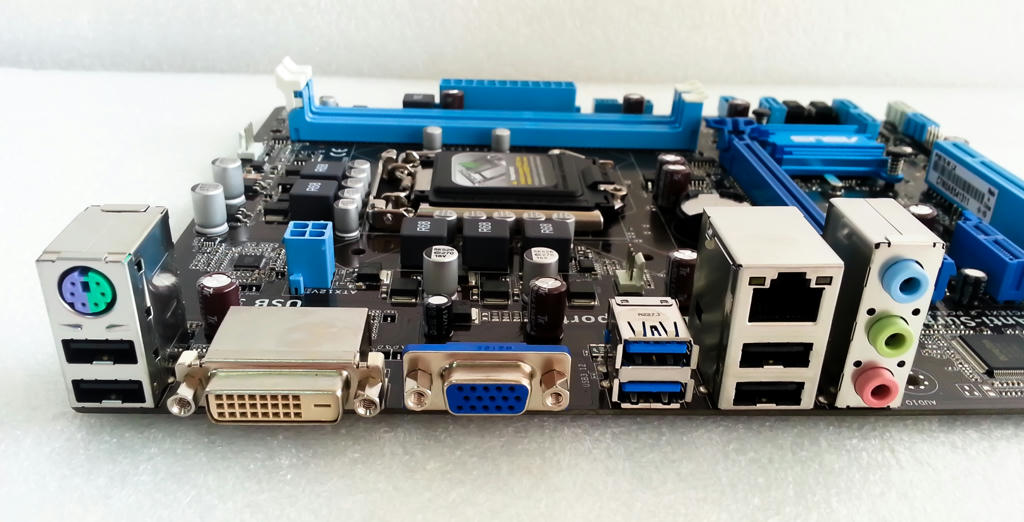

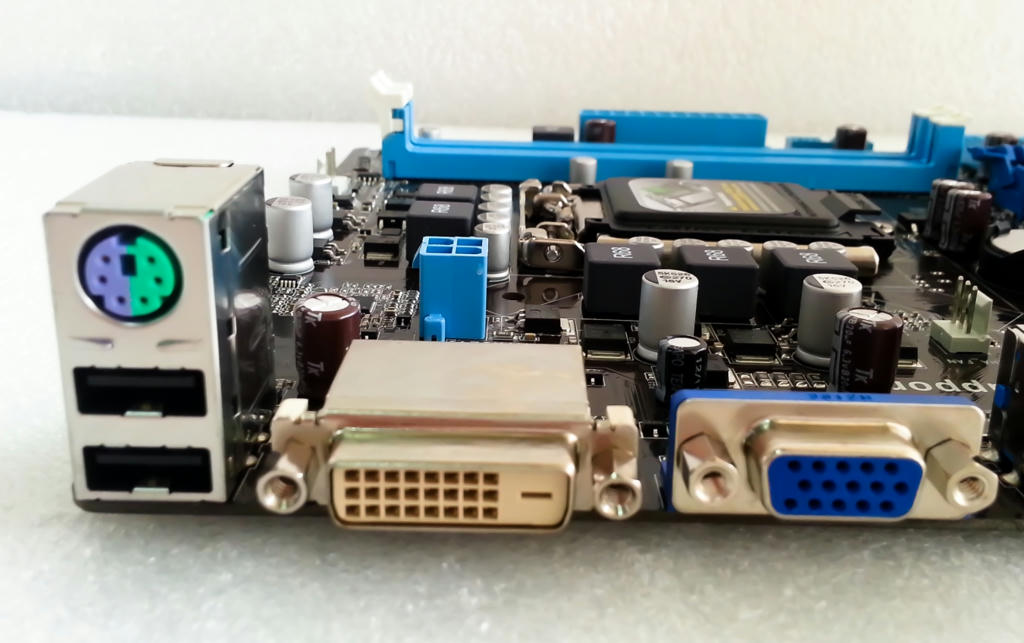

    Back I/O:

    Left:
    1x P/S2 For Mouse or Keyboard
    2x USB 2.0
    1X DVI
    1x D-Sub

    Right:
    2x Intel USB 3.0
    1x Gigabit Ethernet port
    2X USB 2.0
    1x Audio port

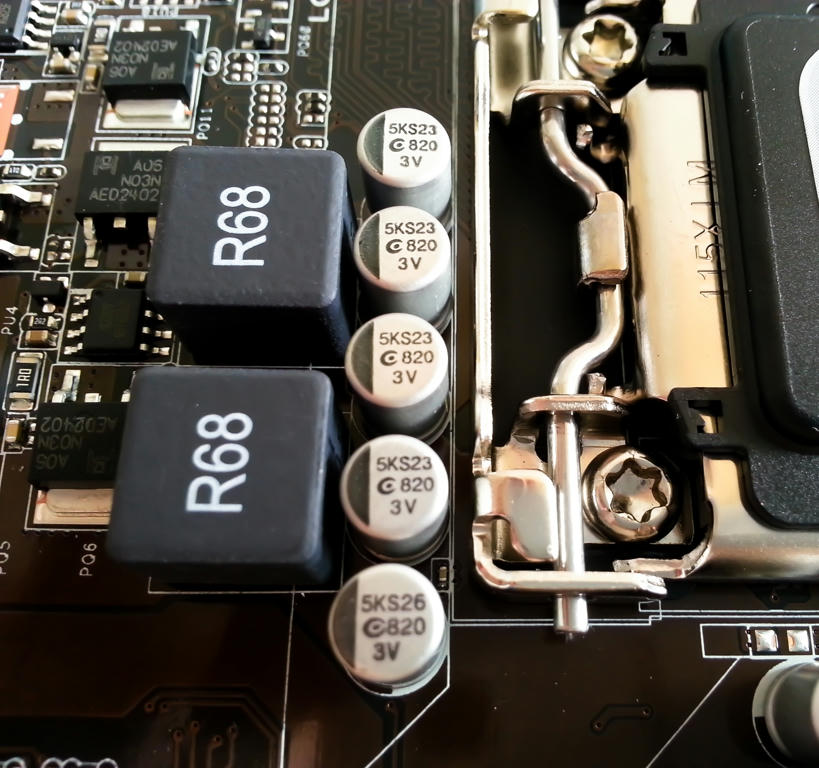

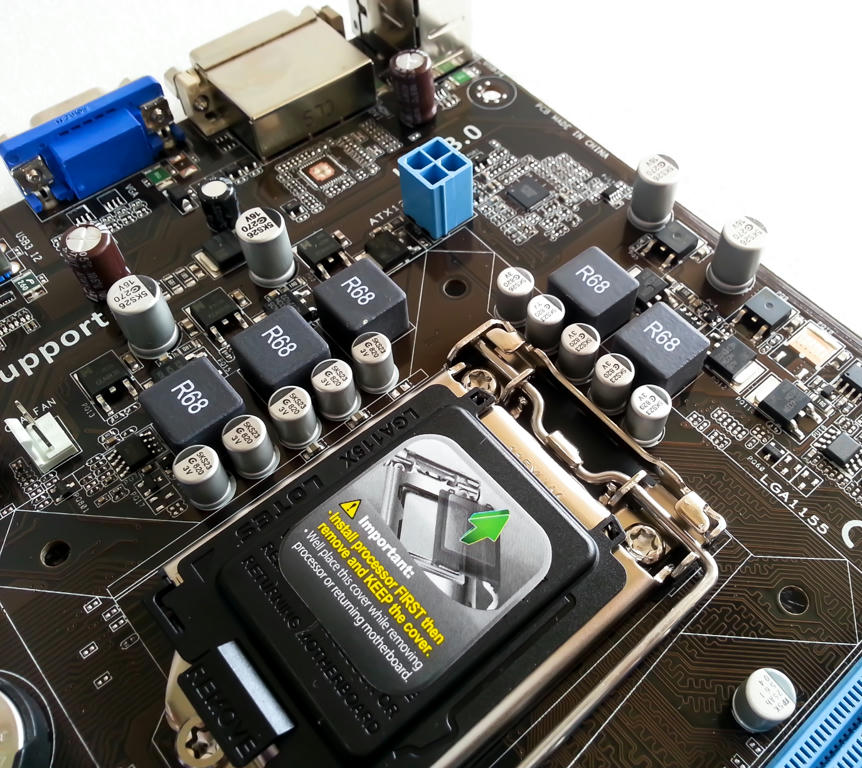

    CPU VRM area: 4+1 Power phase
    ASUS use taiwan solid capacitors and a 4+1 analog phase power design at CPU VRM area

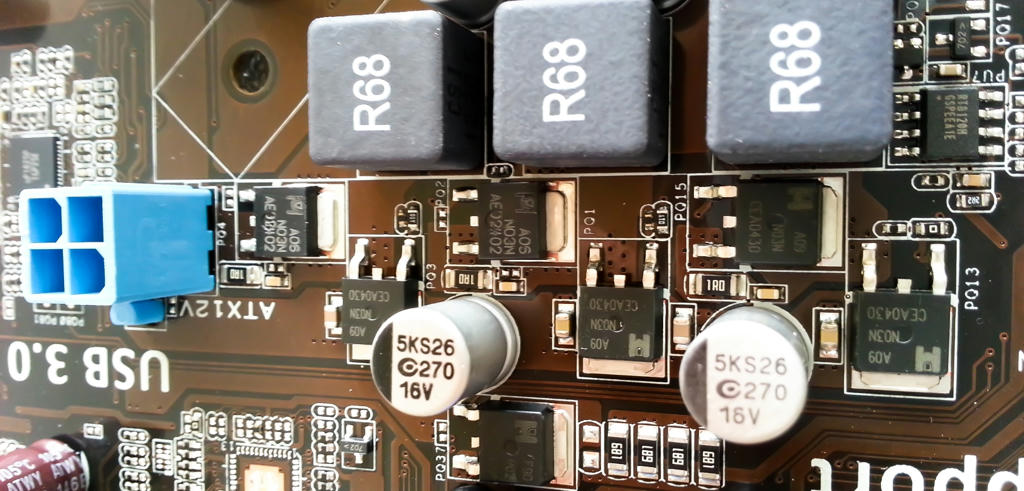

    Asus P8B75-M LX used Taiwan AP-CON ALUMINUM SOLID ELECTROLYTIC CAPACITOR and R68 iron core choke.

    Asus used Two A06N03N 6mΩ , 80A MOSFETs act on the low-side, and a single A09N03 N, 9mΩ, 50A, is used as the high-side and these Mosfets using Dual-channel mode.

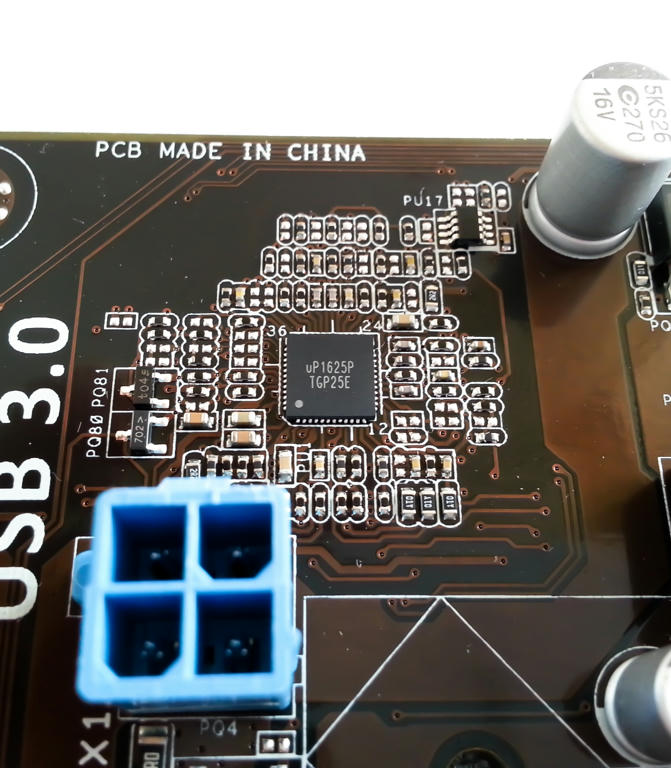

    The PWM power uP1625P, 4 +1 analog phase power management

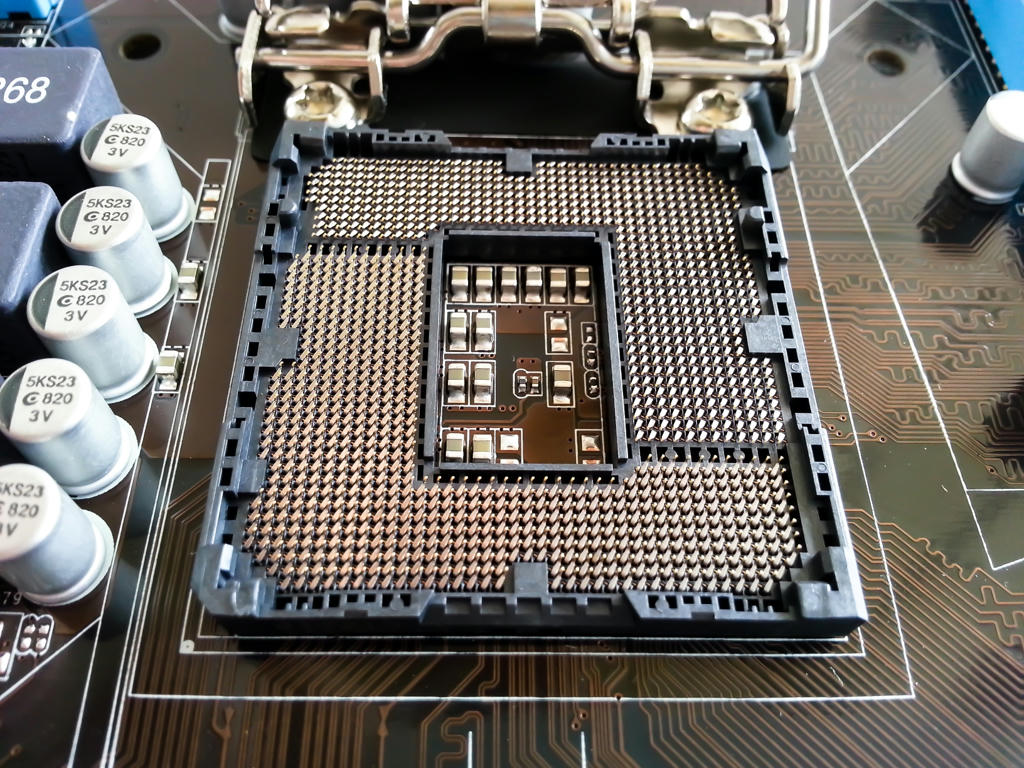

    Intel Socket 1155, CPU PIN

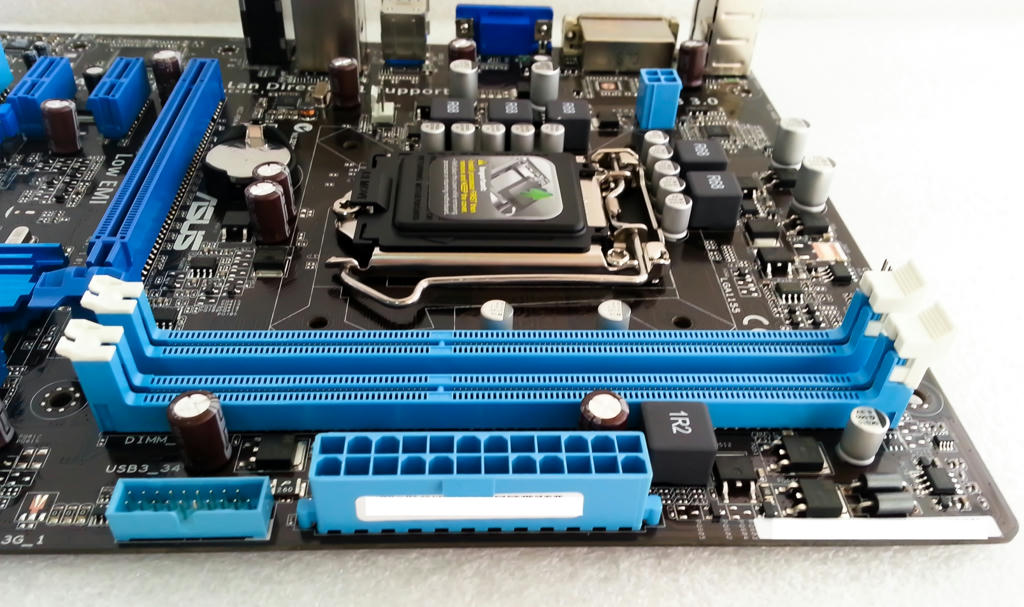

    2 Dimm 1.5v DDR3 ram slot, 1 power phase for Ram. Support Intel X.M.P

    Five blue Sata port support only to 3Gb/s and 1 White Sata port supporting 6Gb/s.
    Those Sata port from Intel PCH

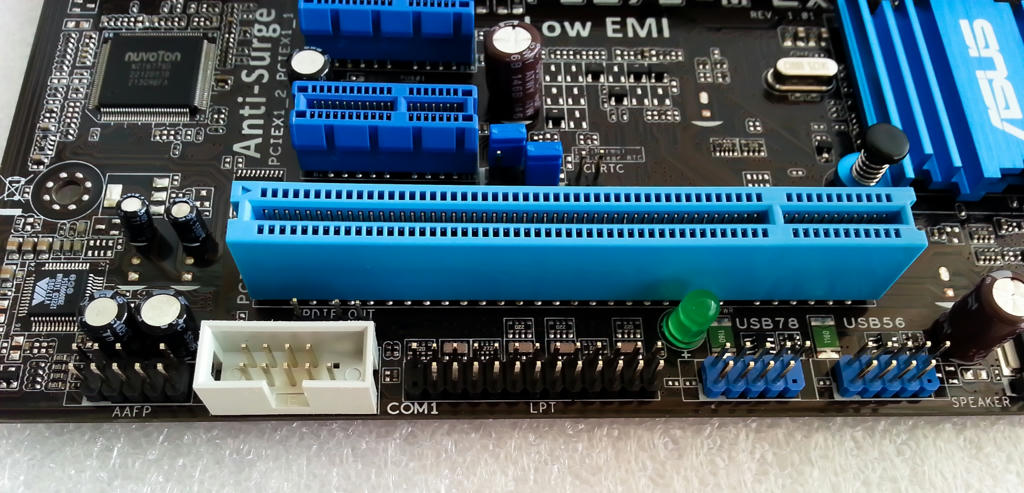

    1 AAFP connector for front casing HD Audio, 1 white port for Com connector and 1 LTP connector for Parallel Port to connect device like printer/scanner or other devices.
    Two blue Connectors for USB 2.0 ports, Connect the USB module cable any of these connectors. Total support up to 4 USB 2.0 port

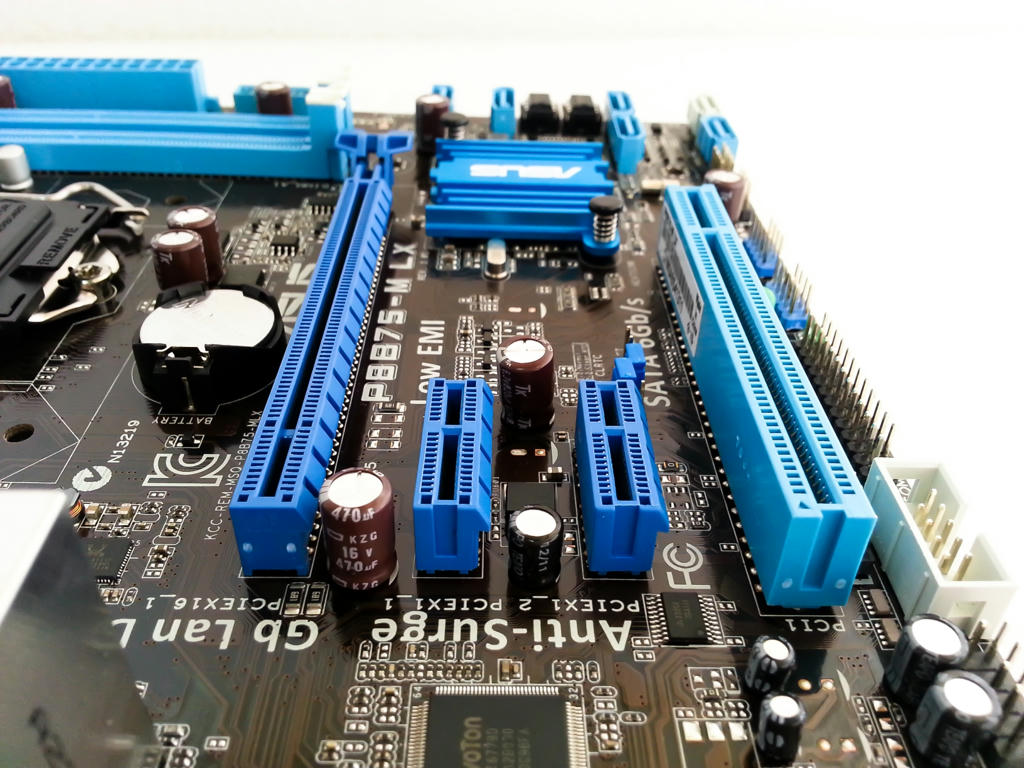

    left of the board we find the PCIe and PCI slots which run from PCI-Express 3.0 16x through two PCI-Express 2.0 and 1 PCI.

    Asus P8B75-M LX board used Dual Bios chip: Winbond 25064FVA1G-UEFI ROM 64MB

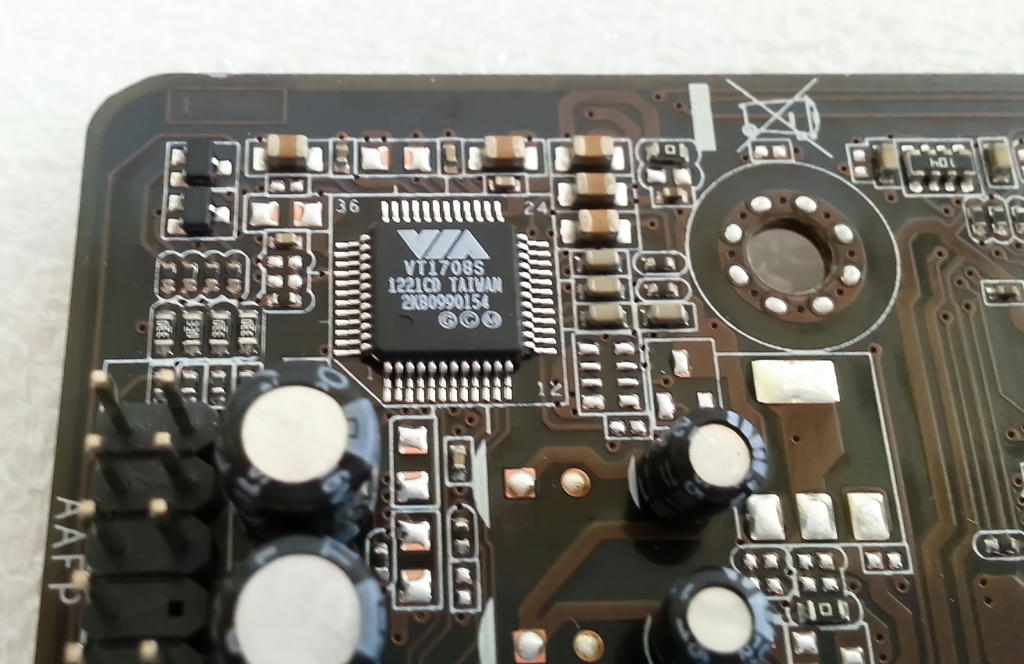

    Ausu throw in VIA High Definition Audio VT1708S, VIA Vinyl VT1708S features four stereo DACs, two stereo ADCs, analog input to analog output mixing, and two independent S/PDIF outputs. It can achieve high performance 100 dB Signal-to-Noise Ratio (SNR) for DACs and 90 dB SNR for ADCs. A high quality analog mixer is used to support A-A path.

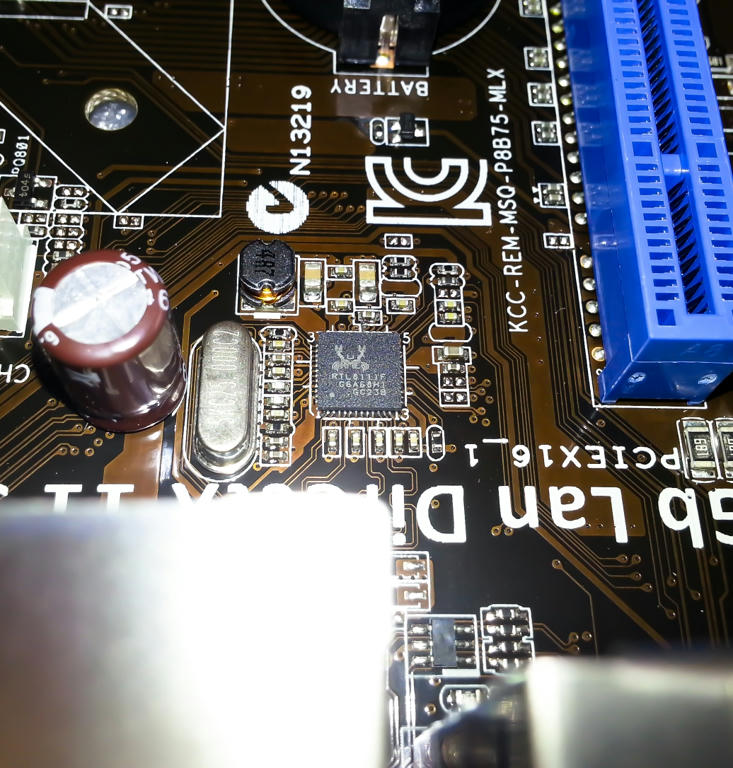

    Asus used Realtek RTL8111F Gigabit Ethernet, the chip used PCI Express 1.1 bus interface lane for host communications with power management, and is compliant with the IEEE 802.3u specification for 10/100Mbps Ethernet and the IEEE 802.3ab specification for 1000Mbps Ethernet. Advanced Configuration Power management Interface (ACPI)—power management for modern operating systems that are capable of Operating System-directed Power Management (OSPM)—is supported to achieve the most efficient power management possible.

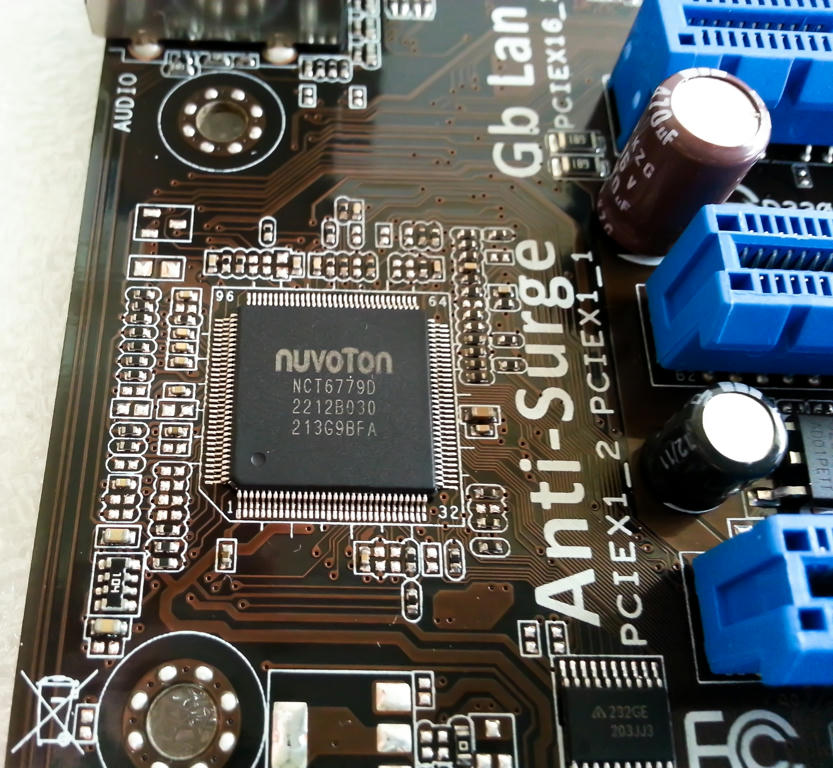

    Nuvoton NCT6779D is a Super I/O Controller: Used for keyboard controller with PS/2 mouse, wake-up functions/HW Monitor functions and fan-speed control.

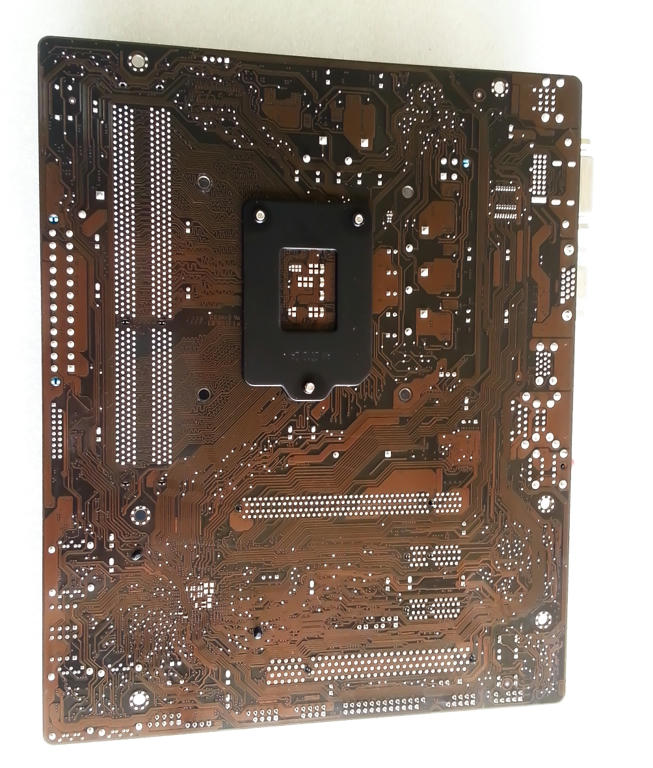

    Motherboard Back View

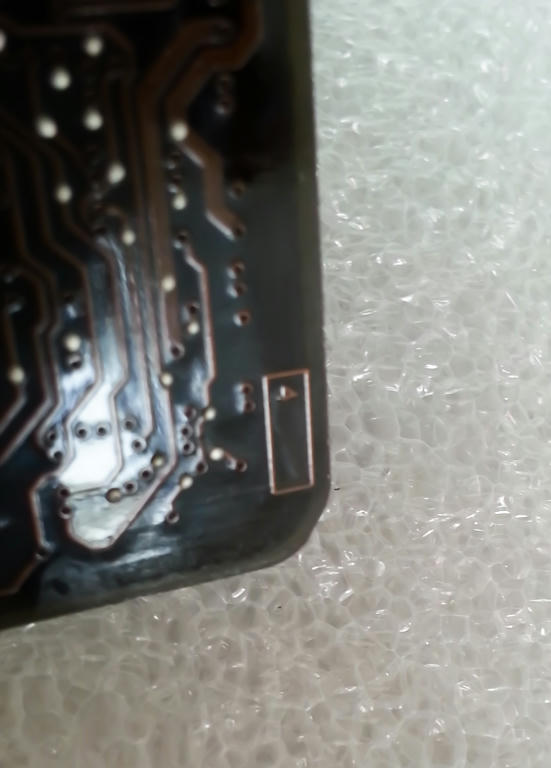

    This board used 4 layer PCB oz to ensure fastest heat transfer and low temperature.

    Motherboard overview 2
    Last edited by poor_poor; 03-01-2013 at 11:12 AM.
    Never look down on anyone, even a noob. one day baby will grow teeth

  2. #2
    Join Date
    Dec 2012
    Location
    Singapore
    Posts
    59

    Default Re: ASUS P8B75-M LX affordable & Good [Review]

    Benchmark & Testing:

    Microsoft Windows 8 Experience Index


    Testing: S3 Sleep Mode: PASS!


    PLA Benchmark: Intel HD4000


    The Last Remnant: Intel HD4000


    Heaven Benchmark: Intel HD4000


    PCmark 7: Intel HD4000


    3Dmark11: Intel HD4000


    3Dmark11: with AMD HD7770 1ghz disable Virtu Mvp


    3Dmark11: with AMD HD7770 1ghz enable Virtu Mvp


    Passmark overall benchmark with HD7770


    Crystal diskmark Sata 6GB/s benchmark on Hynix


    VIA audio Quality test:
