Thread: overclocking on EP45C-DS3R




  1. #21
    Join Date
    Sep 2008
    Posts
    990

    Default Re: overclocking on EP45C-DS3R

    Same temperatures does not mean that the higher overclock should also be stable. The higher overclock may need more voltage for example.


  2. #22
    Lsdmeasap's Avatar
    Lsdmeasap is offline GIGABYTE Guru
    Join Date
    Jan 2008
    Location
    PCB Island
    Posts
    25,940

    Default Re: overclocking on EP45C-DS3R

    Yeap, it is working. I see 3.0, 2.6, and 3.825 CPU Freq.

    You may not see much difference in a overclock until you tighten down your memory timings, or just benchmark them as you have them now. You should see a good improvement in benchmarks between 3.0 and 3.6/3.8 for sure

    What cooler are you using anyway?

  3. #23
    Join Date
    Feb 2009
    Posts
    14

    Default Re: overclocking on EP45C-DS3R

    How i time my memories? and what timings should i use? the xsbench increases 249points. from 1000 to 1249. the cooler is Xigmatek HDT-S1283

  4. #24
    Lsdmeasap's Avatar
    Lsdmeasap is offline GIGABYTE Guru
    Join Date
    Jan 2008
    Location
    PCB Island
    Posts
    25,940

    Default Re: overclocking on EP45C-DS3R

    Give me your full settings you are using now, and I will advise you on how to tighten up your memory timings

  5. #25
    Join Date
    Feb 2009
    Posts
    14

    Default Re: overclocking on EP45C-DS3R

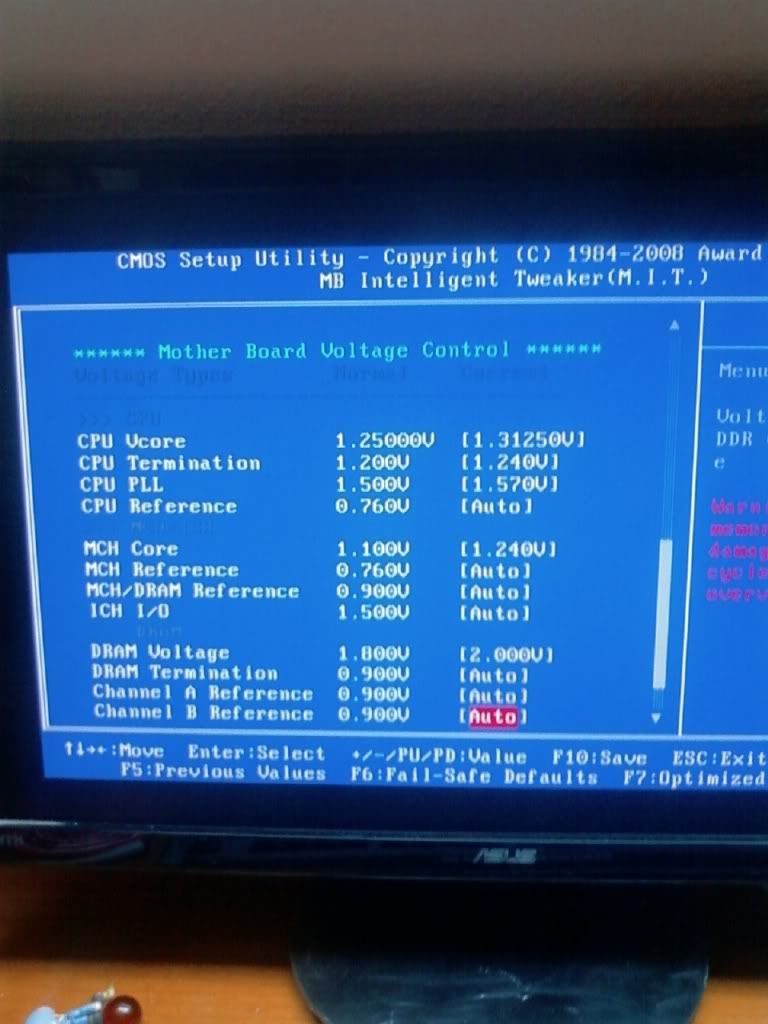

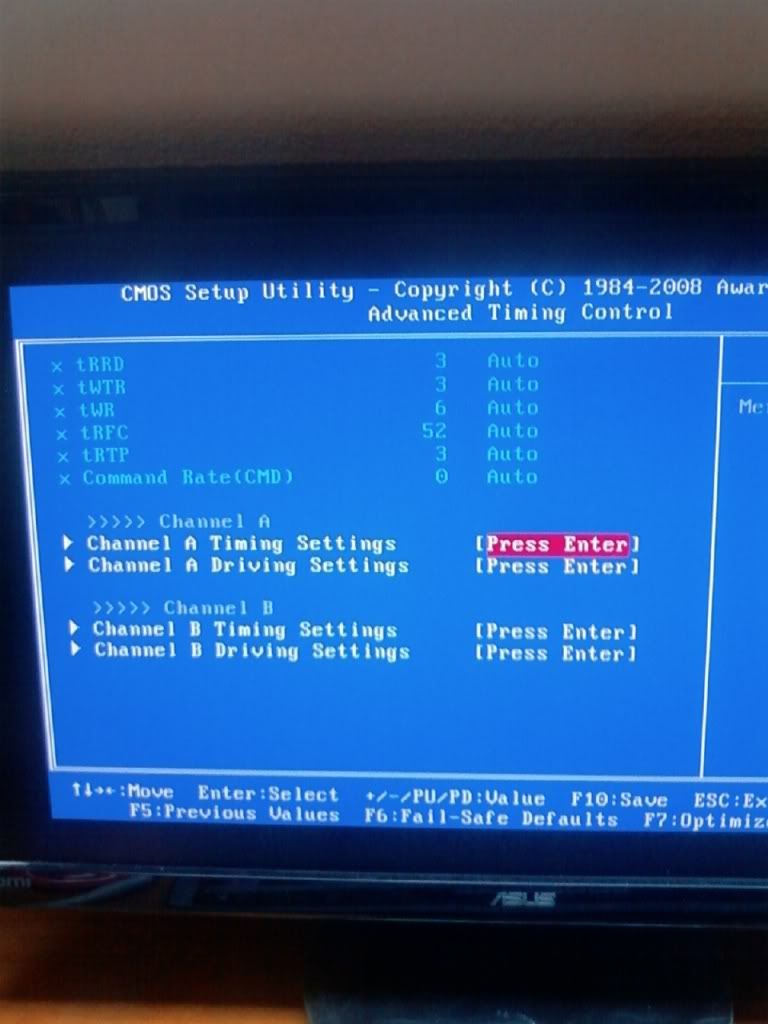

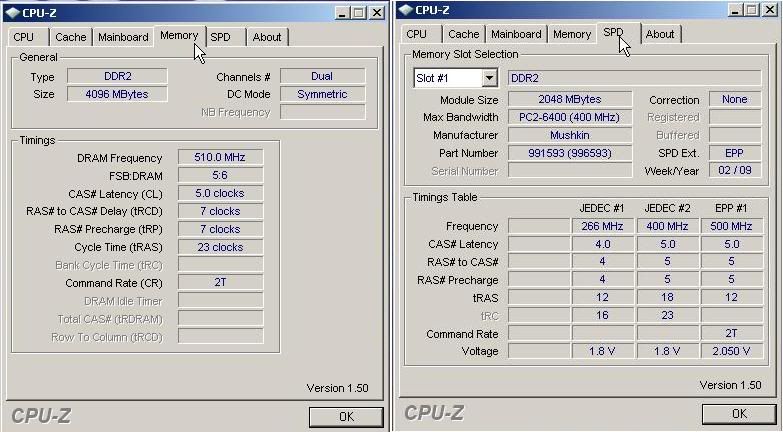

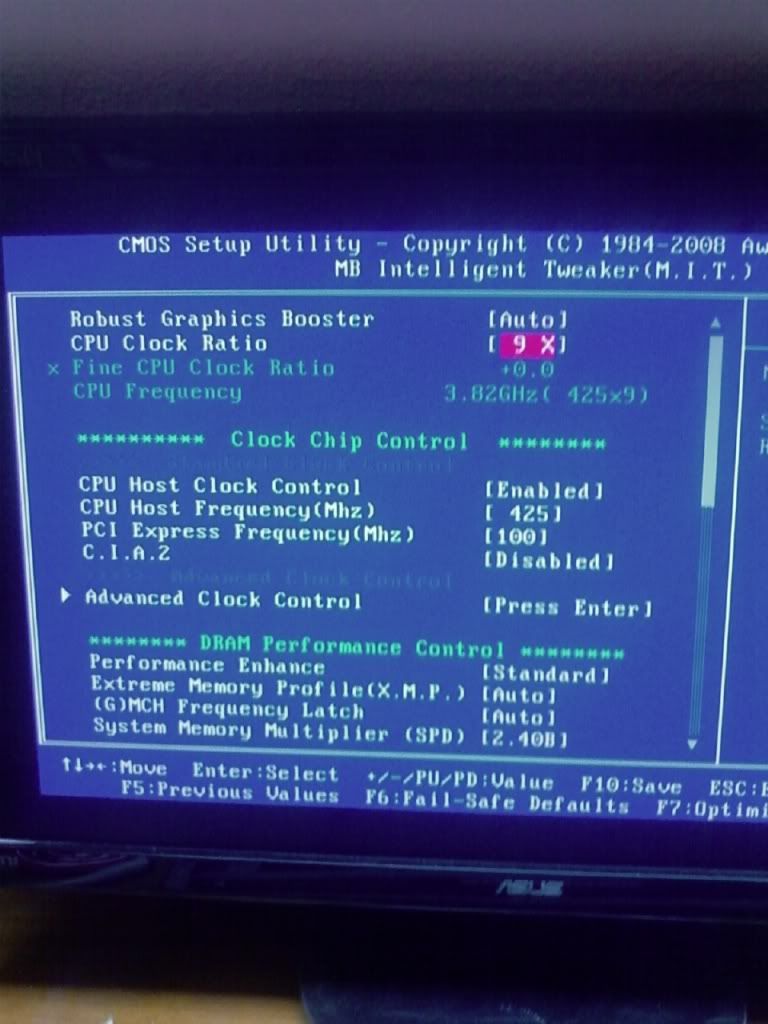

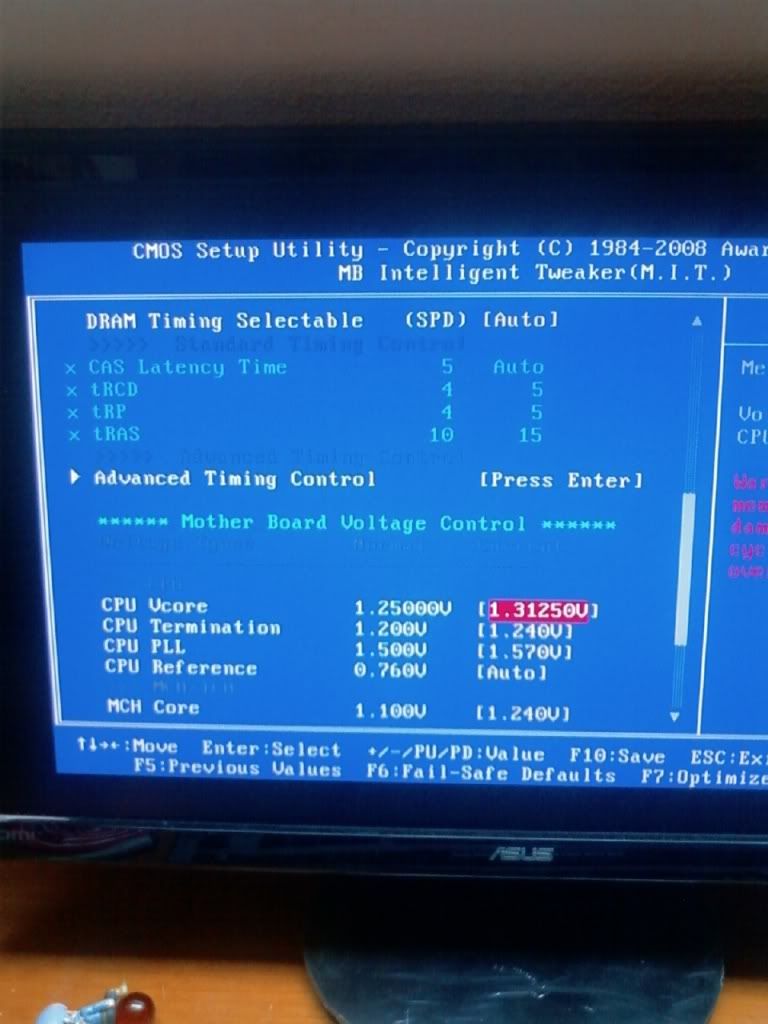

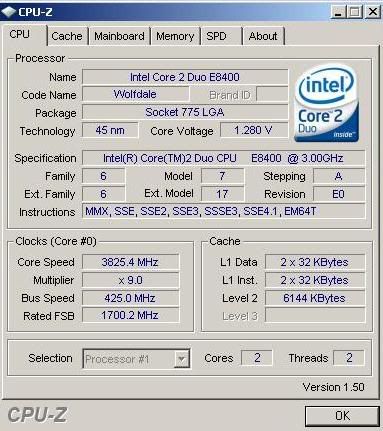

    Here it its. The confiig on BIOS and the cpu-z and real temp








  6. #26
    Lsdmeasap's Avatar
    Lsdmeasap is offline GIGABYTE Guru
    Join Date
    Jan 2008
    Location
    PCB Island
    Posts
    25,940

    Default Re: overclocking on EP45C-DS3R

    Well you need to set your ram all manually, Auto is using 577-23.

    Set the Main timings to 555-12 or 555-15, then after you do that you can work on the Advanced timings

    For those I would set this >>

    Set all Suggested below to highest Values first. Then later you can lower, one at a time, testing as you go

    Advanced Timing Control
    tRRD...........................................3
    tWTR..........................................3-5
    tWR............................................4-6
    tRFC...........................................52-58
    tRTP...........................................3-4
    Command Rate (CMD) ....................:2

    Driving Strength Profiles
    Driving Strength ............................ 1066

    Channel A+ B
    Static tRead Value.........................:6-8

    You may need to set ram voltage to 2.02-2.08 though to get 2.0-2.06

  7. #27
    Join Date
    Feb 2009
    Posts
    14

    Default Re: overclocking on EP45C-DS3R

    i've tried the high and lowest advanced timing control, it doesnt boot. i've to try between those numbers until it boots?
    channel a+b u mean the same configuration for both channels right?
    do i have to change the multiplier because it is 1022 and if i change it to 1066 maybe it doesnt work.
