Thread: UD3P+8500 Over 4.1ghz is it posbile?




  1. #11
    Join Date
    Nov 2008
    Posts
    61

    Default Re: UD3P+8500 Over 4.1ghz is it posbile?

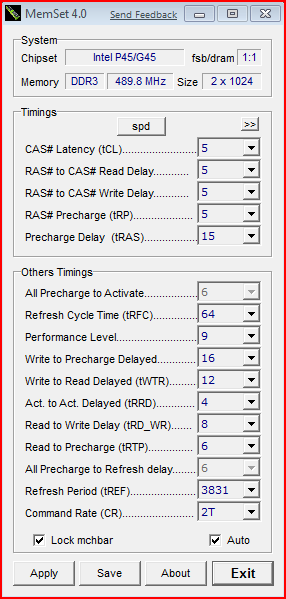

    Memset screenshot:


    Memory Model
    Crucial Ballistix PC2-8500 BL2KIT12864AA106A 2x1gb

    And about the ref i was thinking the same thing... But my best attempts were around 0.68 in ET6 that gives around 0.57%... but maybe isn`t my problem...
    Intel I5 4690K 4.2GHZ
    Gigabyte Z97MX Gaming 5
    2x8GB gSkill DDR3 1600Mhz
    1x SSD Sandisk Extreme II 240GB
    1x Seagate 1000GB (DATA)
    1x Samsung 750GB (DATA)
    MSI Geforce GTX 960 2GB
    Phanteks
    Seaconic Modular 620W
    Aerocool Dead Silence
    Windows 7 64bits

  2. #12

    Default Re: UD3P+8500 Over 4.1ghz is it posbile?

    Quote Originally Posted by bius View Post
    Thanks for reply, i forgot to say. i pass totally stable at small ftt even at 500x8.5 but after 492x8.5 blend test fails after 3min, and the curious is the computer dont show the BSOD it just restart... and i thought maybe is low voltage, but even with high voltages on memory and on MCH core i cant pass on blend test thats very strange... and i thought agian maybe is the timmings but i ran memtest on current settings and no errros found...

    my real voltage is 1.36 load and if i disable LCC i need rise my vcore too much to get stable again.
    Bius,

    How To Make Vista Not Automatically Restart When BSOD Occurs:

    1. Go to your Control Panel
    2. System
    3. Advanced system settings
    4. Advanced tab
    5. Click on the Setting Button next to "Startup and Recovery".
    6. Under "System Failure", disable "Automatically Restart".

    Keep a record of the above in case you forget how to set it back to default. (Call it, "How To Make Vista Not Automatically Restart When BSOD Occurs".)

    And keep a digital camera next to your monitor to take Pics of all BSODs. ;)
    <<< LGA2011 System Summary >>>
    > Power Supply: CORSAIR AX Series AX860 860W 80 PLUS PLATINUM Haswell Ready Full Modular (NE Link)
    > Chipset : Intel X99
    > Mainboard :Gigabyte GA-X99-Ultra Gaming
    (NE Link)
    > Processor : i7-6850K (NE Link)
    > AIO: Corsair Hydro Series H100i V2 (NE Link)
    > Physical Memory : G.SKILL TridentZ Series 32GB (4 x 8GB) DDR4 3200 Model F4-3200C14Q-32GTZSW (NE Link)
    > Video Card : 2x ASUS ROG STRIX-GTX1070-O8G-GAMING (NE Link)


    <<< LGA1366 System Summary >>>
    > Power Supply:
    >>>Original PSU (2011-01) :
    Corsair 620HX (NE Link)
    >>>Upgrade PSU (2012-01) : CORSAIR AX850 (CMPSU-850AX) 850W (NE Link)
    > Chipset : Intel X58
    > Mainboard : Gigabyte GA-X58A-UD3R (REV.2.0) (FB BIOS)
    (NE Link MPP Link)
    > Processor : i7-950 (Revision D0) 3.0GHz @3.84GHz
    (NE Link MPP Link)
    > HSF:
    Noctua NH-D14 (NE Link MPP Link)
    > Physical Memory :
    >>>Original RAM (2011-01) : G.SKILL 6GB (3 x 2GB) 240-Pin DDR3 1600 (PC3 12800) Model F3-12800CL9T-6GBNQ
    >>>Upgrade RAM (2012-01) : Mushkin Enhanced Blackline 12GB (3 x 4GB) 240-Pin DDR3 2000 (PC3 16000) w/FrostByte Heatsink Model 998990 (NE Link MPP Link OverClockersClub Dot Com Article)
    > Video Card :
    >>>Original Vid Card (2011-01) : BFG Geforce GTX295 (
    NE Link)
    >>>Upgrade Vid Card(2012-01) : (2) EVGA 02G-P3-1568-KR GTX 560 Ti (2GB)-SLI (
    NE Link)
    >>>Upgrade Vid Card(2013-07) : (2) GTX 760-SLI Gigabyte GV-N760OC-4GB (NE Link)
    > DVD-Rom Drive : TSSTcorp CDDVDW SH-S203B ATA Device
    > Monitor :
    ViewSonic Pro Series VP2655wb Black 26" (
    NE Link)
    > Operating System : Windows 7 Ultimate
    > Case : COOLER MASTER HAF X RC-942-KKN1 Black Steel (
    NE Link)

    <<< LGA775 System Summary >>>
    > Power Supply: Corsair 620HX (
    NE Link)
    > Mainboard : Gigabyte P35-S3G (F2 BIOS)
    > Chipset : Intel P35
    > Processor : Core 2 Duo E8400 Wolfdale (Revision C0) 3.0GHz @ 3950 MHz
    > HSF: Arctic Cooling Freezer 7 Pro
    > Physical Memory : CORSAIR DOMINATOR 4GB (2 x 2GB) (
    Link)
    > Video Card : BFG Geforce GTX295
    > DVD-Rom Drive : TSSTcorp CDDVDW SH-S203B ATA Device
    >
    Monitor : ViewSonic Pro Series VP2655wb Black 26"
    > Operating System : Windows 7 Ultimate


  3. #13
    Join Date
    Nov 2008
    Posts
    61

    Default Re: UD3P+8500 Over 4.1ghz is it posbile?

    Quote Originally Posted by Bee_Dee_3_Dee View Post
    Bius,

    How To Make Vista Not Automatically Restart When BSOD Occurs:

    1. Go to your Control Panel
    2. System
    3. Advanced system settings
    4. Advanced tab
    5. Click on the Setting Button next to "Startup and Recovery".
    6. Under "System Failure", disable "Automatically Restart".

    Keep a record of the above in case you forget how to set it back to default. (Call it, "How To Make Vista Not Automatically Restart When BSOD Occurs".)

    And keep a digital camera next to your monitor to take Pics of all BSODs. ;)
    First, i use windows XP to test my settings and second, the problem isn`t the BSOD, is my settings... so dosen`t matter what kind of code the BSOD give me, it will be useless.
    Intel I5 4690K 4.2GHZ
    Gigabyte Z97MX Gaming 5
    2x8GB gSkill DDR3 1600Mhz
    1x SSD Sandisk Extreme II 240GB
    1x Seagate 1000GB (DATA)
    1x Samsung 750GB (DATA)
    MSI Geforce GTX 960 2GB
    Phanteks
    Seaconic Modular 620W
    Aerocool Dead Silence
    Windows 7 64bits

  4. #14

    Default Re: UD3P+8500 Over 4.1ghz is it posbile?

    Quote Originally Posted by bius View Post
    First, i use windows XP to test my settings and second, the problem isn`t the BSOD, is my settings... so dosen`t matter what kind of code the BSOD give me, it will be useless.
    Sry.

    Maybe somebody else that needs to know will see the post.
    <<< LGA2011 System Summary >>>
    > Power Supply: CORSAIR AX Series AX860 860W 80 PLUS PLATINUM Haswell Ready Full Modular (NE Link)
    > Chipset : Intel X99
    > Mainboard :Gigabyte GA-X99-Ultra Gaming
    (NE Link)
    > Processor : i7-6850K (NE Link)
    > AIO: Corsair Hydro Series H100i V2 (NE Link)
    > Physical Memory : G.SKILL TridentZ Series 32GB (4 x 8GB) DDR4 3200 Model F4-3200C14Q-32GTZSW (NE Link)
    > Video Card : 2x ASUS ROG STRIX-GTX1070-O8G-GAMING (NE Link)


    <<< LGA1366 System Summary >>>
    > Power Supply:
    >>>Original PSU (2011-01) :
    Corsair 620HX (NE Link)
    >>>Upgrade PSU (2012-01) : CORSAIR AX850 (CMPSU-850AX) 850W (NE Link)
    > Chipset : Intel X58
    > Mainboard : Gigabyte GA-X58A-UD3R (REV.2.0) (FB BIOS)
    (NE Link MPP Link)
    > Processor : i7-950 (Revision D0) 3.0GHz @3.84GHz
    (NE Link MPP Link)
    > HSF:
    Noctua NH-D14 (NE Link MPP Link)
    > Physical Memory :
    >>>Original RAM (2011-01) : G.SKILL 6GB (3 x 2GB) 240-Pin DDR3 1600 (PC3 12800) Model F3-12800CL9T-6GBNQ
    >>>Upgrade RAM (2012-01) : Mushkin Enhanced Blackline 12GB (3 x 4GB) 240-Pin DDR3 2000 (PC3 16000) w/FrostByte Heatsink Model 998990 (NE Link MPP Link OverClockersClub Dot Com Article)
    > Video Card :
    >>>Original Vid Card (2011-01) : BFG Geforce GTX295 (
    NE Link)
    >>>Upgrade Vid Card(2012-01) : (2) EVGA 02G-P3-1568-KR GTX 560 Ti (2GB)-SLI (
    NE Link)
    >>>Upgrade Vid Card(2013-07) : (2) GTX 760-SLI Gigabyte GV-N760OC-4GB (NE Link)
    > DVD-Rom Drive : TSSTcorp CDDVDW SH-S203B ATA Device
    > Monitor :
    ViewSonic Pro Series VP2655wb Black 26" (
    NE Link)
    > Operating System : Windows 7 Ultimate
    > Case : COOLER MASTER HAF X RC-942-KKN1 Black Steel (
    NE Link)

    <<< LGA775 System Summary >>>
    > Power Supply: Corsair 620HX (
    NE Link)
    > Mainboard : Gigabyte P35-S3G (F2 BIOS)
    > Chipset : Intel P35
    > Processor : Core 2 Duo E8400 Wolfdale (Revision C0) 3.0GHz @ 3950 MHz
    > HSF: Arctic Cooling Freezer 7 Pro
    > Physical Memory : CORSAIR DOMINATOR 4GB (2 x 2GB) (
    Link)
    > Video Card : BFG Geforce GTX295
    > DVD-Rom Drive : TSSTcorp CDDVDW SH-S203B ATA Device
    >
    Monitor : ViewSonic Pro Series VP2655wb Black 26"
    > Operating System : Windows 7 Ultimate


  5. #15
    kick's Avatar
    kick is offline Senior Member
    Join Date
    Feb 2009
    Location
    Europe,the wild wild west.
    Posts
    1,223

    Default Re: UD3P+8500 Over 4.1ghz is it posbile?

    Yes thats the memory I was thinking of buying,but its no use to me under 510 fsb and I dont think your that pushed about going over that.

    Im not a real checker of other cpu posts but the one i linked above shows the cpu needing 1.46v for benchmarking at your target speed.Not too bad since its at intel max.

    The UD3 post that nickel linked a part of Gigabyte P45 UD3 review - AwardFabrik - Forum
    is well pretty amazing.Thats some of the reason I was thinking of going for the crucial.
    Then again that guy seemed to be throwing in all sorts of "as long as it doesnt start burning" settings to benchmark,also he was running water on the cpu and yet I dont think he took it over 4ghz

    Does your crucial ram have the enhanced performance profile on it at 500mhz fsb?.cpuz shows them.
    Im not advising this but from what youve said,if it was me I would keep clocking up the cpu core at 8 multiplier till tests ran smoooth.
    Then I would try out 8.5 increasing the voltage until it booted into windows,using what ever 2:00 multiplier gave the best results.
    Then I would try testing at your 4.25Ghz speed.if it failed id go a little more volts up to the 1.46 or mch if needed.

    Thats assuming temps are good all the way .Then Id play around with all the other settings to get max bandwith,see if voltages would run a bit lower etc.

    btw if it worked I think 530fsb x 8 would give your pc more performance,unless you had to gimp down the memory settings a lot.Could be wrong tho.
    Last edited by kick; 03-09-2009 at 07:12 AM.
    Current Systems:

    Asrock p67 Extreme6.............. Gigabyte EP-45 UD3 ...................... Gigabyte 73 PVM S2
    Intel i5 2500k 4.8ghz................ Intel Q8400 3.8ghz......................... Intel D820 2.8ghz
    Zalman 10x cooler.................... Coolermaster V8............................ HP cooler
    8GB Gskill ripjaw ddr3.............. 4GB Gskill PI ddr2.......................... 4GB samsung ddr2
    60GB ssd/500GB HDD .............. WD 1TB hdd.................................... Seagate 160GB hdd
    GTX 460 1GB x2 SLI ................. Msi 9600GT 512MB(died) ........... Onboard gx
    Win7 64 ,750w psu(ocz)............ Win7 64 ,520w psu,seasonic...... Win XP pro ,400w psu

    HEC 6A34 case . ....................... Jeantec R2 case............................ Packard Bell case

    hoping to upgrade to http://www.thinkgeek.com/stuff/41/habicase.shtml
    http://www.flixya.com/video/140325/Animal-launching

  6. #16
    Lsdmeasap's Avatar
    Lsdmeasap is offline GIGABYTE Guru
    Join Date
    Jan 2008
    Location
    PCB Island
    Posts
    25,940

    Default Re: UD3P+8500 Over 4.1ghz is it posbile?

    tWR needs to be higher then tWTR and I see it is not, but that may be all due to your multi you are using or the use of auto. Set them manually for sure so you can sort that out as a non issue


    If you are still using the settings from post one, try these with all my changes noted

    Hey not sure what FSB you are trying to use? You have 490 and 500 listed?

    ******Gigabyte EP45 UD3P******

    E8500 490 X 8.5 4165MHz

    Crucial Ballistix PC2-8500 BL2KIT12864AA106A 2x1gb

    Robust Graphics Booster.........................[ Auto ]
    CPU Clock Ratio.................................[ 8 ]
    Fine CPU Clock Ratio............................[ 0.5 ]
    CPU Frequency 4.0GHz...........................[ 490 x 8.5 ]

    ******Clock Chip Control******

    CPU Host Clock Control..........................[ Enabled ]
    CPU Host Frequency (Mhz)........................[ 490 ]
    PCI Express Frequency (Mhz).....................[ 100 ]
    C.I.A 2 ..................................................[Disabled]

    ******Advanced Clock Control******

    CPU Clock Drive.................................[ 800mv ]
    PCI Express Clock Drive.........................[ 900mv ]
    CPU Clock Skew..................................[ 0ps ]
    MCH Clock Skew..................................[ 0ps ]

    ******DRAM Performance Control******

    Performance Enhance [Standard]
    Extreme Memory Profile (XMP)....................[ Disabled ]
    (G) MCH Frequency Latch.........................[ Auto ]
    System Memory Multipler.........................[ 2.00D ] You can likely also use 2.00B I could use the B strap without issues with the Crucial I reviewed up to 1100+ But yes, D would be easier on things for now maybe, but then again....

    Memory Frequency 1066...........................[ 980 ]
    DRAM Timing Selectable..........................[ Manual ]

    CAS Latency Time................................[ 5 ]
    tRCD............................................[ 5 ]
    tRP.............................................[ 5 ]
    tRAS............................................[ 15 ]

    ******Advanced Timing Control******

    tRRD............................................[ 4 ]
    tWTR............................................[ 4 ]
    tWR.............................................[ 8 ]
    tRFC............................................[ 54 ]
    tRTP............................................[ 4 ]
    Command Rate (cmd)..............................[ 2T ]

    ******Channel A Timing Settings******

    Static tRead Value [ 11 ] ................[ 9 ] << Set 10 for now
    tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
    tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
    tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
    tRD Phase3 Adjustment [ 0 ] ................[ Auto ]

    tRD 2rd (Differnt Rank) [ 6 ] ................[ Auto ]
    tWR 2wr (Differnt Rank) [ 6 ] ................[ Auto ]
    tWR 2rd (Differnt Rank) [ 5 ] ................[ Auto ]
    tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto ]

    Dimm 1 Clock Skew Control.......................[ Auto ]
    Dimm 2 Clock Skew Control.......................[ Auto ]
    DDR Write Training..............................[ Auto ]

    ******Channel A Driving Settings******

    Drive Strength Profile..........................[ Auto ] << Set 1066
    Data Driving Pull Up Level......................[ Auto ]
    cmd Driving Pull Up Level.......................[ Auto ]
    ctrl Driving Pull Up Level......................[ Auto ]
    clk Driving Pull Up Level.......................[ Auto ]

    Data Driving Pull Down Level....................[ Auto ]
    cmd Driving Pull Down Level.....................[ Auto ]
    ctrl Driving Pull Down Level....................[ Auto ]
    clk Driving Pull Down Level.....................[ Auto ]

    ******Channel B Timing Settings******

    Static tRead Value [ 11 ] ................[ 9 ] << Set 10 for now
    tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
    tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
    tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
    tRD Phase3 Adjustment [ 0 ] ................[ Auto ]

    tRD 2rd (Differnt Rank) [ 6 ] ................[ Auto ]
    tWR 2wr (Differnt Rank) [ 6 ] ................[ Auto ]
    tWR 2rd (Differnt Rank) [ 5 ] ................[ Auto ]
    tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto ]

    Dimm 1 Clock Skew Control.......................[ Auto ]
    Dimm 2 Clock Skew Control.......................[ Auto ]
    DDR Write Training..............................[ Auto ]

    ******Channel B Driving Settings******

    Drive Strength Profile..........................[ Auto ] << Set 1066
    Data Driving Pull Up Level......................[ Auto ]
    cmd Driving Pull Up Level.......................[ Auto ]
    ctrl Driving Pull Up Level......................[ Auto ]
    clk Driving Pull Up Level.......................[ Auto ]

    Data Driving Pull Down Level....................[ Auto ]
    cmd Driving Pull Down Level.....................[ Auto ]
    ctrl Driving Pull Down Level....................[ Auto ]
    clk Driving Pull Down Level.....................[ Auto ]

    ******Motherboard Voltage Control******

    Load-Line Calibration [Enabled]
    CPU Vcore [ 1.25 ]...................[ 1.39375 ]
    CPU Termination [ 1.20 ]...................[ 1.30 ] << Try 1.28, and 1.34
    CPU PLL [ 1.50 ]...................[ 1.59 ]
    CPU Reference [ 0.760 ]...................[ 0.878 ] ET6 Show 0.815 << AUTO

    MCH Core [1.1 ]...................[ 1.46 ] << MUCH Less, try 1.1-1.32
    MCH Reference [0.760 ]...................[ 0.743 ] ET6 Show 0.68 (Might want to try Auto until you are sure this is a issue. You should be able to boot thru with Auto, this would only be for fine tuning stability later

    MCH/DRAM Refernce [0.900 ]...................[ Auto ]
    ICH I/O [1.500 ]...................[ 1.570 ]
    ICH Core [1.100 ]...................[ 1.200 ]

    DRAM Voltage [1.800 ]...................[ 2.08-2.12 ] More is not better, for sure since you are not even running it at stock speed or super tight timings

    DRAM Termination [0.900 ]...................[ Auto ]
    Channel A Ref [0.900 ]...................[ Auto ]
    Channel B Ref [0.900 ]...................[ Auto ]

    ******Advanced BIOS Features******

    CPU Multithreading..............................[ Disabled ] << Enabled, this would be disabling a core or more, have you looked into that?

    Limit CPUID Max to 3............................[ Disabled ]
    No-Execute memory Protect.......................[ Disabled ] << Enabled
    CPU Enhance Halt (CIE)..........................[ Disabled ]
    C2/C2E State Support............................[ Disabled ]
    C4/C4E State Support............................[ Disabled ]
    CPU Thermal Monitor.............................[ Disabled ] << Enabled
    CPU EIST Function...............................[ Disabled ]
    Virtualization Technology.......................[ Enabled ] << if you are not using Vmware/Virtual PC then disable this

    Integrated Peripherals
    Legacy USB Storage Detect ..............[Disabled] *Note* Must be enabled to flash from USB[/code]

  7. #17
    Join Date
    Nov 2008
    Posts
    61

    Default Re: UD3P+8500 Over 4.1ghz is it posbile?

    Hi Lsdmeasap, thanks for your shoot... but i have to say, none of your settings gave better stability, it gave me more instability...

    tWR is higher than tWTR on BIOS on memtest i dont see where is the tWR value, but as you can see below on everest seems to be higher...I dont know which program is right or BIOS is right...







    Quote Originally Posted by Lsdmeasap View Post

    Hey not sure what FSB you are trying to use? You have 490 and 500 listed?I`m trying to reach 4.2 ghz on FSB 495 x multi 8.5 or even more.

    ******Gigabyte EP45 UD3P******



    ******Clock Chip Control******


    ******Advanced Clock Control******


    ******DRAM Performance Control******

    Performance Enhance [Standard]
    Extreme Memory Profile (XMP)....................[ Disabled ]
    (G) MCH Frequency Latch.........................[ Auto ]
    System Memory Multipler.........................[ 2.00D ] You can likely also use 2.00B I could use the B strap without issues with the Crucial I reviewed up to 1100+ But yes, D would be easier on things for now maybe, but then again....MCH latch on auto and memory multiplier on 2.00B more instability, 2.00D same thing runnig blend test computer restart after 2 min

    Memory Frequency 1066...........................[ 980 ]
    DRAM Timing Selectable..........................[ Manual ]

    CAS Latency Time................................[ 5 ]
    tRCD............................................[ 5 ]
    tRP.............................................[ 5 ]
    tRAS............................................[ 15 ]

    ******Advanced Timing Control******

    tRRD............................................[ 4 ]
    tWTR............................................[ 4 ]
    tWR.............................................[ 8 ]
    tRFC............................................[ 54 ]
    tRTP............................................[ 4 ]
    Command Rate (cmd)..............................[ 2T ]

    ******Channel A Timing Settings******

    Static tRead Value [ 11 ] ................[ 9 ] << Set 10 for now Didn`t give more stability
    tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
    tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
    tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
    tRD Phase3 Adjustment [ 0 ] ................[ Auto ]

    tRD 2rd (Differnt Rank) [ 6 ] ................[ Auto ]
    tWR 2wr (Differnt Rank) [ 6 ] ................[ Auto ]
    tWR 2rd (Differnt Rank) [ 5 ] ................[ Auto ]
    tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto ]

    Dimm 1 Clock Skew Control.......................[ Auto ]
    Dimm 2 Clock Skew Control.......................[ Auto ]
    DDR Write Training..............................[ Auto ]

    ******Channel A Driving Settings******

    Drive Strength Profile..........................[ Auto ] << Set 1066 Didn`t allow me to load windows
    Data Driving Pull Up Level......................[ Auto ]
    cmd Driving Pull Up Level.......................[ Auto ]
    ctrl Driving Pull Up Level......................[ Auto ]
    clk Driving Pull Up Level.......................[ Auto ]

    Data Driving Pull Down Level....................[ Auto ]
    cmd Driving Pull Down Level.....................[ Auto ]
    ctrl Driving Pull Down Level....................[ Auto ]
    clk Driving Pull Down Level.....................[ Auto ]

    ******Channel B Timing Settings******

    Static tRead Value [ 11 ] ................[ 9 ] << Set 10 for now
    tRD Phase0 Adjustment [ 0 ] ................[ Auto ]
    tRD Phase1 Adjustment [ 0 ] ................[ Auto ]
    tRD Phase2 Adjustment [ 0 ] ................[ Auto ]
    tRD Phase3 Adjustment [ 0 ] ................[ Auto ]

    tRD 2rd (Differnt Rank) [ 6 ] ................[ Auto ]
    tWR 2wr (Differnt Rank) [ 6 ] ................[ Auto ]
    tWR 2rd (Differnt Rank) [ 5 ] ................[ Auto ]
    tRD 2wr (Same/Difft Rank) [ 8 ] ................[ Auto ]

    Dimm 1 Clock Skew Control.......................[ Auto ]
    Dimm 2 Clock Skew Control.......................[ Auto ]
    DDR Write Training..............................[ Auto ]

    ******Channel B Driving Settings******

    Drive Strength Profile..........................[ Auto ] << Set 1066
    Data Driving Pull Up Level......................[ Auto ]
    cmd Driving Pull Up Level.......................[ Auto ]
    ctrl Driving Pull Up Level......................[ Auto ]
    clk Driving Pull Up Level.......................[ Auto ]

    Data Driving Pull Down Level....................[ Auto ]
    cmd Driving Pull Down Level.....................[ Auto ]
    ctrl Driving Pull Down Level....................[ Auto ]
    clk Driving Pull Down Level.....................[ Auto ]

    ******Motherboard Voltage Control******

    Load-Line Calibration [Enabled]
    CPU Vcore [ 1.25 ]...................[ 1.39375 ]
    CPU Termination [ 1.20 ]...................[ 1.30 ] << Try 1.28, and 1.34 Now using 1.30 because 1.28 make orthos fails small ftt test and 1.32 is buggy
    CPU PLL [ 1.50 ]...................[ 1.59 ]
    CPU Reference [ 0.760 ]...................[ 0.878 ] ET6 Show 0.815 << AUTO Didn`t allow me to load windows

    MCH Core [1.1 ]...................[ 1.46 ] << MUCH Less, try 1.1-1.32 Now using 1.32
    MCH Reference [0.760 ]...................[ 0.743 ] ET6 Show 0.68 (Might want to try Auto until you are sure this is a issue. You should be able to boot thru with Auto, this would only be for fine tuning stability later Didn`t allow me to load windows

    MCH/DRAM Refernce [0.900 ]...................[ Auto ] Now is Normal
    ICH I/O [1.500 ]...................[ 1.570 ]
    ICH Core [1.100 ]...................[ 1.200 ]

    DRAM Voltage [1.800 ]...................[ 2.08-2.12 ] More is not better, for sure since you are not even running it at stock speed or super tight timings Now is 2.0v

    DRAM Termination [0.900 ]...................[ Auto ] Normal
    Channel A Ref [0.900 ]...................[ Auto ] Normal
    Channel B Ref [0.900 ]...................[ Auto ] Normal

    ******Advanced BIOS Features******

    CPU Multithreading..............................[ Disabled ] << Enabled, this would be disabling a core or more, have you looked into that? Forget this part it doesnt make part of my bios settings

    Limit CPUID Max to 3............................[ Disabled ]
    No-Execute memory Protect.......................[ Disabled ] << Enabled Was already enabled
    CPU Enhance Halt (CIE)..........................[ Disabled ]
    C2/C2E State Support............................[ Disabled ]
    C4/C4E State Support............................[ Disabled ]
    CPU Thermal Monitor.............................[ Disabled ] << Enabled Now is enabled
    CPU EIST Function...............................[ Disabled ]
    Virtualization Technology.......................[ Enabled ] << if you are not using Vmware/Virtual PC then disable this

    Integrated Peripherals
    Legacy USB Storage Detect ..............[Disabled] *Note* Must be enabled to flash from USB[/code]
    Blue words means my results.

    And i still dont know what change...
    Last edited by bius; 03-10-2009 at 03:27 AM.
    Intel I5 4690K 4.2GHZ
    Gigabyte Z97MX Gaming 5
    2x8GB gSkill DDR3 1600Mhz
    1x SSD Sandisk Extreme II 240GB
    1x Seagate 1000GB (DATA)
    1x Samsung 750GB (DATA)
    MSI Geforce GTX 960 2GB
    Phanteks
    Seaconic Modular 620W
    Aerocool Dead Silence
    Windows 7 64bits

  8. #18
    Join Date
    Nov 2008
    Posts
    61

    Default Re: UD3P+8500 Over 4.1ghz is it posbile?

    Main post edited with current settings and some other information.

    What can i do now?
    Intel I5 4690K 4.2GHZ
    Gigabyte Z97MX Gaming 5
    2x8GB gSkill DDR3 1600Mhz
    1x SSD Sandisk Extreme II 240GB
    1x Seagate 1000GB (DATA)
    1x Samsung 750GB (DATA)
    MSI Geforce GTX 960 2GB
    Phanteks
    Seaconic Modular 620W
    Aerocool Dead Silence
    Windows 7 64bits

  9. #19
    kick's Avatar
    kick is offline Senior Member
    Join Date
    Feb 2009
    Location
    Europe,the wild wild west.
    Posts
    1,223

    Default Re: UD3P+8500 Over 4.1ghz is it posbile?

    Your into the area where each component relies on the settings for another a lot it looks like.
    The 8500/8400 and the crucial must be fairly popular? and if 4.25 is doable fully stable,are u getting feedback on other forums?
    I know you have the case off/open ,but do you have a 120mm $10 or whatever they are fan blowing down on nthbridge/memory,easy extra cooling for the price since the temp readings around there arent 100% accurate?.
    I have mine at like a 45* anglebecause from the front it looks like the sticks could shield each other and the nb+mbrd power cable in the way,and from directly above the mbrd the nb hs seems to shield the base .Couldnt hurt anyway.

    Other than that have u actually gone far with the 8x multiplier?the speed would be actually right on what your memory is rated at for 4.25Ghz,I dont mean just because i had an interest in the memory,or maybe there is a known probem with 1066(1:1) and e8500 above 4.2?
    Last edited by kick; 03-12-2009 at 07:27 AM.
    Current Systems:

    Asrock p67 Extreme6.............. Gigabyte EP-45 UD3 ...................... Gigabyte 73 PVM S2
    Intel i5 2500k 4.8ghz................ Intel Q8400 3.8ghz......................... Intel D820 2.8ghz
    Zalman 10x cooler.................... Coolermaster V8............................ HP cooler
    8GB Gskill ripjaw ddr3.............. 4GB Gskill PI ddr2.......................... 4GB samsung ddr2
    60GB ssd/500GB HDD .............. WD 1TB hdd.................................... Seagate 160GB hdd
    GTX 460 1GB x2 SLI ................. Msi 9600GT 512MB(died) ........... Onboard gx
    Win7 64 ,750w psu(ocz)............ Win7 64 ,520w psu,seasonic...... Win XP pro ,400w psu

    HEC 6A34 case . ....................... Jeantec R2 case............................ Packard Bell case

    hoping to upgrade to http://www.thinkgeek.com/stuff/41/habicase.shtml
    http://www.flixya.com/video/140325/Animal-launching

  10. #20
    Lsdmeasap's Avatar
    Lsdmeasap is offline GIGABYTE Guru
    Join Date
    Jan 2008
    Location
    PCB Island
    Posts
    25,940

    Default Re: UD3P+8500 Over 4.1ghz is it posbile?

    tWR in Memset is Write to Precharge Delay, I have outlined what is what in the Memset Vs BIOS sticky >>>
    http://forums.tweaktown.com/f69/memo...vs-bios-27283/

    What do you have set for each in the BIOS, this is what matters because memset and Everest will show different values anyway depending on the Memory multi used and strap you are running

    I need to know exactly what you set from what I advised that failed so I can advise back though

    You are using too much MCH Core, that is why all other setting changes are failing. Also put all things you have "Normal" on to Auto

    What you need to do before even thinking about Orthos or Prime is run 5-10 passes of Memtest86+ on your memory to be sure those are stable memory settings (Whatever you have set right then) and then if they are ok but you fail orthos or prime then you know you have NB or CPU related issues.

    Memtest should always be first so you know the ram is stable. And I do think it likely is and your issue lies with CPU or MCH settings

    MCH Ref, did you try .70 or .745 yet instead of .68, that may be to low

Page 2 of 3 FirstFirst 123 LastLast

Thread Information

Users Browsing this Thread

There are currently 1 users browsing this thread. (0 members and 1 guests)

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
