Thread: GA31M-ES2L<-- Is this OC able?




  1. #201

    Default Re: GA31M-ES2L<-- Is this OC able?

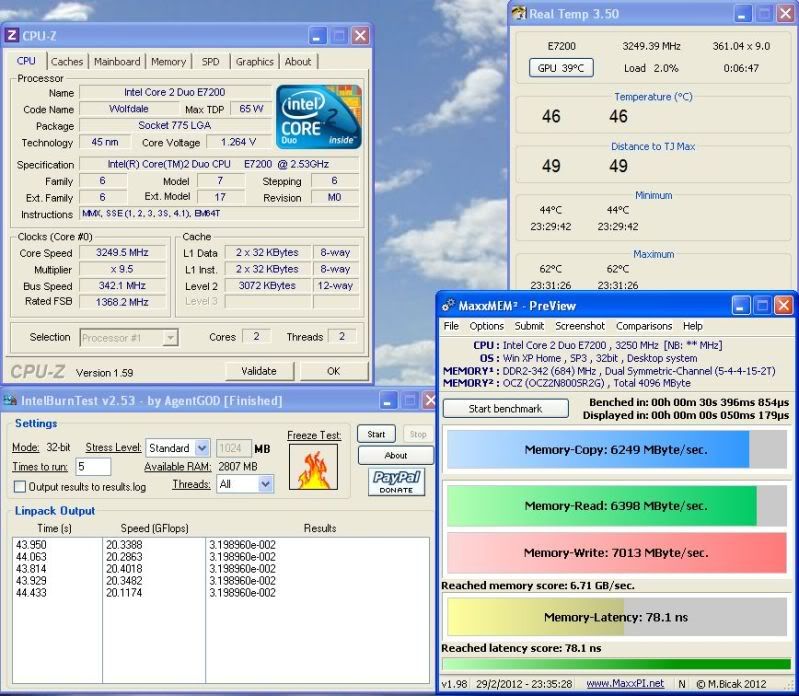

    Running tests now, give me a few minutes and I'll edit this post.

    Robust Graphics Booster___________ [Auto]
    CPU Clock Ratio ____________ [9X]
    Fine Clock Ratio ____________[0.5]
    CPU Host Clock Control_ [Disabled]
    CPU Host Frequency (MHz)__________ [342]
    PCI Express Frequency (Mhz)_______ [100]
    C.I.A. 2__________________________ [N/A]
    System Memory Multiplier (SPD)____ [2.00]
    DRAM Timing Selectable_______ SPD __ [Auto] 800 648

    Performance Enhance = [Standard]

    CAS Latency Time________________6 Auto 5
    Dram RAS# to CAS# Delay_________ 6 Auto 4
    Dram RAS# Precharge Delay_______6 Auto 4
    Precharge Delay (tRAS)__________ 18 Auto 15

    ACT to ACT Delay (tRRD)_________ 3 Auto
    Rank Write to READ Delay________ 3 Auto
    Write to Precharge Delay_________ 6 Auto
    Refresh to ACT Delay______________ 46 Auto 49
    Read to Precharge Delay__________3 Auto
    Static tRead Value_______________5 Auto 7
    Static tRead Phase Adjust________ 0[Auto]

    CPU/PCIEX Clock Driving Control [NA]
    CPU Clock Skew Control [NA]
    GMCH Clock Skew Control [NA]

    System Voltage Control____ [Manual]
    DDR2 OverVoltage Control__ [Normal] +0.2v
    PCI-E OverVoltage Control_ [Normal] +0.1v
    FSB OverVoltage Control___ [Normal] +0.1v
    (G)MCH OverVoltage Control [NA]
    CPU Voltage Control_______ [1.29V] 1.26v/1.244v idle/load in cpuz
    Last edited by aggiefan; 03-01-2012 at 12:43 PM.
    Gigabyte GA-G31M-ES2L (doesn't like to OC high FSB chips)
    Cooler Master Hyper 212+ HSF
    OCZ DDR2 PC2 6400 800mhz SLI Ready 2x4gb 5-4-4-15 2.1v
    EVGA 9500GT DDR2 512mb
    CoolerMaster Centurion case
    OCZ 500w modular PSU

  2. #202
    Chike is offline Senior Member
    Join Date
    Jun 2009
    Location
    Israel
    Posts
    6,531

    Default Re: GA31M-ES2L<-- Is this OC able?

    I think you will be able to lower timings to 4-4-4-12 at DDR-684, try with both DDR2 OverVoltage +0.3 and +0.2.
    If this works try lower tRD (lower CAS enables lower tRD).
    I will later boot with Windows XP and see what I get there.
    20.4GFlops is about what I would expect(20.8) from the OC based on the baseline IBT you ran.

  3. #203
    Chike is offline Senior Member
    Join Date
    Jun 2009
    Location
    Israel
    Posts
    6,531

    Default Re: GA31M-ES2L<-- Is this OC able?

    After reviewing my baseline against my 3.25GHz Flops, and yours I'd say your Flops are just fine.
    Numbers are from the top of my head.
    3250 / 2533 = 1.283.
    Yor base Flops 16.2, expected at 3.25GHz 20.78 actual 20.40, 98.4%.
    My base Flops 16.7, expected at 3.25GHz 21.43 actual 21.18, 98.8%.

    It's all good don't sweat it.
    ,

  4. #204

    Default Re: GA31M-ES2L<-- Is this OC able?

    Ok I'll try it out...btw, is it best to leave PCI at 100? I've read 100 is the only number to use and I've read up to 105 is safe. I don't want to compromise hardware reliability or risk damaging anything....
    Gigabyte GA-G31M-ES2L (doesn't like to OC high FSB chips)
    Cooler Master Hyper 212+ HSF
    OCZ DDR2 PC2 6400 800mhz SLI Ready 2x4gb 5-4-4-15 2.1v
    EVGA 9500GT DDR2 512mb
    CoolerMaster Centurion case
    OCZ 500w modular PSU

  5. #205
    Chike is offline Senior Member
    Join Date
    Jun 2009
    Location
    Israel
    Posts
    6,531

    Default Re: GA31M-ES2L<-- Is this OC able?

    I don't know i don't mess with the PCI clock just leave it auto or 100 which is the same.

  6. #206

    Default Re: GA31M-ES2L<-- Is this OC able?

    Well after setting PCI to auto the other day and running a 350-366fsb (can't remember which exactly), setFSB showed actual PCI frq to be 106...auto is kindof goofy on this board I guess.

    Tighter timing values:

    Gigabyte GA-G31M-ES2L (doesn't like to OC high FSB chips)
    Cooler Master Hyper 212+ HSF
    OCZ DDR2 PC2 6400 800mhz SLI Ready 2x4gb 5-4-4-15 2.1v
    EVGA 9500GT DDR2 512mb
    CoolerMaster Centurion case
    OCZ 500w modular PSU

  7. #207
    Lsdmeasap's Avatar
    Lsdmeasap is offline GIGABYTE Guru
    Join Date
    Jan 2008
    Location
    PCB Island
    Posts
    25,940

    Default Re: GA31M-ES2L<-- Is this OC able?

    Yes, auto is not 100 always, it just looks that way in easytune!

    Setting 100 manually will limit your overclock to whatever is bootable with 100, get what overclock you want with it in auto and verify the clock with SetFSB.

    Then set that value manually, or decide if you want to have it that high or not, if not you'll have to lower the overclock.

  8. #208

    Default Re: GA31M-ES2L<-- Is this OC able?

    Well that's my question, how high is safe for longevity? I hit close to 3.5ghz with PCI on auto but FSB was between 106-110 so I didn't think it was worth it but I don't have the experience of you fellers....So keep it at 100 or push it?
    Gigabyte GA-G31M-ES2L (doesn't like to OC high FSB chips)
    Cooler Master Hyper 212+ HSF
    OCZ DDR2 PC2 6400 800mhz SLI Ready 2x4gb 5-4-4-15 2.1v
    EVGA 9500GT DDR2 512mb
    CoolerMaster Centurion case
    OCZ 500w modular PSU

  9. #209
    Lsdmeasap's Avatar
    Lsdmeasap is offline GIGABYTE Guru
    Join Date
    Jan 2008
    Location
    PCB Island
    Posts
    25,940

    Default Re: GA31M-ES2L<-- Is this OC able?

    I would say keep it under 108 for 24/7 use, much above that may be pushing on your other hardware too hard (Not the board or CPU).

    I've ran 103-108 for a long time with no bad effects, so you should be fine as long as you don't push it too far. If you do, you'll know when your hard drives start dropping out or LAN starts failing, but that's usually at 120+

  10. #210

    Default Re: GA31M-ES2L<-- Is this OC able?

    Ok, I'll give it a shot, something under 108....I might be able to get up to around 350 that way, maybe 366. Need something to try until Chike's 7500 gets here, unless it's intercepted lol...
    Gigabyte GA-G31M-ES2L (doesn't like to OC high FSB chips)
    Cooler Master Hyper 212+ HSF
    OCZ DDR2 PC2 6400 800mhz SLI Ready 2x4gb 5-4-4-15 2.1v
    EVGA 9500GT DDR2 512mb
    CoolerMaster Centurion case
    OCZ 500w modular PSU
