Thread: Gigabyte EP45DS4 + E8300 overclock help




  1. #11
    profJim's Avatar
    profJim is online now Chief Munchkin + moderator
    Join Date
    Dec 2008
    Location
    Tacoma, WA. [USA]
    Posts
    7,811

    Default Re: Gigabyte EP45DS4 + E8300 overclock help

    My N650SLI-DS4 supported 1T command rate and unlinked memory multipliers. When using 2x1GB Ballistix DDR2-800 memory, the 1T command rate worked with memory speeds up to 750 MHz. With 4x1GB 800 MHz memory, the 1T command rate worked at memory speeds less than 720 MHz.

    Performance gains while using 1T were small, and were easily surpassed when the memory was over-clocked.
    Q9650 @ 4.10GHz [9x456MHz]
    P35-DS4 [rev: 2.0] ~ Bios: F14
    4x2GB OCZ Reaper PC2-8500 1094MHz @5-5-5-15
    MSI N460GTX Hawk Talon Attack (1GB) video card <---- SLI ---->
    Seasonic SS-660XP2 80 Plus Platinum psu (660w)
    WD Caviar Black WD6401AALS 640GB (data)
    Samsung 840 Pro 256GB SSD (boot)
    SLI @ 16/4 works when running HyperSLI
    Cooler Master 120XL Seidon push/pull AIO cpu water cooling
    Cooler Master HAF XB computer case (RC-902XB-KKN1)
    Asus VH242H 24" monitor [1920x1080]
    MSI N460GTX Hawk (1GB) video card
    Logitech Z-5500 Digital 5.1 Speakers
    win7 x64 sp1 Home Premium
    HT|Omega Claro plus+ sound card
    CyberPower CP1500PFCLCD UPS
    E6300 (R0) @ 3.504GHz [8x438MHz] ~~ P35-DS3L [rev: 1.0] ~ Bios: F9 ~~ 4x2GB Kingston HyperX T1 PC2-8500, 876MHz @4-4-4-10
    Seasonic X650 80+ gold psu (650w) ~~ Xigmatek Balder HDT 1283 cpu cooler ~~ Cooler Master CM 690 case (RC-690-KKN1-GP)
    Samsung 830 128GB SSD MZ-7PC128B/WW (boot) ~~ WD Caviar Black WD6401AALS 640GB (data) ~~ ZM-MFC2 fan controller
    HT|Omega Striker 7.1 sound card ~~ Asus VH242H monitor [1920x1080] ~~ Logitech Z-5500 Digital 5.1 Speakers
    win7 x64 sp1 Home Premium ~~ CyberPower CP1500PFCLCD U.P.S
    .


  2. #12
    Lsdmeasap's Avatar
    Lsdmeasap is offline GIGABYTE Guru
    Join Date
    Jan 2008
    Location
    PCB Island
    Posts
    25,940

    Default Re: Gigabyte EP45DS4 + E8300 overclock help

    @ =Snake=(ITA)=

    Ahh, I see in your image! Ya well that is only the warrantied amount not what is needed, and I do suggest if you use 2.2 or above to have a fan directly on the ram or be ready for a RMA on the ram quicker then expected.


    Ya, I can help you with overclocking for sure. Let me have your settings now and what speed you want to run your CPU and ram at and I will advise >>>

    This is Just a template I use to ask people their settings, pay no attention to the numbers in it, replace with yours

    CPU = Model #
    Motherboard = Model, Revision #
    BIOS Version =
    Ram = Brand, Model#, Part#, And or Link

    Code:
    MB Intelligent Tweaker(M.I.T.)
    Robust Graphics Booster ...............: Auto or Fast
    CPU Clock Ratio ..........................:
    Fine CPU Clock Ratio.....................:.0
    CPU Frequency ...........................:


    Clock Chip Control
    Standard Clock Control
    CPU Host Clock Control..................: [Enabled]
    CPU Host Frequency (Mhz) ............: Mhz
    PCI Express Frequency (Mhz) .........:Set to 100

    C.I.A.2 .................................:[Disabled]


    Advanced Clock Control [Press Enter]
    CPU Clock Drive...........................: <<< 800
    PCI Express Clock Drive.................: <<< 900
    CPU Clock Skew (ps)....................: <<<
    MCH Clock Skew (ps)...................: <<<


    DRAM Performance Control
    Performance Enhance...................: [STANDARD]
    Extreme Memory Profile (X.M.P.).....: Disabled
    (G)MCH Frequency Latch...............: [Auto]
    System Memory Multiplier ..............:
    Memory Frequency (Mhz) ..............:
    DRAM Timing Selectable ................: [Manual]

    Standard Timing Control
    CAS Latency Time........................
    tRCD .........................................
    tRP'...........................................
    tRAS..........................................

    Set all Suggested below to highest Values first.  Then later you can lower, one at a time, testing as you go

    Advanced Timing Control
    tRRD...........................................
    tWTR..........................................
    tWR............................................
    tRFC...........................................
    tRTP...........................................
    Command Rate (CMD) ....................:2

    Driving Strength Profiles
    Driving Strength ............................

    Channel A
    Static tRead Value.........................:6/7-10 333/B MCH - 8/9-12 400/D MCH
     tRD Phase0 Adjustment...................:Auto <<< Leave for all below as well
    tRD Phase1 Adjustment...................:Auto
     tRD Phase2 Adjustment .................:Auto
     tRD Phase3 Adjustment..................:Auto
    Trd2rd(Different Rank)....................:Auto
    Twr2wr(Different Rank)...................:Auto
    Twr2rd(Different Rank)...................:Auto
    Trd2wr(Same/Diff Rank)..................:Auto
    Dimm1 Clock Skew Control...............:Auto  ps
    Dimm2 Clock Skew Control...............:Auto  ps

    Channel B
    Static tRead Value.........................:6/7-10 333/B MCH - 8/9-12 400/D MCH
     tRD Phase0 Adjustment...................:Auto <<< Leave for all below as well
    tRD Phase1 Adjustment...................:Auto
     tRD Phase2 Adjustment .................:Auto
     tRD Phase3 Adjustment..................:Auto
    Trd2rd(Different Rank)....................:Auto
    Twr2wr(Different Rank)...................:Auto
    Twr2rd(Different Rank)...................:Auto
    Trd2wr(Same/Diff Rank)..................:Auto
    Dimm1 Clock Skew Control...............:Auto  ps
    Dimm2 Clock Skew Control...............:Auto  ps

    Motherboard Voltage Control

    CPU
    CPU Vcore….……….........................:Auto if not overclocking, if you are overclocking please do find and set your own voltages

    CPU Termination…..... 1.200V*.......: << If overclocking Please set to stock, Auto overvolts this way to much.  Optimal range for overclock would be 1.2-1.5 depending on Vcore, try to keep at least .1 under vcore.  Auto is fine if not overclocking

    CPU PLL…………………....1.500V*.......: << If overclocking Please set to stock, Auto overvolts this way to much.  Optimal range for overclock would be 1.5-1.65.  Auto is fine if not overclocking

    CPU Referen.…………....0.755V*.......: <<< .64% Of Vtt (Termination above) Auto Will set this correctly

    CPU Reference2………,,0.800V*.......:<<< .67% Of Vtt (Termination above) Auto Will set this correctly

    MCH/ICH
    MCH Core…………….....1.100V...........: <<
    MCH Reference….…….0.800V...........; <<< Leave
    MCH/DRAM Ref.…......0.900V...........: <<< Leave
    ICH I/O……………….....1.500V............: <<< Leave
    ICH Core…………...……1.100V............: <<< Leave

    DRAM
    DRAM Voltage ……....1.800V............:
    DRAM Termination .…0.900V............: <<< Leave
    Channel A Reference 0.900V............: <<< Leave
    Channel B Reference 0.900V............: <<< Leave

    Advanced Settings
    Limit CPUID Max. to 3.....................: [Disabled]
    No-Execute Memory Protect............: [Enabled]
    CPU Enhanced Halt (C1E)................: [Disabled]
    C2/C2E State Support....................: [Disabled]
    x C4/C4E State Support..................: [Disabled]
    CPU Thermal Monitor 2(TM2) ...........: [Enabled]
    CPU EIST Function.........................: [Disabled]
    Virtualization Technology................: [Disabled] Enabled if you use Vmware/Virtual PC

    Integrated Peripherals
    Legacy USB Storage Detect ..............[Disabled] *Note* Must be enabled to flash from USB


    @ ProfJim

    1T setting in P45 was a huge mistake and I do not know why they have not removed it yet, it does not function and from what I have read will not work ever. So they should remove it, I think they are just dreaming is why the leave it now.

    But ya, you are correct not much gain really as opposed to 2T overclocking

    X58 1T works for sure and it Is Great!!!

    Here is a some bench pics of my Blue Tracer 1600Mhz from an upcoming review I am working on >>

    Click Images to enlarge

    All @ 1T

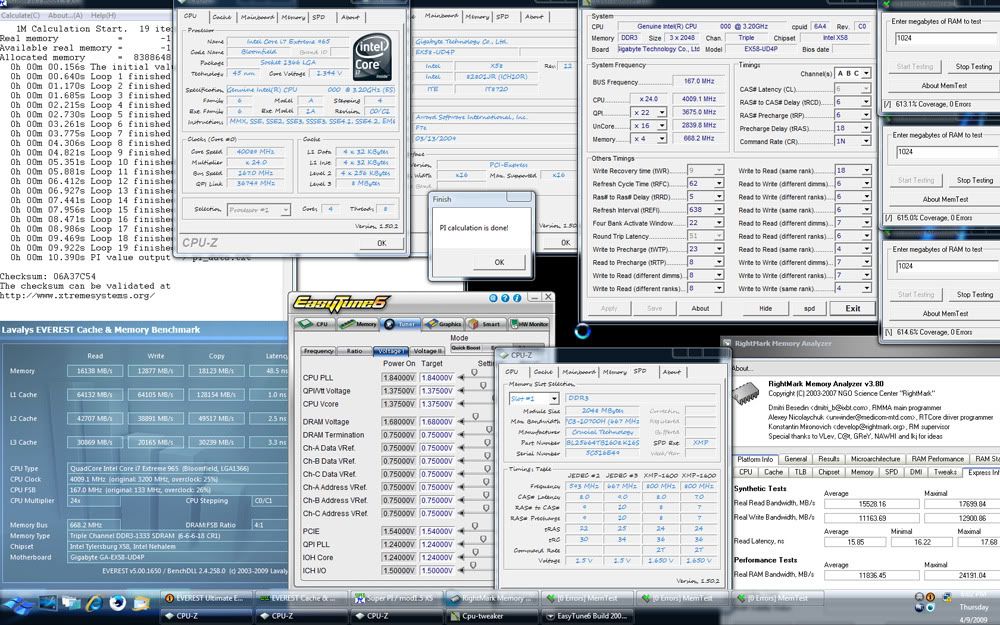

    1333 666-18

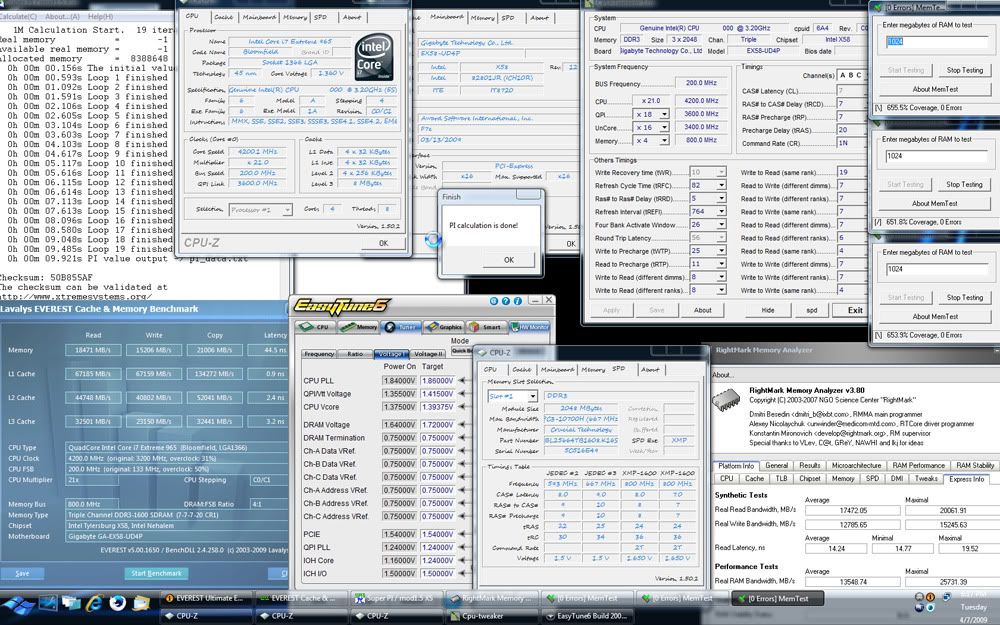

    1600 777-20

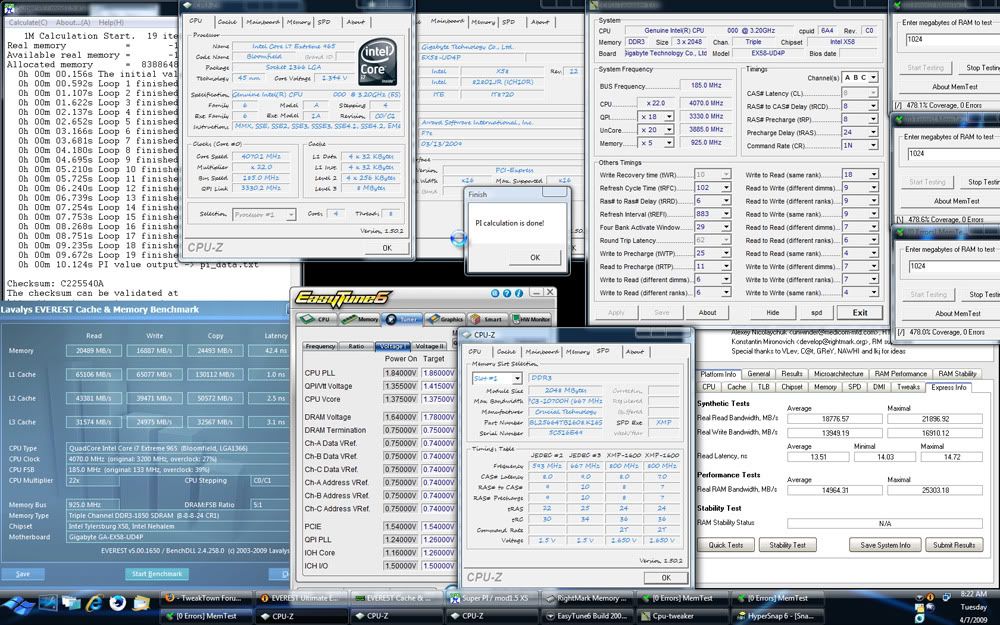

    1850 888-24

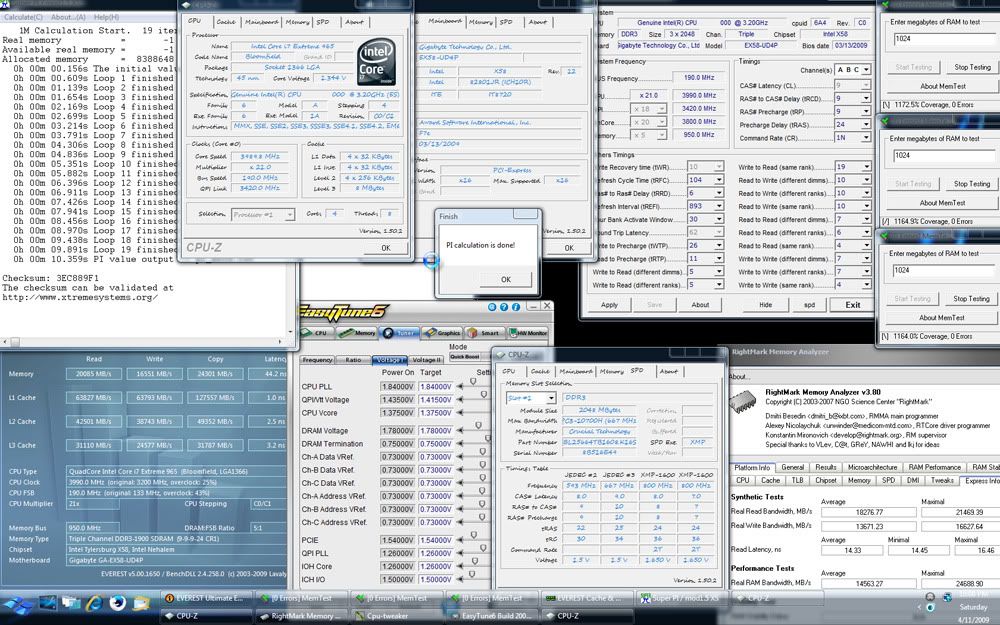

    1900 999-24




    Just showin em off I guess before I get my review done up, very nice sticks!! >>>

    BL3KIT25664TB1608 - 6GB kit (2GBx3), Ballistix Tracer 240-pin DIMM (with LEDs) , DDR3 PC3-12800 from Crucial.com

    They would do 2000, I just did not have enough time to get them stabilized enough to be added to my review because I had to return the 965 I used to Gigabyte before I was finished

    Here's a Video Not mine of course, but so you can see how the new Tracer LED's look/act. I will be adding a nice video to my review so users can see them in action

    YouTube - Crucial Ballistix Tracer

    Sorry, no 1T Vs 2T comparison, but I could whip up a couple if you would like to see them
