Thread: OCing a Q9550 on a GA-EP45-DS3R




  1. #31
    Join Date
    Sep 2009
    Location
    ohio, usa
    Posts
    94

    Default Re: OCing a Q9550 on a GA-EP45-DS3R

    lol 2gb of mem is all i have. and yes its a older version of memtest86+.

    check this out. i swaped slots on mobo to 2 & 4. same thing in memtest so i took out 1 stick ran it alone. same errors here is what i got with this 1 stick
    http://i72.photobucket.com/albums/i1...rob/stick1.jpg

    just gonna use directlink to image dont want to clutter up the place.

    then i took that failing stick out and put in the 2nd stick and got this.
    http://i72.photobucket.com/albums/i1...rob/stick2.jpg
    am now running prime so far so good. i know im going ot RMA this mem but should ileave it running right now with the 1 stick or should i pull them and put in my mushkin mem and run those.. only ddr2 800and i did set the driving strength to 1066. if i change back to the ddr2 800 should i change it back to 800?

    actually gonna change to the mushkin mem and memtest them and run from there. adjusting for ddr2 800 mem
    Last edited by cincyrob; 09-28-2009 at 08:53 PM.
    GA-EP45-UD3P 1.6rev
    Q9550 @ 451x8.5 3.83ghz SLB8V 1.296 vcore in bios
    Batch #L846B715
    G-Skill ddr2 1066 2x1gb running at 1082mhz??
    OCZ Vendetta 2 with 120mm fan
    Corsair HX650w PSU with a 120mm fan
    Nvidia GeForce 8800 GTS
    WD2500AAKS
    WD3200AAKS
    WD500GB GP
    WD1001FALS
    All housed in the Big Red Hemi
    CM HAF 922 1X200MM,2X200MM RED LED & 1x140mm rear fan
    Burners=
    Sony Optaric Nec AD7220S
    Sony Optaric Nec AD7240S
    Lite-on IHAS324-9-A x2

  2. #32
    Chike is offline Senior Member
    Join Date
    Jun 2009
    Location
    Israel
    Posts
    6,531

    Default Re: OCing a Q9550 on a GA-EP45-DS3R

    Well is you had 2GB in your sig it eould have been more obvious.
    Problem is the Mushkin may not handle the FSB, but you can try, or make a stable 3.4GHz profile for the Mushkin which would pprobably would be worthless when you switch the memory again.
    Some say use driving strength higher than the ram rate, I have never noticed any change and it is set to the ram rate.

  3. #33
    Join Date
    Sep 2009
    Location
    ohio, usa
    Posts
    94

    Default Re: OCing a Q9550 on a GA-EP45-DS3R

    ok i swapped out to the mushkin mem. changed cas lat for these sticks changed back driving strength to 800. fired up into mem test. passed 7 test no errors. ivehad these stick running at 900mhz but after that they are shakey. getting ready to run some test again and see how things are. then RMA these 1066 sticks. tbh this is the second set of these i have had and both were faulty.. maybe some g-skill might be better.
    GA-EP45-UD3P 1.6rev
    Q9550 @ 451x8.5 3.83ghz SLB8V 1.296 vcore in bios
    Batch #L846B715
    G-Skill ddr2 1066 2x1gb running at 1082mhz??
    OCZ Vendetta 2 with 120mm fan
    Corsair HX650w PSU with a 120mm fan
    Nvidia GeForce 8800 GTS
    WD2500AAKS
    WD3200AAKS
    WD500GB GP
    WD1001FALS
    All housed in the Big Red Hemi
    CM HAF 922 1X200MM,2X200MM RED LED & 1x140mm rear fan
    Burners=
    Sony Optaric Nec AD7220S
    Sony Optaric Nec AD7240S
    Lite-on IHAS324-9-A x2

  4. #34
    Join Date
    Mar 2009
    Location
    Earth
    Posts
    849

    Default Re: OCing a Q9550 on a GA-EP45-DS3R

    Definitely RMA the memory both sticks as they are a pair right... What are your Muskin specs and yeah you'll have to go to 3.4 GHz with 800mhz memory on a 2.00D strap.

    OOPS to late.... I've noticed if you get things from New Egg I think they may sent out things that may have been previously returned... JMO

  5. #35
    Join Date
    Sep 2009
    Location
    ohio, usa
    Posts
    94

    Default Re: OCing a Q9550 on a GA-EP45-DS3R

    well i still have it at 3.61ghz passed all 5 test at full mem on IBT. running prime as i type. no probs yet.
    here is my mushkin mem here. good stuff i think
    Newegg.com - mushkin 2GB (2 x 1GB) 240-Pin DDR2 SDRAM DDR2 800 (PC2 6400) with EPP Profile Dual Channel Kit Desktop Memory Model 996533 - Desktop Memory

    actually i bought the corsair mem from dell not sure if i should try and RMA them back to dell or just contact corsair.???

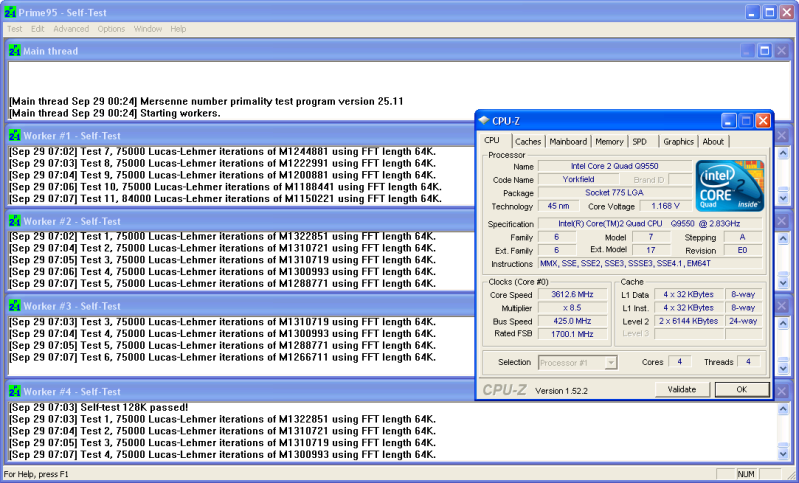

    ok here is a shot of it all working..


    these Mushkin can do right at 900mhz so later i might try and take it up to 445-450 range and see how things go.

    with the settings you guys have had me change to has made a big difference.i am running 3.61ghz with alot less vcore,less mch. this is good.you guys are awesome. and with these settings the only thing i really should need to change will be vcore and maybe some MCH???am i looking at that right?
    GA-EP45-UD3P 1.6rev
    Q9550 @ 451x8.5 3.83ghz SLB8V 1.296 vcore in bios
    Batch #L846B715
    G-Skill ddr2 1066 2x1gb running at 1082mhz??
    OCZ Vendetta 2 with 120mm fan
    Corsair HX650w PSU with a 120mm fan
    Nvidia GeForce 8800 GTS
    WD2500AAKS
    WD3200AAKS
    WD500GB GP
    WD1001FALS
    All housed in the Big Red Hemi
    CM HAF 922 1X200MM,2X200MM RED LED & 1x140mm rear fan
    Burners=
    Sony Optaric Nec AD7220S
    Sony Optaric Nec AD7240S
    Lite-on IHAS324-9-A x2

  6. #36
    Join Date
    Mar 2009
    Location
    Earth
    Posts
    849

    Default Re: OCing a Q9550 on a GA-EP45-DS3R

    Did you find the default vcore (vid)? I noticed your vcore under load is like 1.184. May need to add vcore voltage a notch or two depending on your vid and it may be wise to do it anyway.

    Also I don't know what your showing for advanced timing control settings in your bios so set them accordinly.

    Might try these settings on for size for 3.8 GHz. G/L

    On the RMA might see which one, if either will cross ship for faster service.

    Code:
    MB Intelligent Tweaker(M.I.T.)
    Robust Graphics Booster ...............:Fast
    CPU Clock Ratio ...........................:8 X
    Fine CPU Clock Ratio.....................:+0.5
    CPU Frequency .............................:3.8GHz (450x8.5)

    Advanced Clock Control Press Enter
    CPU Host Clock Control..................:Enabled
    CPU Host Frequency (Mhz) ............:450
    PCI Express Frequency (Mhz) ........:100
    C.I.A.2 .................................:Disabled

    CPU Clock Drive..........................:800mV
    PCI Express Clock Drive...............:900mV
    CPU Clock Skew (ps)...................:0ps
    MCH Clock Skew (ps)...................:0ps

    DRAM Performance Control
    Performance Enhance...................:Standard
    Extreme Memory Profile (X.M.P.).....:Disabled
    (G)MCH Frequency Latch...............:Auto
    System Memory Multiplier ..............2.00D
    Memory Frequency (Mhz) ....800....:900
    DRAM Timing Selectable ................:Manual

    Standard Timing Control
    CAS Latency Time.............5........4
    tRCD ...............................7........5
    tRP'..................................7........4
    tRAS...............................24.......11

    Advanced Timing Control
    tRRD.......................4.................4  Not sure what your bios says on these...
    tWTR......................4..................4
    tWR.........................8.................6
    tRFC........................68...............54
    tRTP.........................4................4
    Command Rate (CMD) .......0........2

    Driving Strength Profiles
    Driving Strength ........................... 1066

    Channel A
    Static tRead Value...............8.....: 8  What do you use?
    tRD Phase0 Adjustment.......0.......: Auto
    tRD Phase1 Adjustment.......0.......: Auto
    tRD Phase2 Adjustment ......0.......: Auto
    tRD Phase3 Adjustment.......0.......: Auto
    Trd2rd(Different Rank)...........8....: Auto
    Twr2wr(Different Rank)..........8....: Auto
    Twr2rd(Different Rank)...........7....: Auto
    Trd2wr(Same/Diff Rank).........9.....: Auto
    Dimm1 Clock Skew Control............: Auto
    Dimm2 Clock Skew Control............: Auto

    Channel B
    Static tRead Value...............8........: 8 What do you use?
    tRD Phase0 Adjustment........1.......: Auto
    tRD Phase1 Adjustment....... 0.......: Auto
    tRD Phase2 Adjustment .......0.......: Auto
    tRD Phase3 Adjustment........0.......: Auto
    Trd2rd(Different Rank).......... .8.....: Auto
    Twr2wr(Different Rank).......... 8....: Auto
    Twr2rd(Different Rank)........... 7....: Auto
    Trd2wr(Same/Diff Rank)..........9.....: Auto
    Dimm1 Clock Skew Control.............: Auto
    Dimm2 Clock Skew Control.............: Auto

    Motherboard Voltage Control
    Voltage Type.………... Manual
    CPU
    Load Line Calibration......................:Disabled
    CPU Vcore….…….1.27500V...........:1.26875  May need more
    CPU Termination…..... 1.200V*........:1.200V
    CPU PLL……………….1.500V*.......: 1.500V
    CPU Referennce.……...0.760V*.......: Auto

    MCH/ICH
    MCH Core……………...1.100V.........:1.280V
    MCH Reference….…….0.760V.........:Auto
    MCH/DRAM Ref.…......0.900V..........:Auto
    ICH I/O…………….....1.500V............:1.570V 1.500V may be plenty
    ICH Core…………...…1.100V............:1.100V You don't have this right?

    DRAM
    DRAM Voltage ……....2.100V..........:2.200V
    DRAM Termination .…0.900V...........:Auto
    Channel A Reference 0.900V............:Auto
    Channel B Reference 0.900V............:Auto
    Advanced Settings
    Limit CPUID Max. to 3.....................: Disabled
    No-Execute Memory Protect.................: Enabled
    CPU Enhanced Halt (C1E)...................: Disabled
    C2/C2E State Support......................: Disabled
    x C4/C4E State Support....................: Disabled
    CPU Thermal Monitor 2(TM2) ...............: Enabled
    CPU EIST Function.........................: Disabled
    Virtualization Technology.................: Disabled
    Last edited by Conners; 09-28-2009 at 11:52 PM. Reason: A few corrections to template

  7. #37
    Join Date
    Sep 2009
    Location
    ohio, usa
    Posts
    94

    Default Re: OCing a Q9550 on a GA-EP45-DS3R

    when i was in bios it showed the default vcore was 1.275v
    but i have it at 1.2625v adn it is fine. since changeing mem out ive passed all test so far.

    here is what i have right now for the 3.61ghz OC

    Code:
    MB Intelligent Tweaker(M.I.T.)
    Robust Graphics Booster ...................: Fast
    CPU Clock Ratio ...........................: 8
    Fine CPU Clock Ratio.......................: 0.5
    CPU Frequency .............................: 3613 MHz (425*8.5)

    Clock Chip Control
    Standard Clock Control
    CPU Host Clock Control.....................: [Enabled]
    CPU Host Frequency (Mhz) ..................: 425 MHz
    PCI Express Frequency (Mhz) ...............: 100
    C.I.A.2 ...................................: [Disabled]
    Advanced Clock Control [Press Enter]
    CPU Clock Drive............................: <<< 800
    PCI Express Clock Drive....................: <<< 900
    CPU Clock Skew (ps)........................: <<< 0ps
    MCH Clock Skew (ps)........................: <<< 0ps
    DRAM Performance Control
    Performance Enhance........................: [STANDARD]
    Extreme Memory Profile (X.M.P.)............: [Disabled]
    (G)MCH Frequency Latch.....................: [Auto]
    System Memory Multiplier ..................: [2.00D]
    Memory Frequency (Mhz) ....................: 850
    DRAM Timing Selectable ....................: [Manual]
    Standard Timing Control
    CAS Latency Time...........................: 4
    tRCD ......................................: 5
    tRP'.......................................: 4
    tRAS.......................................: 11
    Advanced Timing Control
    tRRD.......................................:
    tWTR.......................................:
    tWR........................................:     nopt sure on these didnt look when i was in there
    tRFC.......................................:
    tRTP.......................................:
    Command Rate (CMD) ........................:
    Driving Strength Profiles
    Driving Strength ..........................: 800
    Channel A
    Static tRead Value.........................: 8
    tRD Phase0 Adjustment......................: Auto
    tRD Phase1 Adjustment......................: Auto
    tRD Phase2 Adjustment .....................: Auto
    tRD Phase3 Adjustment......................: Auto
    Trd2rd(Different Rank).....................: Auto
    Twr2wr(Different Rank).....................: Auto
    Twr2rd(Different Rank).....................: Auto
    Trd2wr(Same/Diff Rank).....................: Auto
    Dimm1 Clock Skew Control...................: Auto  ps
    Dimm2 Clock Skew Control...................: Auto  ps
    Channel B
    Static tRead Value.........................: 8
    tRD Phase0 Adjustment......................: Auto
    tRD Phase1 Adjustment......................: Auto
    tRD Phase2 Adjustment .....................: Auto
    tRD Phase3 Adjustment......................: Auto
    Trd2rd(Different Rank).....................: Auto
    Twr2wr(Different Rank).....................: Auto
    Twr2rd(Different Rank).....................: Auto
    Trd2wr(Same/Diff Rank).....................: Auto
    Dimm1 Clock Skew Control...................: Auto  ps
    Dimm2 Clock Skew Control...................: Auto  ps
    Motherboard Voltage Control
    CPU
    Load-Line Calibration......................: [Enabled] i dont have this option.
    CPU Vcore............1.25000V..............: 1.2625V
    CPU Termination......1.200V*...............: 1.200V
    CPU PLL..............1.500V*...............: 1.500V
    CPU Referen..........0.760V*...............: Auto
    MCH/ICH
    MCH Core.............1.100V................: 1.200V
    MCH Reference........0.760V................: Auto
    MCH/DRAM Ref.........0.900V................: Auto
    ICH I/O..............1.500V................: 1.500V
    ICH Core.............1.100V................: 1.100v
    DRAM
    DRAM Voltage ........2.000V................: 2.100V
    DRAM Termination.....0.900V................: Auto
    Channel A Reference..0.900V................: Auto
    Channel B Reference..0.900V................: Auto
    Advanced Settings
    Limit CPUID Max. to 3......................: [Disabled]
    No-Execute Memory Protect..................: [Enabled]
    CPU Enhanced Halt (C1E)....................: [Disabled]
    C2/C2E State Support.......................: [Disabled]
    x C4/C4E State Support.....................: [Disabled]
    CPU Thermal Monitor 2(TM2) ................: [Enabled]
    CPU EIST Function..........................: [Enabled]
    Virtualization Technology..................: [Enabled]
    Integrated Peripherals
    Legacy USB Storage Detect .................: [Enabled]
    GA-EP45-UD3P 1.6rev
    Q9550 @ 451x8.5 3.83ghz SLB8V 1.296 vcore in bios
    Batch #L846B715
    G-Skill ddr2 1066 2x1gb running at 1082mhz??
    OCZ Vendetta 2 with 120mm fan
    Corsair HX650w PSU with a 120mm fan
    Nvidia GeForce 8800 GTS
    WD2500AAKS
    WD3200AAKS
    WD500GB GP
    WD1001FALS
    All housed in the Big Red Hemi
    CM HAF 922 1X200MM,2X200MM RED LED & 1x140mm rear fan
    Burners=
    Sony Optaric Nec AD7220S
    Sony Optaric Nec AD7240S
    Lite-on IHAS324-9-A x2

  8. #38
    Join Date
    Mar 2009
    Location
    Earth
    Posts
    849

    Default Re: OCing a Q9550 on a GA-EP45-DS3R

    Looks pretty good @ 3.61 GHz. If you go up to 3.8 GHz just up your v core 1st then maybe a little MCH voltage if it's not stable and possibably a little vdimm voltage @ 900 MHz. Also set your Advanced Timing Control settings manually.

  9. #39
    Join Date
    Sep 2009
    Location
    ohio, usa
    Posts
    94

    Default Re: OCing a Q9550 on a GA-EP45-DS3R

    its getting close for me to get ready for work. so if not tonight i will mess with it in the morning.
    not sure if i stated it but my goal for a OC is 3.83ghz 24/7 i would like to see if i could get it stable around 4.26ghz just to say i did..
    GA-EP45-UD3P 1.6rev
    Q9550 @ 451x8.5 3.83ghz SLB8V 1.296 vcore in bios
    Batch #L846B715
    G-Skill ddr2 1066 2x1gb running at 1082mhz??
    OCZ Vendetta 2 with 120mm fan
    Corsair HX650w PSU with a 120mm fan
    Nvidia GeForce 8800 GTS
    WD2500AAKS
    WD3200AAKS
    WD500GB GP
    WD1001FALS
    All housed in the Big Red Hemi
    CM HAF 922 1X200MM,2X200MM RED LED & 1x140mm rear fan
    Burners=
    Sony Optaric Nec AD7220S
    Sony Optaric Nec AD7240S
    Lite-on IHAS324-9-A x2

  10. #40
    Join Date
    Sep 2009
    Location
    ohio, usa
    Posts
    94

    Default Re: OCing a Q9550 on a GA-EP45-DS3R

    ok here i go going to take it up a little more today. gonna just take it to 3.7ghz and up the vcore a bit and post what i got...oh yea i ran prime95 all night last night almost 7hrs. no issues....


    look at that vcore on that joker...lol sweet. not gonna bump it to much. trail and error...
    GA-EP45-UD3P 1.6rev
    Q9550 @ 451x8.5 3.83ghz SLB8V 1.296 vcore in bios
    Batch #L846B715
    G-Skill ddr2 1066 2x1gb running at 1082mhz??
    OCZ Vendetta 2 with 120mm fan
    Corsair HX650w PSU with a 120mm fan
    Nvidia GeForce 8800 GTS
    WD2500AAKS
    WD3200AAKS
    WD500GB GP
    WD1001FALS
    All housed in the Big Red Hemi
    CM HAF 922 1X200MM,2X200MM RED LED & 1x140mm rear fan
    Burners=
    Sony Optaric Nec AD7220S
    Sony Optaric Nec AD7240S
    Lite-on IHAS324-9-A x2

Page 4 of 12 FirstFirst ... 23456 ... LastLast

Thread Information

Users Browsing this Thread

There are currently 1 users browsing this thread. (0 members and 1 guests)

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
