Thread: Q6600 / EP45C-DS3R o/c request from a noobie




  1. #11
    Join Date
    Dec 2009
    Location
    Hills
    Posts
    10

    Default Re: Q6600 / EP45C-DS3R o/c request from a noobie

    These are the detailed configuration of my BIOS but i guess i have to leave them default unless i decide to buy a stronger cooler... Any reccomendation for optimizing memory performance, then?

    Motherboard: Model: EP45C-DS3R Rev# A2 : Bios Version: F5
    Cpu: Intel Q6600 stock cooling
    Ram:
    Power Supply Unit: 700 watt

    MB Intelligent Tweaker(M.I.T.)
    Robust Graphics Booster -------------- : [Auto]
    CPU Clock Ratio ---------------------- : [9x]
    Fine CPU Clock Ratio ----------------- : [0.0]
    CPU Frequency ---------------------: 2.400

    Clock Chip Control
    Standard Clock Control
    CPU Host Clock Control --------------- : [Enabled]
    CPU Host Frequency (Mhz) --------------: [266]
    PCI Express Frequency (Mhz) ---------- : [100]

    C.I.A.2 ------------------------------ : [Disabled]

    Advanced Clock Control ------- [Press Enter]
    CPU Clock Drive ---------------------- : [800]
    PCI Express Clock Drive -------------- : [900]
    CPU Clock Skew (ps) ------------------ : [0]
    MCH Clock Skew (ps) ------------------ : [0]

    DRAM Performance Control
    Performance Enhance ------------------- : [Standart]
    Extreme Memory Profile --- (X.M.P.) --- : [auto]
    (G)MCH Frequency Latch ---------------- : [Auto]
    System Memory Multiplier -------------- : [Auto]
    Memory Frequency (Mhz) ---------------- : [1066]
    DRAM Timing Selectable ---------------- : [Auto]

    Standard Timing Control
    CAS Latency Time -------- ?? ---------- : [5]
    tRCD ------------------- ?? ---------- : [5]
    tRP --------------------- ?? ---------- : [5]
    tRAS ------------------- ?? ---------- : [15]

    Advanced Timing Control
    tRRD ------------------- ?? ---------- : [4]
    tWTR ------------------- ?? ---------- : [4]
    tWR --------------------- ?? ---------- : [6]
    tRFC ------------------- ?? ---------- : [72]
    tRTP ------------------- ?? ---------- : [4]
    Command Rate (CMD) -------------------- : [0]
    Driving Strength Profiles
    Driving Strength --------- : Press Enter

    Channel A
    Static tRead Value --------------------- : [7]
    tRD Phase0 Adjustment ------------------ : [0]
    tRD Phase1 Adjustment ------------------ : [0]
    tRD Phase2 Adjustment ------------------ : [0]
    tRD Phase3 Adjustment ------------------ : [0]
    Trd2rd(Different Rank) ----------------- : [8]
    Twr2wr(Different Rank) ----------------- : [8]
    Twr2rd(Different Rank) ----------------- : [7]
    Trd2wr(Same/Diff Rank) ----------------- : [9]
    Dimm1 Clock Skew Control --------------- : [N/A] ps
    Dimm2 Clock Skew Control --------------- : [N/A] ps

    Channel B
    Static tRead Value --------------------- : [7]
    tRD Phase0 Adjustment ------------------ : [0]
    tRD Phase1 Adjustment ------------------ : [0]
    tRD Phase2 Adjustment ------------------ : [0]
    tRD Phase3 Adjustment ------------------ : [0]
    Trd2rd(Different Rank) ----------------- : [8]
    Twr2wr(Different Rank) ----------------- : [8]
    Twr2rd(Different Rank) ----------------- : [7]
    Trd2wr(Same/Diff Rank) ----------------- : [9]
    Dimm1 Clock Skew Control --------------- : [N/A] ps
    Dimm2 Clock Skew Control --------------- : [N/A] ps

    Motherboard Voltage Control
    CPU
    Voltage Types------------ Normal -------- Current -----
    Load-Line Calibration ----------------- : [Disabled]
    CPU Vcore --------------- ?.????? ---- : [1.32500]

    CPU Termination --------- ?.???V* ----- : [1.200]
    CPU PLL ----------------- ?.???V* ----- : [1.500]

    CPU Reference ----------- ?.???V* ----- : [0.760]
    CPU Reference2 ---------- ?.???V* ----- : [N/A]

    MCH/ICH
    MCH Core ---------------- ?.???V ------- : [1.100]
    MCH Reference ----------- ?.???V ------- : [0.760]
    MCH/DRAM Ref ------------ ?.???V ------ : [?]
    ICH I/O ----------------- ?.???V ------- : [?]
    ICH Core ---------------- ?.???V ------- : [1.500]
    DRAM
    DRAM Voltage ------------ ?.???V ------- : [1.800]
    DRAM Termination -------- ?.???V ------- : [0.900]
    Channel A Reference ----- ?.???V ------- : [0.900]
    Channel B Reference ----- ?.???V ------- : [0.900]

    Advanced Settings
    Limit CPUID Max. to 3 ------------------ : [Disabled]
    No-Execute Memory Protect -------------- : [Enabled]
    CPU Enhanced Halt (C1E) ---------------- : [Disabled]
    C2/C2E State Support ------------------- : [Disabled]
    x C4/C4E State Support ----------------- : [Disabled]
    CPU Thermal Monitor 2 (TM2) ------------ : [Enabled]
    CPU EIST Function --------------------- : [Enabled]
    Virtualization Technology -------------- : [Enabled]

    Init Display First ----------------------: [PCI]

    Integrated Peripherals
    Legacy USB Storage Detect ------------- : [N/A]
    <div_prefs id="div_prefs"></div_prefs>
    Coolermaster Centurion 700W
    Gigabyte EP45C-DS3R
    Intel Q6600 @ default with stock cooler
    2x2 Gb OCZ DDR2 PC2-8500 Reaper HPC
    2x1 Gb OCZ DDR2 PC2-8500 Fatal1ty
    Sapphire HD4870 512 Mb @ default



  2. #12
    Chike is offline Senior Member
    Join Date
    Jun 2009
    Location
    Israel
    Posts
    6,531

    Default Re: Q6600 / EP45C-DS3R o/c request from a noobie

    A2 is not the board revison, it is the choset revision. GB site indicates only one revision, 1.0, for this board but it is not always updated. Board revision is pronted on the motherboard above the far PCI slot, I/O panel side.

    MemSet screen capture indicate memory timings are 5-7-7-24, so i guess all is on auto.
    Try to set lower timings, start with 5-5-5-18, then try lowering Static tRead Value, 6 should be possible, perheps even 5 or 4.
    Code:
    DRAM Timing Selectable ---------------- : [Manual]

    Standard Timing Control
    CAS Latency Time -------- ?? ---------- : [5]
    tRCD ------------------- ?? ---------- : [5]
    tRP --------------------- ?? ---------- : [5]
    tRAS ------------------- ?? ---------- : [18]

    Channel A & B
    Static tRead Value --------------------- : [7] << Try lower untill computer won't boot than set back to the lowest that boot

    MCH/ICH
    MCH Core ---------------- ?.???V ------- : [1.100] <<< Try 1.10 up to 1.26, lowest needed
    If the computer stuck in reboot loop, turn the PSU off for 20-30 seconds, turn it back on and try again, go back to BIOS M.I.T and adjust settings.

    Run a memory benchmark with default settings and after applying changesto compare improvement if any.
    MaxxMEM² - PreView is a small free memory benchmark with built in screen capture.
    Last edited by Chike; 12-19-2009 at 09:13 AM.

  3. #13
    Join Date
    Dec 2009
    Location
    Hills
    Posts
    10

    Default Re: Q6600 / EP45C-DS3R o/c request from a noobie

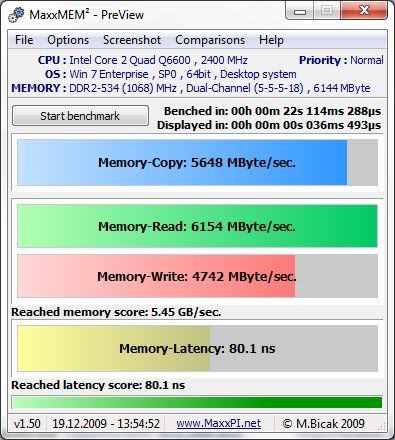

    tRead value was 7, i changed to 6(didn't try a lower value)... timings was 5-5-5-15 and i changed them to 5-5-5-18... here are the benchmark results

    before



    after



    i'm still a bit scared of changing any voltage setting so i didn't change MCH Core
    <div_prefs id="div_prefs"></div_prefs><div_prefs id="div_prefs"></div_prefs><div_prefs id="div_prefs"></div_prefs><div_prefs id="div_prefs"></div_prefs><div_prefs id="div_prefs"></div_prefs>
    Coolermaster Centurion 700W
    Gigabyte EP45C-DS3R
    Intel Q6600 @ default with stock cooler
    2x2 Gb OCZ DDR2 PC2-8500 Reaper HPC
    2x1 Gb OCZ DDR2 PC2-8500 Fatal1ty
    Sapphire HD4870 512 Mb @ default



  4. #14
    Chike is offline Senior Member
    Join Date
    Jun 2009
    Location
    Israel
    Posts
    6,531

    Default Re: Q6600 / EP45C-DS3R o/c request from a noobie

    I did an experiment with settings as close to yours as possible and I get slightly better results in read and latency, and big difference in write.

    I wonder why it is. Disable Full Screen LOGO in Advanced NIOS Features and see if you see a message about memory being in flex mode.
    Set tRAS back to 15. I only said 18 because that is the spec for one of the kits and it was 24 in the screen capture you posted in post #5.
    Static tRead Value 5 should be possible.
    No need to increase MCH Core or any other voltage unless it is needed. If you are stable with 1.1v leave it there.
    The maximum voltage for the MCH is 1.32v is I am not mistaken, up to this value heat should be the only concern.

    EDIT: It seems I was mistaken. Max MCH is 1.21v according to Intel specs.
    Last edited by Chike; 12-19-2009 at 08:48 PM.

  5. #15
    Join Date
    Dec 2009
    Location
    Hills
    Posts
    10

    Default Re: Q6600 / EP45C-DS3R o/c request from a noobie

    it seems like i get more performance when i set it 18.. but what is the difference between 15 and 18.. and what does flex mode means?
    <div_prefs id="div_prefs"></div_prefs><div_prefs id="div_prefs"></div_prefs>
    Coolermaster Centurion 700W
    Gigabyte EP45C-DS3R
    Intel Q6600 @ default with stock cooler
    2x2 Gb OCZ DDR2 PC2-8500 Reaper HPC
    2x1 Gb OCZ DDR2 PC2-8500 Fatal1ty
    Sapphire HD4870 512 Mb @ default



  6. #16
    Chike is offline Senior Member
    Join Date
    Jun 2009
    Location
    Israel
    Posts
    6,531

    Default Re: Q6600 / EP45C-DS3R o/c request from a noobie

    You had better performance with 18 because of the lower tRD(Static tRead Value) 15 sould be better than 18 with tRD 6.
    I am not sure what flex mode does but it is supposed to be used when mixing different types of memory modules.

  7. #17
    Join Date
    Dec 2009
    Location
    Hills
    Posts
    10

    Default Re: Q6600 / EP45C-DS3R o/c request from a noobie

    i have to give a break to my overclock adventure unfortunately... because of a problem, i must remove 3 of 4 RAM modules.. i can use only one module atm.. i dont know why, i get an error that says "atikmdag stopped working and has recovered"... while i was playing a game, screen freezes and goes black for a few sec. then goes back normal again... all these happens when i mount all modules... when i left only 1 module mounted, it seems all problems gone... i've been using this system for 1 year but this problem occured one month ago... don't know why this happens but it drives me crazy.. im gonna start crying very soon...
    <div_prefs id="div_prefs"></div_prefs>
    Coolermaster Centurion 700W
    Gigabyte EP45C-DS3R
    Intel Q6600 @ default with stock cooler
    2x2 Gb OCZ DDR2 PC2-8500 Reaper HPC
    2x1 Gb OCZ DDR2 PC2-8500 Fatal1ty
    Sapphire HD4870 512 Mb @ default



  8. #18
    Chike is offline Senior Member
    Join Date
    Jun 2009
    Location
    Israel
    Posts
    6,531

    Default Re: Q6600 / EP45C-DS3R o/c request from a noobie

    A quick google of atikmdag brings up a bunch of the same problem you have, try to see if they have a fix for that.

  9. #19
    Join Date
    Dec 2009
    Location
    Hills
    Posts
    10

    Default Re: Q6600 / EP45C-DS3R o/c request from a noobie

    i checked almost everyday but no fix worked for me. i'm trying new fixes atm, hope those work...

    btw i'm really grateful for your help and guidance, and for your speed of course...
    <div_prefs id="div_prefs"></div_prefs>
    Coolermaster Centurion 700W
    Gigabyte EP45C-DS3R
    Intel Q6600 @ default with stock cooler
    2x2 Gb OCZ DDR2 PC2-8500 Reaper HPC
    2x1 Gb OCZ DDR2 PC2-8500 Fatal1ty
    Sapphire HD4870 512 Mb @ default
