Thread: x48T-DQ6 Overclocking help




  1. #1

    Default x48T-DQ6 Overclocking help

    I've just installed my new Corsair h50 cpu cooler (with a noctua fan) and now I want some more bang for the buck from my old E8400.

    I check Lsds guide on overclocking and made a Baseline bios Profile. It runs great at 333x9 =2999ghz standard and the temp after 5min of Orthos was 42C, Idle 30C.

    400x9, idle 35C, 5min Orthos 44C.

    At 420x9 I get bluescreens. I tried upping the voltage on DDR3 +0,2 and vcore to 1,31259V but it still bluescreens in windows.

    System memory multiplier 2.00B
    Memory freq: 1333 840

    Using memory: http://corsair.com/products/xms3dhx/default.aspx

    Got any tips on how to make it stable?
    Last edited by badpop; 12-25-2009 at 07:22 AM.

  2. #2
    Chike is offline Senior Member
    Join Date
    Jun 2009
    Location
    Israel
    Posts
    6,531

    Default Re: x48T-DQ6 Overclocking help

    Have you tried the D strap multipliers?
    You may need to increase FSB / MCH voltage, somewere between +0.05 to +0.15 FSB and +0.05 to +0.2 MCH. Start low and increase graduately.
    If ram was ok at 1333 with default voltage it probably don't need that much over voltage if at all.
    Please post full BIOS settings, use the template in this post.

    EDIT: BTW temps are CPU temps or core temps?
    Last edited by Chike; 12-25-2009 at 08:23 AM.

  3. #3

    Default Re: x48T-DQ6 Overclocking help

    Here are the BIOS templade, I'll try ibncreasing the voltage a bit.
    Those temps are cpu core.

    Robust Graphics Booster___________ [Auto]
    CPU Clock Ratio ____________ [9]
    Fine Clock Ratio ____________[0.0]
    CPU Host Clock Control_ [Enabled]
    CPU Host Frequency (MHz)__________ [400]
    PCI Express Frequency (Mhz)_______ [102]
    C.I.A. 2__________________________ [Disabled]

    System Memory Multiplier (SPD)____ [2.00B]
    DRAM Timing Selectable_______ SPD __ [Manual]

    Performance Enhance = [Standard]

    CAS Latency Time________________9
    Dram RAS# to CAS# Delay_________9
    Dram RAS# Precharge Delay_______9
    Precharge Delay (tRAS)__________24

    ACT to ACT Delay (tRRD)_________5
    Rank Write to READ Delay________5
    Write to Precharge Delay_________10
    Refresh to ACT Delay______________74
    Read to Precharge Delay__________5
    Static tRead Value_______________12
    Static tRead Phase Adjust________0
    Command Rrate____________________1

    CPU/PCIEX Clock Driving Control [800mV]
    CPU Clock Skew Control [normal]
    GMCH Clock Skew Control [Normal]

    System Voltage Control____ [Manual]
    DDR2 OverVoltage Control__ [+0.05V]
    PCI-E OverVoltage Control_ [+0.1V]
    FSB OverVoltage Control___ [+0.1V]
    (G)MCH OverVoltage Control [+0.1V]
    LoadLine Calibration_______ [Auto]
    CPU Voltage Control_______ [1.3]

    Limit CPUID Max. to 3.....................: [Disabled]
    No-Execute Memory Protect............: [Disabled]
    CPU Enhanced Halt (C1E)................: [Disabled]
    (C2/C2E State Support....................: [Disabled]) Dont have this
    (x C4/C4E State Support..................: [Disabled]) Dont have this
    CPU Thermal Monitor 2(TM2) ...........: [Enabled]
    CPU EIST Function.........................: [Disabled]
    Virtualization Technology................: [Disabled]

    Integrated Peripherals
    Legacy USB Storage Detect___________________[Disabled]
    Last edited by badpop; 12-25-2009 at 04:49 PM.

  4. #4

    Default Re: x48T-DQ6 Overclocking help

    I tried those thing and still the same bsod (STOP 0x124) which I only get when overclocking.

    Also tried 8x430 and that worked fine, after 5min of orthos the temp peaked at 42C. 8x440 Bsoded thou.

    Tried switching to 2.00D and upping the voltage a bit but it didn't do anything.

  5. #5
    Chike is offline Senior Member
    Join Date
    Jun 2009
    Location
    Israel
    Posts
    6,531

    Default Re: x48T-DQ6 Overclocking help

    The settings you have posted are stable? What tests and for how long? Have you ran IBT on those settings?
    Are all timings set manually?
    The 8x430 worked fine how, for how long?
    What are CPU stepping and BIOS version?

  6. #6

    Default Re: x48T-DQ6 Overclocking help

    Yeah they are stable, i ran orthos for like 5min. I also ran furmark a few times without any problems. I never ran ibt thou.
    All timings are set manual.
    8x430 ran stable for a few hours.
    CPU step 6 i think. BIOS version f6.

    Sorry for the short answer, typing from my mobile.

  7. #7
    Chike is offline Senior Member
    Join Date
    Jun 2009
    Location
    Israel
    Posts
    6,531

    Default Re: x48T-DQ6 Overclocking help

    CPU stepping should be C0/E0, the Revision field in CPU-Z CPU tab.

    I'd leave all advanced timing auto, just Static tRead Value 12 for now.
    The standard timings are quite relexed for current memory frequency.

    Check Salty's settings for a similar board (DDR2 version). DDR Voltage/timings don't apply to your board but others may.

    Can you post a screen capture of MemSet main(click >>) and SPD(click spd) windows?
    What is CPU normal voltage?

  8. #8

    Default Re: x48T-DQ6 Overclocking help

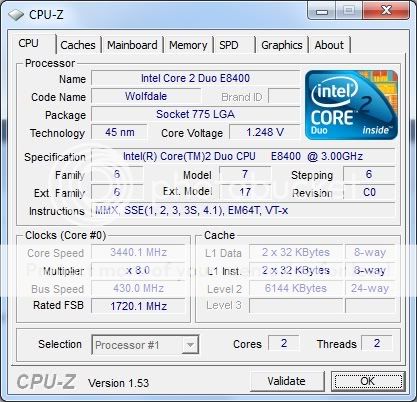

    I'm attaching a picture of cpu-z instead :)



    And memset with SPD



    Which one is tRead?
    Normal CPU voltage is 1.25v

  9. #9
    Chike is offline Senior Member
    Join Date
    Jun 2009
    Location
    Israel
    Posts
    6,531

    Default Re: x48T-DQ6 Overclocking help

    Quote Originally Posted by badpop View Post
    Which one is tRead?
    Performance Level, shows 1 but set manually to 12?

  10. #10

    Default Re: x48T-DQ6 Overclocking help

    I tried that and that made my computer lock up directly after win 7 started, had to do a system restore.
