Results 1 to 8 of 8

Thread: {Another quest for} Fsb 500 and Q9550




  1. #1
    Join Date
    Aug 2009
    Location
    Indonesia
    Posts
    5

    Default {Another quest for} Fsb 500 and Q9550

    Hi,
    I'm almost give up to oc my reaper OCZ2RPR11504GK black pcb with Gbt EP45-UD3P rev 1.1. I have Q9550 sitting in UD3P and max oc with those combo are 495x8.5, mem use 2.00D strap. Tried fsb 500, no luck with prime95, it has freeze/lock up after 30 minutes. What setting i should try for the quest of fb 500?

  2. #2
    profJim's Avatar
    profJim is online now Chief Munchkin + moderator
    Join Date
    Dec 2008
    Location
    Tacoma, WA. [USA]
    Posts
    7,811

    Default Re: {Another quest for} Fsb 500 and Q9550

    We need a complete hardware list and the bios settings for your current setup.
    Steps 1 -4 in this post will help you provide the information we need.

    There are quite a few q9550 threads in the forum that include bios settings that worked for others.
    Getting to 3.8 - 3.9GHz is relatively easy.
    It's a lot harder to get to 4.0GHz and higher with stable settings and reasonable temperatures and voltages.

    Show us what you've got and we will help you.
    Q9650 @ 4.10GHz [9x456MHz]
    P35-DS4 [rev: 2.0] ~ Bios: F14
    4x2GB OCZ Reaper PC2-8500 1094MHz @5-5-5-15
    MSI N460GTX Hawk Talon Attack (1GB) video card <---- SLI ---->
    Seasonic SS-660XP2 80 Plus Platinum psu (660w)
    WD Caviar Black WD6401AALS 640GB (data)
    Samsung 840 Pro 256GB SSD (boot)
    SLI @ 16/4 works when running HyperSLI
    Cooler Master 120XL Seidon push/pull AIO cpu water cooling
    Cooler Master HAF XB computer case (RC-902XB-KKN1)
    Asus VH242H 24" monitor [1920x1080]
    MSI N460GTX Hawk (1GB) video card
    Logitech Z-5500 Digital 5.1 Speakers
    win7 x64 sp1 Home Premium
    HT|Omega Claro plus+ sound card
    CyberPower CP1500PFCLCD UPS
    E6300 (R0) @ 3.504GHz [8x438MHz] ~~ P35-DS3L [rev: 1.0] ~ Bios: F9 ~~ 4x2GB Kingston HyperX T1 PC2-8500, 876MHz @4-4-4-10
    Seasonic X650 80+ gold psu (650w) ~~ Xigmatek Balder HDT 1283 cpu cooler ~~ Cooler Master CM 690 case (RC-690-KKN1-GP)
    Samsung 830 128GB SSD MZ-7PC128B/WW (boot) ~~ WD Caviar Black WD6401AALS 640GB (data) ~~ ZM-MFC2 fan controller
    HT|Omega Striker 7.1 sound card ~~ Asus VH242H monitor [1920x1080] ~~ Logitech Z-5500 Digital 5.1 Speakers
    win7 x64 sp1 Home Premium ~~ CyberPower CP1500PFCLCD U.P.S
    .


  3. #3
    Join Date
    Aug 2009
    Location
    Indonesia
    Posts
    5

    Default Re: {Another quest for} Fsb 500 and Q9550

    Beside mobo, ram and processor, here my hardware lists:

    PSU -> Corsair HX620
    Water cooling
    GPU: 5850 and 9600GT

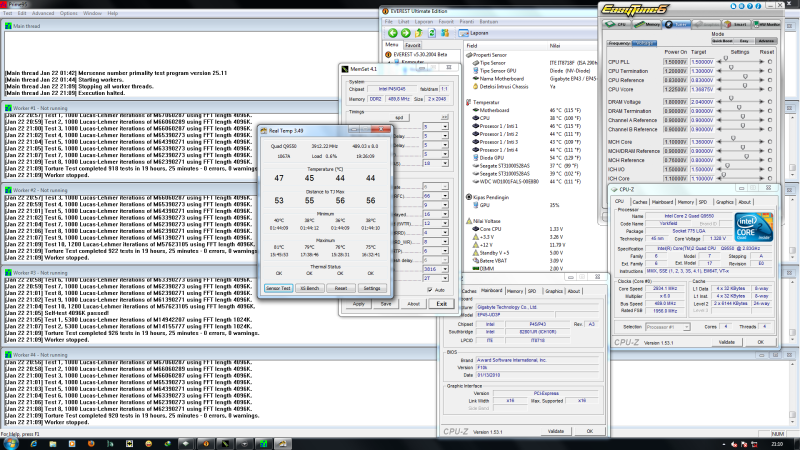

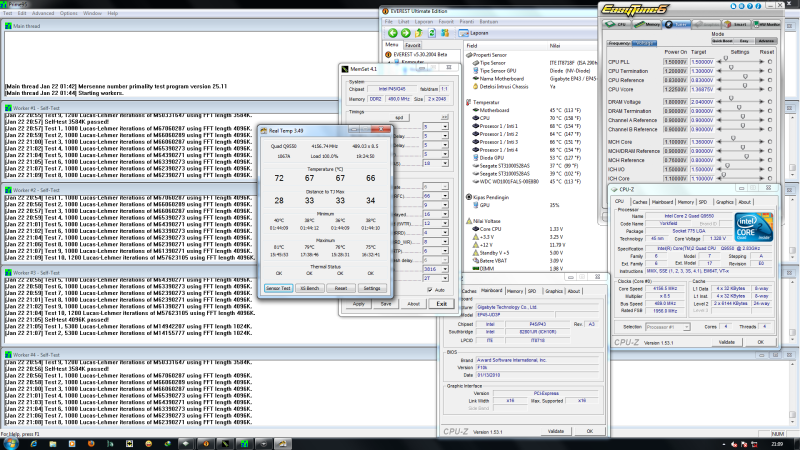

    Here's the screenshot of 489x8.5 Prime stable. Bios f10k, Win7 Ultimate x64.






    Bios template:

    MB Intelligent Tweaker(M.I.T.)
    Robust Graphics Booster .................: Auto
    CPU Clock Ratio .........................: 8x
    Fine CPU Clock Ratio.....................:.0.5
    CPU Frequency ...........................: 4155
    Clock Chip Control
    Standard Clock Control
    CPU Host Clock Control...................: [Enabled]
    CPU Host Frequency (Mhz) ................: 489
    PCI Express Frequency (Mhz) .............: 100
    C.I.A. 2.................................: Disabled

    Advanced Clock Control:
    CPU Clock Drive..........................: 800
    PCI Express Clock Drive..................: 700
    CPU Clock Skew (ps)......................: 0
    MCH Clock Skew (ps)......................: 0

    DRAM Performance Control
    Performance Enhance......................: Standard
    Extreme Memory Profile (X.M.P.)..........: Disabled
    (G)MCH Frequency Latch...................: 400
    System Memory Multiplier ................: 2.00D
    Memory Frequency (Mhz) ..................: 978

    DRAM Timing Selectable ..................: [Manual]
    Standard Timing Control
    CAS Latency Time.........................: 5
    tRCD ....................................: 5
    tRP'.....................................: 5
    tRAS.....................................: 18

    Advanced Timing Control:
    tRRD.....................................: Auto
    tWTR.....................................: Auto
    tWR......................................: Auto
    tRFC.....................................: Auto
    tRTP.....................................: Auto
    Command Rate (CMD) ......................: 2

    Channel A Timings Settings:
    Static tRead Value.......................: 9
    tRD Phase0 Adjustment....................: Auto
    tRD Phase1 Adjustment....................: Auto
    tRD Phase2 Adjustment ...................: Auto
    tRD Phase3 Adjustment....................: Auto
    Trd2rd(Different Rank)...................: Auto
    Twr2wr(Different Rank)...................: Auto
    Twr2rd(Different Rank)...................: Auto
    Trd2wr(Same/Diff Rank)...................: Auto
    Dimm1 Clock Skew Control.................: Auto
    Dimm2 Clock Skew Control.................: Auto
    DDR2 Write Training......................: Auto

    Channel A Driving Settings:
    Driving Strength Profile.................: Auto
    Data Driving Pull-Up Level...............: Auto
    Cmd Driving Pull-Up Level................: Auto
    Ctrl Driving Pull-Up Level...............: Auto
    Clk Driving Pull-Up Level................: Auto

    Data Driving Pull-Down Level.............: Auto
    Cmd Driving Pull-Down Level..............: Auto
    Ctrl Driving Pull-Down Level.............: Auto
    Clk Driving Pull-Down Level..............: Auto

    Channel B Timings Settings:
    Static tRead Value.......................: 9
    tRD Phase0 Adjustmen.....................: Auto
    tRD Phase1 Adjustment....................: Auto
    tRD Phase2 Adjustment ...................: Auto
    tRD Phase3 Adjustment....................: Auto
    Trd2rd(Different Rank)...................: Auto
    Twr2wr(Different Rank)...................: Auto
    Trd2rd(Different Rank)...................: Auto
    Trd2wr(Same/Diff Rank)...................: Auto
    Dimm1 Clock Skew Control.................: Auto
    Dimm2 Clock Skew Control.................: Auto
    DDR2 Write Training......................: Auto

    Channel B Driving Settings:
    Driving Strength Profile.................: Auto
    Data Driving Pull-Up Level...............: Auto
    Cmd Driving Pull-Up Level................: Auto
    Ctrl Driving Pull-Up Level...............: Auto
    Clk Driving Pull-Up Level................: Auto

    Data Driving Pull-Down Level.............: Auto
    Cmd Driving Pull-Down Level..............: Auto
    Ctrl Driving Pull-Down Level.............: Auto
    Clk Driving Pull-Down Level..............: Auto

    Motherboard Voltage Control
    Loadline Calibration.....................: ENABLED
    CPU Vcore : 1.36875
    CPU Termination: 1.300
    CPU PLL: 1.500
    CPU Referen: 0.893

    MCH/ICH
    MCH Core: 1.360
    MCH Reference: 0.863
    MCH/DRAM Ref: 0.900
    ICH I/O: 1.500
    ICH Core: 1.100

    DRAM
    DRAM Voltage: 2.040
    DRAM Termination: 0.900
    Channel A Reference: Auto
    Channel B Reference: Auto

    Advanced Settings
    Limit CPUID Max. to 3 -------------------- : [Enabled]
    No-Execute Memory Protect -------------- : [Enabled]
    CPU Enhanced Halt (C1E) ----------------- : [Enabled]
    C2/C2E State Support -------------------- : [Disabled]
    x C4/C4E State Support ------------------ : [Disabled]
    CPU Thermal Monitor 2 (TM2) ------------- : [Enabled]
    CPU EIST Function ----------------------- : [Enabled]
    Virtualization Technology ---------------- : [Enabled]
    Integrated Peripherals
    Legacy USB Storage Detect -> Enabled
    Last edited by sadhana; 01-24-2010 at 11:01 PM.

  4. #4
    Join Date
    Aug 2009
    Location
    Indonesia
    Posts
    5

    Default Re: {Another quest for} Fsb 500 and Q9550

    495x8.5







    Bios template:

    MB Intelligent Tweaker (M.I.T.)
    Robust Graphics Booster .................: Auto
    CPU Clock Ratio .........................: 8x
    Fine CPU Clock Ratio.....................:.0.5
    CPU Frequency ...........................: 4207
    Clock Chip Control
    Standard Clock Control
    CPU Host Clock Control...................: [Enabled]
    CPU Host Frequency (Mhz) ................: 495
    PCI Express Frequency (Mhz) .............: 100
    C.I.A. 2.................................: Disabled

    Advanced Clock Control:
    CPU Clock Drive..........................: 800
    PCI Express Clock Drive..................: 700
    CPU Clock Skew (ps)......................: 0
    MCH Clock Skew (ps)......................: 0

    DRAM Performance Control
    Performance Enhance......................: Standard
    Extreme Memory Profile (X.M.P.)..........: Disabled
    (G)MCH Frequency Latch...................: 400
    System Memory Multiplier ................: 2.00D
    Memory Frequency (Mhz) ..................: 990

    DRAM Timing Selectable ..................: [Manual]
    Standard Timing Control
    CAS Latency Time.........................: 5
    tRCD ....................................: 5
    tRP'.....................................: 5
    tRAS.....................................: 18

    Advanced Timing Control:
    tRRD.....................................: Auto
    tWTR.....................................: Auto
    tWR......................................: Auto
    tRFC.....................................: Auto
    tRTP.....................................: Auto
    Command Rate (CMD) ......................: 2

    Channel A Timings Settings:
    Static tRead Value.......................: 9
    tRD Phase0 Adjustment....................: Auto
    tRD Phase1 Adjustment....................: Auto
    tRD Phase2 Adjustment ...................: Auto
    tRD Phase3 Adjustment....................: Auto
    Trd2rd(Different Rank)...................: Auto
    Twr2wr(Different Rank)...................: Auto
    Twr2rd(Different Rank)...................: Auto
    Trd2wr(Same/Diff Rank)...................: Auto
    Dimm1 Clock Skew Control.................: Auto
    Dimm2 Clock Skew Control.................: Auto
    DDR2 Write Training......................: Auto

    Channel A Driving Settings:
    Driving Strength Profile.................: Auto
    Data Driving Pull-Up Level...............: Auto
    Cmd Driving Pull-Up Level................: Auto
    Ctrl Driving Pull-Up Level...............: Auto
    Clk Driving Pull-Up Level................: Auto

    Data Driving Pull-Down Level.............: Auto
    Cmd Driving Pull-Down Level..............: Auto
    Ctrl Driving Pull-Down Level.............: Auto
    Clk Driving Pull-Down Level..............: Auto

    Channel B Timings Settings:
    Static tRead Value.......................: 9
    tRD Phase0 Adjustmen.....................: Auto
    tRD Phase1 Adjustment....................: Auto
    tRD Phase2 Adjustment ...................: Auto
    tRD Phase3 Adjustment....................: Auto
    Trd2rd(Different Rank)...................: Auto
    Twr2wr(Different Rank)...................: Auto
    Trd2rd(Different Rank)...................: Auto
    Trd2wr(Same/Diff Rank)...................: Auto
    Dimm1 Clock Skew Control.................: Auto
    Dimm2 Clock Skew Control.................: Auto
    DDR2 Write Training......................: Auto

    Channel B Driving Settings:
    Driving Strength Profile.................: Auto
    Data Driving Pull-Up Level...............: Auto
    Cmd Driving Pull-Up Level................: Auto
    Ctrl Driving Pull-Up Level...............: Auto
    Clk Driving Pull-Up Level................: Auto

    Data Driving Pull-Down Level.............: Auto
    Cmd Driving Pull-Down Level..............: Auto
    Ctrl Driving Pull-Down Level.............: Auto
    Clk Driving Pull-Down Level..............: Auto

    Motherboard Voltage Control
    Loadline Calibration.....................: ENABLED
    CPU Vcore: 1.38125
    CPU Termination: 1.300
    CPU PL: 1.500
    CPU Referen: 0.893

    MCH/ICH
    MCH Core: 1.360
    MCH Reference............0.760V..........: 0.863
    MCH/DRAM Ref: 1.020
    ICH I/O: 1.500
    ICH Core: 1.100

    DRAM
    DRAM Voltage: 2.040
    DRAM Termination: 1.020
    Channel A Reference: Auto
    Channel B Reference: Auto

    Advanced Settings
    Limit CPUID Max. to 3 -------------------- : [Enabled]
    No-Execute Memory Protect -------------- : [Enabled]
    CPU Enhanced Halt (C1E) ----------------- : [Enabled]
    C2/C2E State Support -------------------- : [Disabled]
    x C4/C4E State Support ------------------ : [Disabled]
    CPU Thermal Monitor 2 (TM2) ------------- : [Enabled]
    CPU EIST Function ----------------------- : [Enabled]
    Virtualization Technology ---------------- : [Enabled]
    Integrated Peripherals
    Legacy USB Storage Detect -> Enabled
    Last edited by sadhana; 01-24-2010 at 11:12 PM.

  5. #5
    Join Date
    Aug 2009
    Location
    Indonesia
    Posts
    5

    Default Re: {Another quest for} Fsb 500 and Q9550

    And the problem is.... I can't touch 500x8.5 (and beyond).. Why 500 (and beyond) is my goal? Because is the "number of dream", at least for my psychological effect

    When I try 500x8.5, I used the same vcore as 495.8.5, vmem bump to 2.2v, mch core 1.4v, but freeze in Prime95 blend after 30 minutes.

  6. #6
    profJim's Avatar
    profJim is online now Chief Munchkin + moderator
    Join Date
    Dec 2008
    Location
    Tacoma, WA. [USA]
    Posts
    7,811

    Default Re: {Another quest for} Fsb 500 and Q9550

    You will make it MUCH EASIER for us if you add your detailed hardware list to your forum signature.
    Many of us are helping out in several threads at the same time and it's a PITA to have to search the posts in a thread for the hardware and other info (bios, o/s, version numbers, etc).
    Not having the required information to quickly refer to can lead to errors and waste your time as well as ours.

    If your Clock Drive settings are correct, you are NOT running with optimized bios settings loaded before you made any bios changes.
    I would not think of running a system with "Fail Safe" bios defaults at stock speeds, trying to do it with overclocked settings is asking for trouble.
    I recommend that you load optimized bios settings and then re-enter your bios settings and see if this helps with stability.

    Your 800x450px images are too small and to highly compressed to view, even when I open the screen-shot in my image editor and look at it in full screen mode on my 24" monitor.
    1000x560 image size using 16-bit color should be readable.

    You'll make it easier if you include a link to your memory's specifications in your forum signature.
    Last edited by profJim; 01-24-2010 at 10:34 PM.
    Q9650 @ 4.10GHz [9x456MHz]
    P35-DS4 [rev: 2.0] ~ Bios: F14
    4x2GB OCZ Reaper PC2-8500 1094MHz @5-5-5-15
    MSI N460GTX Hawk Talon Attack (1GB) video card <---- SLI ---->
    Seasonic SS-660XP2 80 Plus Platinum psu (660w)
    WD Caviar Black WD6401AALS 640GB (data)
    Samsung 840 Pro 256GB SSD (boot)
    SLI @ 16/4 works when running HyperSLI
    Cooler Master 120XL Seidon push/pull AIO cpu water cooling
    Cooler Master HAF XB computer case (RC-902XB-KKN1)
    Asus VH242H 24" monitor [1920x1080]
    MSI N460GTX Hawk (1GB) video card
    Logitech Z-5500 Digital 5.1 Speakers
    win7 x64 sp1 Home Premium
    HT|Omega Claro plus+ sound card
    CyberPower CP1500PFCLCD UPS
    E6300 (R0) @ 3.504GHz [8x438MHz] ~~ P35-DS3L [rev: 1.0] ~ Bios: F9 ~~ 4x2GB Kingston HyperX T1 PC2-8500, 876MHz @4-4-4-10
    Seasonic X650 80+ gold psu (650w) ~~ Xigmatek Balder HDT 1283 cpu cooler ~~ Cooler Master CM 690 case (RC-690-KKN1-GP)
    Samsung 830 128GB SSD MZ-7PC128B/WW (boot) ~~ WD Caviar Black WD6401AALS 640GB (data) ~~ ZM-MFC2 fan controller
    HT|Omega Striker 7.1 sound card ~~ Asus VH242H monitor [1920x1080] ~~ Logitech Z-5500 Digital 5.1 Speakers
    win7 x64 sp1 Home Premium ~~ CyberPower CP1500PFCLCD U.P.S
    .


  7. #7
    Join Date
    Aug 2009
    Location
    Indonesia
    Posts
    5

    Default Re: {Another quest for} Fsb 500 and Q9550

    Quote Originally Posted by profJim View Post
    You will make it MUCH EASIER for us if you add your detailed hardware list to your forum signature.
    Many of us are helping out in several threads at the same time and it's a PITA to have to search the posts in a thread for the hardware and other info (bios, o/s, version numbers, etc).
    Not having the required information to quickly refer to can lead to errors and waste your time as well as ours.
    Sorry for the inconvenience. I did wrote the signature, but can't see in my posting. I thicked the option show signatures in user cp.


    Quote Originally Posted by profJim View Post
    If your Clock Drive settings are correct, you are NOT running with optimized bios settings loaded before you made any bios changes.
    I would not think of running a system with "Fail Safe" bios defaults at stock speeds, trying to do it with overclocked settings is asking for trouble.
    I recommend that you load optimized bios settings and then re-enter your bios settings and see if this helps with stability.
    I used to load optimized default before and after bios flashing. The template is copy and paste here in forum.

    Quote Originally Posted by profJim View Post
    Your 800x450px images are too small and to highly compressed to view, even when I open the screen-shot in my image editor and look at it in full screen mode on my 24" monitor.
    1000x560 image size using 16-bit color should be readable.
    I taken from Irfan View, and view with that.

    Quote Originally Posted by profJim View Post
    You'll make it easier if you include a link to your memory's specifications in your forum signature.
    Here... OCZ Technology | Products | Memory | OCZ DDR2 PC2-9200 Reaper HPC 4GB Edition but mine is black pcb, not green.
    Last edited by sadhana; 01-24-2010 at 11:19 PM.

  8. #8
    profJim's Avatar
    profJim is online now Chief Munchkin + moderator
    Join Date
    Dec 2008
    Location
    Tacoma, WA. [USA]
    Posts
    7,811

    Default Re: {Another quest for} Fsb 500 and Q9550

    OK, I see your signature in your public profile.
    There are several different mobos with UD3P.
    You can embed the link to your ram's specs in your signature, using the same method as when you embed a link in a forum post.
    If you use the complete model number of your ram in your signature, it makes it easier when others use the forum search feature if they are looking to find threads with the same memory part number.

    The generic bios profiles are meant to be copied, but....
    .... it is crucial for you to accurately fill in all the settings!!

    Please describe the exact procedure that you used to modify your reference voltages.
    Did you first change CPU Termination to the default value before you altered the reference voltages?
    Did you then change CPU Termination back to the desired value after you had changed the reference voltages?

    I use IrfanView to view and save my screen-shots.
    Most screen-shots on the forum are about 150 KB and are very readable.
    Q9650 @ 4.10GHz [9x456MHz]
    P35-DS4 [rev: 2.0] ~ Bios: F14
    4x2GB OCZ Reaper PC2-8500 1094MHz @5-5-5-15
    MSI N460GTX Hawk Talon Attack (1GB) video card <---- SLI ---->
    Seasonic SS-660XP2 80 Plus Platinum psu (660w)
    WD Caviar Black WD6401AALS 640GB (data)
    Samsung 840 Pro 256GB SSD (boot)
    SLI @ 16/4 works when running HyperSLI
    Cooler Master 120XL Seidon push/pull AIO cpu water cooling
    Cooler Master HAF XB computer case (RC-902XB-KKN1)
    Asus VH242H 24" monitor [1920x1080]
    MSI N460GTX Hawk (1GB) video card
    Logitech Z-5500 Digital 5.1 Speakers
    win7 x64 sp1 Home Premium
    HT|Omega Claro plus+ sound card
    CyberPower CP1500PFCLCD UPS
    E6300 (R0) @ 3.504GHz [8x438MHz] ~~ P35-DS3L [rev: 1.0] ~ Bios: F9 ~~ 4x2GB Kingston HyperX T1 PC2-8500, 876MHz @4-4-4-10
    Seasonic X650 80+ gold psu (650w) ~~ Xigmatek Balder HDT 1283 cpu cooler ~~ Cooler Master CM 690 case (RC-690-KKN1-GP)
    Samsung 830 128GB SSD MZ-7PC128B/WW (boot) ~~ WD Caviar Black WD6401AALS 640GB (data) ~~ ZM-MFC2 fan controller
    HT|Omega Striker 7.1 sound card ~~ Asus VH242H monitor [1920x1080] ~~ Logitech Z-5500 Digital 5.1 Speakers
    win7 x64 sp1 Home Premium ~~ CyberPower CP1500PFCLCD U.P.S
    .


Thread Information

Users Browsing this Thread

There are currently 1 users browsing this thread. (0 members and 1 guests)

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
