Thread: Upgrading GA-P35C-DS3R CPU to Q9550, CPU Fan, memory suggestions




  1. #11
    Join Date
    Sep 2011
    Location
    USA
    Posts
    8

    Default Re: Upgrading GA-P35C-DS3R CPU to Q9550, CPU Fan, memory suggestions

    update
    I ordered the following from NewEgg Thursday evening current status charged

    1. ZALMAN CNPS10X Performa 120mm Long life CPU Cooler

    What a coincident the following memory was $64.99 plus $9.99 shipping on Wednesday but went on sale Thursday for $49.99 with free shipping a $ 24.99 savings.
    2. G.SKILL Ripjaws Series 8GB (2 x 4GB) 240-Pin DDR3 SDRAM DDR3 1333 (PC3 10666) Desktop Memory Model F3-10666CL7D-8GBRH
    <dd style="margin-top: 0px; margin-right: 0px; margin-bottom: 15px; margin-left: 6px; padding-top: 0px; padding-right: 0px; padding-bottom: 0px; padding-left: 0px; border-top-width: 0px; border-right-width: 0px; border-bottom-width: 0px; border-left-width: 0px; border-style: initial; border-color: initial; font-size: 1em; line-height: 1.2em; ">Item #: N82E16820231402

    I had emailed Zalman support on Wednesday

    Will ZALMAN CNPS10X Performa 120mm Long life CPU Cooler fit with the Intel Quad Core Q9550 processor in the following system?
    GA-P35C-DS3R v1.1 F12
    DDR2 G.Skill X2 F2-6400CL4-1GBHK 1GB Slot 1 & 3
    DDR2 Corsair x2 CM2X2048-6400C4DHX 2GB Slot 2 & 4
    GPU NVIDIA GeForce GTX/9800 GTX+ 512 MB
    PSU Rosewill RP550V2-D-SL 550W +12v x2 18A each
    Case Thermaltake Soprono DX w/3 Fans
    Just got this response from Zalman support

    We apologize for the delay. The Corsair memory is fine, but the G.Skill memory will most likely have clearance issues with the CNPS10X Performa. Please let us know if you have further questions in regards to this matter.
    </dd>
    A. Will I have a problem? Can't find the memory L x W x H specs. Will be using the currently installed memory for now. What do you think about the new memory? I don't know if I can cancel this late

    From the Manual
    1) Space Requirements
    The cooler's installation requires an unobstructed space of 137mm(width), 130rnm
    (length), and 155mm(height), with the CPU as a central reference point. Please
    check if components such as ODDs and PSU protrude into the required space

    4)CPU and RAM interference check
    (limited to systems with RAM heatsinks)
    For Intel and AMD Socket motherboards's w1th a RAM herght of 36rnm ( 1 42") and
    greater, there will be physrcalrnterference wrth the CPU cooler resultrng rn the rnabrlrty
    to utllrze dual and full-channel modes. Please check the herght of your RAM modules
    pnor to installation.
    source
    ::: Zalman, leading the world of Quiet Computing Solutions :::
    select manual download link

    B. I read that the High Performance Super Thermal Grease ZM-STG2M that comes with the ZALMAN CNPS10X Performa is rated
    A: Excellent Enthusiast Performance by benchmarkreviews
    80-way Thermal Interface Material Performance Test | Thermal Interface Material,Thermal Paste,Heatsink Compound,80-Way Thermal Interface Material Best Thermal Paste Heatsink Compound Cooling Performance Comparison Benchmark Tests
    Should I use that or Arctic Silver 5?

    The used Q9550 has messy sticky old compound should I use Arctic Silver ACN-60ML (2-PC-SET) Thermal material Remover & Surface Purifier - OEM or just 70%Isopropyl alcohol

    Both the Silver 5 & the Arctic Silver ACN-60ML (2-PC-SET) are on sale with free shipping now for $14.93 free shipping $8.00 total discount promo codes w/freeshipping till 10/06/2011
    This sounds like a good deal
    • LITE-ON SATA iHBS212-08 Blu-ray Burner w/3D P/B
    • Pinnacle Systems PCTV 800i PCI TV Tuner, FM & Capture
    • SAMSUNG HD501LJ 500GB, SeaGate x2 1,5 GB FreeAgent USB2.0
    • Windows 7 Ultimate x64 sp1 MS Security Essentials & Firewall
    • Adobe Master Collection CS5,CyberLink Media Suite, DVDFab,
    • PCTV Systems, Google Chrome, IE9, Firefox 7.01, Opera 11.50,
    • uTorrent, Vuze, OpenVPN, Cute FTP Pro & FiOS 25Mbit/s dl & ul

  2. #12
    Chike is offline Senior Member
    Join Date
    Jun 2009
    Location
    Israel
    Posts
    6,531

    Default Re: Upgrading GA-P35C-DS3R CPU to Q9550, CPU Fan, memory suggestions

    I believe the Performa is the most compact from all the CNPS10x series.
    You shouldn't have issues with any memory at all.

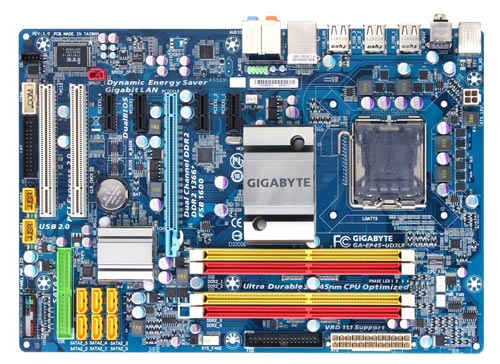

    See the differences between my board and yours, the memory on the UD3L is closer to the CPU socket, and there are no clearence issues.





    The ZM-STG2M is actually better than AS5 but you probably have enough for just one application.
    4g AC MX-2 are 8USD and the same quality as ZM-STG2M.

    EDIT:
    To clean old thermal compound you can use a cloth with aceton or alcohol. For final clean with a lint free and high purity isopropyl alcogol(if you can get it) or any high purity alcohol if you cannot get isopropyl.
    You should be able to get those cheap at any pharmacy.
    Last edited by Chike; 10-03-2011 at 07:31 AM.

  3. #13
    Join Date
    Sep 2011
    Location
    USA
    Posts
    8

    Default Re: Upgrading GA-P35C-DS3R CPU to Q9550, CPU Fan, memory suggestions

    update I finally got the heatsink/fan & memory. It will be a few days before my friend can install the Q9550.

    Decided to try the DDR3 memory in the meantime. Removed the memory listed in my signature and installed
    G.SKILL Ripjaws Series 8GB (2 x 4GB) 240-Pin DDR3 SDRAM DDR3 1333 (PC3 10666) Desktop Memory Model F3-10666CL7D-8GBRH
    Newegg.com - G.SKILL Ripjaws Series 8GB (2 x 4GB) 240-Pin DDR3 SDRAM DDR3 1333 (PC3 10666) Desktop Memory Model F3-10666CL7D-8GBRH

    It booted OK all memory shows in Windows 7 task manager and has run for a few hours no problem.

    I did not run any memory test nor try optimized settings or try to overclock.
    My biggest concern is the DDR3 memory voltage running at 1.63v. Should be 1.5v and thought that it isn't supposed to be higher than about 1.575
    before I do anything else

    Should I be concerned? Any suggestions?

    Look at signature the only thing changed was the memory. Set the bios to Load Fail-Safe Defaults

    All the other setting were mostly the recommended BIOS Features

    CASE left opened with huge fan about 2 feet away blowing directly at the open side (just for now) 2 case fans running only the one on the removable plastic side isn't running.

    specific info
    PC Health Status


    Vcore 1.314
    DDR2 / DDR3 1,632v
    +3.3V 3.40v
    +12V 12.63
    CPU Warning Temperature___ [70oC / 158oC
    CPU FAN Fail Warning______ [Enabled]

    MB Intelligent Tweaker(M.I.T.)

    Robust Graphics Booster___________ [Auto]
    CPU Clock Ratio __________________ [8]
    CPU Host Clock Control_ [DISABLED]
    x CPU Host Frequency (MHz)__________ 333
    PCI Express Frequency (Mhz)_______ [AUTO]
    C.I.A. 2__________________________ [Disabled]
    Performance Enhance (Standard)
    System Memory Multiplier (SPD)____ [AUTO]
    x Memory Frequency (Mhz) 1333
    DRAM Timing Selectable_______ SPD __ [AUTO]
    CAS Latency Time_____________ 9 ____ [AUTO]
    Dram RAS# to CAS# Delay______ 9 ____ [AUTO]
    Dram RAS# Precharge Delay_____9 ____ [AUTO]
    Precharge Delay (tRAS)________24 ____[AUTO]
    ACT to ACT Delay (tRRD)_______4 _____[AUTO]
    Rank Write to READ Delay______5 _____[AUTO]
    Write to Precharge Delay______10 _____[AUTO]
    Refresh to ACT Delay________108 ______[AUTO]
    Read to Precharge Delay_______5 _____[AUTO]
    Static tRead Value___________8_______ [AUTO]
    Static _tRead Phaze Adjust______10_____ [AUTO]


    ******** System Voltage NOT Optimized ********
    System Voltage Control____ [Manual]
    DDR2 OverVoltage Control__ [Normal]
    PCI-E OverVoltage Control_ [Normal]
    FSB OverVoltage Control___ [Normal]
    [G] MCH OverVoltage Control__ [Normal]
    CPU Voltage Control_______ [Normal]
    x Normal CPU Vcore 1.35000V


    SIW SHOWS
    Voltages
    PU VCORE 1.15 V 1.15 V 1.30 V
    DDR 1.63 V 1.63 V 1.63 V
    +3.3V 3.41 V 3.39 V 3.41 V
    +5V 4.97 V 4.97 V 5.00 V
    +12V 12.42 V 12.35 V 12.42 V
    VBAT 3.30 V 3.30 V 3.30 V
    Temperatures
    System 38 C (100 F) 38 C (100 F) 38 C (100 F)
    CPU 32 C (89 F) 32 C (89 F) 39 C (102 F)
    FANIN0 898 RPM 898 RPM 906 RPM
    Intel Core 2 Duo E6750
    Temperatures
    Core #0 38 C (100 F) 38 C (100 F) 49 C (120 F)
    Core #1 37 C (98 F) 37 C (98 F) 49 C (120 F)
    ___________________________________
    CoreTemp shows 3 or 4 C cooler


    __________________________________________________ ___
    CPUZ shows

    Memory Type DDR3
    Memory Size 8192 MBytes
    Channels Dual, (Symmetric)
    Memory Frequency 666.7 MHz (1:2)
    CAS# latency (CL) 9.0
    RAS# to CAS# delay (tRCD) 9
    RAS# Precharge (tRP) 9
    Cycle Time (tRAS) 24


    Both 1 & 2 show the same
    DIMM # 1
    SMBus address 0x50
    Memory type DDR3
    Module format UDIMM
    Manufacturer (ID) G.Skill (7F7F7F7FCD000000)
    Size 4096 MBytes
    Max bandwidth PC3-10700 (667 MHz)
    Part number F3-10666CL7-4GBRH
    Number of banks 8
    Nominal Voltage 1.50 Volts
    EPP no
    XMP yes
    XMP revision 1.2
    JEDEC timings table CL-tRCD-tRP-tRAS-tRC @ frequency
    JEDEC #1 6.0-6-6-17-23 @ 457 MHz
    JEDEC #2 7.0-7-7-20-27 @ 533 MHz
    JEDEC #3 8.0-8-8-22-30 @ 609 MHz
    JEDEC #4 9.0-9-9-25-34 @ 685 MHz
    XMP profile XMP-1334
    Specification PC3-10700
    Voltage level 1.500 Volts
    Min Cycle time 1.500 ns (667 MHz)
    Min tRP 10.50 ns
    Min tRCD 10.50 ns
    Min tWR 15.00 ns
    Min tRAS 31.50 ns
    Min tRC 42.50 ns
    Min tRFC 180.00 ns
    Min tRTP 7.50 ns
    Min tRRD 6.00 ns
    Command Rate 2T
    XMP timings table CL-tRCD-tRP-tRAS-tRC-CR @ frequency (voltage)
    XMP #1 7.0-8-8-23-30-2T @ 700 MHz (1.500 Volts)
    _______________________________________________
    Hardware monitor shows
    ITE IT87
    Voltage 0 1.15 Volts [0x48] (CPU VCORE)
    Voltage 1 1.63 Volts [0x66] (DDR)
    Voltage 2 3.41 Volts [0xD5] (+3.3V)
    Voltage 3 4.97 Volts [0xB9] (+5V)
    Voltage 7 12.42 Volts [0xC2] (+12V)
    Voltage 8 3.30 Volts [0xCE] (VBAT)
    Temperature 0 38C (100F) [0x26] (System)
    Temperature 1 34C (93F) [0x22] (CPU)
    Fan 0 900 RPM [0x2EE] (FANIN0)

    Cpu runs between about 1.999 Ghz and 2.666 Ghz 6 to 8 multiplier depending on cpu % in use
    • LITE-ON SATA iHBS212-08 Blu-ray Burner w/3D P/B
    • Pinnacle Systems PCTV 800i PCI TV Tuner, FM & Capture
    • SAMSUNG HD501LJ 500GB, SeaGate x2 1,5 GB FreeAgent USB2.0
    • Windows 7 Ultimate x64 sp1 MS Security Essentials & Firewall
    • Adobe Master Collection CS5,CyberLink Media Suite, DVDFab,
    • PCTV Systems, Google Chrome, IE9, Firefox 7.01, Opera 11.50,
    • uTorrent, Vuze, OpenVPN, Cute FTP Pro & FiOS 25Mbit/s dl & ul

  4. #14
    Chike is offline Senior Member
    Join Date
    Jun 2009
    Location
    Israel
    Posts
    6,531

    Default Re: Upgrading GA-P35C-DS3R CPU to Q9550, CPU Fan, memory suggestions

    I can't see what can be done about the memory voltage, try +0.1 and see what it results with.
    You can still set timings manually to 7-8-8-23 and see if they are stable.

  5. #15
    Join Date
    Sep 2011
    Location
    USA
    Posts
    8

    Default Re: Upgrading GA-P35C-DS3R CPU to Q9550, CPU Fan, memory suggestions

    Chike,

    Thank you for your help, sorry I haven't responded for awhile. I tried the memory voltage +0.1 but it still showed as 1.63v so tried +0.2 and then it showed 1.75v. Didn't the early DDR3 memory have a 1.6 to a 1.8 range? So by default on this motherboard is giving me 1.63v and +0.1 does nothing.

    I tried the timings 7-8-8-23 and got that result at first but after a while it defaulted to 9-9-9-23 (23 was the only number that stayed the same before changes it was 24) Since then only running with optimized settings with no problem. Not sure if it's a good idea to run at 1.75v.

    Still waiting for my friend to install the Q9550 and the ZALMAN CNPS10X Performa.
    • LITE-ON SATA iHBS212-08 Blu-ray Burner w/3D P/B
    • Pinnacle Systems PCTV 800i PCI TV Tuner, FM & Capture
    • SAMSUNG HD501LJ 500GB, SeaGate x2 1,5 GB FreeAgent USB2.0
    • Windows 7 Ultimate x64 sp1 MS Security Essentials & Firewall
    • Adobe Master Collection CS5,CyberLink Media Suite, DVDFab,
    • PCTV Systems, Google Chrome, IE9, Firefox 7.01, Opera 11.50,
    • uTorrent, Vuze, OpenVPN, Cute FTP Pro & FiOS 25Mbit/s dl & ul

  6. #16
    Chike is offline Senior Member
    Join Date
    Jun 2009
    Location
    Israel
    Posts
    6,531

    Default Re: Upgrading GA-P35C-DS3R CPU to Q9550, CPU Fan, memory suggestions

    Try to contact GB support about the voltage issue maybe they have a fix for it.
    I see there is a beta F13d BIOS in the GIGABYTE Latest Beta BIOS thread.
