Thread: X58-USB3 Memory issues




  1. #1
    Jinx is offline Junior Member
    Join Date
    Feb 2013
    Location
    South Africa
    Posts
    6

    Default X58-USB3 Memory issues

    Hi

    I am hoping you can help me with this problem. I am running a intel i7 960 processor and recently I bought Kingston HyperX 4 Gb DDR3 1600. The problem I am having is that the memory doesn't seem to support XMP, so I was wondering if someone could give me the values so that I can enter them manually?

    Regards

  2. #2
    profJim's Avatar
    profJim is online now Chief Munchkin + moderator
    Join Date
    Dec 2008
    Location
    Tacoma, WA. [USA]
    Posts
    7,811

    Default Re: X58-USB3 Memory issues

    Kingston has several different HyperX 4GB DDR3 1600MHz memory kits.
    Please post a link to your exact memory kit's specifications on the Kingston web site.
    How many modules are you using?
    It will help if you post a Cpu-z SPD screen-shot for your memory.

    Sample Cpu-z SPD screen-shot on the web for Kingston HyperX Genesis DDR3-1600 CAS 9:

    Q9650 @ 4.10GHz [9x456MHz]
    P35-DS4 [rev: 2.0] ~ Bios: F14
    4x2GB OCZ Reaper PC2-8500 1094MHz @5-5-5-15
    MSI N460GTX Hawk Talon Attack (1GB) video card <---- SLI ---->
    Seasonic SS-660XP2 80 Plus Platinum psu (660w)
    WD Caviar Black WD6401AALS 640GB (data)
    Samsung 840 Pro 256GB SSD (boot)
    SLI @ 16/4 works when running HyperSLI
    Cooler Master 120XL Seidon push/pull AIO cpu water cooling
    Cooler Master HAF XB computer case (RC-902XB-KKN1)
    Asus VH242H 24" monitor [1920x1080]
    MSI N460GTX Hawk (1GB) video card
    Logitech Z-5500 Digital 5.1 Speakers
    win7 x64 sp1 Home Premium
    HT|Omega Claro plus+ sound card
    CyberPower CP1500PFCLCD UPS
    E6300 (R0) @ 3.504GHz [8x438MHz] ~~ P35-DS3L [rev: 1.0] ~ Bios: F9 ~~ 4x2GB Kingston HyperX T1 PC2-8500, 876MHz @4-4-4-10
    Seasonic X650 80+ gold psu (650w) ~~ Xigmatek Balder HDT 1283 cpu cooler ~~ Cooler Master CM 690 case (RC-690-KKN1-GP)
    Samsung 830 128GB SSD MZ-7PC128B/WW (boot) ~~ WD Caviar Black WD6401AALS 640GB (data) ~~ ZM-MFC2 fan controller
    HT|Omega Striker 7.1 sound card ~~ Asus VH242H monitor [1920x1080] ~~ Logitech Z-5500 Digital 5.1 Speakers
    win7 x64 sp1 Home Premium ~~ CyberPower CP1500PFCLCD U.P.S
    .


  3. #3
    Jinx is offline Junior Member
    Join Date
    Feb 2013
    Location
    South Africa
    Posts
    6

    Default Re: X58-USB3 Memory issues

    Hi

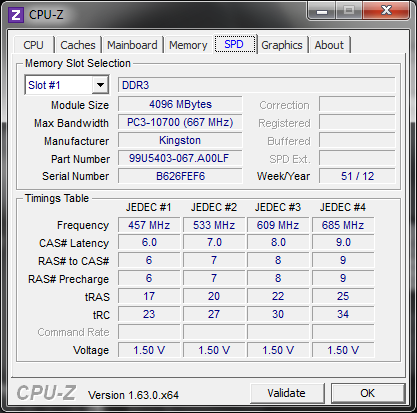

    Thanks for the reply. Here is the screenshot from CPU-Z as requested. What I have done in the mean time is to set the memory multiplier in the BIOS to 12. This seems to let the RAM run at 1600 mhz. However I don't know if this is a bad idea or not? I cannot seem to get the image upload thing right. I have 2x4Gb installed and i think the appropriate code for it is KHX1600C9D3B1/4G. How do I upload a image to this forum?

    Thanks again

  4. #4
    profJim's Avatar
    profJim is online now Chief Munchkin + moderator
    Join Date
    Dec 2008
    Location
    Tacoma, WA. [USA]
    Posts
    7,811

    Default Re: X58-USB3 Memory issues

    To include an image in a post, in the Advanced editing option, click on the rectangular icon below and slightly to the right of the smiley icon.
    You can upload one image from your computer or you can use the From URL option to link to an image on the web.
    Using the URL option, uncheck the Retrieve remote file and reference locally option.
    The URL option will let you include multiple images in a single post.

    We can best help you after you create a detailed hardware list in the System Specs portion of your
    forum profile http://forums.tweaktown.com/profile.php?do=editprofile at the bottom of the
    profile page or in your forum signature http://forums.tweaktown.com/profile....=editsignature.
    Be sure to include brand names and model numbers.
    Q9650 @ 4.10GHz [9x456MHz]
    P35-DS4 [rev: 2.0] ~ Bios: F14
    4x2GB OCZ Reaper PC2-8500 1094MHz @5-5-5-15
    MSI N460GTX Hawk Talon Attack (1GB) video card <---- SLI ---->
    Seasonic SS-660XP2 80 Plus Platinum psu (660w)
    WD Caviar Black WD6401AALS 640GB (data)
    Samsung 840 Pro 256GB SSD (boot)
    SLI @ 16/4 works when running HyperSLI
    Cooler Master 120XL Seidon push/pull AIO cpu water cooling
    Cooler Master HAF XB computer case (RC-902XB-KKN1)
    Asus VH242H 24" monitor [1920x1080]
    MSI N460GTX Hawk (1GB) video card
    Logitech Z-5500 Digital 5.1 Speakers
    win7 x64 sp1 Home Premium
    HT|Omega Claro plus+ sound card
    CyberPower CP1500PFCLCD UPS
    E6300 (R0) @ 3.504GHz [8x438MHz] ~~ P35-DS3L [rev: 1.0] ~ Bios: F9 ~~ 4x2GB Kingston HyperX T1 PC2-8500, 876MHz @4-4-4-10
    Seasonic X650 80+ gold psu (650w) ~~ Xigmatek Balder HDT 1283 cpu cooler ~~ Cooler Master CM 690 case (RC-690-KKN1-GP)
    Samsung 830 128GB SSD MZ-7PC128B/WW (boot) ~~ WD Caviar Black WD6401AALS 640GB (data) ~~ ZM-MFC2 fan controller
    HT|Omega Striker 7.1 sound card ~~ Asus VH242H monitor [1920x1080] ~~ Logitech Z-5500 Digital 5.1 Speakers
    win7 x64 sp1 Home Premium ~~ CyberPower CP1500PFCLCD U.P.S
    .


  5. #5
    Jinx is offline Junior Member
    Join Date
    Feb 2013
    Location
    South Africa
    Posts
    6

    Default Re: X58-USB3 Memory issues



    I added the hardware list you asked for, if it's not detailed enough please tell me what I left out.
    Last edited by Jinx; 02-10-2013 at 03:01 AM.

  6. #6
    Jinx is offline Junior Member
    Join Date
    Feb 2013
    Location
    South Africa
    Posts
    6

    Default Re: X58-USB3 Memory issues




  7. #7
    profJim's Avatar
    profJim is online now Chief Munchkin + moderator
    Join Date
    Dec 2008
    Location
    Tacoma, WA. [USA]
    Posts
    7,811

    Default Re: X58-USB3 Memory issues

    Is your memory model number KHX1600C9D3B1K2/8GX?
    If yes, this is the datasheet for your memory: http://www.kingston.com/datasheets/K...D3B1K2_8GX.pdf
    and the sheet says "Each module kit has been tested to run at DDR3-1600 at a low latency timing of 9-9-9 at 1.65V."

    This datasheet http://media.kingston.com/pdfs/HyperX_Blu_US.pdf says
    "Compatible with P55, H67, P67, Z68, Z77and H61 Intel chipsets; as well as A75, A87, A88, A89, A78 and E35 AMD chipsets".

    I don't know if your memory supports a 1T command rate.
    You might need to set command rate = 2T.
    I'm sending a private message to Wazza300 to suggest some bios tweaks for your X58 system.
    Last edited by profJim; 02-10-2013 at 03:49 AM.
    Q9650 @ 4.10GHz [9x456MHz]
    P35-DS4 [rev: 2.0] ~ Bios: F14
    4x2GB OCZ Reaper PC2-8500 1094MHz @5-5-5-15
    MSI N460GTX Hawk Talon Attack (1GB) video card <---- SLI ---->
    Seasonic SS-660XP2 80 Plus Platinum psu (660w)
    WD Caviar Black WD6401AALS 640GB (data)
    Samsung 840 Pro 256GB SSD (boot)
    SLI @ 16/4 works when running HyperSLI
    Cooler Master 120XL Seidon push/pull AIO cpu water cooling
    Cooler Master HAF XB computer case (RC-902XB-KKN1)
    Asus VH242H 24" monitor [1920x1080]
    MSI N460GTX Hawk (1GB) video card
    Logitech Z-5500 Digital 5.1 Speakers
    win7 x64 sp1 Home Premium
    HT|Omega Claro plus+ sound card
    CyberPower CP1500PFCLCD UPS
    E6300 (R0) @ 3.504GHz [8x438MHz] ~~ P35-DS3L [rev: 1.0] ~ Bios: F9 ~~ 4x2GB Kingston HyperX T1 PC2-8500, 876MHz @4-4-4-10
    Seasonic X650 80+ gold psu (650w) ~~ Xigmatek Balder HDT 1283 cpu cooler ~~ Cooler Master CM 690 case (RC-690-KKN1-GP)
    Samsung 830 128GB SSD MZ-7PC128B/WW (boot) ~~ WD Caviar Black WD6401AALS 640GB (data) ~~ ZM-MFC2 fan controller
    HT|Omega Striker 7.1 sound card ~~ Asus VH242H monitor [1920x1080] ~~ Logitech Z-5500 Digital 5.1 Speakers
    win7 x64 sp1 Home Premium ~~ CyberPower CP1500PFCLCD U.P.S
    .


  8. #8
    Jinx is offline Junior Member
    Join Date
    Feb 2013
    Location
    South Africa
    Posts
    6

    Default Re: X58-USB3 Memory issues

    The 2 chips I have was bought separately and not as a pack so I doubt if that is the correct model number. I think that I have got 2xKHX1600C9D3B1/4G chips
    Last edited by Jinx; 02-10-2013 at 04:04 AM.

  9. #9
    profJim's Avatar
    profJim is online now Chief Munchkin + moderator
    Join Date
    Dec 2008
    Location
    Tacoma, WA. [USA]
    Posts
    7,811

    Default Re: X58-USB3 Memory issues

    See what Wazza has to say.
    Hopefully your 2 x 4GB memory will play nice at 1600MHz with your x58 system.

  10. #10
    Join Date
    Aug 2009
    Location
    Birmingham,Great Britain
    Posts
    9,250

    Default Re: X58-USB3 Memory issues

    You can try 9-9-9-28-1t timings and 1.66v dram voltage,set system performance enhance to standard and qpi/vtt to 1.315v

    Ideally tri channel memory would be best but it should run dual channel
