Thread: KVR1333D3N9/2G operating at 667hmz?




  1. #41
    Join Date
    Jan 2010
    Location
    USA
    Posts
    34

    Default Re: KVR1333D3N9/2G operating at 667hmz?

    Cool.. Wish you get a record high timing^^

  2. #42
    PedangGila's Avatar
    PedangGila is offline Junior Member
    Join Date
    Oct 2008
    Location
    Malaysia
    Posts
    73

    Default Re: KVR1333D3N9/2G operating at 667hmz?

    Far from record finding as it's all stock cooling with added two casing fans which did not help much. Here are my findings. They are still raw as in no stress test or validation done but just here to exhibit what this ram can do and actually achieved. And yes thank you all especially Lsdmeasap and extrem. System hardware info is as what you can see in my signature.

    i) Raw 1700Mhz, 9-11-9-27, 1.7+ v


    ii) Raw 1900mhz, 9-11-9-27, 1.7+ v


    iii) Refined 1700Mhz, 8-9-8-24, 1.620 v


    As I said earlier, the system POST but OS refused to boot when it comes to 2000Mhz, 9-11-9-27. It says cannot find something within windows/system folder.

    Currently I'm using setting (iii), no problem so far.
    Last edited by PedangGila; 06-24-2010 at 09:48 AM.


    "If Andes is just a grain then take my words with it"

  3. #43
    Lsdmeasap's Avatar
    Lsdmeasap is offline GIGABYTE Guru
    Join Date
    Jan 2008
    Location
    PCB Island
    Posts
    25,940

  4. #44
    PedangGila's Avatar
    PedangGila is offline Junior Member
    Join Date
    Oct 2008
    Location
    Malaysia
    Posts
    73

    Default Re: KVR1333D3N9/2G operating at 667hmz?

    Elusive I must say. Couldn't get to real 1000Mhz in CPUz but just close to it.



    "If Andes is just a grain then take my words with it"

  5. #45
    Lsdmeasap's Avatar
    Lsdmeasap is offline GIGABYTE Guru
    Join Date
    Jan 2008
    Location
    PCB Island
    Posts
    25,940

    Default Re: KVR1333D3N9/2G operating at 667hmz?

    Try more Vtt then you should be able too I would think, and maybe looser tRFC then you can probably use dual or triple even

  6. #46
    PedangGila's Avatar
    PedangGila is offline Junior Member
    Join Date
    Oct 2008
    Location
    Malaysia
    Posts
    73

    Default Re: KVR1333D3N9/2G operating at 667hmz?

    Starting with the last 200 X 15 voltage settings, the system freeze and reboot when I set it to 1.300v VTT. Even trying bumping tRAS to 80 or lower it and up core voltage but to no avail. I think I can't really follow XF settings because that is AMD board and cpu.

    Timing 9-13-9-31-(74, 80) didn't work either.


    "If Andes is just a grain then take my words with it"

  7. #47
    Lsdmeasap's Avatar
    Lsdmeasap is offline GIGABYTE Guru
    Join Date
    Jan 2008
    Location
    PCB Island
    Posts
    25,940

  8. #48
    PedangGila's Avatar
    PedangGila is offline Junior Member
    Join Date
    Oct 2008
    Location
    Malaysia
    Posts
    73

    Default Re: KVR1333D3N9/2G operating at 667hmz?

    Made it. No stability test tho but I will try with LinX tool when I have more free time. It always caught me by surprise this board as it seems to has a mind of its own when it comes to voltage settings which is always higher than what's set in bios, at least that what's MSI Control Center is reporting.

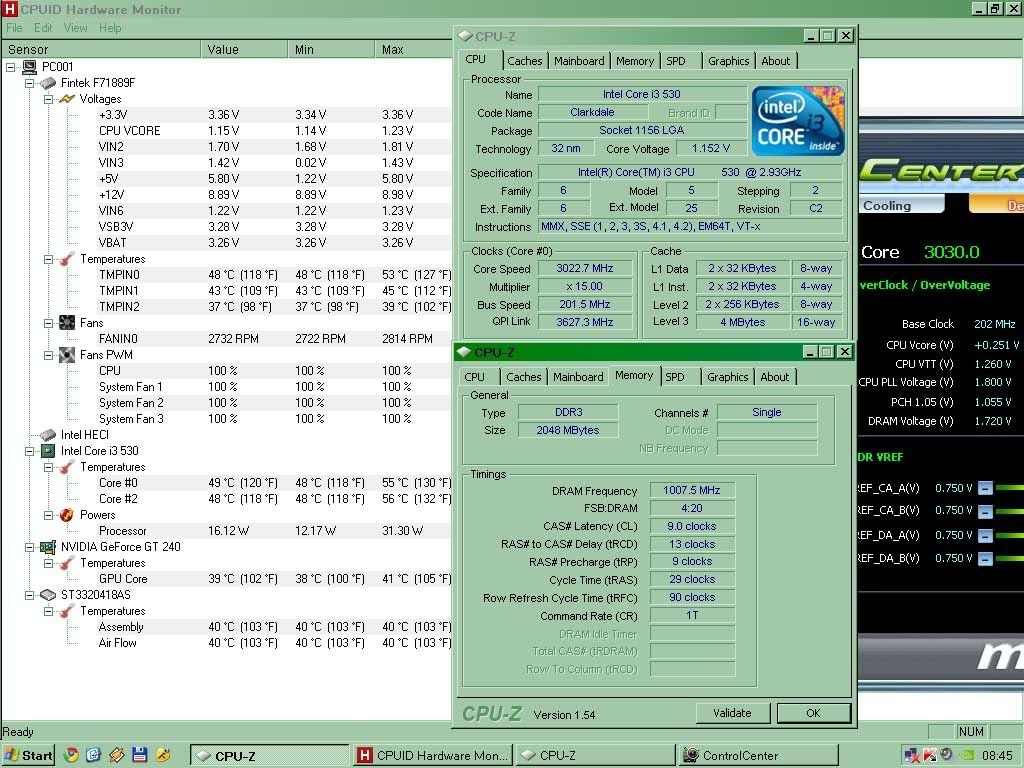

    9-13-9-31 tRFC 110 don't work but look at that:



    Thanks for the heads up Lsd.


    "If Andes is just a grain then take my words with it"

  9. #49
    PedangGila's Avatar
    PedangGila is offline Junior Member
    Join Date
    Oct 2008
    Location
    Malaysia
    Posts
    73

    Default Re: KVR1333D3N9/2G operating at 667hmz?

    Above settings, 202 X 15 failed LinX 0.6.1 test . 171 X 18, 0.114v vCore passed.


    "If Andes is just a grain then take my words with it"

  10. #50
    Lsdmeasap's Avatar
    Lsdmeasap is offline GIGABYTE Guru
    Join Date
    Jan 2008
    Location
    PCB Island
    Posts
    25,940

    Default Re: KVR1333D3N9/2G operating at 667hmz?

    202 settings probably just needed more vcore, that is a low amount for 200 Bclk
