    Thumbs up MSI B75IA-E33 [Mini-ITX] Review! Low Cost!

    MSI B75IA-E33 [Mini-ITX] @ Low cost!


    Have been awhile MSI release B75IA-E33 motherboard spotted in Singapore fews week ago, features a Mini-ITX form factor design and comes with Intel Small Business Advantage delivers the enhanced security & productivity for PCs that small businesses demand.


    Single expansion slots PCIe 3.0 x16 slot can receive an add-in graphics adapter and dual memory 1.5v DIMM slots support up to 16GB DDR3-1600MHz. The Integrated graphics chip is provided display outputs through 1 HDMI, D-Sub and DVI-I port.





    Other specs include a 24-pin ATX connector, a 4-pin CPU power plug, Gigabit Ethernet, 6-channel HD audio, 7.1-channel optical SPDIF, several USB 2.0 ports, four USB 3.0 ports (two via headers, only two on the back panel)


    Specification:
    Support for Intel Core™ Celeron/i3/i5/i7 processors [LGA1155]
    Intel® B75 Express Chipset
    Memory:
    2 x 1.5V DDR3 DIMM supporting up to 16 GB of system memory
    Audio:
    Realtek ALC887 High Definition Audio codec 7.1-channel
    Network:
    Realtek RTL8111E Gbs
    Expansion Slots

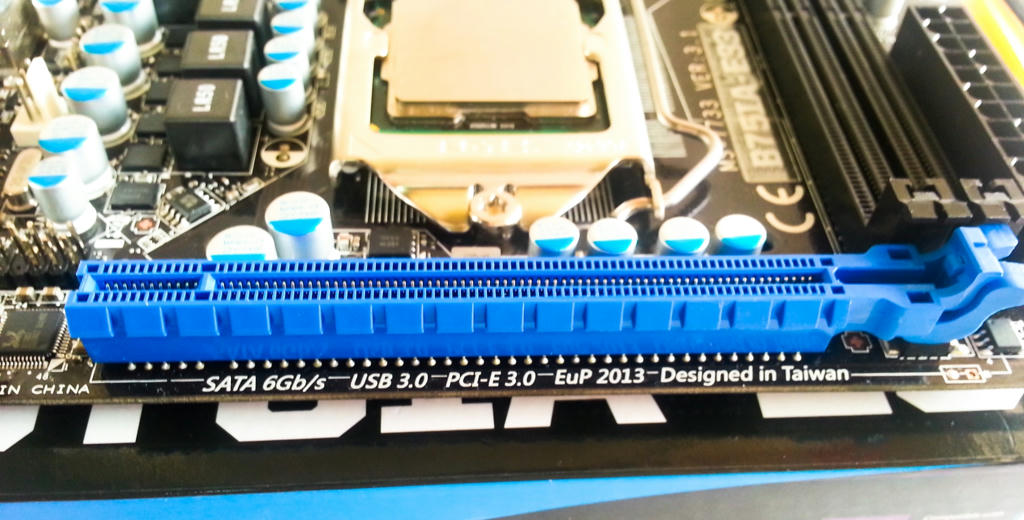

    1x PCI Express 3.0 x16
    Storage Interface:
    1 x SATA 6Gb/s
    3 x SATA 3Gb/s
    Form Factor: Mini-ITX


    Testing Spec:
    Intel Celeron G540 @2.50Ghz [Intel Stock Cooling]
    G.Skill F3-17000CL9D-8GBXLD [4gbx2]
    Hynix SSD 128Gb Sata 3
    FSP HEXA HE-500w
    Windows 7 64bits Ultimate [installed all update]
    -----------------------------------------------------------------------


    box:

    Font view:

    Back view:

    Side view:


    OC Genie II provides an instant performance boost, optimizing CPU, memory, integrated graphics, and storage device performance with the function enabled.


    Windows 8 Compatible!

    H77N-Wifi Accessory package:
    1x I/O Back Plate
    1x MB Driver Disc
    1x Manual Book
    1x Quick Guide book
    1x Sata3 Cable
    1x Sata2 Cable

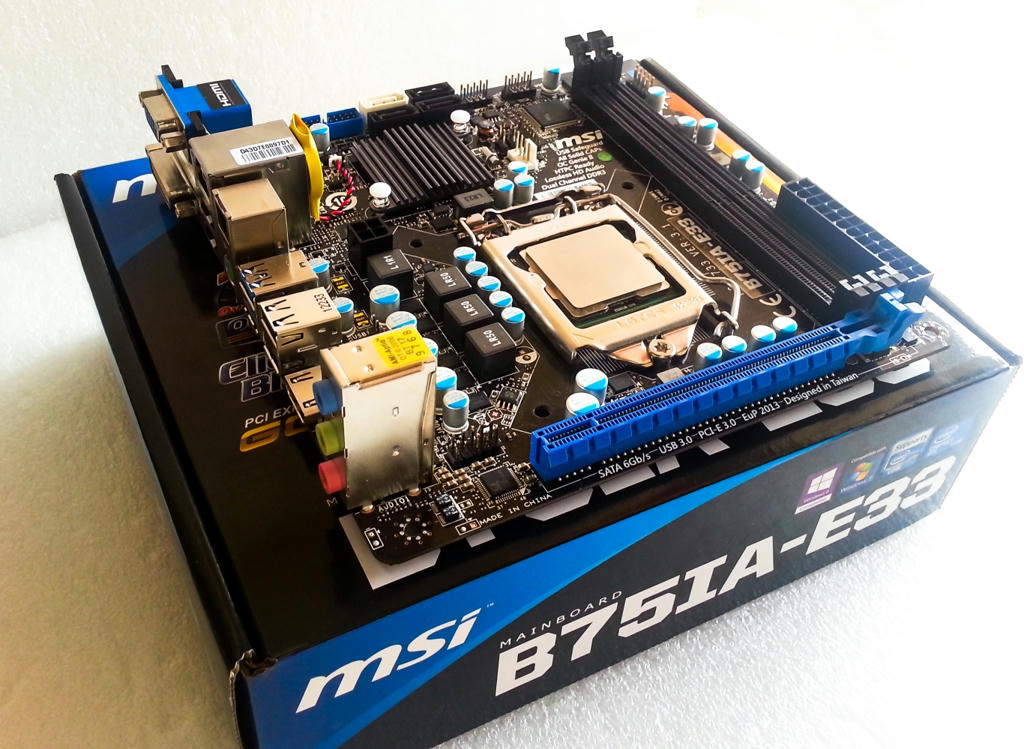

    Mainboard Side View:

    Mainboard Front View:

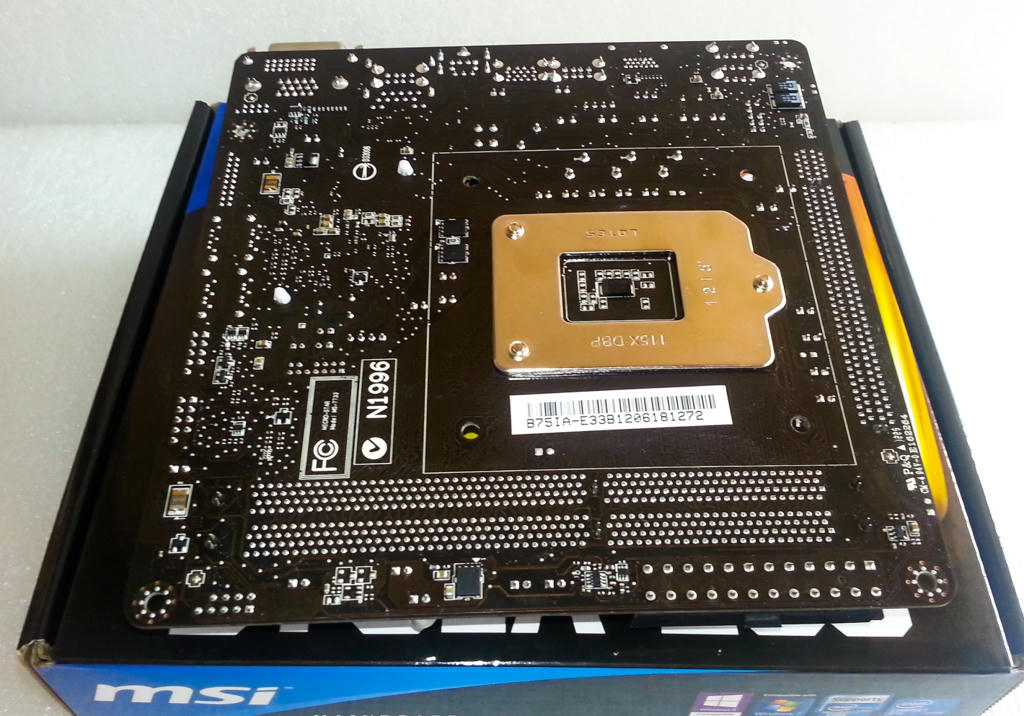

    Mainboard back View:

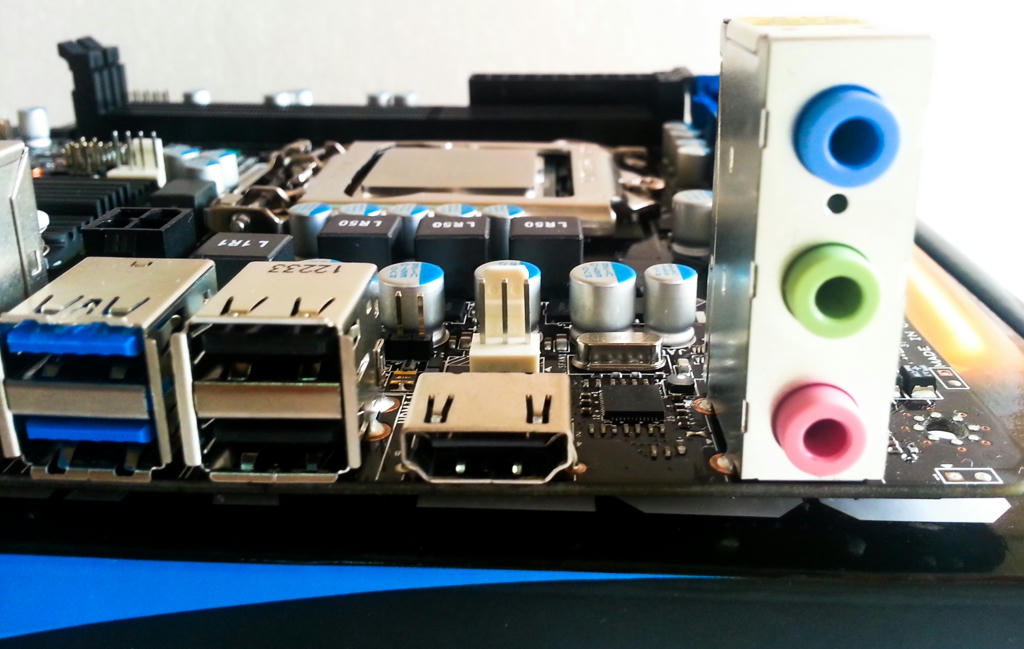

    I/O:

    Left:

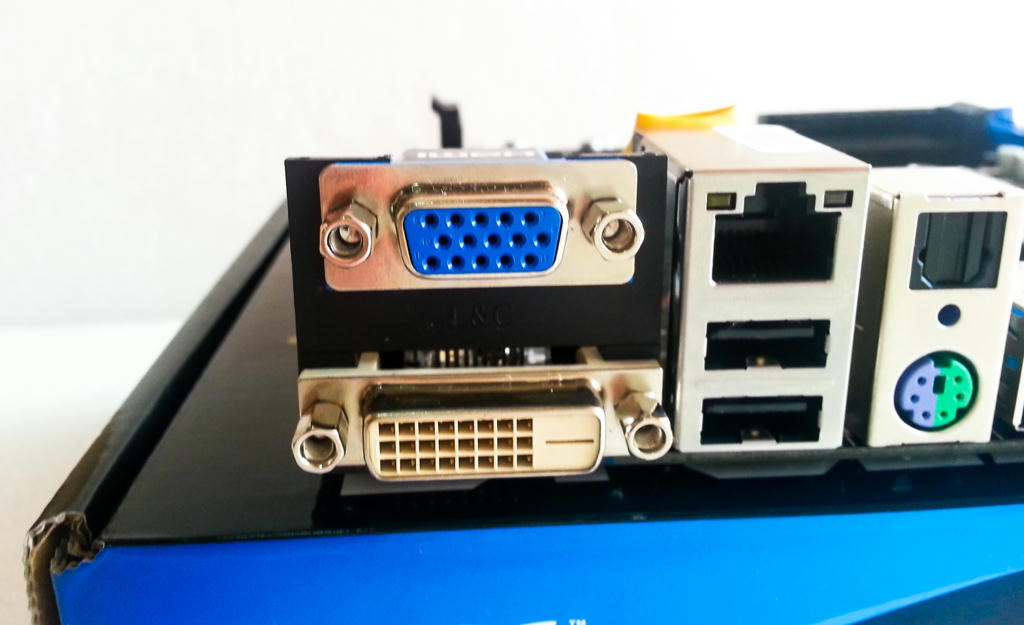

    1x D-Sub
    1X DVI
    1x Realtek RTL8111E GbE
    2x Intel USB 2.0
    1x S/PDIF Out
    1x P/S2 For Mouse or Keyboard

    Right:
    2x Intel USB 3.0
    2x Intel USB 2.0
    1x HDMI
    1x Audio port

    Mainboard Connector:

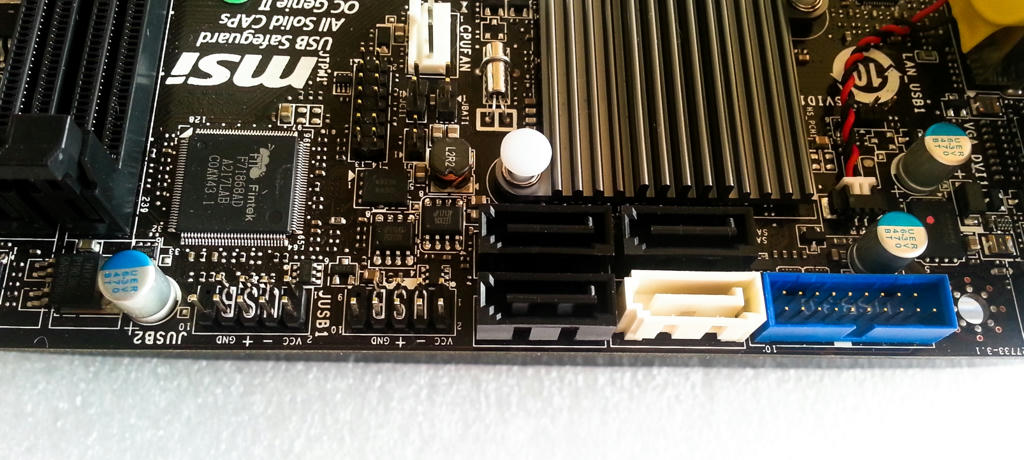

    3x Black Sata2 3gb/s
    1x White Sata3 6gb/s
    1x Intel USB 3.0 port

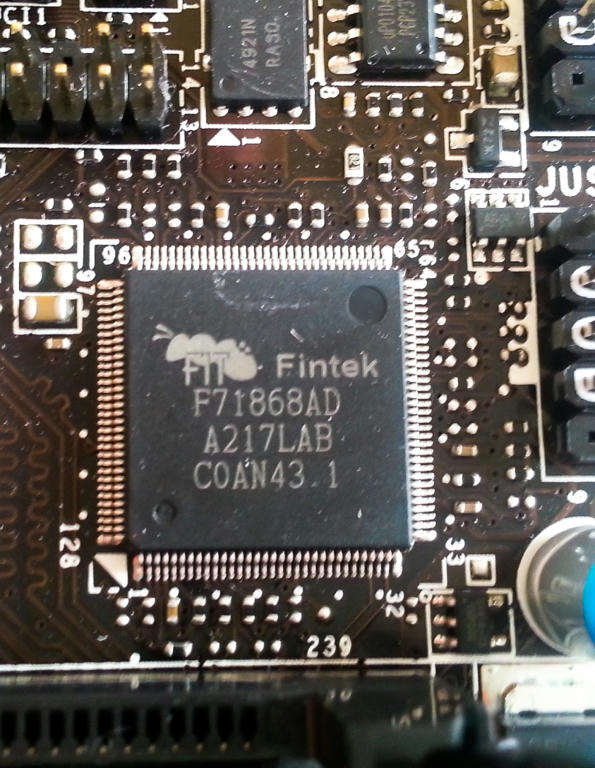

    Fintek F71868AD: voltage monitoring, controlling fan speeds, temperature monitoring and provides PS/2

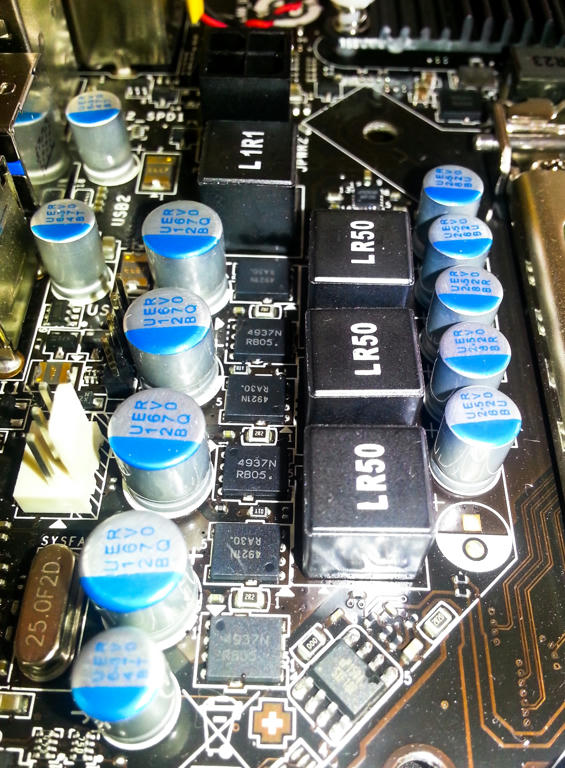

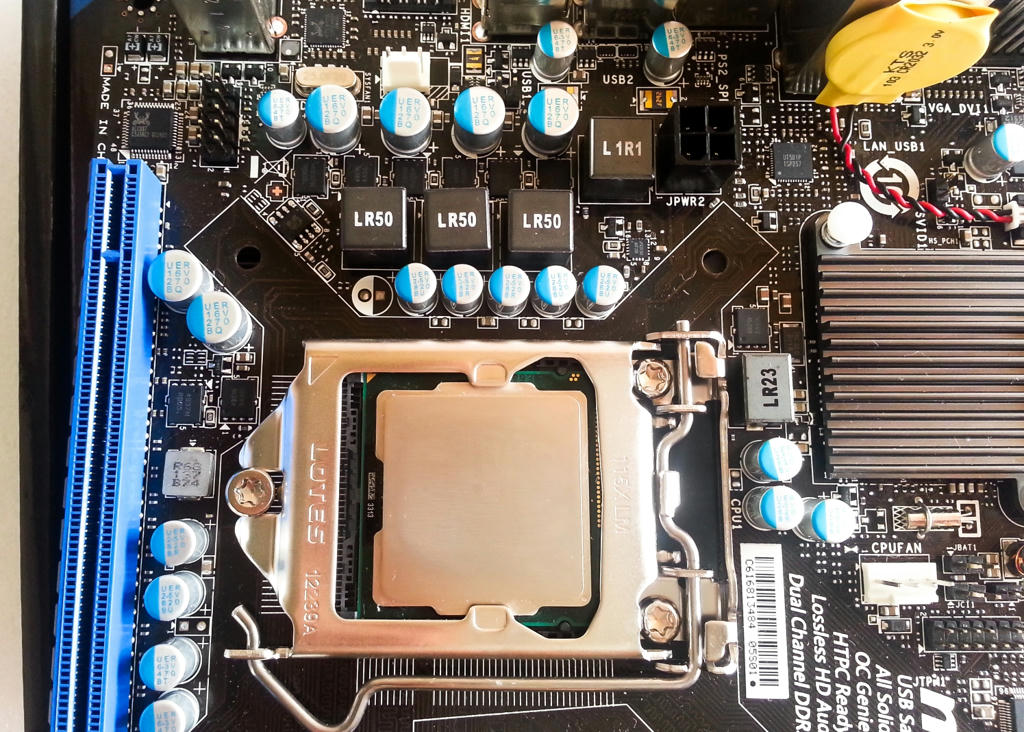

    B75IA-E33 used 3+1 Power Phase provides additional power to the ATX12V 4-pin and used CHEMI-CON Japanese Solid Capacitor

    MSI used High Quality Mosfets on their B75IA-E33 board
    Dual N-Channel HEXFET Power MOSFET: 4937N and 4931N

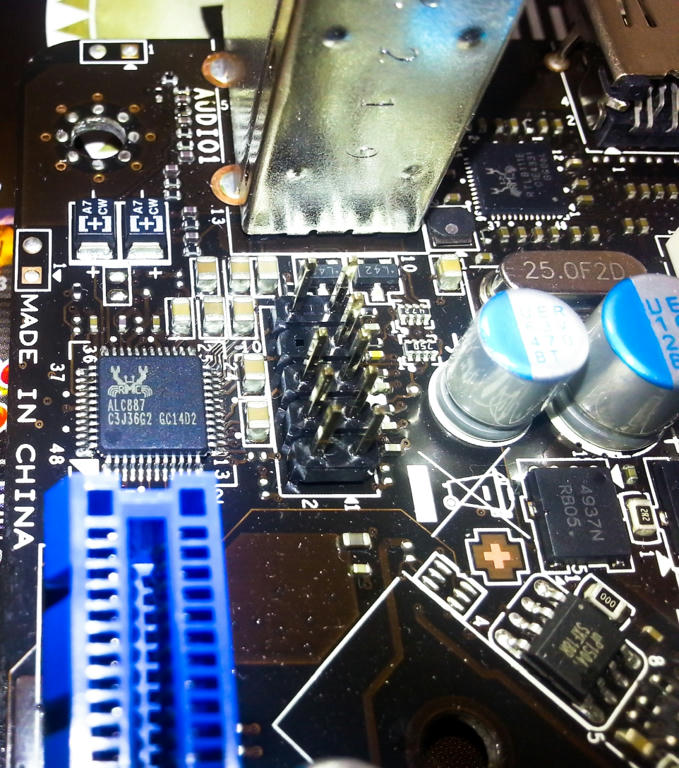

    Realtek ALC887 High Definition Audio Codec supporting 7.1-Channel

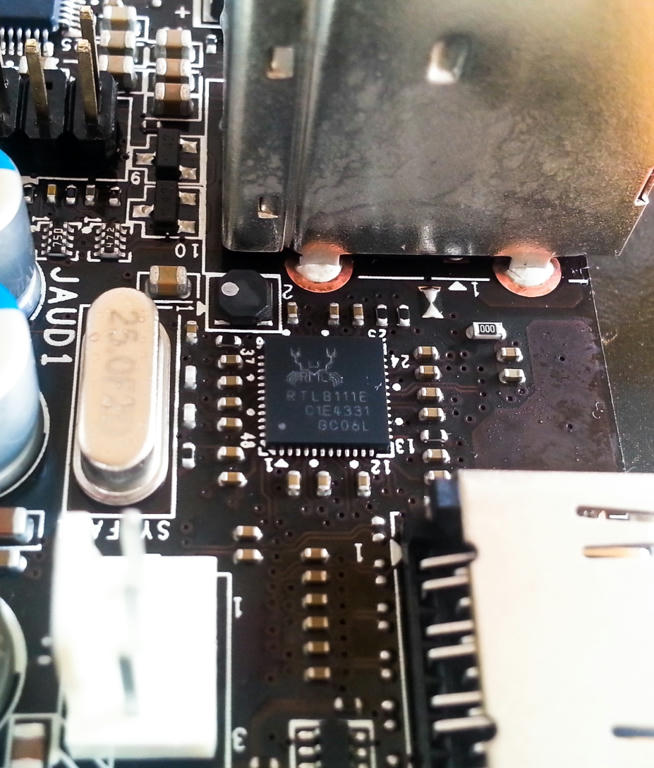

    Realtek RTL8111E Gigabit Lan

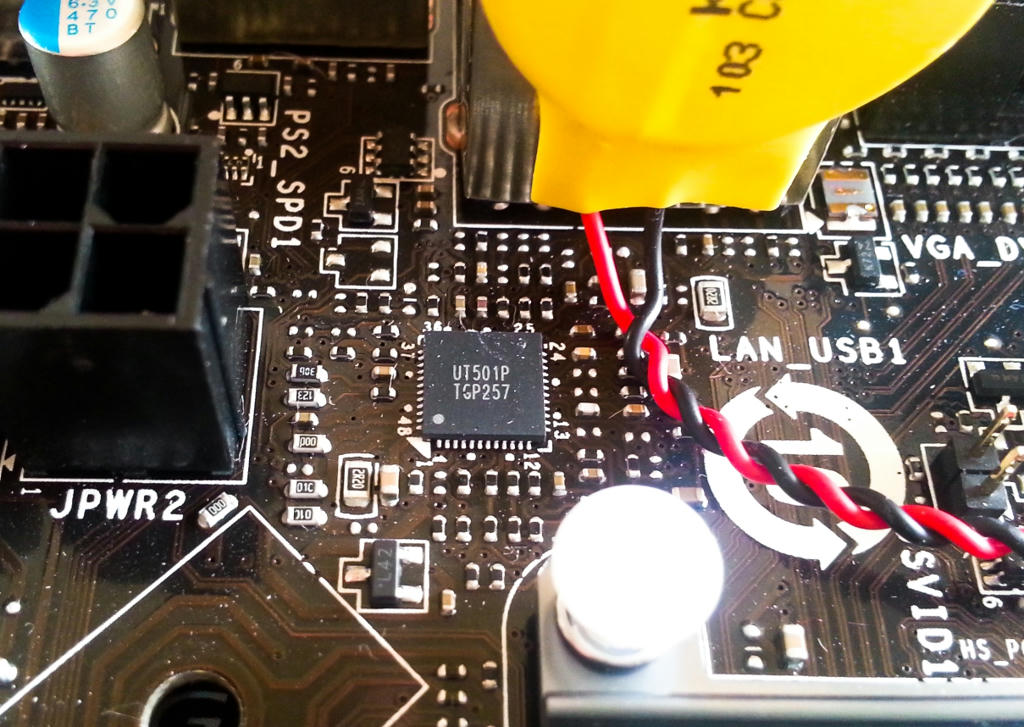

    UT501P PWM controller

    This time round MSI design an low cost Mini-ITX board feature full japanese soild Caps, HTPC ready and Lossless HD audio.

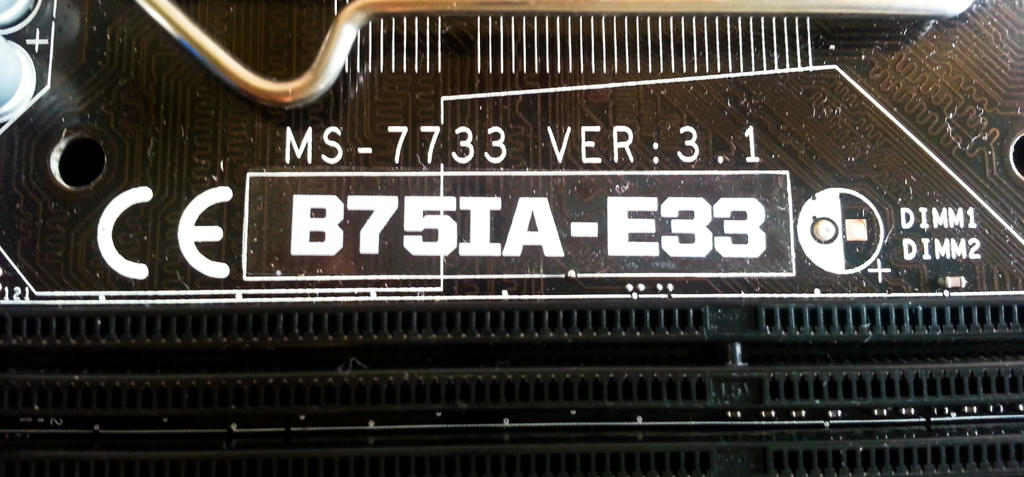

    Model: B75IA-E33

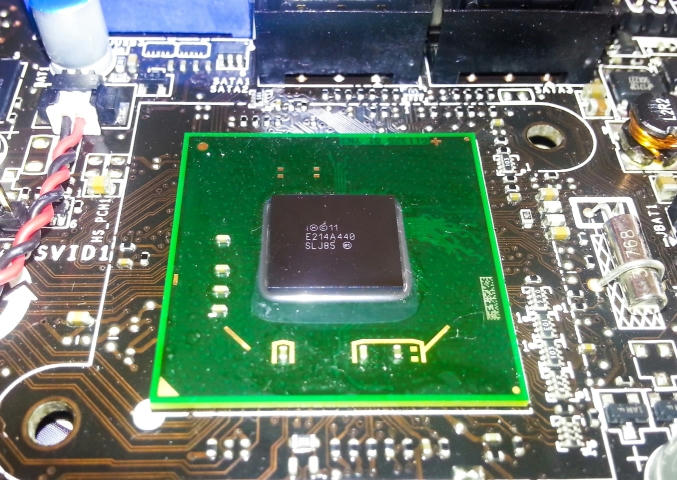

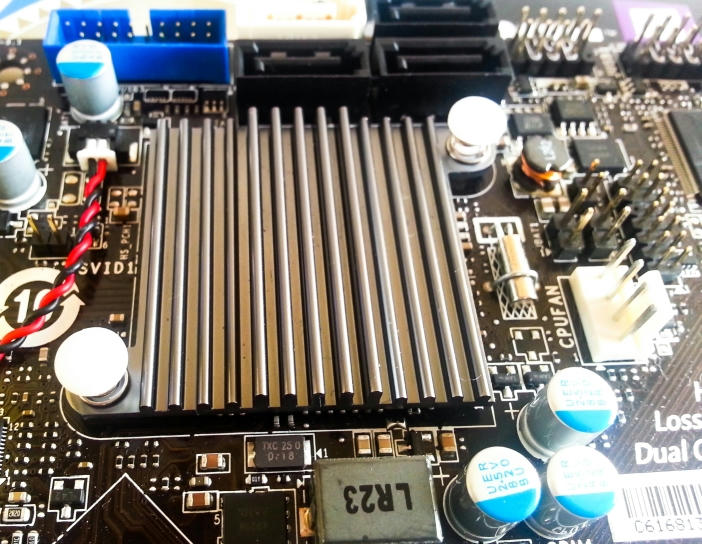

    PCH: Heat-Sink

    Intel B75 PCH Chipset

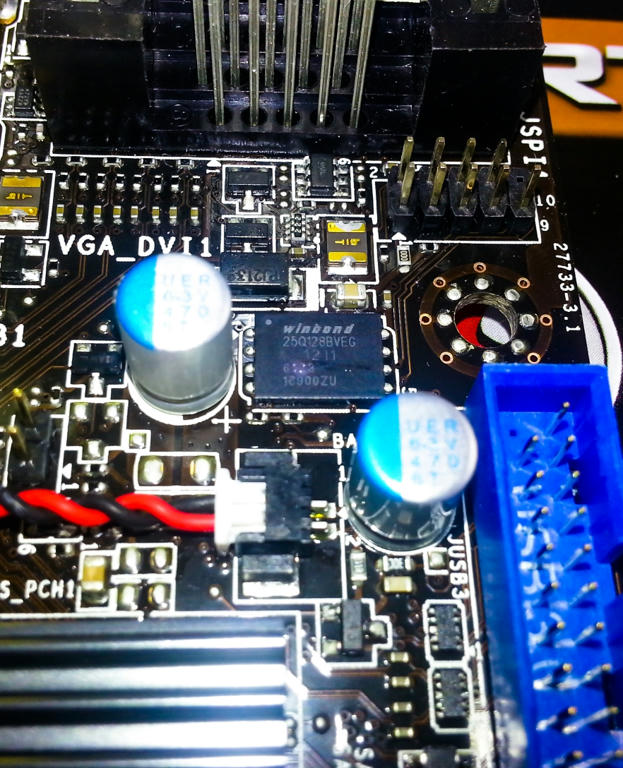

    B75IA-E33 board only has one UEFI Bios chip.
    Winbond 25Q128BVEG -8MB

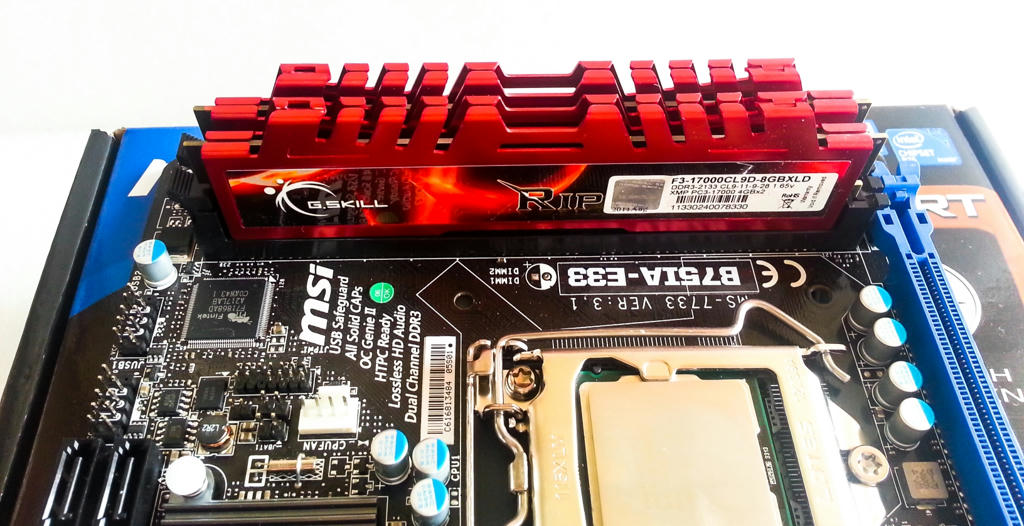

    This board only have 2Dimm DDR3

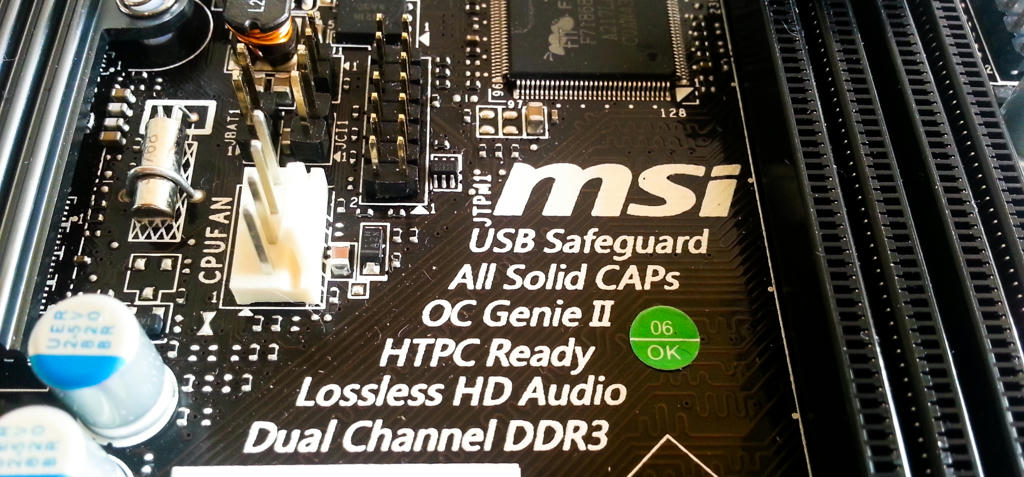

    Sata 6Gb/s l USB 3.0 l PCI-E 3.0 l EUP 2013 l Design In Taiwan


    Overview:

  2. #2
    Join Date
    Dec 2012
    Location
    Singapore
    Posts
    59

    Default Re: MSI B75IA-E33 [Mini-ITX] Review! Low Cost!

    Benchmark & Testing

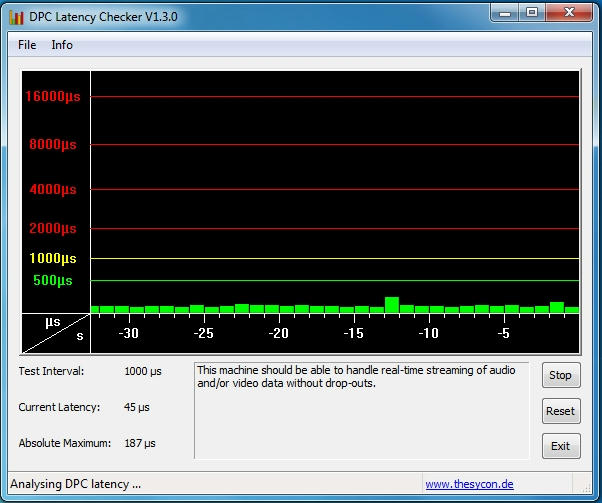

    DPC Lantency

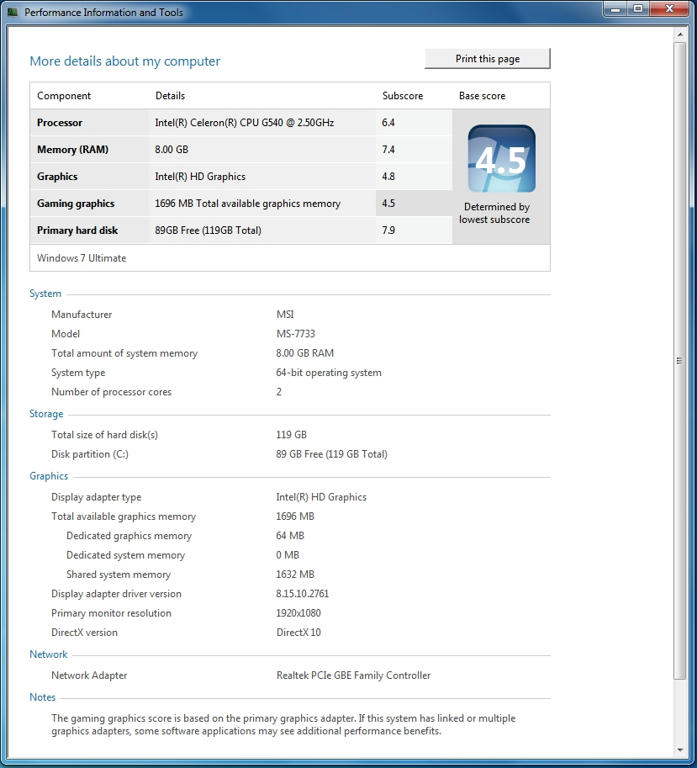

    Microsoft Windows 7 Experience Index

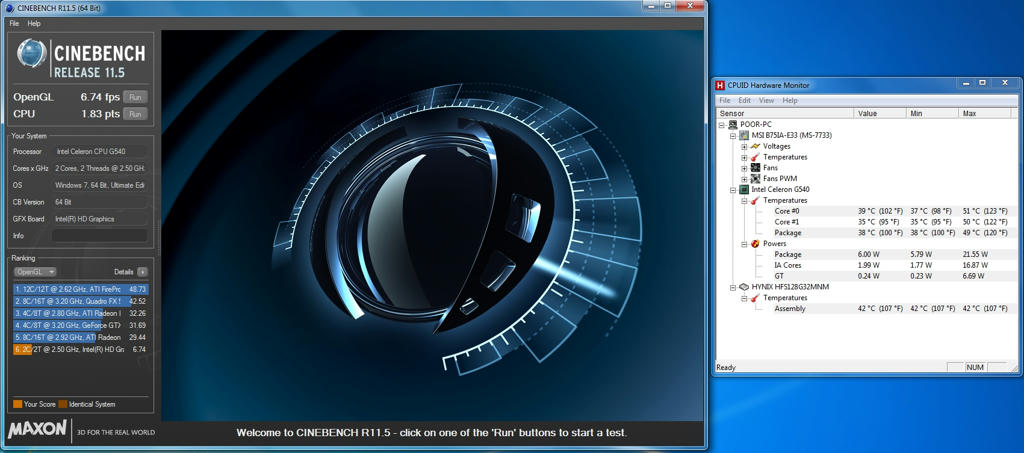

    Cinebench:

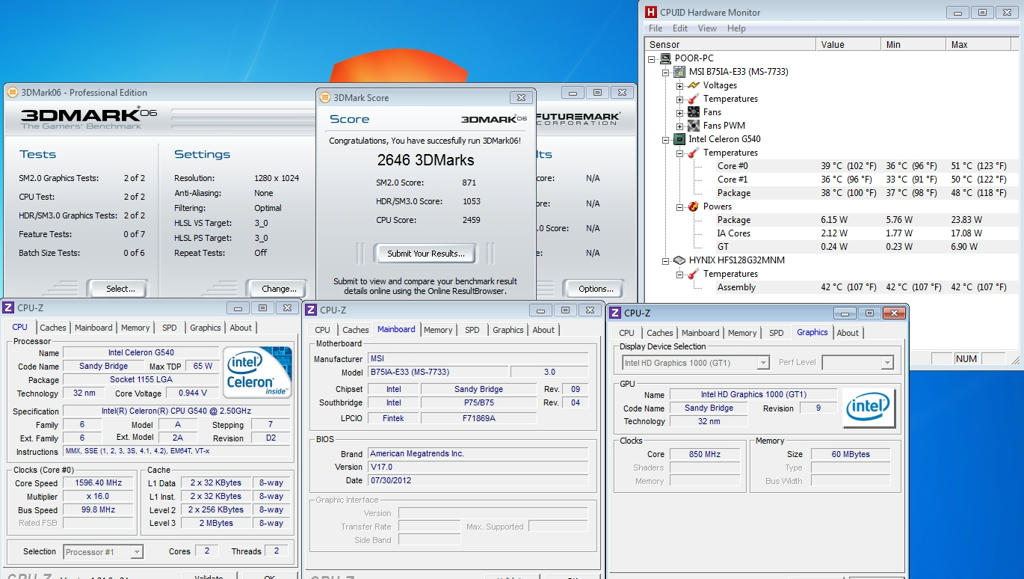

    3Dmark06 benchmark

    PCmark7 benchmark:

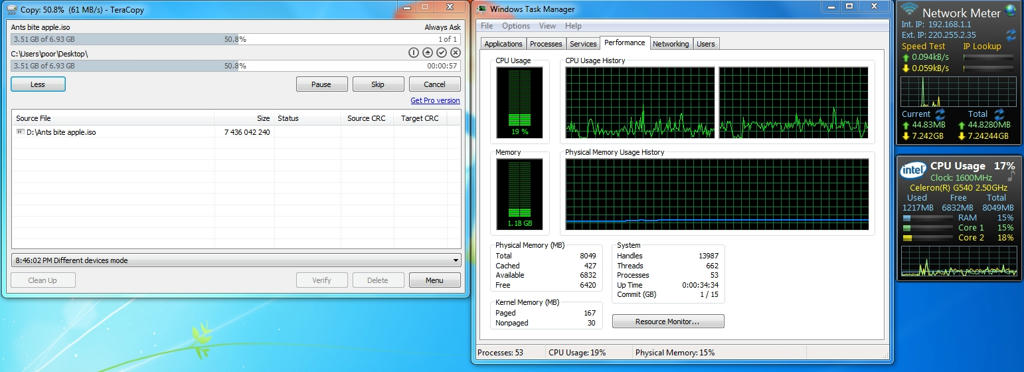

    Testing: Intel USB 3.0 Transfer 7.4Gb file @ 61Mb/s

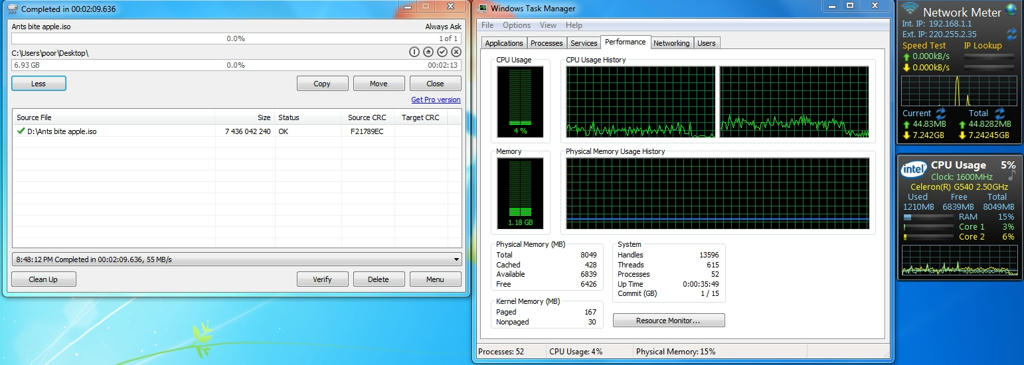

    Testing: Intel USB 3.0 Transfer Completed: 2mins and 9 seconds

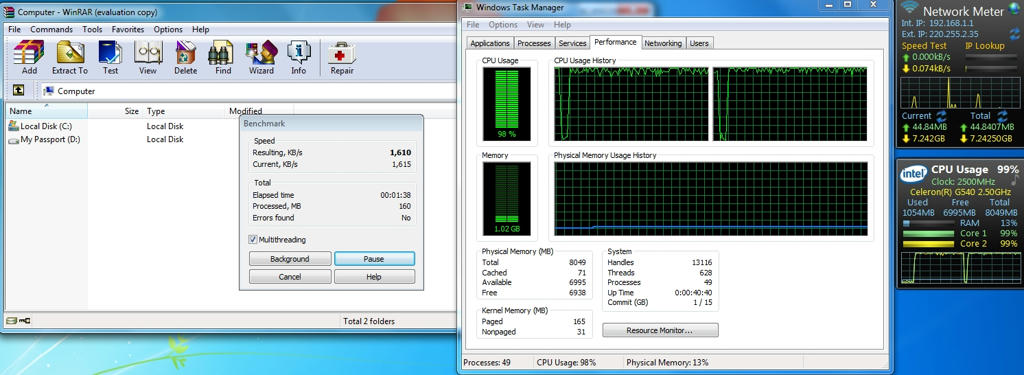

    WinRAR Benchmark:

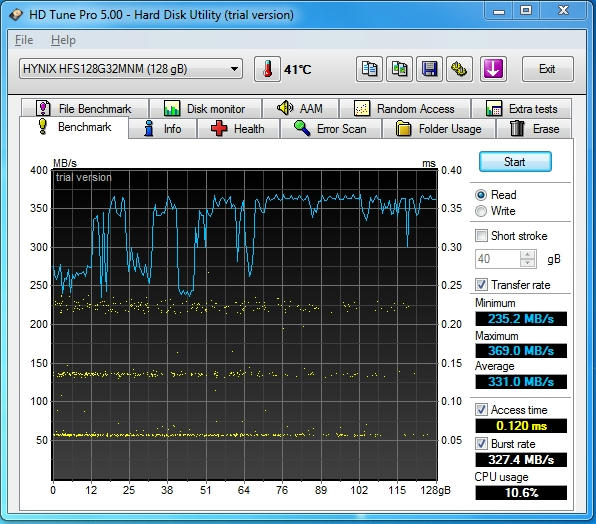

    HDTune Benchmark:
